Summary of Contents for CYP CPRO-16E

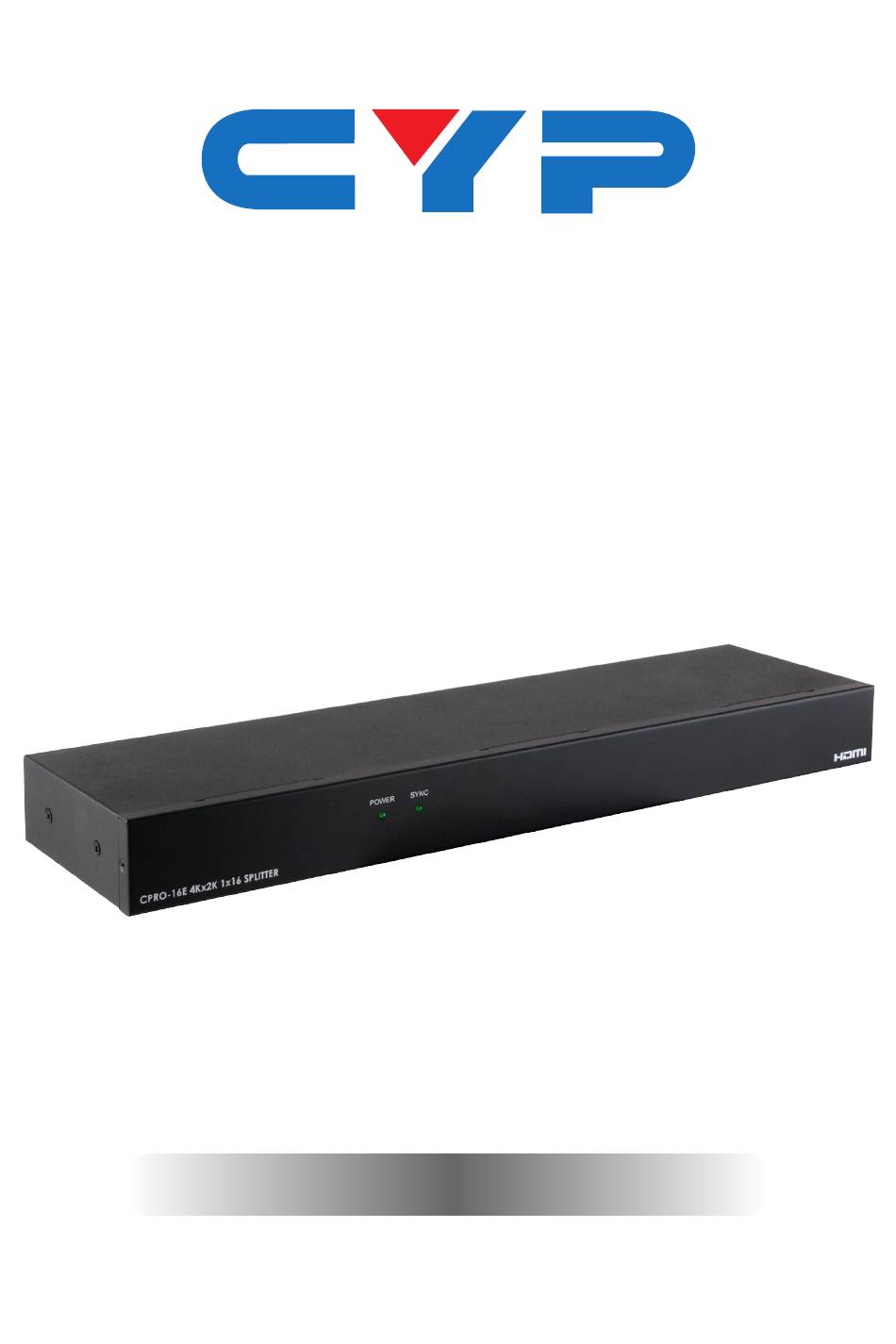

- Page 1 CPRO-16E 1×16 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This high performance 1 by 16 HDMI splitter distributes one HDMI input to up to sixteen simultaneous HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth it supports the latest HDMI standards so you can be sure of superior HDMI distribution. -
Page 7: Features
5. FEATURES • HDMI and DVI compatible • Fully HDCP compliant • Supports 3D • Supports HDTV resolutions up to 4K×2K@30 Hz • Supports PC Resolutions of VGA to WUXGA • Supports 1080p@60 Hz, Deep Color 12-bit • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC CPRO-16E 4Kx2K 1x16 SPLITTER POWER LED: The power LED will illuminate when the unit is powered. SYNC LED: The LED will illuminate when the HDMI source signal is connected to the input port. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM TVs/Projectors Simultaneous HDMI Outputs Blu-ray Player Power INPUT OUTPUT DC 5V Supply EDID SERVICE HDMI Input Simultaneous HDMI Outputs TVs/Projectors... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Input Port 1×HDMI (Female connector), 1×USB (Manufacturer use only) Output Ports 16×HDMI (Female connector) Output Resolutions 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, Ultra HD (4K×2K@30) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 436 mm (W)×26 mm (D)×48 mm (H) Weight... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPRO16E...
