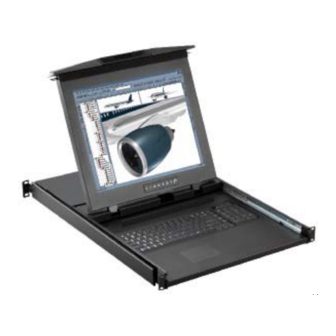

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD D117 / D119 1U Dual Slide LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-D117-Q414V1 www.austin-hughes.com...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-D117-Q414V1 www.austin-hughes.com...
-
Page 4: Table Of Contents
Contents < Part. 1 > D117 / D119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.7 - 8 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.10... - Page 5 -MIP1613 -MIP824 -MIP1624 -M802 -M1602 -M803 -M1603 -M804 -M1604 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-D117-Q414V1 www.austin-hughes.com...
-
Page 6: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-D117-Q414V1 www.austin-hughes.com... -
Page 7: Package Content
< Part 1 > < 1.1 > Package Content D117 / 119 D117 or D119 unit X 1 - CE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 8 Weight Weight 441.6 x 650 x 44 mm 595 x 860 x 140 mm 12.6 kg 18.4 kg D117 series 17.4 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 27.7 lb 40.5 lb 441.6 x 650 x 44 mm 595 x 860 x 140 mm 13.2 kg...
-
Page 9: Installation
< 1.3 > Installation - How to install Installation Slides D117 / 119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. - Page 10 < 1.3 > Installation - How to Use the Dual Slides ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-D117-Q414V1 www.austin-hughes.com...
- Page 11 < 1.3 > Installation - How to Use the Dual Slides D117 / 119 ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position.
-
Page 12: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-D117-Q414V1 www.austin-hughes.com... -
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations D117 / 119 D117 D119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 14 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical D117 D119 Specifi cation Product ( W x D x H ) 441.6 x 650 x 44 mm 441.6 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch 17.4 x 25.6 x 1.73 inch...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations D117 / 119 G keyboard integrated with touchpad 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC... -
Page 16: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer P.10 UM-CV-751-D117-Q414V1 www.austin-hughes.com... - Page 17 < Part 3 > < 3.1 > Options : D117 / 119 ( HDMI 1.1, CEA-861-D ) - HDMI - DVI-D ( DVI-D TMDS single link ) ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio For dual slide 1U / 2U LCD console drawer, the user can only select one of the above four options.
- Page 18 4950 mA 2450 mA 1220 mA 993 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A 8.4A Effi ciency DC power Option excludes 1 x power cord and 1 x AC power adapter P.12 UM-CV-751-D117-Q414V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-D117-Q414V1 www.austin-hughes.com...
