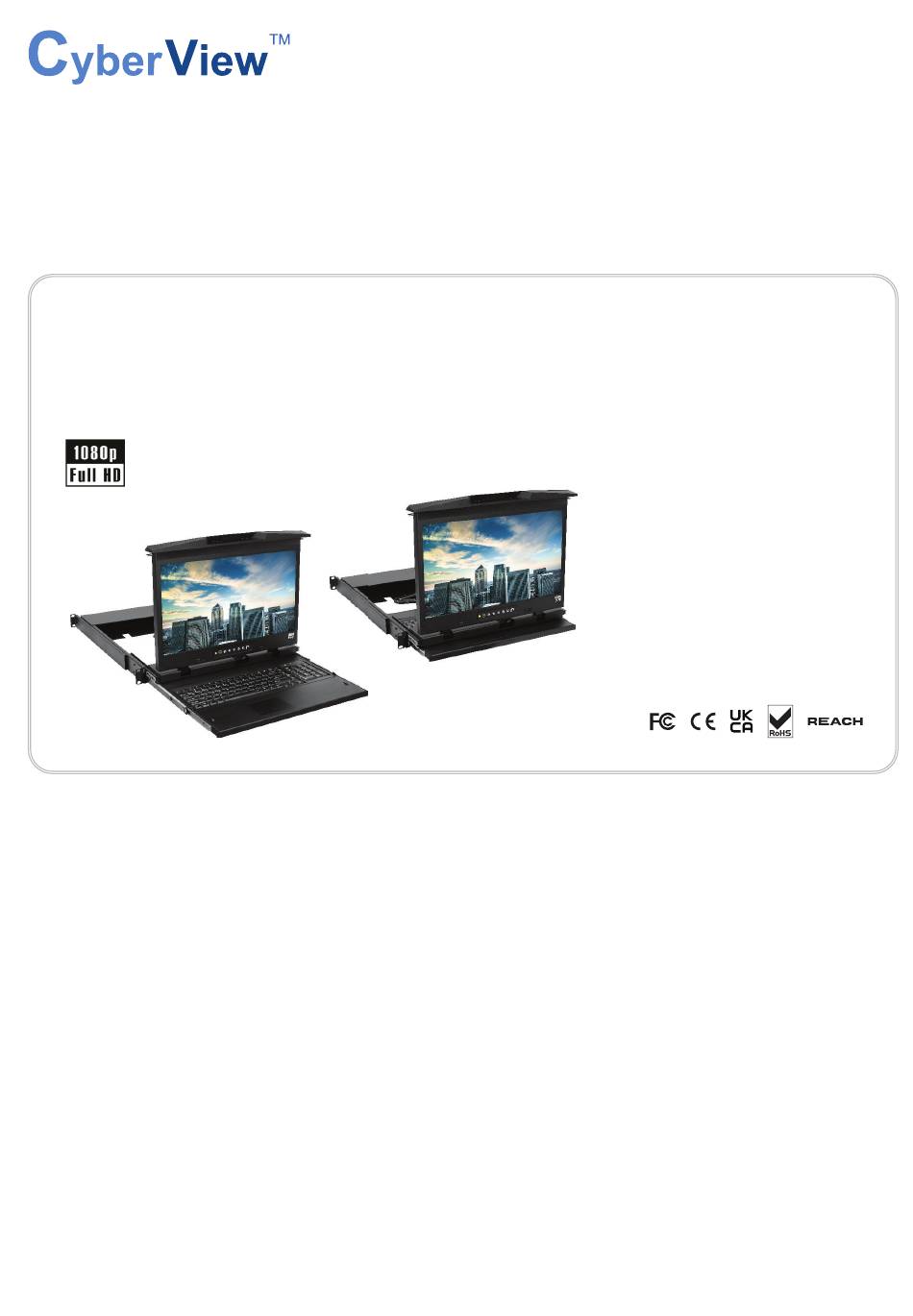

User Manual
DF1417
1920 x 1080 native resolution
1U Dual Slide Ultra Short Depth
LCD Console Drawer
Designed and manufactured by Austin Hughes
UM-CV-751-DF1417-Q322V1
dedicated KVM switch and rackmount screen technology
17" FHD 1080p LCD
Ultra short depth
480mm / 18.9"
Options :
- SDI
- DC power
www.austin-hughes.com
751
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CyberView DF1417
Summary of Contents for CyberView DF1417
- Page 1 KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD DF1417 1920 x 1080 native resolution 1U Dual Slide Ultra Short Depth LCD Console Drawer Options : - SDI - DC power Ultra short depth 480mm / 18.9″...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-DF1417-Q322V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > DF1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations Video connectivity P.12 On-screen Display Operation ( OSD ) P.13 <... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-DF1417-Q322V1 www.austin-hughes.com...
-
Page 5: Df1417
< Part 1 > < 1.1 > Package Content DF1417 DF1417 unit X 1 - 6ft HDMI cable X 1 - 6ft USB cable X 2 - 4A power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 (W x D x H) Weight 441.6 x 480 x 44.5 mm 590 x 622 x 140 mm 10.6 kg 15.6 kg DF1417 17.4 x 18.9 x 1.75 inch 23.2 x 24.5 x 5.5 inch 23.4 lb 34.4 lb UM-CV-751-DF1417-Q322V1...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides DF1417 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 < 1.3 > Installation - How to Use the Dual Slides ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-DF1417-Q322V1 www.austin-hughes.com...
- Page 9 < 1.3 > Installation - How to Use the Dual Slides DF1417 ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position.
-
Page 10: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-DF1417-Q322V1 www.austin-hughes.com... -
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations DF1417 Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 12 1280 x 1024 x 60Hz 1280 x 768 x 60Hz 1280 x 720 x 60Hz 1152 x 864 x 60Hz 1024 x 768 x 60Hz 800 x 600 x 60Hz 640 x 480 x 60Hz Audio Signal 2ch Linear PCM UM-CV-751-DF1417-Q322V1 www.austin-hughes.com...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations DF1417 G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS... - Page 14 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Eject disc Rewind Command Play / Pause UM-CV-751-DF1417-Q322V1 P.10 www.austin-hughes.com...
- Page 15 < 2.2 > SUN Keyboard / Mouse Options DF1417 S keyboard integrated with touchpad Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 16: Video Connectivity
; others will be OFF • LED light will be if no video signal input • To auto adjust under VGA mode, by pressing the VGA button 3 ~ 5 seconds to confi rm UM-CV-751-DF1417-Q322V1 P.12 www.austin-hughes.com... -
Page 17: On-Screen Display Operation ( Osd )
< 2.4 > On-screen Display Operation ( OSD ) DF1417 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control... - Page 18 : Auto / Line in / DP Volume : Adjust the volume of sound Sleep mode : Set the off time - 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min UM-CV-751-DF1417-Q322V1 P.14 www.austin-hughes.com...
- Page 19 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-DF1417-Q322V1 P.16 www.austin-hughes.com...
