Summary of Contents for CyberView DX117

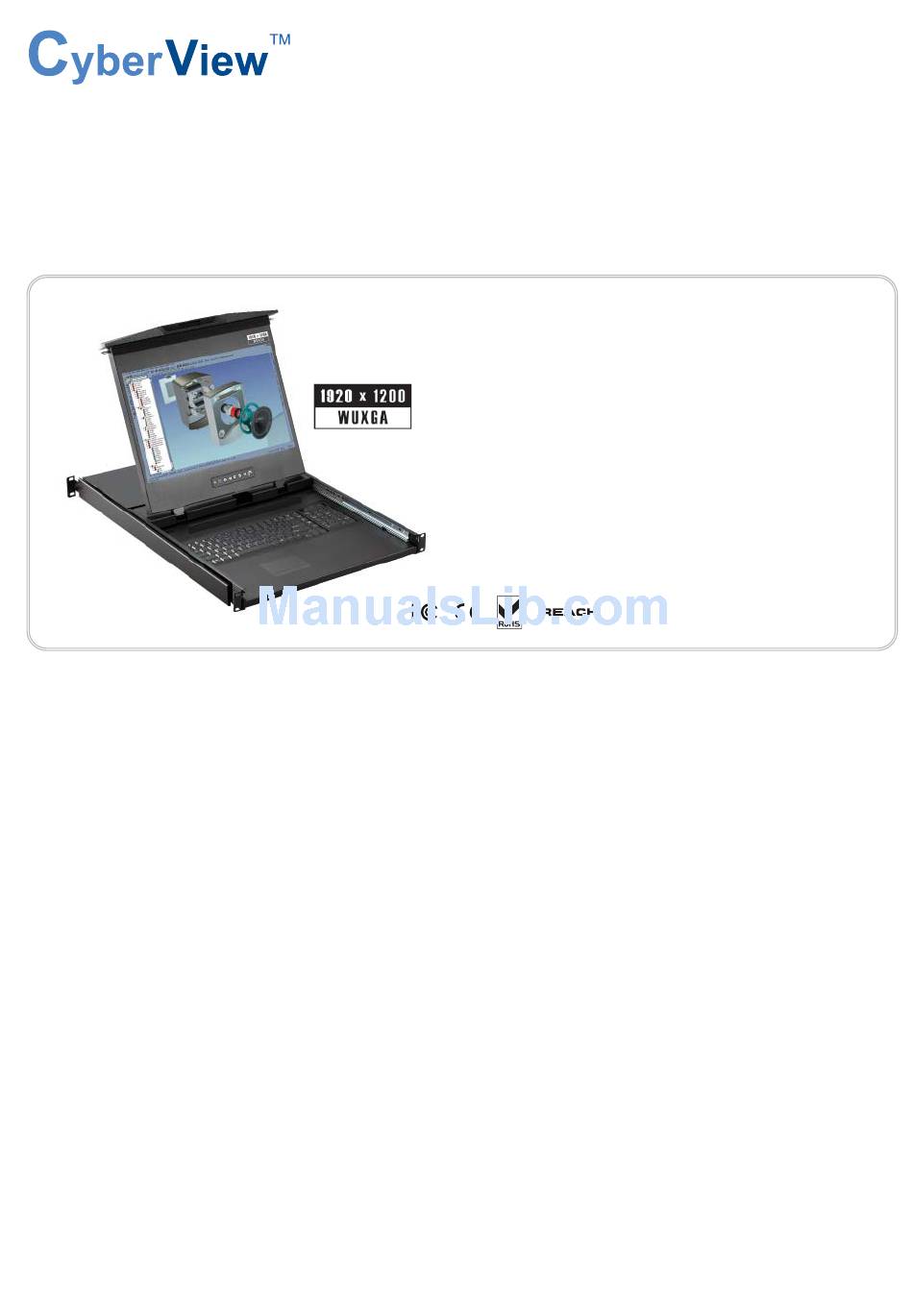

- Page 1 KVM switch and rackmount screen technology User Manual 17” Ultra High Resolution LCD 1920 x 1200 DX117 1U Dual Slide LCD Console Drawer Options : - SDI - AV / HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > DX117 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 12... - Page 4 -MIP1613 -MIP824 -MIP1624 -M802 -M1602 -M803 -M1603 -M804 -M1604 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-DX117-Q414V2 www.austin-hughes.com... -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content DX117 unit X 1 - CX-6 6ft DVI-D console cable X 1 ( Alternative : CB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 Weight 441.6 x 650 x 44 mm 595 x 860 x 140 mm 12 kg 18 kg DX117 series 17.4 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 26.4 lb 39.6 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI, AV, audio &...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-DX117-Q414V2 www.austin-hughes.com... - Page 9 < 1.3 > Installation - How to Use the Dual Slides DX117 ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
- Page 10 < 1.3 > Installation - How to Use the Dual Slides ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position. UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via CX-6 cable DX117 LCD Console Drawer Power DVI-D CX-6 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6 cable LCD Console Drawer Power DVI-D KVM CX-6 DVI-D... - Page 12 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
-
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations DX117 Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 14 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations DX117 G keyboard integrated with touchpad 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC... - Page 16 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Rewind Eject disc Play / Pause Command P.11 UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
- Page 17 < 2.2 > SUN Keyboard / Mouse Options DX117 S keyboard integrated with touchpad Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 18: On-Screen Display Operation ( Osd )
Clock : Adjust the clock value Phase : Adjust the phase value H. Position : Align the screen image left or right V. Position : Align the screen image up or down P.13 UM-CV-751-DX117-Q414V2 www.austin-hughes.com... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) DX117 Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble :...
- Page 20 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 21 DX117 < 3.2 > Options : ( HDMI 1.1, CEA-861-D ) - HDMI ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio For dual slide 1U / 2U LCD console drawer, the user can only select one of the above four options.
- Page 22 2450 mA 1220 mA 993 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A 8.4A Effi ciency DC power DVI-D Option excludes 1 x power cord and 1 x AC power adapter P.17 UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-DX117-Q414V2 www.austin-hughes.com...
