Summary of Contents for CyberView D117

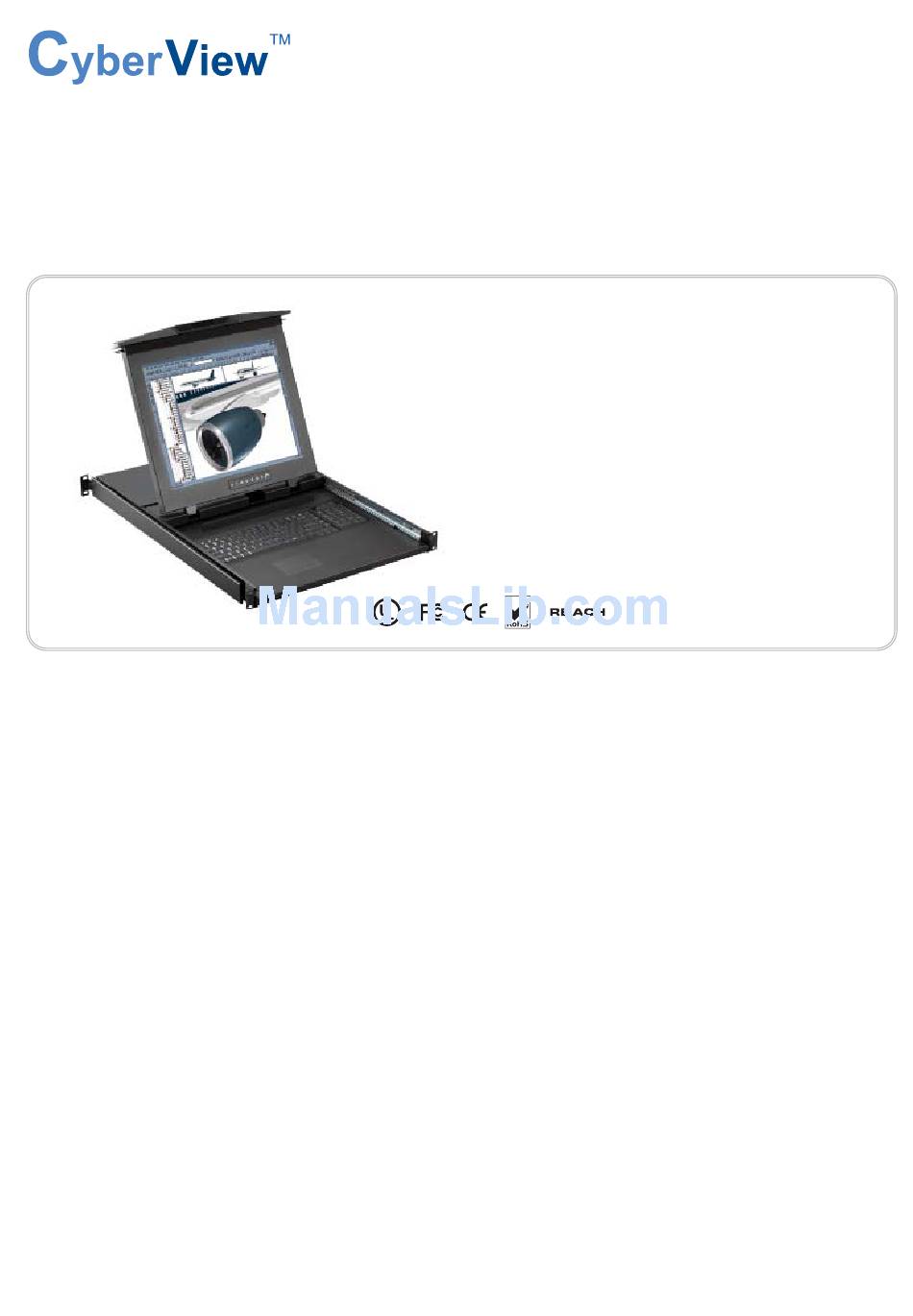

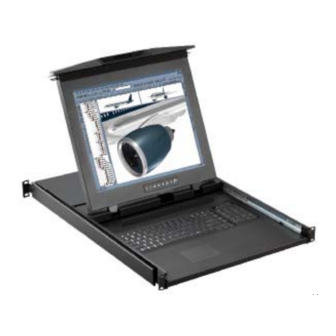

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD D117 / D119 1U Dual Slide LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-D117-Q217V3...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-D117-Q217V3 www.austin-hughes.com...
-
Page 4: Table Of Contents
Contents < Part. 1 > D117 / D119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10... -
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-D117-Q217V3 www.austin-hughes.com... -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content D117 or D119 unit X 1 - CB-6 6ft VGA console cable X 1 ( Alternative for PS/2 KB / MS : CE-6 6ft Combo KVM cable ) - Power cord X 1 - M6 screw, cage nut &... - Page 7 < 1.2 > Dimension D117 / 119 Front View Rear View Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 650 x 44 mm...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-D117-Q217V3 www.austin-hughes.com... - Page 9 < 1.3 > Installation - How to Use the Dual Slides D117 / 119 ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer.
- Page 10 < 1.3 > Installation - How to Use the Dual Slides ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position. UM-CV-751-D117-Q217V3 www.austin-hughes.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via CB-6 cable D117 / 119 LCD Console Drawer CB-6 VGA console cable USB server < 1.4 > Connection to external KVM via CB-6 cable LCD Console Drawer CB-6 VGA console cable USB console KVM... - Page 12 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-D117-Q217V3 www.austin-hughes.com...
-
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations D117 / 119 D117 D119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 14 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical D117 D119 Specifi cation Product ( W x D x H ) 441.6 x 650 x 44 mm 441.6 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch 17.4 x 25.6 x 1.73 inch...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations D117 / 119 G keyboard integrated with touchpad 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life Windows / Linux / Unix / Mac OS... -
Page 16: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer P.11 UM-CV-751-D117-Q217V3 www.austin-hughes.com... -
Page 17: Part. 3 > Options
< Part 3 > < 3.1 > Options : D117 / 119 ( HDMI 1.2, CEA-861-D - HDMI - DVI-D ( DVI-D TMDS single link ( S-Video + Composite, BNC ) - AV ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 18 4.16A 4.16A 6.25A 12.5A Effi ciency DC power For DC power option : ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. P.13 UM-CV-751-D117-Q217V3 www.austin-hughes.com...
-
Page 19: Part. 4 > Kvm Integration
< Part. 4 > KVM Integration D117 / 119 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Local Remote 8-port 16-port 32-port Matrix Cat6 KVM -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo Cat6 KVM -UIP802 -UIP1602 -UIP3202... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2017 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-D117-Q217V3 www.austin-hughes.com...
