DETAILED ASSEMBLY
PROCEDURE
Fig. 4
Fig. 5
Fig. 6
Fig. 7
®
UNITRON
(continued)
73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com
EXAMET-4 SERIES MICROSCOPE

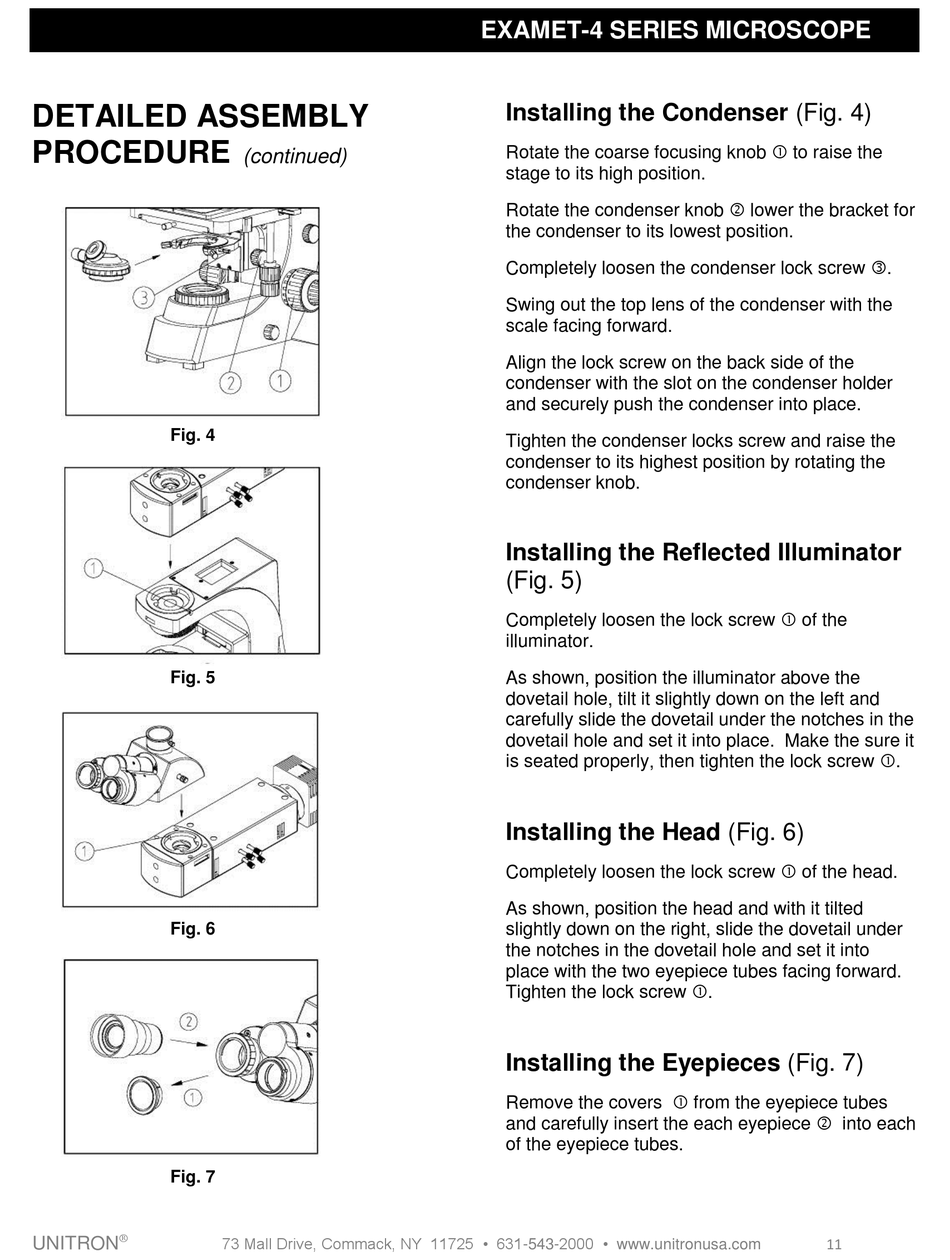

Installing the Condenser (Fig. 4)
Rotate the coarse focusing knob  to raise the
stage to its high position.
Rotate the condenser knob  lower the bracket for
the condenser to its lowest position.
Completely loosen the condenser lock screw .
Swing out the top lens of the condenser with the
scale facing forward.
Align the lock screw on the back side of the
condenser with the slot on the condenser holder
and securely push the condenser into place.
Tighten the condenser locks screw and raise the
condenser to its highest position by rotating the
condenser knob.
Installing the Reflected Illuminator
(Fig. 5)
Completely loosen the lock screw  of the
illuminator.
As shown, position the illuminator above the
dovetail hole, tilt it slightly down on the left and
carefully slide the dovetail under the notches in the
dovetail hole and set it into place. Make the sure it
is seated properly, then tighten the lock screw .
Installing the Head (Fig. 6)
Completely loosen the lock screw  of the head.
As shown, position the head and with it tilted
slightly down on the right, slide the dovetail under
the notches in the dovetail hole and set it into
place with the two eyepiece tubes facing forward.
Tighten the lock screw .
Installing the Eyepieces (Fig. 7)
Remove the covers  from the eyepiece tubes
and carefully insert the each eyepiece  into each
of the eyepiece tubes.
