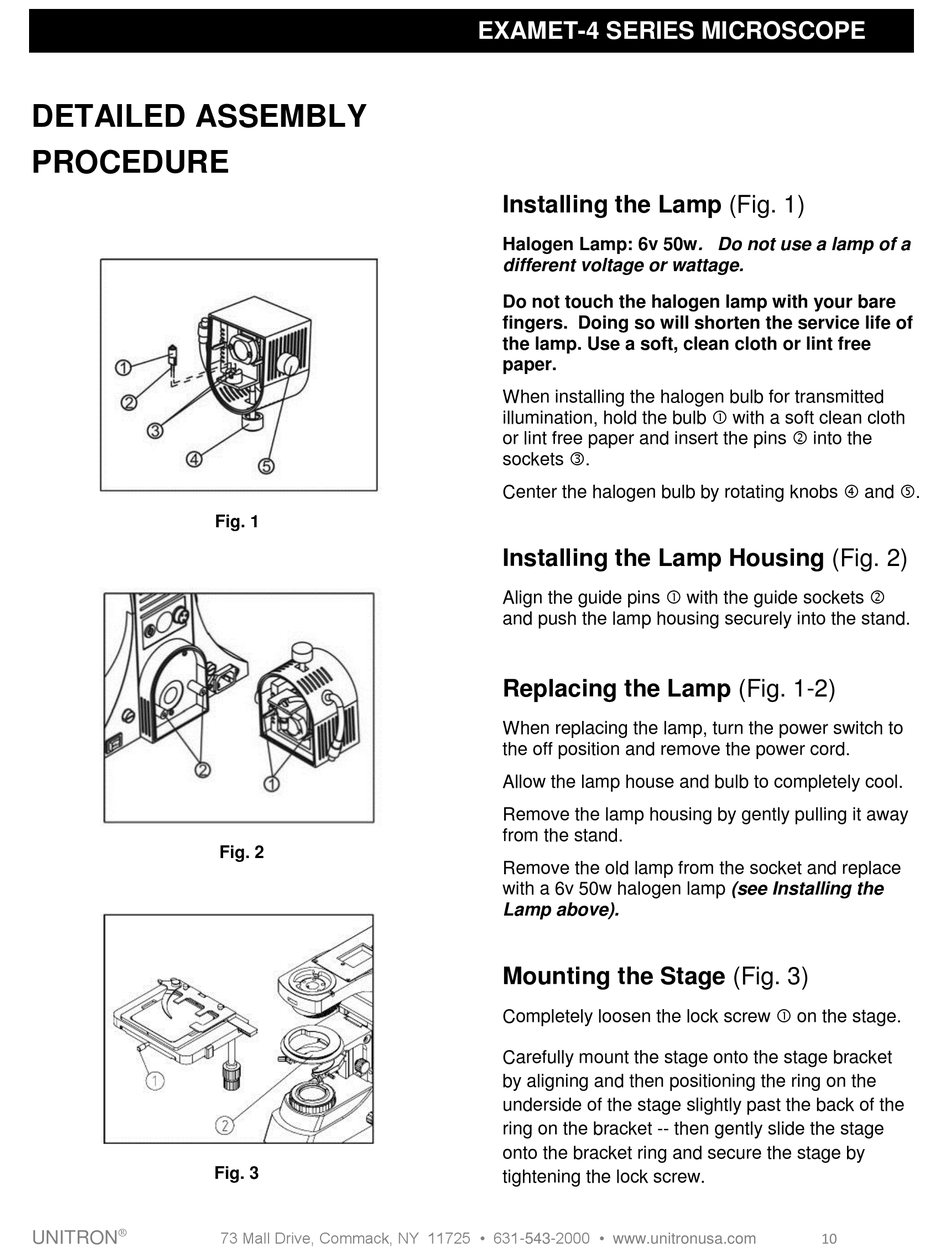

DETAILED ASSEMBLY
PROCEDURE
®
UNITRON
Fig. 1
Fig. 2
Fig. 3
73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com
EXAMET-4 SERIES MICROSCOPE
Installing the Lamp (Fig. 1)
Halogen Lamp: 6v 50w. Do not use a lamp of a
different voltage or wattage.
Do not touch the halogen lamp with your bare
fingers. Doing so will shorten the service life of
the lamp. Use a soft, clean cloth or lint free
paper.
When installing the halogen bulb for transmitted
illumination, hold the bulb  with a soft clean cloth
or lint free paper and insert the pins  into the
sockets .
Center the halogen bulb by rotating knobs  and .
Installing the Lamp Housing (Fig. 2)
Align the guide pins  with the guide sockets 
and push the lamp housing securely into the stand.
Replacing the Lamp (Fig. 1-2)
When replacing the lamp, turn the power switch to
the off position and remove the power cord.
Allow the lamp house and bulb to completely cool.
Remove the lamp housing by gently pulling it away
from the stand.
Remove the old lamp from the socket and replace
with a 6v 50w halogen lamp (see Installing the
Lamp above).
Mounting the Stage (Fig. 3)
Completely loosen the lock screw  on the stage.
Carefully mount the stage onto the stage bracket
by aligning and then positioning the ring on the
underside of the stage slightly past the back of the
ring on the bracket -- then gently slide the stage
onto the bracket ring and secure the stage by
tightening the lock screw.
10
