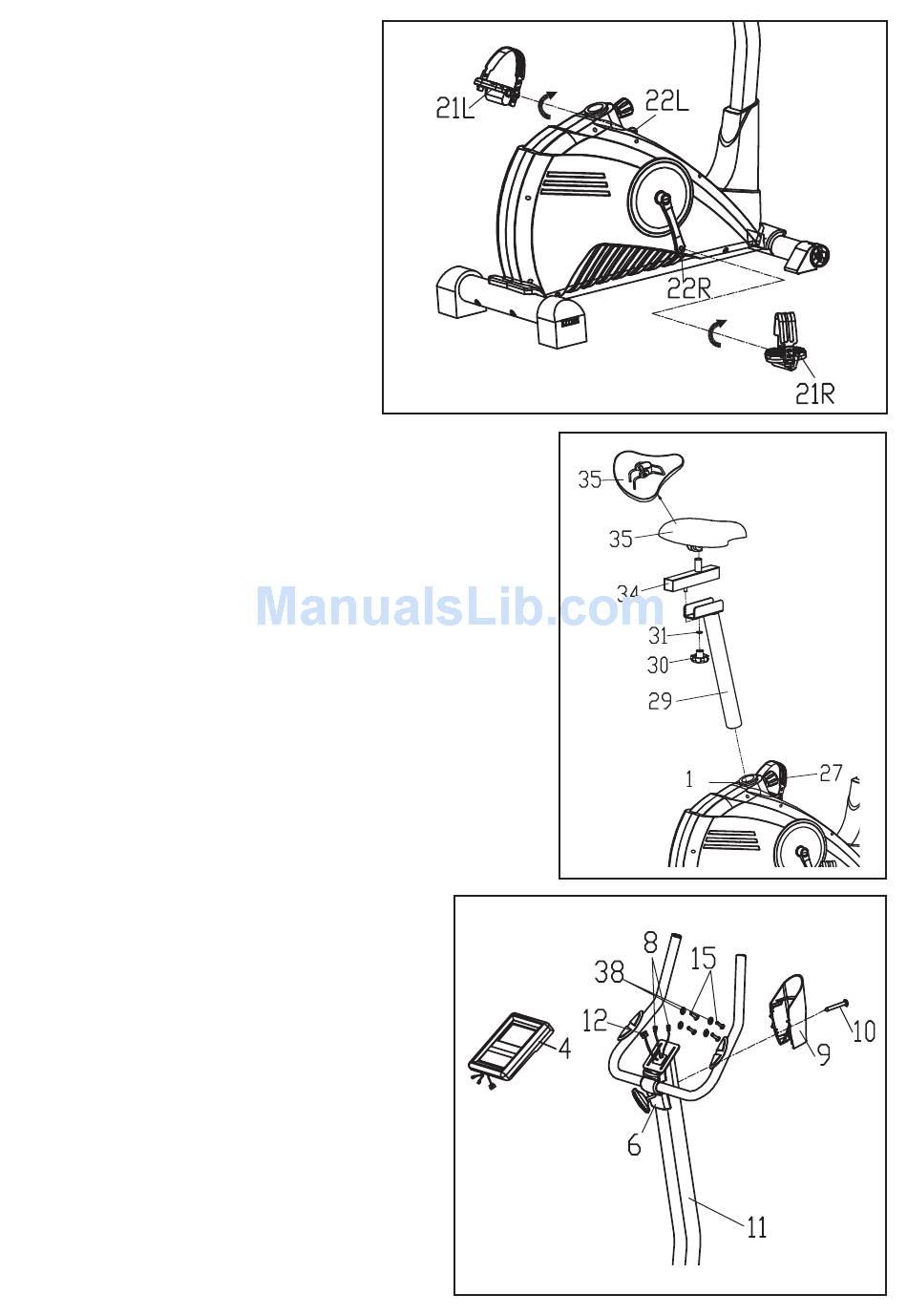

STEP 4
Attach the pedals (21L/R) to the cranks
(22L/R) respectively, viewed from the rid-
er's exercising position.
Always make sure the pedals are secure-
ly tightened before any exercise.
Note: Both pedals are labeled L FOR
LEFT and R FOR RIGHT. To tighten the
Left pedal in COUNTERCLOCKWISE di-
rection and the Right pedal in the CLOCK-
WISE direction.
STEP 5
Ⅰ.Attach the saddle (35) to the horizontal saddle post (34),
tighten with the screw and nut under the saddle.
Ⅱ. Adjust the horizontal saddle post (34) longitudinal sepa-
ration, then fix the horizontal saddle post (34) on the verti-
cal saddle post (29), secured it with the flat washer (31) and
knob nut (30) as shown.
Ⅲ.Insert the saddle post (29) into the main frame (1), se-
cured with the knob (27) at a proper height as shown.
STEP 6
I: Connect all the wires (8 & 12) to the wires come
from the meter (4), and then install the meter (4)
onto the meter bracket on the top of the handlebar
post (11), secured it with the screws (15) and flat
washers (38) as shown.
II: Attach the rear handlebar cover (9) to the han-
dlebar post (11), fit the front and rear covers (6 &
9) properly, and then secure them together with the
cross screw (10) as shown.
Ⅲ. Insert one side of adapter (37) into the tail of
bike, and another plug insert to power supply.
Now, your machine is ready for use.
