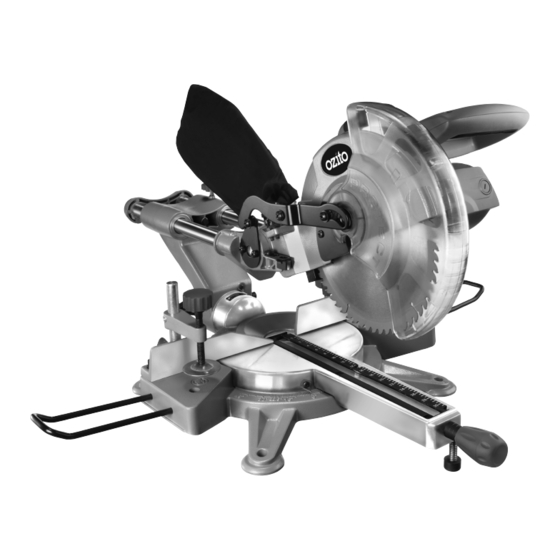

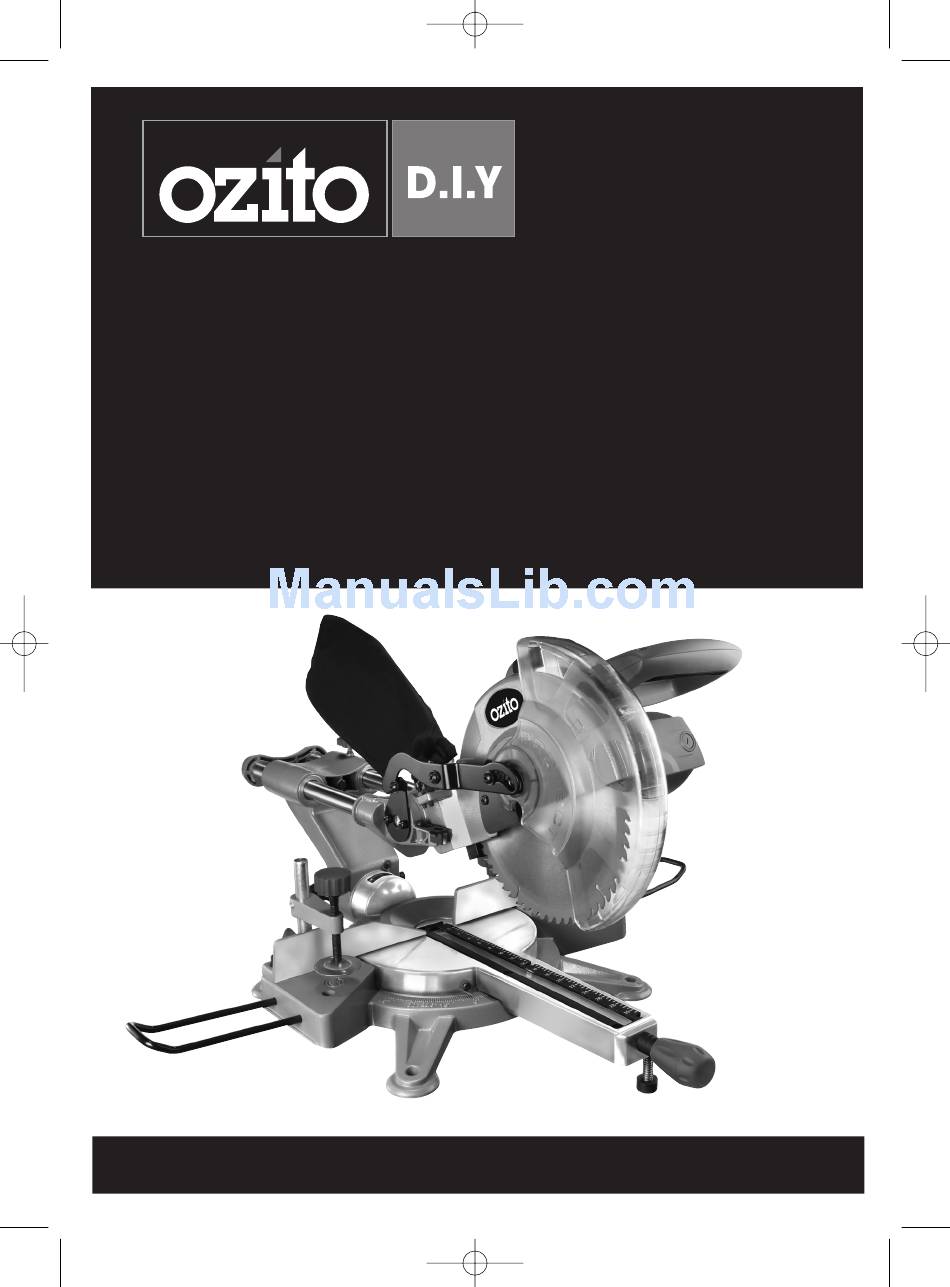

- Page 1 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 1 Slide Compound Mitre Saw 1600 Watt Operation Manual 3 Year Replacement Warranty OZSCMS1600WA CAUTION: Read this operation manual before using this tool. 0909 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 2 SPECIFICATIONS – MODEL NO. OZSCMS1600WA Motor size: 1600W S1; 2000W S6.25% 2.5min load, 7.5min no load Input: 230-240V ~ 50Hz No load speed: 5,000/min Net weight: 18kg Mitre angles: 0º - 45º left and right Bevel angles: 0º... -
Page 3: Table Of Contents
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 3 TABLE OF CONTENTS SPECIFICATIONS…….…………………………………… Page 2 Page 3 TABLE OF CONTENTS…………………………………... Page 4 INTRODUCTION…………………………………………. SAFETY INSTRUCTIONS………………………………... Page 4-6 Page 7-8 ADDITIONAL SAFETY RULES…………………………... Page 9-16 OPERATION ……………………………………………… MAINTENANCE …………….…………………………… Page 16 DESCRIPTION OF SYMBOLS…………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 5 GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 6 GENERAL SAFETY RULES (cont.) b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 7: Additional Safety Rules
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 7 ADDITIONAL SAFETY RULES FOR MITRE SAWS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. -
Page 8: Additional Safety Rules
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 8 ADDITIONAL SAFETY RULES FOR MITRE SAWS (cont.) • Do not slow or stop a blade with a piece of wood. Let the blade come to rest without assistance. • If you are interrupted when operating the saw, complete the process and switch off before looking up. -
Page 9: Operation
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 9 TOOL OPERATION Transportation Only lift the saw when the head of the mitre saw is locked in the down position, the saw is turned off and the plug is removed from the power point. - Page 10 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 10 TOOL OPERATION (cont.) Warning! Be sure to tighten the bevel lock (28) before making a cut. Failure to do so could result in the saw arm moving during the cut and cause serious personal injury.
- Page 11 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 11 TOOL OPERATION (cont.) Trench depth adjustment (see Fig 1). In its normal position, the trenching stop plate (C) permits the saw blade to cut right through a workpiece. When the guard arm (24) is lifted, the...
- Page 12 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 12 TOOL OPERATION (cont.) Note: The above procedure can also be used to check the angle of the saw blade to the table at 45º bevel angle. The 45° bevel adjustment screw (33) is on the opposite side of the saw arm.
- Page 13 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 13 TOOL OPERATION (cont.) Wipe a drop of oil onto the inner blade washer and the outer blade washer where they contact the blade. Fit the new blade onto the spindle taking care that the inner blade washer sits behind the blade.
- Page 14 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 14 TOOL OPERATION (cont.) When cutting long pieces of timber, support the opposite end of the timber with the extension bars (16), a roller stand or a work surface that is level with the saw table.
- Page 15 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 15 TOOL OPERATION (cont.) Warning! Be sure to tighten the bevel lock (28) before making a cut. Failure to do so could result in the table moving during the cut, causing serious personal injury.
-
Page 16: Maintenance
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 16 TOOL OPERATION (cont.) Cutting long timber lengths When cutting long pieces of timber, support the opposite end of the timber with the extension bar (16), a roller stand or a work surface that is level with the saw table. -
Page 17: Description Of Symbols
OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 17 DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute IP24 Ingress protection rating 24 Regulator compliance mark CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. - Page 18 OZSCMS1600WA manual.qxd 9/18/09 9:10 AM Page 18 OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme Victoria, Australia, 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au Email: enquiries@ozito.com.au...
-
Page 19: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
