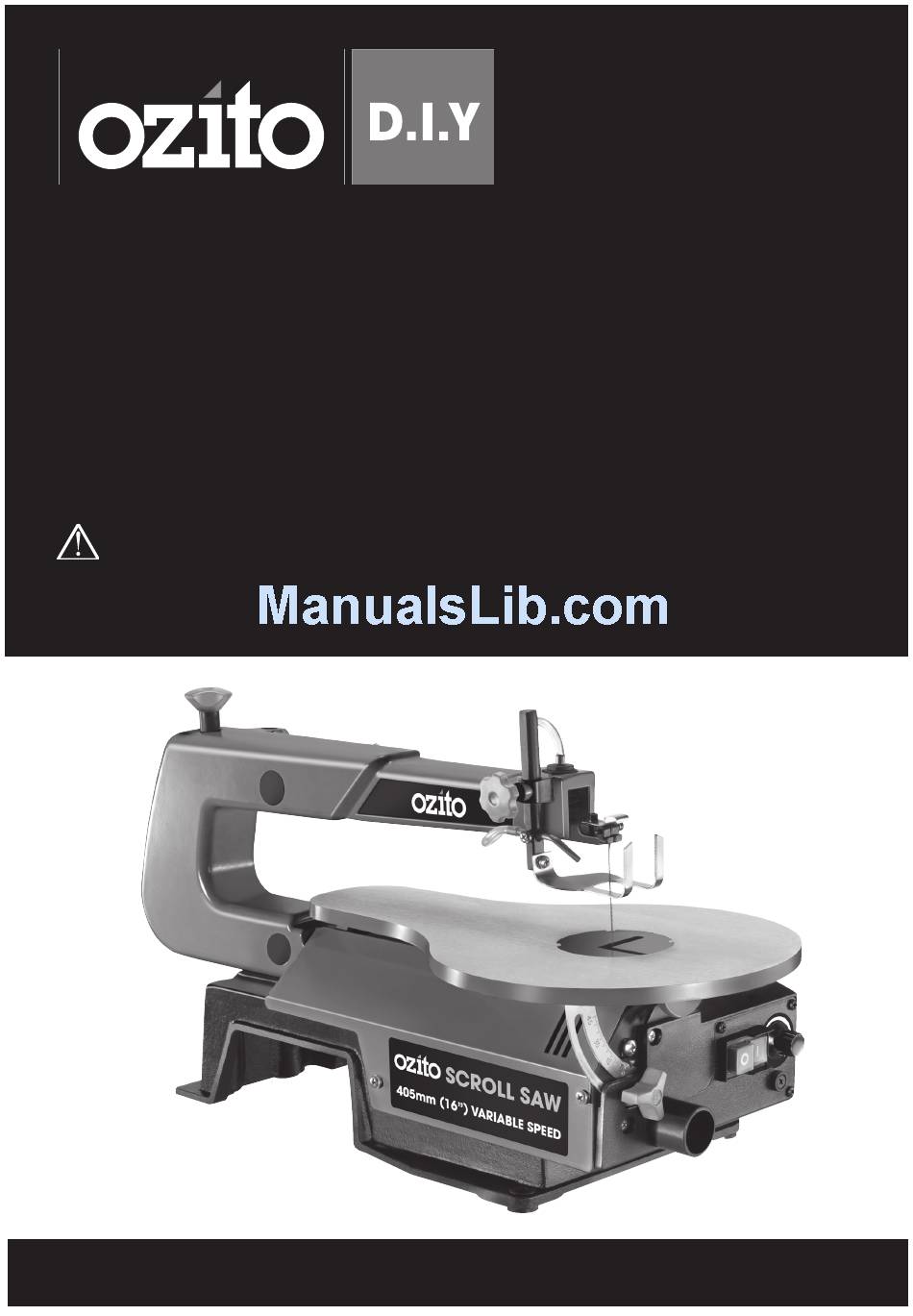

405mm Variable Speed
Scroll Saw
120W
Instruction Manual
3 Year Replacement Warranty
SSB-405
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
To view the full range visit:
www.ozito.com.au
0312
Advertisement
Table of Contents
Related Manuals for Ozito SSB-405
Summary of Contents for Ozito SSB-405
- Page 1 120W Instruction Manual 3 Year Replacement Warranty SSB-405 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Specifications
SpecificationS - model no. SSB-405 motor: 120W (S1:50W S2:5min) input: 230-240V~50Hz no load speed: 400-1600/min depth of throat: 405mm (16”) max. thickness of cut: 50mm Blade length: 127mm Stroke: 15mm table tilt: 0-45° Left table size: 413 x 253mm fuse: 3.15 Amp... -
Page 3: Table Of Contents
taBle of contentS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 SCROLL SAW SAFETY WARNINGS …………………… Page 6 ASSEMBLY………………………………………………… Page 8 OPERATION……………………………………………… Page 9 MAINTENANCE…………….…………………………… Page 15 SPARE PARTS …………….……………………………... Page 18 DESCRIPTION OF SYMBOLS …………………………. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Power Tool Safety Warnings
General poWer tool Safety WarninGS WarninG! read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. the term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 General poWer tool Safety WarninGS d) remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Scroll Saw Safety Warnings
Scroll SaW Safety WarninGS Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live“... - Page 8 Scroll SaW Safety WarninGS (cont.) WarninG! Some dust created by sanding, sawing, grinding, drilling and other construction activities contain chemicals known to cause cancer, birth defects or other reproductive harm.Some examples of these chemicals are: • Lead from lead-based paints; •...
-
Page 9: Assembly
aSSemBly unpacking • Open carton and remove top packing material • Carefully lift the variable speed scroll saw from the packaging and place it on a level work surface. • By applying paste wax (not included) in thin coats to the entire saw table (7) will allow the work piece to glide smoothly across the work surface. -
Page 10: Operation
operation Blades The variable speed scroll saw accepts 127mm pin end scroll saw blades. The blade width, thickness and the number of teeth per inch will be determined by the material and size of the radius being cut. Very fine narrow blades should be used to scroll cut in thin material, 6mm thick or less. - Page 11 operation (cont.) Remove the table insert (6), by pushing up from under the saw table (7) (Fig. 2). Fig. 2 Fittting Blades: Place the new blade through the opening in the saw table (7), teeth to the front of the saw pointing downwards.
- Page 12 operation (cont.) adjusting the table insert WarninG! Always ensure that the variable speed scroll saw is switch off and disconnect from mains power supply before making any adjustments. The table insert (6) requires to be positioned depending if a straight cut or bevel cut is required.
- Page 13 operation (cont.) Work piece Holder Adjusting the height: To prevent the workpiece from lifting, the work piece holder (14) should be adjusted so it just sits on top of the workpiece. The work piece holder (14) should not be adjusted so tightly that the workpiece drags. •...
- Page 14 operation (cont.) Speed Setting The speed can be adjusted by turning the speed selector dial (8) (Fig. 11). Adjust to suit the work piece/ material being cut. The saw’s speed can be adjusted from 400 to 1,600 SPM (strokes per minute). •...
- Page 15 operation (cont.) Bevel cutting WarninG! Always ensure that the variable speed scroll saw is switch off and disconnect from mains power supply before making any adjustments. Remove the table insert (6) by gently pushing up from under the saw table (7) and rotate to the slots of the table inserts are facing down and to the right as shown in Fig.
-
Page 16: Maintenance
maintenance • Keep the ventilation vents of the tool clean at all times, if possible, prevent foreign matter from entering the vents. • After each use, blow air through the tool housing to ensure it is free from all dust particles which may build up. Build up of dust particles may cause the tool to overheat and fail. - Page 17 • Refit fuse holder (16) together with fuse. note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the scroll saw by an unauthorised person or by mishandling.
- Page 18 trouBle SHootinG WarninG! Failure to unplug your variable speed scroll saw could result in accidental starting causing possible serious personal injury. problem cause remedy Motor will not run Problem with On-Off Check plugged in and switched switch, power cord or On at mains power supply.
-
Page 19: Spare Parts
Spare partS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. most common spare parts listed below Spare part part no. Carbon Brush (Pair) SPSSB405-83 Carbon Brush Cap (Pair) SPSSB405-84 Fuse (Pack of 4) SPSSB405-73... -
Page 20: Pack Contents
carinG for tHe enVironment Petrol tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials. - Page 21 (Head office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au Email: enquiries@ozito.com.au...
-
Page 24: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. ozito Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
