Page 1: Circular Saw

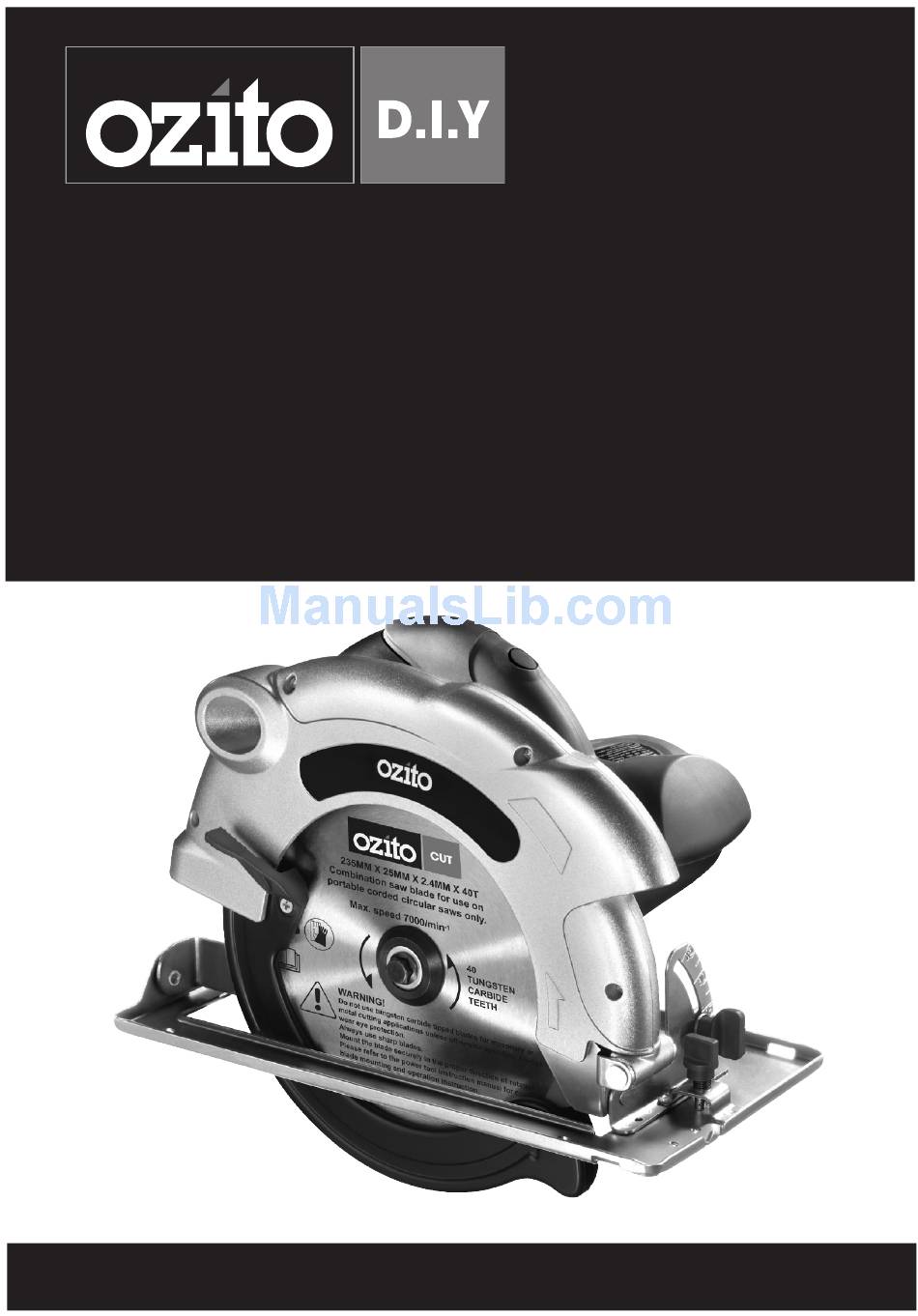

Circular Saw 1800 Watt Operation Manual 3 Year Replacement Warranty OZCS1800WA Type 2 CAUTION: Read this operation manual before using this tool. 0609 www.ozito.com.au To view the full range visit:... -
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZCS1800WA TYPE 2 Motor Size: 1800W Input: 230 - 240V ~ 50Hz Blade Diameter: 235mm (9 ”) Blade Bore: 25mm (earlier model Type 1 - has a 25.4mm bore) No. Load Speed: 4500/min Depth of Cut: 85mm @ 90º;... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 OPERATION …………………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 12 CONTENTS ……………………………………………... Page 13 WARRANTY……………………………………………… Page 14... -
Page 4: Introduction

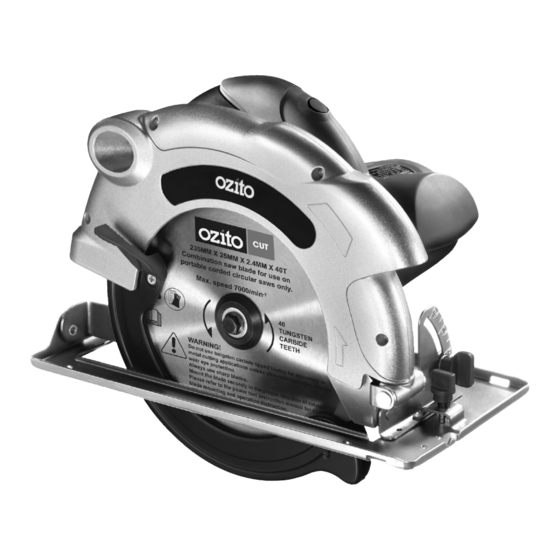

We hope you will enjoy using this appliance for many years. Your Ozito Circular Saw OZCS1800WA has been designed to cut timber and is intended for DIY use only. SAFETY INSTRUCTIONS... -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit. - Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS DANGER! Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. a) Do not reach underneath the workpiece.
- Page 8 30mA or less. Additional safety instructions for laser lights The laser light/laser radiation used in the Ozito Circular Saw OZCS1800WA laser is Class 2 with maximun 1mW and 650nm wavelengths. These lasers do not normally present an optical hazard, although staring at the beam may cause flash blindness.
-
Page 9: Operation
TOOL OPERATION Fitting the Blade Warning! Disconnect the plug from the power source before assembling, making any adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. 1. Press the spindle lock button (3) and using the blade spanner (25) turn until spindle lock button (3) engages. - Page 10 TOOL OPERATION (cont.) Line Guide For a straight 90º cut, use the cutting guide notch (13a) in the baseplate (14). For 45º bevel cuts, use cutting guide notch (13b). The cutting guide notch will give an approximate line of cut. Make sample cuts in scrap timber to verify actual line of cut. This will be helpful because of the number of different blade types and thicknesses available.
- Page 11 TOOL OPERATION (cont.) General Cuts Always hold the soft grip handle (23) with one hand and the front handle (7) with the other. Warning! Always make sure either hand does not interfere with the free movement of the lower blade guard (15). Maintain a firm grip and operate the on/off switch (1) with a positive action.
-
Page 12: Maintenance
Blow dust from the saw through the rear ventilation slots with compressed air periodically to ensure a dust free tool. NOTE: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the circular saw by an unauthorised person or by mishandling of the tool. -
Page 13: Contents
CONTENTS 1 x Circular Saw OZCS1800WA 1 x Rip Fence 1 x 24 Tooth TCT Blade 1 x Instruction Manual 1 x Blade Spanner OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175... -
Page 14: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
