Summary of Contents for Ozito OZMCS2000WB
-
Page 1: Operating Instructions

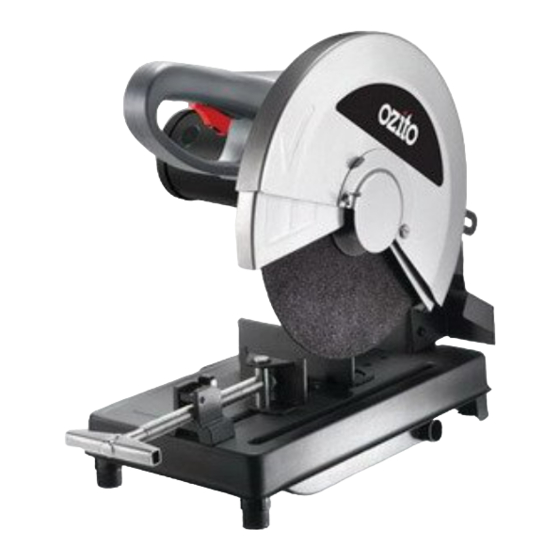

METAL CUT-OFF SAW 2000W MODEL NO. OZMCS2000WB OPERATING INSTRUCTIONS w w w. o z i t o . c o m . a u To view our entire range visit... -
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZMCS2000WB Motor size: 2000W Input: 230-240V ~ 50Hz No load speed: 3,500/min Net Weight: 20kg Cutting Capacity: @90º - 115mm @45º - 110mm Cutting disc max. diameter: 355 x 3mm (14" x 1/8'') Base size: 465 x 265mm... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 1 TABLE OF CONTENTS………………………………….. Page 2 INTRODUCTION………………………………………... Page 3 SAFETY INSTRUCTIONS……………………………….. Page 3 OPERATION …………………………………………….. Page 7 MAINTENANCE …………….………………………….. Page 9 CONTENTS ……………………………………………... Page 10 WARRANTY……………………………………………… Page 11... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL Warning! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit.
- Page 6 GENERAL (cont.) c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 7 ADDITIONAL SAFETY RULES FOR METAL CUT-OFF SAWS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance. Warning! Keep hands away from the cutting area and cutting disc.
-
Page 8: Operation
OPERATION Cutting capacity The wide vice opening and high pivot point provide cutting capacity for many large pieces. Use the cutting capacity chart below to determine the maximum size of cuts that can be made with a new wheel. CAUTION: CERTAIN LARGE, CIRCULAR OR IRREGUARLY SHAPED OBJECTS MAY REQUIRE ADDITIONAL HOLDING MEANS IF THEY CANNOT BE HELD SECURELY IN THE VICE. - Page 9 OPERATION (cont.) Adjustable Depth Stop Your tool is equipped with a depth stop (21). As the cutting disc (7) wears, or when replacing a cutting disc (7) it will be necessary to make this adjustment. TO RAISE CUTTING DISC (7), loosen the nut on the depth stop (21) and rotate the bolt counter clockwise.
-
Page 10: Maintenance
Apply dry lubricant monthly to the moving parts to extend machine life. NOTE: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the metal cut-off saw by an unauthorised person or by... -
Page 11: Contents
Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Metal Cut-Off Saw OZMCS2000WB 1 x Wrench 1 x Cutting Disc (fitted) 1 x Instruction Manual OZITO INDUSTRIES PTY LTD... -
Page 12: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
