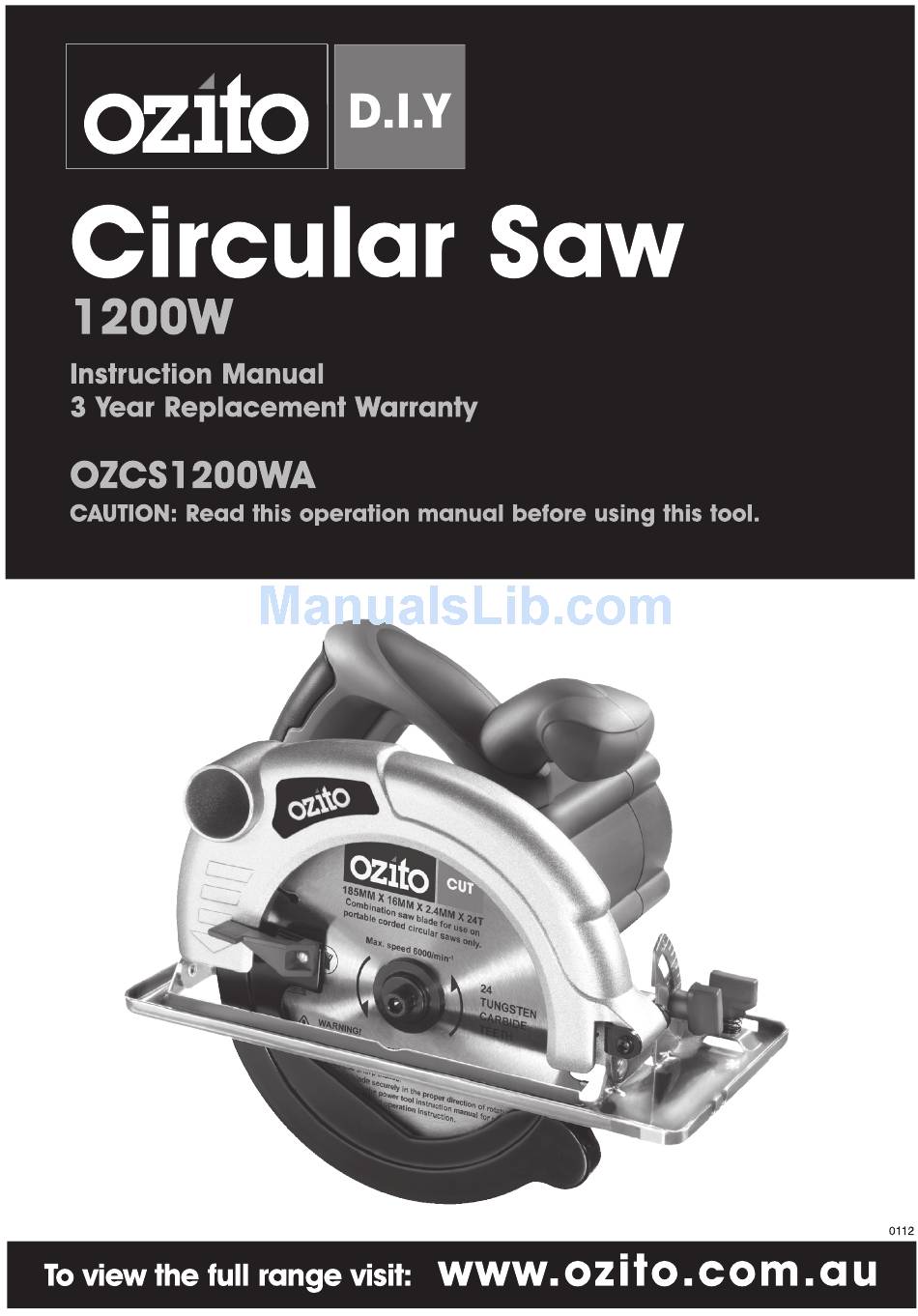

Summary of Contents for Ozito OZCS1200WA
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZCS1200WA Motor Size: 1200W Input: 230 - 240V ~ 50Hz Blade Diameter: 185mm (7 ”) Blade Bore: 16mm No. Load Speed: 4,800/min Depth of Cut: 65mm @ 90º 44mm @ 45º Weight: KNOW YOUR PRODUCT 1. On/Off switch 12. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 INTRODUCTION………………………………………... Page 4 ELECTRICAL SAFETY……………………………………. Page 4 SAFETY INSTRUCTIONS……………………………….. Page 5 OPERATION …………………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 12 CONTENTS ……………………………………………... Page 13 WARRANTY……………………………………………… Page 14... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: Safety Instructions
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 ADDITIONAL SAFETY INSTRUCTION FOR CIRCULAR SAWS DANGER! Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. a) Do not reach underneath the workpiece.
- Page 8 ADDITIONAL SAFETY INSTRUCTION FOR CIRCULAR SAWS (cont.) b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.
-
Page 9: Operation
TOOL OPERATION Fitting the Blade Warning! Disconnect the plug from the power source before assembling, making any adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. 1. Press the spindle lock button (6) and using the allen key (23) turn until spindle lock button (6) engages. - Page 10 TOOL OPERATION (cont.) Bevel Adjustment Disconnect plug from power source. The baseplate (16) can be adjusted up to 45º by loosening the bevel adjustment knob (10) at the front of the saw. Align to desired angle on calibrated bevel scale (7). Then tighten bevel adjustment knob (10). Because of the increased amount of blade engagement in the work and decreased stability of the baseplate (16), blade binding may occur.
- Page 11 TOOL OPERATION (cont.) When cutting is interrupted, to resume cutting, depress the lock-off button (2) and squeeze the on/off switch (1) and allow the blade (18) to reach full speed, re-enter the cut slowly and resume cutting. When cutting across the grain, the fibres of the wood have a tendency to tear and lift.
-
Page 12: Maintenance
Blow dust from the saw through the rear ventilation slots with compressed air periodically to ensure a dust free tool. NOTE: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the circular saw by an unauthorised person or by mishandling of the tool. -
Page 13: Contents
CONTENTS 1 x Circular Saw OZCS1200WA 1 x Rip Fence 1 x 24 Tooth TCT Blade 1 x Instruction Manual 1 x 6mm Allen Key OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Website: www.ozito.com.au... -
Page 14: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
