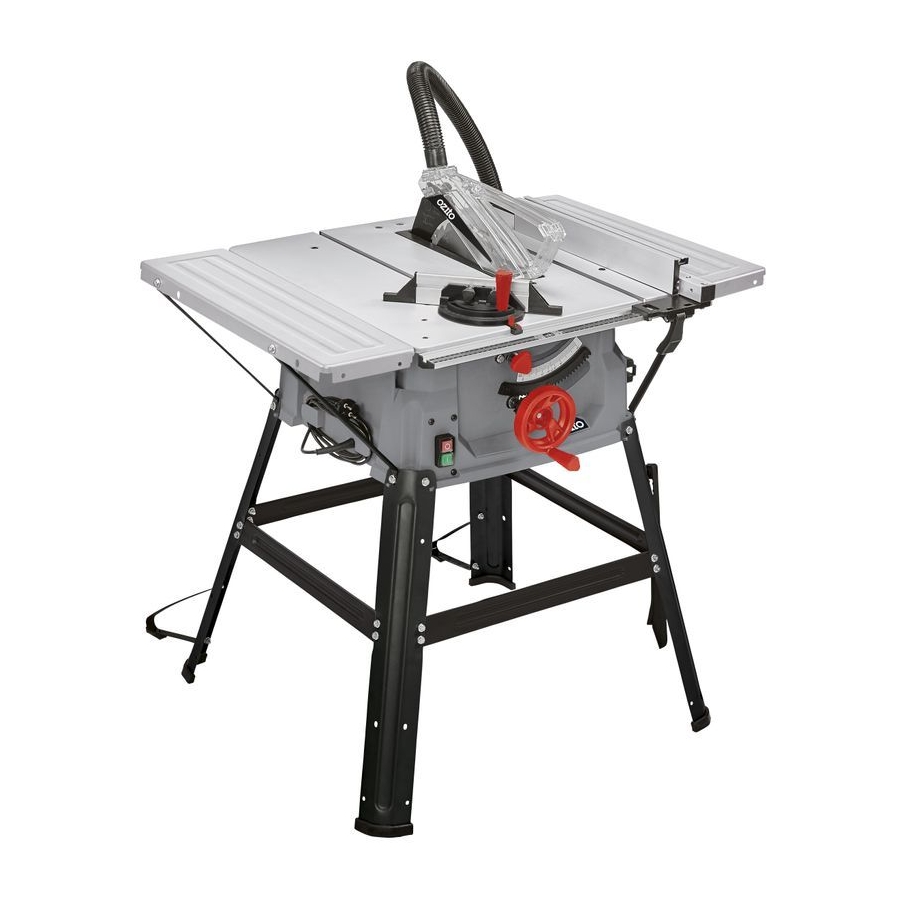

TABLE SAW
2000W 250mm
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Motor:
2000W (S6 25%) 1800W (S1)
No Load Speed:
5,000/min
Blade:
Ø250mm x Ø30 x 2.8mm
Bevel Angle:
0º-45° left
Blade Height Adj: 0-85mm
Max. Cutting Capacity:
Bevel 90°:
85mm
Bevel 45°:
65mm
Table Size:
640 x 490mm
With Side Ext.:
640 x 940mm
Rear Extension:
225 x 490mm
Dust Port:
Ø36mm
Weight:
20kg
ozito-diy.co.uk
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectification of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
OZITO UK
Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG
EH-Art.-No.: 4340542
WARRANTY
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the
device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts fitted will not result in an extension of the
guarantee period, and no new guarantee will become active for the work
performed or parts fitted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk
WHAT'S IN THE BOX
Sliding Mitre
Gauge
Base Frame Legs x 4,
Cross Struts x 4, Feet x 4
Table Extensions x 3
Support Struts x 6
Blade Guard & Dust Extractor
Hose, Stabilizing Brackets x 2
Push Stick
Bolts, Spring & Flat Washers,
Nuts x 32, Spanners x 2
I.-No.: 11016
Rip Fence
TSF-1211U
0816

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSF-1211U and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito TSF-1211U

  • Page 1 Nuts x 32, Spanners x 2 EH-Art.-No.: 4340542 I.-No.: 11016 TSF-1211U WARRANTY All of our products undergo strict quality checks to ensure that they reach - Damage to the device or parts of the device caused by normal or natural you in perfect condition.
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION TABLE SAW 1. ADJUSTMENTS 1. Side table extension 10. Guide rail 2. Rear table extension 11. Table insert For detailed assembly instruction see Assembly Manual. 3. Sliding mitre gauge 12. Rip fence lever 4. Dust extractor hose 13.
  • Page 3 2. SETTING THE RIP FENCE Rip Fence Stop height 1. Loosen the rip fence lever and The rip fence supplied with the table saw has two different guide faces. insert the fence into the table 1 for thick material and 1 for thin material. guide rail.
  • Page 4: Operation

    OPERATION 3. SETTING THE MITRE GAUGE 4. USING THE TABLE SAW Using the Sliding Mitre Gauge cAUTION! TO REdUcE ThE RISK OF ELEcTRIcAL The sliding mitre gauge can be fitted into 1 of the 2 grooves in the table ShOcK, ThE USE OF A RESIdUAL cURRENT dEvIcE and can be used to easily perform mitre angle cuts.
  • Page 5: Making A Cut

    5. Push the sliding mitre gauge forward until the workpiece is cut all the way through. 6. Switch off the saw again. Do not remove the off-cut until the blade has stopped rotating. TSF-1211U...
  • Page 6: Maintenance

    OPERATION MAINTENANCE 6. ADJUSTING THE RIVING KNIFE 7. BLADE REPLACEMENT Setting the Riving Knife fitting / Replacing the Blade Note: To achieve a cutting height of 85mm the riving knife can be raised to its This product is designed for 250mm saw blades for timber maximum height.
  • Page 7: Additional Information

    carbon brushes In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.Danger! The carbon brushes should not be rep laced by anyone but a 8. TABLE INSERT qualified electrician. Disposal and recycling he equipment is supplied in packaging to prevent it from being damaged in transit. changing the table insert The raw materials in this packaging can be reused or recycled.
  • Page 8: Proper Use

    Spare parts can be ordered from the Special Orders Desk at your local Bunnings warehouse or homebase store. for further information, or any parts visit www.ozito-diy.co.uk or contact Ozito customer Service: great Britain: 0151 294 4488 Ireland: 1850 882711 e-mail: enquires@ozito-diy.co.uk...
  • Page 9: Safety Instructions

    Wherever there are facilities for fi tting a dust extraction system, make sure it is 12. Don‘t overreach connected and used. – Keep proper footing and balance at all times. Do not lose these safety instructions. 13. Maintain tools with care TSF-1211U...
  • Page 10: Special Safety Instructions

    • It is imperative to make sure that all devices which cover the saw blade are in good working order. • Warning: It is prohibited to use this saw to make plunge cuts. • Damaged or faulty safety devices have to be replaced immediately. TSF-1211U...
  • Page 11: Assembling The Frame

    Base Frame Legs. 12 13 14 15 8. Mount the Rubber Feet on the legs. ONLINE MANUAL Scan this QR Code with your mobile device to take you to the online manual. TSF-1211U...
  • Page 12: Attaching Table Extensions

    5 Finally, tighten all the nuts on the base frame and table extensions to ensure steadiness. Use the supplied spanner where required, but be careful not to over tighten as this may result in damage to the base frame legs. TSF-1211U...
