CIRCULAR
SAW
1200W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
1200W
No Load Speed:
4800/min
Blade Diameter:
185mm (7
1
/
")
4
Blade Bore:
16mm
Depth of Cut:
65mm @ 90°
44mm @ 45°
Weight:
4kg
ozito.com.au
185MM X 16MM X 2.4MM X 24T
WHAT'S IN THE BOX
185MM X 16MM X 2.4MM X 24T

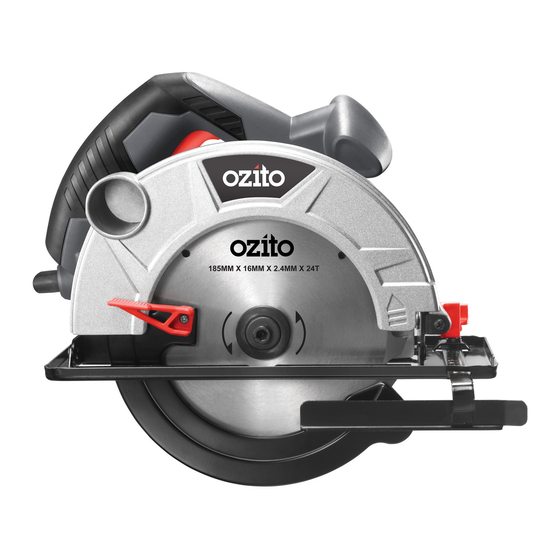

Circular Saw
Rip Fence
Allen Key
CSW-7000
Advertisement
Table of Contents
Related Manuals for Ozito CSW-7000
Summary of Contents for Ozito CSW-7000
-
Page 1: Circular Saw
INSTRUCTION MANUAL SPECIFICATIONS 185MM X 16MM X 2.4MM X 24T Motor: 1200W No Load Speed: 4800/min Rip Fence Blade Diameter: 185mm (7 ”) Blade Bore: 16mm Depth of Cut: 65mm @ 90° 44mm @ 45° Weight: ozito.com.au Allen Key CSW-7000... -
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION CIRCULAR SAW 1 Baseplate 6 Blade Flange 1. DEPTH & BEVEL ADJUSTMENT 2 Dust Extraction Port 7 Upper Blade Guard 3 Lower Blade Guard Lever 8 Front Handle Ensure the tool is disconnected from the power supply before performing any of the following operations. -
Page 3: Operation
OPERATION 2. CUTTING ANGLE CHECK 3. ON/OFF SWITCH The tool is recommended for use with a residual current 1. Set baseplate to maximum device with a rated residual current of 30mA or less. depth of cut. 1. Connect the tool to the mains power supply. 2. - Page 4 185MM X 16MM X 2.4MM X 24T measure baseplate. 5. Clamp board along edge of baseplate to rip desired width. 5. F it outer blade flange 6. Tighten blade bolt. and blade bolt. Depress spindle lock. CSW-7000...
-
Page 5: Maintenance
May indicate the carbon brushes have worn out and need to be replaced. Carbon brushes should only be replaced by a qualified Note: Ozito Industries will not be responsible for any damage or injuries electrician or power tool repairer. caused by the repair of the saw by an unauthorised person or by mishandling of the saw. - Page 6 Tool: 1200W Circular Saw SPARE PARTS Model No. CSW-7000 63 62 61 60 58 57 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No.
-
Page 7: Electrical Safety
Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. -
Page 8: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0812...
