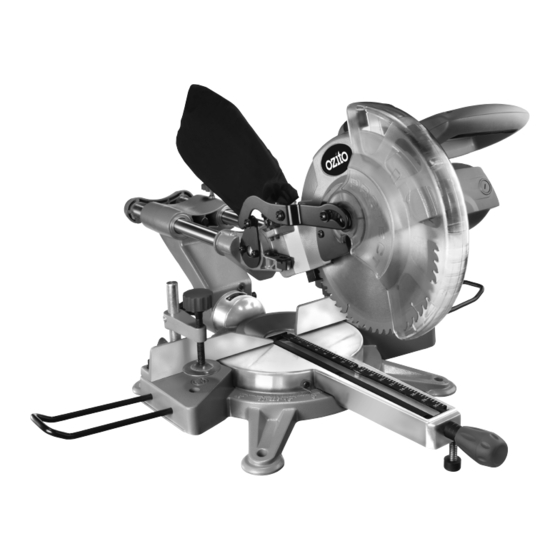

SLIDE
COMPOUND
MITRE SAW
1600W 254mm
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
1600W
Input:
230-240V ~ 50Hz
No Load Speed:
5,000/min
Blade:
Ø254mm x 30 x 60T
Mitre Angle:
0-45° left & right
Bevel Angle:
0-45° left
Max. Cutting Capacity:
Mitre 0° x Bevel 0°:
305x78mm
Mitre 45°x Bevel 0°:
210x78mm
Mitre 0°x Bevel 45°:
305x42mm
Mitre 45°x Bevel 45°:
210x42mm
ozito.com.au
WHAT'S IN THE BOX
Mitre Saw
Material Clamp
Dust Bag
Side & Rear Support
Bars
Hex Key
OZSCMS1600WA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito OZSCMS1600WA
Summary of Contents for Ozito OZSCMS1600WA
- Page 1 0-45° left & right Bevel Angle: 0-45° left Max. Cutting Capacity: Mitre 0° x Bevel 0°: 305x78mm Mitre 45°x Bevel 0°: 210x78mm Mitre 0°x Bevel 45°: 305x42mm Side & Rear Support Mitre 45°x Bevel 45°: 210x42mm ozito.com.au Bars Hex Key OZSCMS1600WA...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION SLIDE COMPOUND MITRE SAW 1 Spindle Lock Button 12 Carry Handle 1. ASSEMBLING THE SAW 2 On/Off Switch 13 Dust Bag 3 Operating Handle 14 Slide Lock 4 Cutting Head 15 Bevel Lock WARNING! ENSURE THE SAW IS SWITCHED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE 5 Carbon Brush Cap... - Page 3 2. ADJUSTING THE MITRE SAW Rear Support Bar Mitre Angle Adjustment The rear support bar provides additional stability for the mitre saw base. 1 Rotate the mitre table lock anti-clockwise to allow the table to rotate. 1 Loosen the phillips head screw on the base of the mitre saw.
- Page 4 3. STRAIGHT AND ANGLE CUTTING Bevel Angle Adjustment A straight cut is made by cutting the 0º grain of the workpiece. A 90° straight 1 Loosen the bevel lock by cut is made with the mitre scale set in rotating anti-clockwise. the 0°...
-
Page 5: Operation
6 Once the cut has been made, release the on/off switch. When the blade has stopped you can then raise the cutting head. OZSCMS1600WA... -
Page 6: Maintenance
SAW. THIS WILL NOT BE COVERED UNDER WARRANTY. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the mitre saw by an unauthorised person or by WARNING! NEVER USE A BLADE THAT IS TOO THICK mishandling of the mitre saw. -
Page 7: Troubleshooting
Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486 E-mail: enquires@ozito.com.au... - Page 8 Tool: 254mm Slide Compound Mitre Saw SPARE PARTS Model No. OZSCMS1600WA The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Description Part No. Description Part No. Table Insert...
-
Page 9: Electrical Safety
Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. -
Page 10: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 1115...
