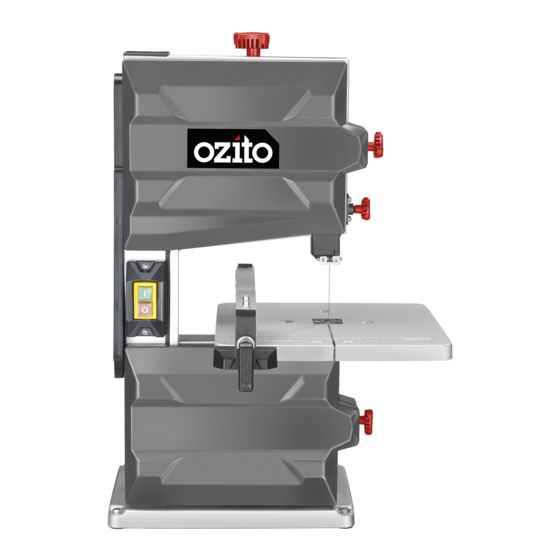

BAND SAW
250W 200mm (8")
INSTRUCTION MANUAL

SPECIFICATIONS

Motor Power:
250W (S2 15min)
Input Voltage:
220V-240V ~ 50Hz
No Load Speed:
1,400/min
Saw Blade Speed:
900 m/min
Saw Blade Length:
1,400mm
Max. Blade Width:
8mm
Throat Depth:
200mm
Cutting Height:
80mm at 90°
45mm at 45°
Table Size:
305 x 305mm
Table Tilt:
-2° to 45°
Dust Adaptor:
Ø 36mm
Weight:
17.5kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

WARRANTY

The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts:
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Band Saw
Push Stick
Hex Keys
BSW-2581
0717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSW-2581 and is the answer not in the manual?

Questions and answers

David Vivian
April 15, 2025

BSW2581 bandsaw not operating. Have checked on/off switches with multimeter - working correctly. Have checked doors are fully closed. Could it be the motor?

1 comments:
Mr. Anderson
April 15, 2025

Based on the context, the motor is not identified as a listed cause of the Ozito BSW-2581 bandsaw not operating. The possible causes given are:

- Power cord is not connected
- One of the housing doors is not shut completely

Therefore, if the switches and doors have been checked, and the power cord is properly connected, the motor is not mentioned as a likely reason in the provided information.

This answer is automatically generated

Summary of Contents for Ozito BSW-2581

  • Page 1 Ø 36mm Weight: 17.5kg Hex Keys ozito.com.au BSW-2581 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 2: Rip Fence

    KNOW YOUR PRODUCT SETUP & PREPARATION BAND SAW 1. Tensioning Knob 7. Rip Fence Locking Lever 13. Saw Table 2. Upper Blade Pulley 8. Lower Blade Pulley 14. Stabiliser Bar 1. SETUP AND ADJUSTMENTS 3. Upper Door 9. Upper Door Lock 15.
  • Page 3: Angle Cuts

    OPERATION 2. USING THE BAND SAW Tilting the Saw Table CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, WE RECOMMEND THE USE OF A RESIDUAL CURRENT 1 Move the upper blade guide DEVICE (RATED AT 30MA OR LESS). to its maximum height. CAUTION! AFTER EACH NEW ADJUSTMENT IT IS 2 Loosen both the tilt lever and...
  • Page 4: Blade Selection

    The blade supplied with the band saw is designed for all-purpose which it allows you to make curved cuts. use. 1400mm x 7mm x 6TPI Blades are available through Ozito spare parts. Contact customer service on: 1 Lower the blade guide to the Australia 1800 069 486 work piece.
  • Page 5: Changing The Blade

    Revolutions or No load speed reciprocation per minute NOTE: Ozito Industries will not be responsible for any damage or Regulator compliance mark Read instruction manual injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 6 When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
