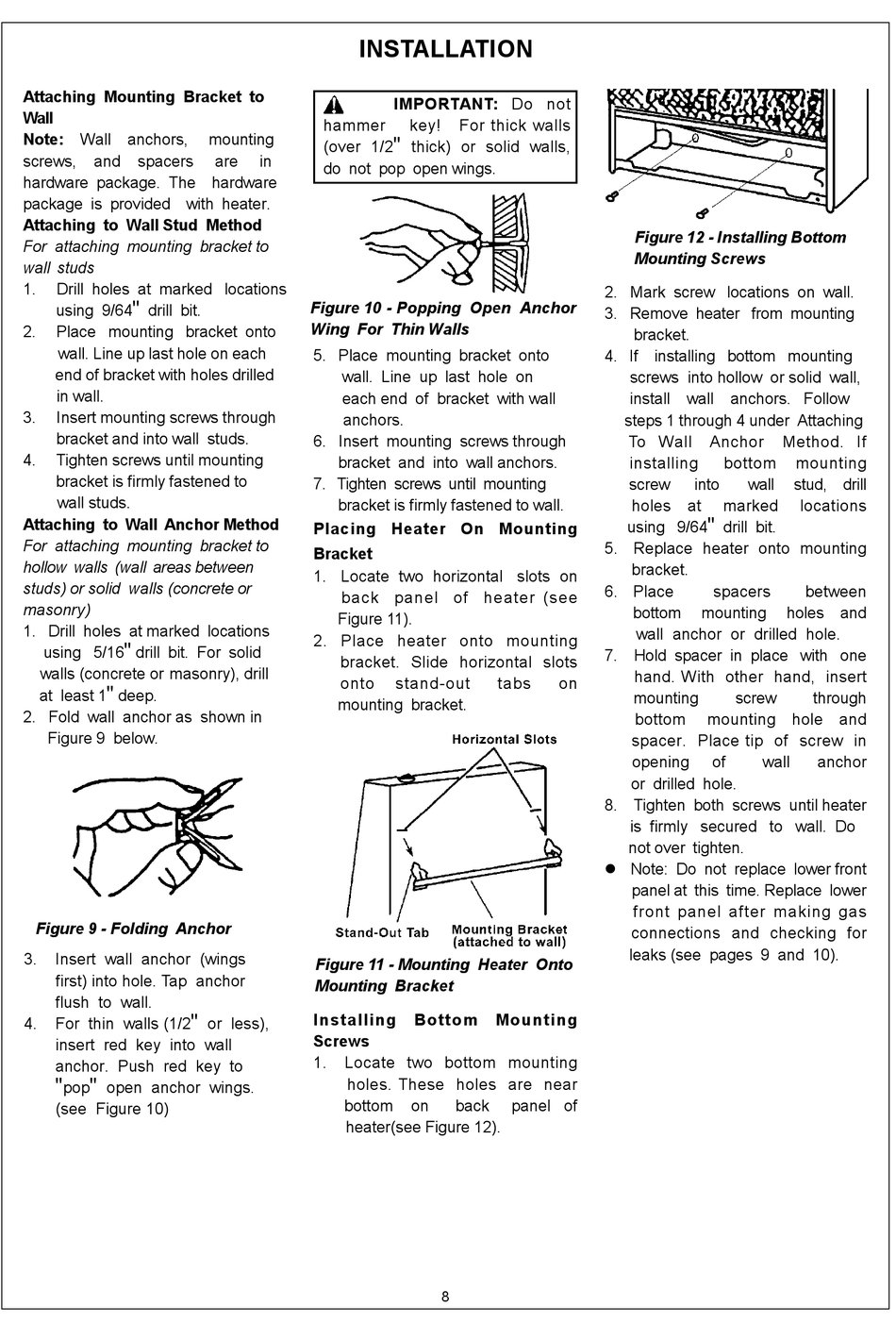

Procom MN180HPA Owner's Operation And Installation Manual page 8

Attaching Mounting Bracket to
Wall
Note: Wall anchors,
screws, and spacers
hardware package. The hardware
package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to
wall studs
1. Drill holes at marked locations
"
using 9/64 drill bit.
2. Place mounting bracket onto
wall. Line up last hole on each
end of bracket with holes drilled
in wall.
3. Insert mounting screws through
bracket and into wall studs.
4. Tighten screws until mounting
bracket is firmly fastened to
wall studs.
Attaching to Wall Anchor Method
For attaching mounting bracket to
hollow walls (wall areas between
studs) or solid walls (concrete or
masonry)
1. Drill holes at marked locations
"
using 5/16 drill bit. For solid
walls (concrete or masonry), drill
"
at least 1 deep.
2. Fold wall anchor as shown in
Figure 9 below.
Figure 9 - Folding Anchor
3. Insert wall anchor (wings
first) into hole. Tap anchor
flush to wall.
4. For thin walls (1/2
insert red key into wall
anchor. Push red key to
" "
pop open anchor wings.
(see Figure 10)
hammer
mounting
(over 1/2
are in
do not pop open wings.
Figure 10 - Popping Open Anchor
Wing For Thin Walls
5. Place mounting bracket onto
wall. Line up last hole on
each end of bracket with wall
anchors.
6. Insert mounting screws through
bracket and into wall anchors.
7. Tighten screws until mounting
bracket is firmly fastened to wall.
Placing Heater On Mounting
Bracket
1. Locate two horizontal slots on
back panel of heater (see
Figure 11).
2. Place heater onto mounting
bracket. Slide horizontal slots
onto
mounting bracket.
Figure 11 - Mounting Heater Onto
Mounting Bracket
"
Installing
or less),
Screws
1. Locate two bottom mounting
holes. These holes are near
bottom
heater(see Figure 12).
INSTALLATION
IMPORTANT: Do not
key! For thick walls
"
thick) or solid walls,
stand-out tabs
Bottom Mounting
on back panel of
8
Figure 12 - Installing Bottom
Mounting Screws
2. Mark screw locations on wall.
3. Remove heater from mounting
bracket.
4. If installing bottom mounting
screws into hollow or solid wall,
install wall anchors. Follow
steps 1 through 4 under Attaching
To Wall Anchor
installing bottom
screw into
holes at marked
"
using 9/64 drill bit.
5. Replace heater onto mounting
bracket.
6. Place spacers
bottom mounting
wall anchor or drilled hole.
7. Hold spacer in place with one
hand. With other hand, insert
on
mounting
bottom mounting hole and
spacer. Place tip of screw in
opening of
or drilled hole.
8. Tighten both screws until heater
is firmly secured to wall. Do
not over tighten.
l Note: Do not replace lower front
panel at this time. Replace lower
front panel after making gas
connections and checking for
leaks (see pages 9 and 10).
Method. If
mounting
wall stud, drill
locations
between
holes and
screw through
wall anchor
