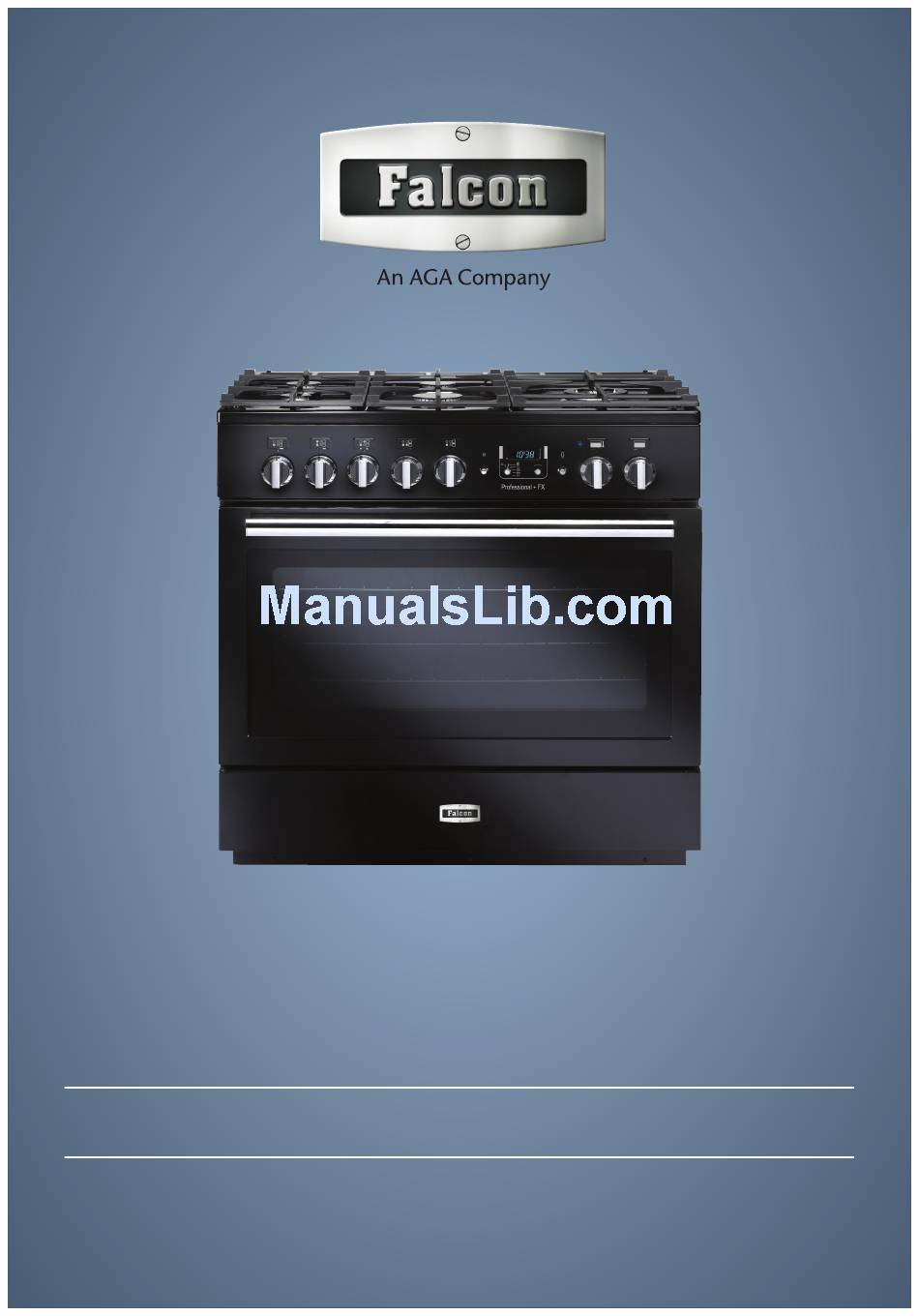

- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS Professional FX 90cm Dual Fuel Australia U110008-05B...
-
Page 3: Table Of Contents
Contents Before You Start... Installation Installation and Maintenance Service and Spares Peculiar Smells Dear Installer If You Smell Gas Provision of Ventilation Ventilation Location of Cooker Personal Safety Conversion Cleaning Positioning the Cooker Moving the Cooker Overview Completing the Move Hotplate Burners Levelling Wok Burner... -
Page 5: Before You Start
1. Before You Start... Ventilation Thank you for buying a Falcon cooker. It should give you many years of trouble-free cooking if installed and operated The use of a gas cooking appliance results in the production correctly. It is important that you read this section before of heat and moisture in the room in which it is installed. -
Page 6: Cleaning
Cooking high moisture content Foods for frying should be as dry as possible. Frost on frozen foods can create a ‘steam burst’ foods or moisture on fresh foods can cause hot fat to bubble when the oven door is opened. up and over the sides of the pan. -
Page 7: Overview

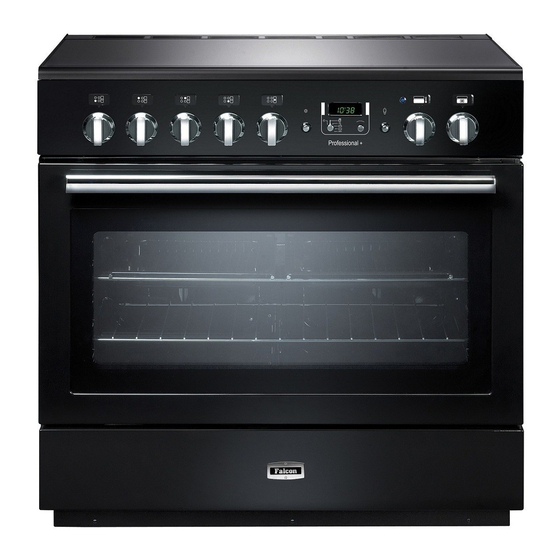

2. Overview DocNo.025-0101 - Overview - 90 DF SC - Prof+ FX Fig. 2.1 Professional + FX ArtNo.270-0029 - Prof+ 90SC annotated The dual fuel single cavity cooker (Fig. 2.1) has the following features: ArtNo.270-0001 Fig. 2.2 Proplus control to high 5 hotplate burners including a wok burner Control panel incorporating a timer Multifunction oven... -
Page 8: Wok Burner
If, when you let go of the control knob, the burner goes out, Fig. 2.3 then the FSD has not been bypassed. Turn the control knob ArtNo.270-0003 Proplus control to low to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 9: The Griddle
The Griddle Fig. 2.10 The griddle fits the left-hand well, front to back (Fig. 2.11). It is designed for cooking food on directly. DO NOT use pans of any kind on it. The griddle surface is non-stick and metal cooking utensils (e.g. spatulas) will damage the surface. Use heat resistant plastic or wooden utensils. - Page 10 Multifunction Oven Modes Conventional Oven (Top and Base Heat) (Fig. 2.13) Defrost This function combines the heat from the top and base elements. It is particularly suitable for roasting This function operates the fan(s) to circulate cold air and baking pastry, cakes and biscuits. only.
-
Page 11: Energy Saving Panel
Energy Saving Panel Fig. 2.13 ArtNo.270-0025 The oven has a divider feature (Fig. 2.14). With this in place Proplus MF oven annotated only one half of the oven is heated and only the right-hand side elements are used. This saves energy and is ideal for cooking most foods. -
Page 12: Operating The Oven
Operating the Oven Fig. 2.17 The multifunction oven has two controls: a function selector and a temperature setting knob (Fig. 2.17). ArtNo.270-0026 Turn the function selector control to a cooking function. Fig. Proplus MF oven controls (2) 2.18 shows the control set for convectional oven cooking. Turn the oven temperature knob to the temperature you need. - Page 13 To Stop the Multifunction Oven at a Specific Fig. 2.25 ArtNo.301-0008 2BC Time of Day Stopping the oven 2 You have set the required temperature and function mode for the Multifunction Oven and you would like the Multifunction Oven to automatically stop. TOP TIP Make a note of the current time so you do not forget.
-
Page 14: Accessories
Four ladder shelf supports (Fig. 2.39) ArtNo.331-0008 - 90SC And one divider (Fig. 2.40) • ArtNo.326-0015 - Energy saving shelf (Falcon) grill pan & trivet Oven Shelves Any shelf can be fitted in any of the positions. The oven shelves are retained when pulled forward but can be easily removed and refitted. -
Page 15: Oven Light
Oven Light Fig. 2.43 Press the button to turn on the oven lights (Fig. 2.43). If one of the oven lights fail, turn off the cooker power supply ArtNo.320-0017 before you change the bulb. See the ‘Troubleshooting’ section Main oven light for details on how to change an oven light bulb. -
Page 16: Cooking Tips
3. Cooking Tips Cooking with a Multi-function Oven General Oven Tips Remember: Not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 17: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result. -
Page 18: Cleaning Your Cooker
5. Cleaning Your Cooker Isolate the electricity supply before carrying out any major Fig. 5.1 cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –... -
Page 19: Griddle
The Wok Burner Fig. 5.2 When reassembling the wok burner (Fig. 5.2) turn over the large base ring and find the ‘D’ shaped area (Fig. 5.3). Turn the head until the ‘D’ matches the one on the burner base. Flip the burner over once again and place it on the burner base. -
Page 20: Cleaning Table
Cleaning Table Cleaners listed (Table 5.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 21: Troubleshooting
5. Troubleshooting Hotplate ignition or hotplate burners faulty If there is an installation problem and I don’t get my original installer to come back to fix it who pays? Is the power on? You do. Service organizations will charge for their call Are the sparker (ignition electrode) or burner holes outs if they are correcting work carried out by your blocked by debris? - Page 22 An oven light is not working Fig. 5.1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W 230 V lamp, FOR OVENS. It must be a special bulb, heat ArtNo.324-0005 Oven light bulb resistant to 300 °C (Fig.
-
Page 23: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Service and Spares Firstly, please complete the appliance details below and keep them safe for future reference – this information will enable us to accurately identify the particular appliance and help us to help you. Filling this in now will save time and inconvenience if you later have a problem with the appliance. -
Page 24: Dear Installer
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Dear Installer Provision of Ventilation Before you start your installation, please complete the details This appliance is not connected to a combustion products below, so that, if your customer has a problem relating to evacuation device. - Page 25 Wall plugs (only required if fitting the cooker on a stone or concrete floor) ArtNo.311-0043 - Griddle 09 ArtNo.326-0013 - Full capacity shelf Steel tape measure (Falcon) Cross head screwdriver Flat head screwdriver 4 mm & 3 mm Allen keys Grill pan tray support 2 grill pans &...
-
Page 26: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker Fig. 7.1 The diagram (Fig.7-1) shows the minimum recommended distance from the cooker to nearby surfaces as given in AS 5601. *Any splashback must be fitted in accordance with the manufacturers instructions. -
Page 27: Completing The Move
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Remove the polystyrene base pack. From the front, tilt Fig. 7.3 the cooker backwards and remove the front half of the polystyrene base (Fig.7-2). Repeat from the back and remove the rear half of the polystyrene base. -
Page 28: Fitting The Stability Bracket And Chain
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fitting the Stability Bracket and Chain Fig. 7.7 Stability bracket A stability bracket and chain MUST be fitted when the cooker is connected to a flexible gas supply. Unless properly installed, the cooker could be tipped by Cooker leaning on the door. -
Page 29: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Gas Connection Fig. 7.10 Must be in accordance with the relevant standards. The gas supply needs to terminate with a threaded fitting ½”. The inlet connector is located just below the hotplate level at the rear of the cooker. -
Page 30: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Fig. 7.11 Fig. 7.12 This appliance must be installed by a qualified electrician to comply with the relevant regulations (AS/NZS 60335.2.6) and also the local electricity supply company requirements. -
Page 31: Final Checks
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Final Checks Fig. 7.16 Hotplate Check Check each burner in turn. There is a Flame Supervision Device (FSD) that stops the flow of gas to the burner if the flame goes out. -
Page 32: Conversion To Propane Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 8. Conversion to Propane Gas Conversion from Natural Gas (1.0 kPa) Fig. 8.1 to LPG X Propane (2.54 kPa) A suitably competent person must perform the conversion. -
Page 33: Set The Governor
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Set the Governor Fig. 8.5 Unscrew the governor’s brass top. In the base of the brass top is a plastic snap-in converter device (Fig.8-5). -
Page 34: Servicing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 9. Servicing BEFORE SERVICING ANY GAS CARRYING Fig. 9.1 COMPONENTS. TURN OFF THE GAS SUPPLY DO NOT modify this appliance! Check the appliance is gas sound after completion of service. -
Page 35: Controls
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 2.2 To Replace a Hotplate Control Taps 3 Controls DISCONNECT FROM THE ELECTRICITY SUPPLY. 3.1 To Change Oven or Light Switch Remove the control panel (see 1.1) and hotplate (see 2.1). -
Page 36: Ovens
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 4 Ovens Fig. 9.5 4.1 To Replace an Oven Thermostat DISCONNECT FROM THE ELECTRICITY SUPPLY. Phial Phial Note: There are 2 thermostats in the oven. - Page 37 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 4.4 To Remove an Oven Fan Element Fig. 9.8 DISCONNECT FROM THE ELECTRICITY SUPPLY. Remove the inner back (see 4.2).
-
Page 38: Doors
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 5 Doors Fig. 9.11 5.1 Removing the Oven Door To remove the oven door, open the door fully. Swivel the locking ‘U’... -
Page 39: Circuit Diagram
10. Circuit Diagram Clear boots r (f) r (f) r (f) r (f) Black boots The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Multi-function oven master switch Cooling fan Blue Multi-function oven drone switch... -
Page 40: Technical Data
11. Technical Data This cooker is designed for use on Natural gas, although a conversion for LP (LPG X Propane (2.54 kPa)) gas is packed with the cooker. INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Inside base drawer of cavity and on rear of the appliance. COUNTRY OF DESTINATION: Australia. - Page 44 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 1926 457400 Fax: +44 (0) 1926 450526 E-mail: consumers@falconappliances.co.uk...
