Summary of Contents for Falcon 90 Dual Fuel
-
Page 1: User Guide

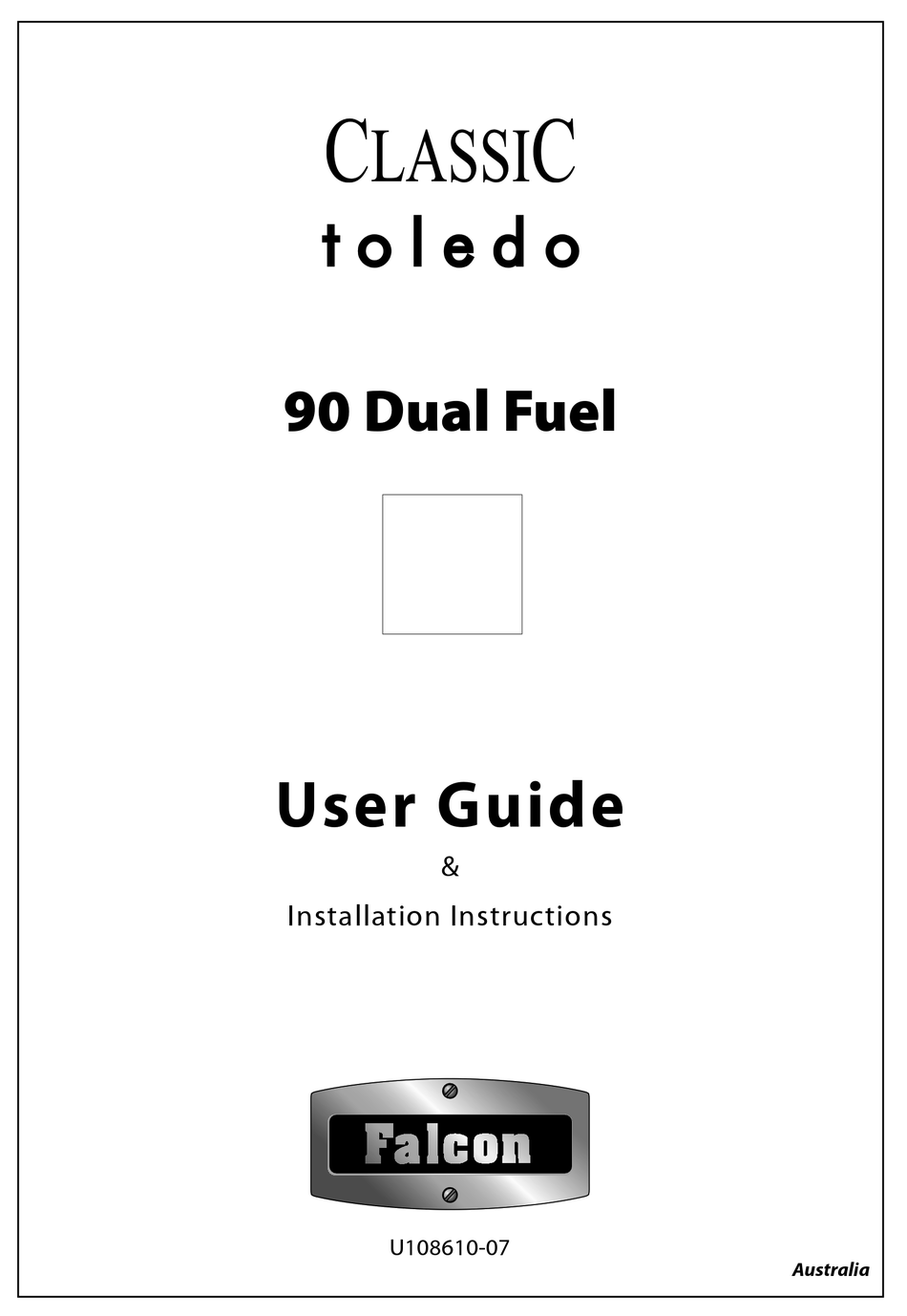

ArtNo.000-0005 Classic logo ArtNo.000-0021 Toledo logo 90 Dual Fuel User Guide & Installation Instructions U108610-07 Australia... -
Page 2: Table Of Contents
Contents Before You Start... Installation Installation and Maintenance Service and Spares Peculiar Smells Dear Installer If You Smell Gas Provision of Ventilation Ventilation Location of Cooker Personal Safety Conversion Cleaning Positioning the Cooker Moving the Cooker Cooker Overview Fitting the Stability Bracket and Chain Hotplate Burners Gas Connection Wok Burner... -
Page 3: Before You Start
1. Before You Start... Ventilation This User Guide covers a number of di erent models. Although some of the illustrations will look di erent to your CAUTION: The use of a gas cooking appliance results particular model the functions will be the same. We hope the in the production of heat and moisture in the room meaning is clear. -
Page 4: Cleaning
Cooking high moisture content DO NOT use water on grease res and never pick up a aming pan. Turn the controls o and then foods can create a ‘steam burst’ smother a aming pan on a surface unit by covering when an oven door is opened. -
Page 5: Cooker Overview
2. Cooker Overview DocNo.020-0007 - Overview - 90DF - Classic Fig.2-1 ArtNo.210-0013 - 90DF - Classic anno lidded The 90 dual fuel cooker (Fig.2-1) has the following features: Fig.2-2 5 hotplate burners including a wok burner A control panel A grill... -
Page 6: Wok Burner
If, when you let go of the control knob, the burner goes out, Fig.2-3 then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 7: The Wok Cradle
The Wok Cradle Fig.2-9 The wok cradle is designed to t a 35 cm wok. If you use a di erent wok, make sure that it ts the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 8: The Grill
The Grill Fig.2-15 CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. CAUTION: Accessible parts may be hot when the grill ArtNo.330-0003 - Grill pan w handle pulled forwards is in use. -
Page 9: The Clock
The Clock Fig.2-20 You can use the timer (Fig.2-20) to turn the ovens on and o . The clock must be set to the time of day before the ovens will work. Setting the Time of Day ArtNo.302-0002 - 6BC annotated When the clock is rst connected the display ashes ( 0.00 ) ... -
Page 10: Key Lock
AUTO is Showing, But you Want to Reset to Fig.2-30 Fig.2-31 Manual Cooking To return to manual cooking from any automatic setting, the ‘cook period’ must be cancelled. Press and hold the [] button and then press the [–] button until the display reads ArtNo.302-0009 - Activating ArtNo.302-0008 - the key lock 2... -
Page 11: Accessories
Accessories Fig.2-35 Oven Shelves – Left-hand (Main) Oven Shelf guard The oven shelves (Fig.2-35) can be easily removed and re tted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig.2-36). Front Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf forward (Fig.2-37). -
Page 12: Cooking Tips
3. Cooking Tips DocNo.030-0003 - Cooking tips - 90DF Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed rmly to the back require approximately the same cooking time. -
Page 13: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 14: Cleaning Your Cooker
5. Cleaning Your Cooker Essential Information Fig.5-1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix di erent cleaning products –... -
Page 15: Grill
Grill Fig.5-5 The grill pan and trivet should be washed in hot soapy water. Alternatively, the grill pan can be washed in a dishwasher. After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush. -
Page 16: The Tall Oven
The Tall Oven Removing the Main Oven Linings Some of the lining panels can be removed for cleaning. You To clean the oven sides, slide out the shelves, unhook the will need to remove the shelves before removing the panels. supports from the oven sides, and lift out (Fig.5-7). -
Page 17: Troubleshooting
6. Troubleshooting Hotplate ignition or hotplate burners faulty Power failure Is the power on? Is the clock illuminated? In the event of a failure in the electrical supply, remember to reset the clock to make sure that the If not, there maybe something wrong with the power timed oven continues to operate. - Page 18 An oven light is not working Fig.6-1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W – ArtNo.324-0005 Oven light bulb 230 V lamp, FOR OVENS.
-
Page 19: Installation
1 Stamford Road, Oakleigh, VIC 3166 Tel: (03) 1300 650 020 Fax: (03) 9569 1450 Email: Service@andico.com.au Name of Appliance Classic/Toledo 90 Dual Fuel Appliance Serial Number* Fuel Type Dual Fuel Date of Purchase Installer’s Name, Address and Telephone No. -
Page 20: Dear Installer
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Dear Installer Provision of Ventilation Before you start your installation, please complete the details This appliance is not connected to a combustion products below, so that, if your customer has a problem relating to evacuation device. - Page 21 INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. You will need the following equipment to complete the Checking the Parts: cooker installation satisfactorily: 3 pan supports Wok cradle • Flexible gas hose. • Gas pressure tester/manometer. •...
-
Page 22: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Positioning the Cooker Fig.7-1 The diagram (Fig.7-1) shows the minimum recommended distance from the cooker to nearby surfaces as given in AS 5601. 1. Overhead - Measurement A The minimum height of any surface above the cooker is 650 mm above the hotplate. -
Page 23: Moving The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Moving the Cooker Fig.7-3 On no account try and move the cooker while it is plugged into the electricity supply. The cooker is very heavy, so take great care. We recommend that two people manoeuvre the cooker. -
Page 24: Fitting The Stability Bracket And Chain
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Fitting the Stability Bracket and Chain Stability bracket A stability bracket and chain MUST be tted when the cooker is connected to a exible gas supply. Unless properly installed, the cooker could be tipped by Cooker leaning on the door. -
Page 25: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Gas Connection Fig.7-9 Must be in accordance with the relevant standards. The gas supply needs to terminate with a down-facing threaded tting ½” connection. The inlet connector is located just below the hotplate level at the rear of the cooker. -
Page 26: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Electrical Connection Fig.7-10 This appliance must be installed by a quali ed electrician to comply with the relevant regulations (AS/NZS 60335.2.6) and also the local electricity supply company requirements. -
Page 27: Final Checks
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Final Checks Fig.7-14 Note: The clock must be set before the ovens will work. See ‘The Clock’ section for instructions on setting the time of day. Hotplate Check Check each burner in turn. -
Page 28: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. 8. Conversion to LP Gas Conversion from Natural Gas (1.0 kPa) Fig.8-1 to LPG X Propane (2.75 kPa) A suitably competent person must perform the conversion. -
Page 29: Set The Governor
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. Set the Governor Fig.8-4 Unscrew the governor’s brass top. In the base of the brass top is a plastic snap-in converter device (Fig.8-4). -
Page 30: Servicing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 9. Servicing BEFORE SERVICING ANY GAS CARRYING Fig.9-1 COMPONENTS TURN OFF THE GAS SUPPLY Check the appliance is gas sound after completion of service. -
Page 31: Hotplate
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 2.3 To Change a Hotplate Burner Injector 2 Hotplate Remove the burner cap and head. Remove the old BEFORE SERVICING ANY GAS CARRYING injector. -
Page 32: Controls
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 3 Controls 4 Grill 3.1. To Replace the Ignition or Light Switch 4.1 To Replace the Grill Controller DISCONNECT FROM THE ELECTRICITY SUPPLY. - Page 33 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. Fit the new fan and reassemble in reverse order. Check Fig.9-4 the operation of the oven. 5.3 To Change the Oven Element DISCONNECT FROM THE ELECTRICITY SUPPLY.
-
Page 34: Doors
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 6 Doors Fig.9-6 Fig.9-7 6.1 To Remove the Grill Door Remove the left-hand side panel (see 1.2). Remove the plinth (4 screws) and the central vertical cover (5 screws). - Page 35 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 6.7 To Remove the Tall Oven Door Fig.9-13 Open the oven door. Supporting the door, remove the 2 screws securing the upper hinge and packing to the cooker front.
-
Page 36: Circuit Diagram
10. Circuit Diagram P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230V 50Hz. Code Description Code Description Code Colour Grill control Right-hand oven thermostat Blue Grill element left-hand side Right-hand oven control Brown Grill element right-hand side Right-hand oven element... -
Page 37: Technical Data
11. Technical Data ArtNo.105-0008 - Technical data - 90 induction - Elan This cooker is designed for use on Natural Gas, although a conversion for LP (LPG X Propane (2.54 kPa)) gas is packed with the cooker. INSTALLER: Please leave these instructions with the User. DATA BADGE LOCATION : Cooker back, serial number repeater badge below oven door opening. - Page 38 Notes...
- Page 39 Notes...
- Page 40 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 1926 457400 Fax: +44 (0) 1926 450526 E-mail: consumers@falconappliances.co.uk...
