Falcon toledo User Manual

90 gas

Advertisement

ArtNo.000-0005 Classic logo
ArtNo.000-0021 Toledo logo
90 Gas

User Guide

&
Installation & Service Instructions
U109937-04
Australia

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the toledo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Falcon toledo

  • Page 1: User Guide

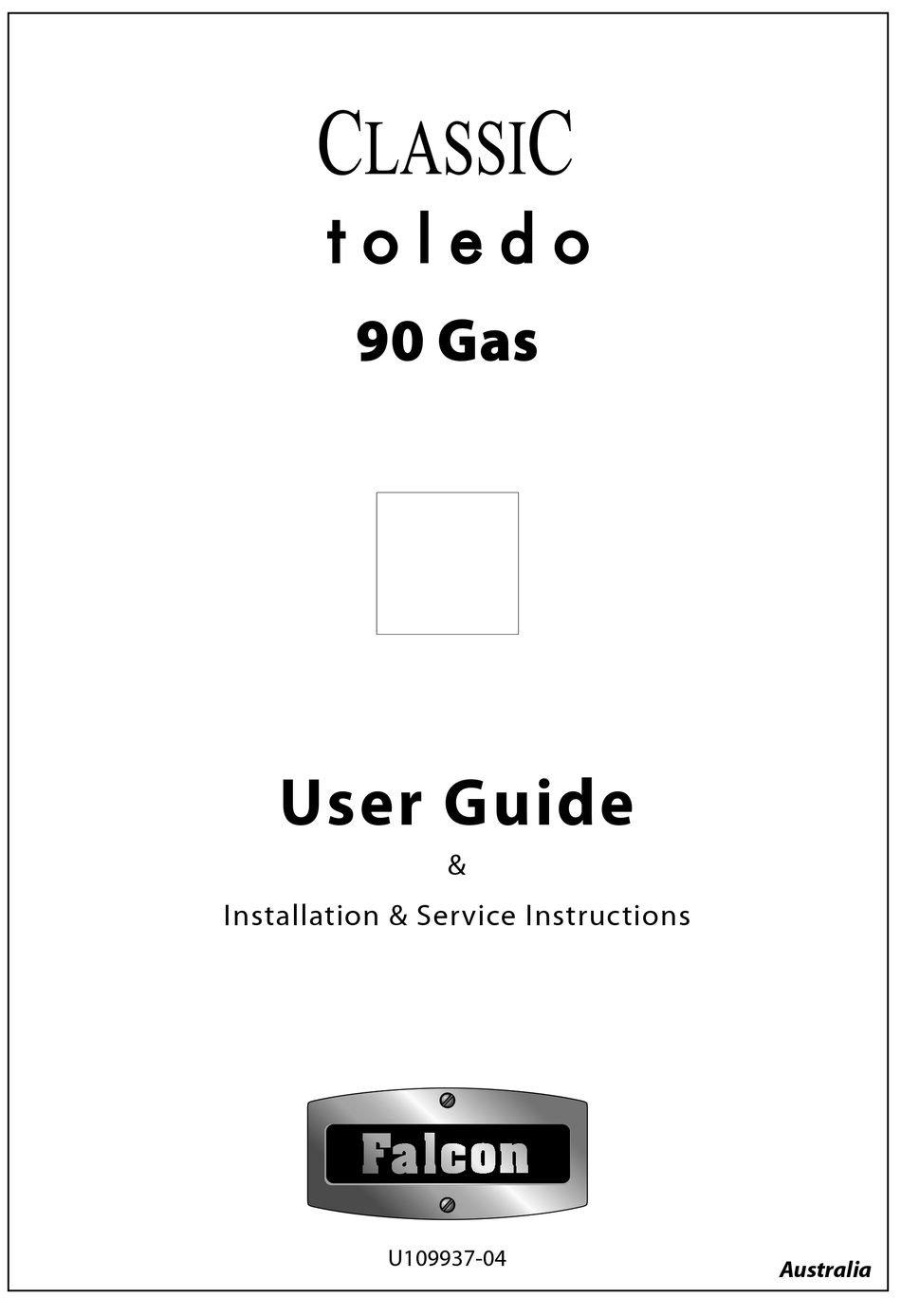

    ArtNo.000-0005 Classic logo ArtNo.000-0021 Toledo logo 90 Gas User Guide & Installation & Service Instructions U109937-04 Australia...
  • Page 2: Table Of Contents

    Contents Before You Start... Installation Installation and Maintenance Service and Spares Peculiar Smells Dear Installer If You Smell Gas Provision of Ventilation Ventilation Location of Cooker Personal Safety Conversion Cleaning Positioning the Cooker Moving the Cooker Cooker Overview Fitting the Stability Bracket and Chain Hotplate Burners Levelling Wok Burner...
  • Page 3: Before You Start

    1. Before You Start... Ventilation This User Guide covers a number of di erent models. Although some of the illustrations will look di erent to your CAUTION: The use of a gas cooking appliance results particular model the functions will be the same. We hope the in the production of heat and moisture in the room meaning is clear.
  • Page 4: Cleaning

    Cooking high moisture content DO NOT use water on grease res and never pick up a aming pan. Turn the controls o and then foods can create a ‘steam burst’ smother a aming pan on a surface unit by covering when an oven door is opened.
  • Page 5: Cooker Overview

    2. Cooker Overview DocNo.020-0006 - Overview - 90DF - Prof+ Fig.2-1 ArtNo.210-0013 - 90DF - Classic anno lidded The 90 gas cooker (Fig.2-1) has the following features: Fig.2-2 5 hotplate burners including a wok burner A control panel A grill Main oven Tall fan oven Hotplate Burners...
  • Page 6: Wok Burner

    If, when you let go of the control knob, the burner goes out, Fig.2-3 then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer.
  • Page 7: The Wok Cradle

    The Wok Cradle Fig.2-9 The wok cradle is designed to t a 35 cm wok. If you use a di erent wok, make sure that it ts the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –...
  • Page 8: The Grill

    The Grill Fig.2-15 CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. CAUTION: Accessible parts may be hot when the grill ArtNo.330-0003 - Grill pan w handle pulled forwards is in use.
  • Page 9: The Ovens

    The Ovens ArtNo.323-0003 Bray gas oven burner flame Fig.2-19 The clock must be set to the time of day before the left- hand oven will work. See the following section on ‘The Clock’ for instructions on setting the time of day. References to ‘left-hand’...
  • Page 10: The Clock

    The Clock Fig.2-25 You can use the timer to turn the left-hand programmable oven on and o . The clock must be set to the time of day before the oven will work. Setting the Time of Day ArtNo.302-0002 - 6BC annotated The 6-button LCD clock is shown in Fig.2-27.
  • Page 11: Key Lock

    If you are out, do not worry about the beeper going o , it Fig.2-35 Fig.2-36 stops after a while. When you return, turn the oven knob to 0 rst, and then press [ B ] twice to return to manual cooking. AUTO is Showing, You Want to Reset to Manual ArtNo.302-0009 - Activating Cooking...
  • Page 12: Accessories

    Accessories Fig.2-40 Oven Shelves – Left-hand (Main) Oven Shelf guard The cooker is supplied with 2 at shelves (Fig.2-42). The oven shelves can be easily removed and re tted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig.2-43).
  • Page 13: Cooking Tips

    3. Cooking Tips DocNo.030-0003 - Cooking tips - 90DF Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed rmly to the back require approximately the same cooking time.
  • Page 14: Cooking Table

    4. Cooking Table The oven control settings and cooking times given in the table below are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0019 - Albertine SC - Shelf position Food is cooked at lower temperature in a fan oven than in a conventional oven.
  • Page 15: Cleaning Your Cooker Essential Information

    5. Cleaning Your Cooker Essential Information Fig.5-1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix di erent cleaning products –...
  • Page 16: Grill

    Grill Fig.5-5 The face of the grill burner will darken with use – this is perfectly normal. Any fat or grease will burn o . Do not try to clean it – the small holes could get blocked and a ect burner performance.
  • Page 17: Ovens

    Ovens Fig.5-7 Thermostat temperature sensor Cleaning is easier if carried out while the oven is still warm. Before cleaning, cover the burner to prevent the burner holes becoming blocked. The inside of the oven and inner door panel can be cleaned using an approved cleaner (Table 5-1).
  • Page 18: Cleaning Table

    Cleaning Table Cleaners listed (Table 5-1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish...
  • Page 19: Troubleshooting

    6. Troubleshooting What cleaning materials are recommended for the The knobs get hot when I use the oven or the grill. Can I cooker? avoid this? See the ‘Cleaning’ section for recommended cleaning Yes, this is caused by heat rising from the oven or the materials.
  • Page 20 Oven not coming on Fig.6-1 Is the power on? Is the clock illuminated? If not, there may be something wrong with the power supply. Is the cooker supply on at the isolator switch? ArtNo.324-0005 Oven light bulb Has the time of day been set? Is the key symbol [F] showing in the display to signify that the oven is locked? See the ‘Clock’...
  • Page 21: Installation

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. 7. Installation Service and Spares Firstly, please complete the appliance details below and keep them safe for future reference – this information will enable us to accurately identify the particular appliance and help us to help you. Filling this in now will save time and inconvenience if you later have a problem with the appliance.
  • Page 22: Dear Installer

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Dear Installer Provision of Ventilation Before you start your installation, please complete the details This appliance is not connected to a combustion products below, so that, if your customer has a problem relating to evacuation device.
  • Page 23 INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. You will need the following equipment to complete the Checking the Parts: cooker installation satisfactorily: 3 pan supports Wok cradle • Flexible gas hose. • Gas pressure tester/manometer. •...
  • Page 24: Positioning The Cooker

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Positioning the Cooker Fig.7-1 The diagram (Fig.7-1) shows the minimum recommended distance from the cooker to nearby surfaces as given in AS 5601. Overhead – Measurement A The minimum height of any surface above the cooker is 650 mm above the hotplate.
  • Page 25: Moving The Cooker

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Moving the Cooker Fig.7-4 On no account try and move the cooker while it is plugged into the electricity supply. The cooker is very heavy, so take great care. We recommend that two people manoeuvre the cooker.
  • Page 26: Fitting The Stability Bracket And Chain

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Fitting the Stability Bracket and Chain Stability bracket A stability bracket and chain MUST be tted when the cooker is connected to a exible gas supply. Unless properly installed, the cooker could be tipped by Cooker leaning on the door.
  • Page 27: Pressure Testing

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Gas Connection Fig.7-9 Must be in accordance with the relevant standards. The gas supply needs to terminate with a down-facing threaded tting ½” connection. The inlet connector is located just below the hotplate level at the rear of the cooker.
  • Page 28: Electrical Connection

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Electrical Connection If there is an electrical fault carry out the following checks: Earth Continuity Check WARNING: THIS COOKER MUST BE EARTHED. The cooker must be disconnected from the power supply. All external wiring must comply with the local regulations for the Electrical Equipment of Buildings.
  • Page 29: Final Checks

    INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Final Checks Fig.7-10 Note: The clock must be set before the ovens will work. See ‘The Clock’ section for instructions on setting the time of day. Hotplate Check Check each burner in turn.
  • Page 30: Conversion To Propane Gas

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. 8. Conversion to Propane Gas DocNo.080-0004 - Gas conversion - 90RM - Tag-fit fascia EVENS Conversion from Natural Gas (1.0 kPa) Fig.8-1 to LPG X Propane (2.54 kPa)
  • Page 31: Ovens

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. Ovens Fig.8-4 Oven Burner Injector Remove the oven furniture. Remove the securing screw at the right-hand end of the burner assembly (Fig.8-4).
  • Page 32: Servicing

    Lift the control panel and pull forwards, taking care not to damage or strain the wiring. Toledo – Removing the Control Panel Pull o all the control knobs and remove the xing screws underneath the control panel.
  • Page 33: Hotplate

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 2.3 To Change a Hotplate Burner Injector 2 Hotplate Remove the burner cap and head. Remove the old 2.1 To Remove the Hotplate injector.
  • Page 34: Controls

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 3 Controls Fig.9-4 Spring clip 3.1. To Replace the Ignition or Light Switch DISCONNECT FROM THE ELECTRICITY SUPPLY. Remove the control panel (see 1.1).
  • Page 35: Grill

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 4 Grill Fig.9-5 BEFORE SERVICING ANY GAS CARRYING COMPONENTS, TURN OFF THE GAS SUPPLY. 4.1 To Change the Grill Control Tap DISCONNECT FROM THE ELECTRICITY SUPPLY.
  • Page 36: Ovens

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 5 Ovens Fig.9-6 5.1 To Remove the Tall Oven Inner Back Open the tall oven door and remove the 2 screws and washers securing the inner back to the back of the oven.
  • Page 37 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 5.4 To Change the Main Oven Burner Assembly 5.8 To Change the Main Oven Electrode Open the oven door.
  • Page 38: Doors

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 6 Doors Fig.9-9 Fig.9-10 6.1 To Remove the Grill Door Remove the left-hand side panel (see 1.2). Remove the plinth (4 screws) and the central vertical cover (5 screws).
  • Page 39 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have nished. 6.7 To Remove the Tall Oven Door Fig.9-16 Open the tall oven door. Supporting the door, remove the 2 screws securing the upper hinge and packing to the cooker front.
  • Page 40: Circuit Diagram

    10. Circuit Diagram N/2 L/1 Sensor Spark ArtNo.080-0025 Classic 90 circuit diagram (Aus) The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Colour Description Description Blue Tall oven thermostat switch Spark generator Brown Tall oven neon...
  • Page 41: Technical Data

    11. Technical Data ArtNo.105-0008 - Technical data - 90 induction - Elan This cooker is designed for use on Natural Gas, although a conversion for LP (LPG X Propane (2.54 kPa)) gas is packed with the cooker. INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening.
