INSTALLING DECORATIVE LOGS
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts spe-
cifically approved with this heater may result in property damage or personal injury.
CAUTION: After installation and periodically thereafter, check to ensure that no yellow flame comes in con-
tact with any log. With the heater set to High, check to see if yellow flames contact any log. If so, reposition
logs according to the log installation instructions in this manual. Yellow flames contacting logs will create
soot (see under Connecting to Gas Supply).
IMPORTANT: It is very important to install the logs exactly as instructed. Do not modify logs. Use only logs
supplied with heater. Make sure log sits flat on firebox floor.
IMPORTANT: Make sure logs do not cover any burner ports (see Figure 10).

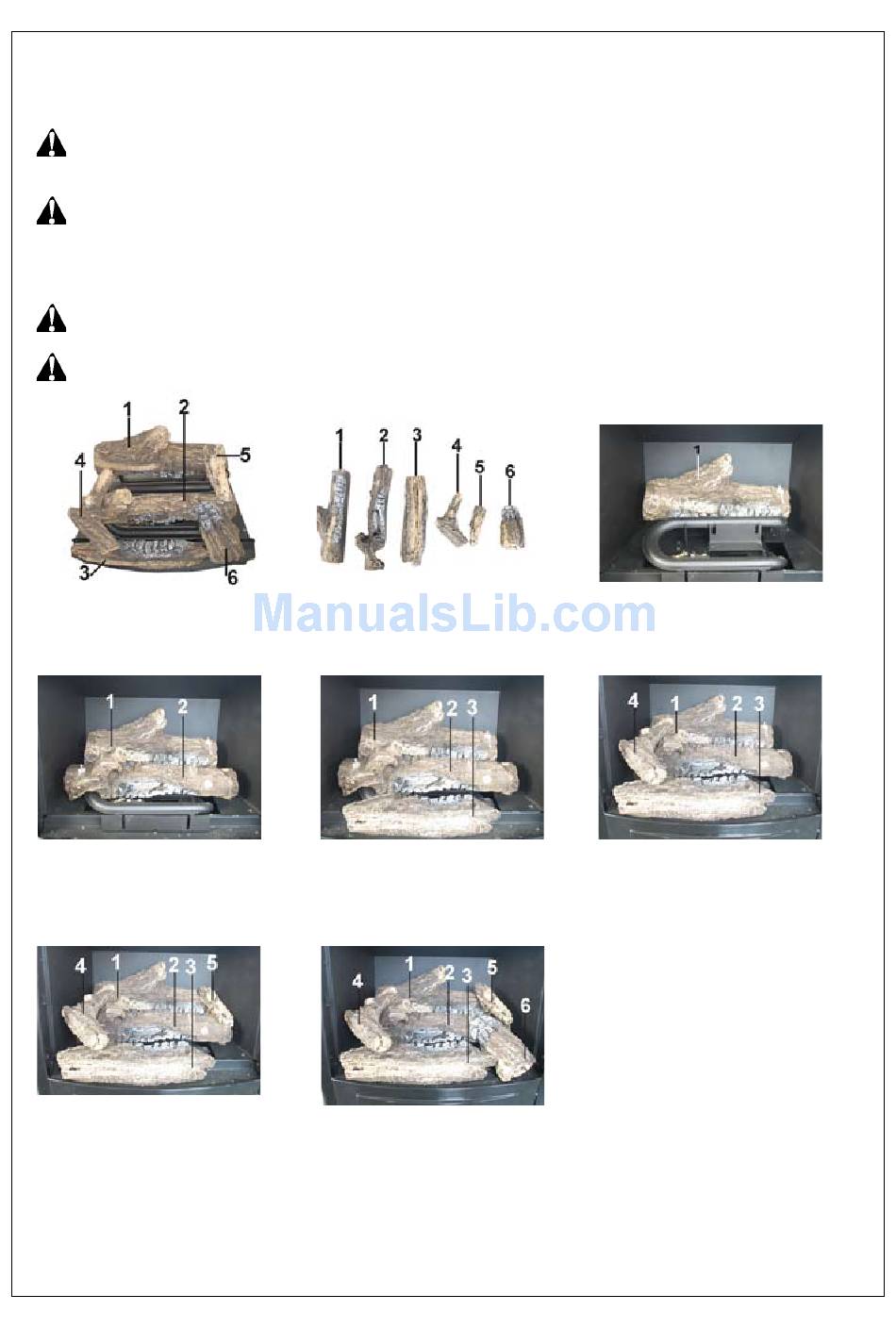

Figure 0 - Installing Log Set
(Top View)
FIG (13)
STEP 2: Install log 2 onto the
two slots in the middle plate.
FIG (16)
STEP 5: Insert the recessed
hole on the bottom of log 5 onto
the pin on log 1, with the other
end of log 5 placed on log 2, as
shown.
FIG (11)
FIG (14)
STEP 3: Install Log 3 onto the
two slots in the front plate.
FIG (17)
STEP 6: Place log 6 on log 2.
3
FIG (12)
STEP 1: Install log 1 onto the
two slots in the rear plate.
FIG (15)
STEP 4: Place log 4 on log 2
and log 3, as shown.
