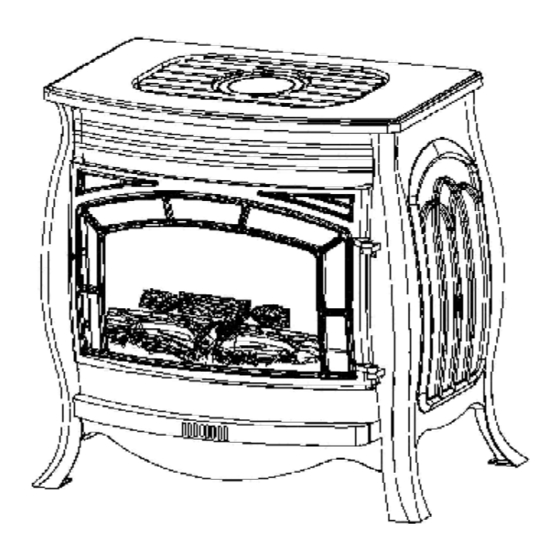

Vent free l.p.& natural gas vent-free stove

Advertisement

OWNER ' S OPERATION AND INSTALLATION MANUAL
SSU320RHN-GB
SSU320RHN-B
SSU320RHN-G
SSU320RHN-S
WARNING
:
adjustment, alteration, service or main-
t e n a n c e can cause injury or property
damage. Refer to this manual for correct in-
stallation and operational procedures. For
assistance or additional information con-
sult a qualified installer, service agency, or
local gas supplier.
WARNING:
This is an unvented gas-
fired heater. It uses air (oxygen) from the
room in w hich it is installed. Provisions
for adequate combustion and ventilation
air must be provided. Refer to Air For
Combustion and Ventilation section on
page 5 of this manual.
Continental Appliance Inc./U.S. Office
5 Musick
4600 Highlands Parkway S.E.
Irvine
Suite# D/E
CA 92618
Smyrna GA 30080
Nanjing PRO-COM Electric Appliance Co., Ltd.
#6 Chuangye Road, High New Tech. Zone,
Great Bridge Road North, Nanjing, 210061, China.
TOLL-FREE NUMBER: 1-877-886-5989
SSU320RHL-GB
SSU320RHL-B
SSU320RHL-G
SSU320RHL-S
Improper installation,
WARNING:
manual is not followed exactly, a f i r e o r e x -
p l o s i o n m a y r e s u l t c a u s i n g p r o pe r t y
damage, personal injury, or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any
phone in your building.
l Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
l If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency, or local
gas supplier.
This appliance may be installed in an aftermarket*,
permanently located manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM
HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one
(1) ounce (30)ml of water for every 1,000BTU'S (.
3KW'S) OF gas input per hour, Refer to page 7.
Consumer : Please retain these instruction for
future use.
Installer: Please leave these instructions with the
consumer.
* Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
1
Vent Free L.P.& NATURAL
GAS VENT-FREE STOVE
If the information in this
PC-SL035A058-0505

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSU320RHL-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Procom SSU320RHL-B

  • Page 1 OWNER ’ S OPERATION AND INSTALLATION MANUAL SSU320RHN-GB SSU320RHL-GB SSU320RHN-B SSU320RHL-B SSU320RHN-G SSU320RHL-G SSU320RHN-S SSU320RHL-S WARNING Improper installation, adjustment, alteration, service or main- t e n a n c e can cause injury or property damage. Refer to this manual for correct in- stallation and operational procedures.
  • Page 2: Table Of Contents

    Safety Information-----------------------------------------------------------------------------------------2 Product Features-------------------------------------------------------------------------------------------------4 Local codes--------------------------------------------------------------------------------------------------------4 Unpacking--------------------------------------- ---- ----------------------------------------------------------------4 Air for Combu stion & Ven tilat ion-- ----- ----- ----- ------ ----- ----- -- ---------------------------------------5 Installation----------------------------------------------------------------------------------------------------------7 Connecting To Gas Supply------------------------------------------------------------------------------------8 Checking Gas Connections-----------------------------------------------------------------------------------9 Log Placement---------------------------------------------------------------------------------------------------10 Operating Heater-------------------------------------------------------------------------------------------------11 Cleaning and Maintenance----------------------------------------------------------------------------------14 Specification------------------------------------------------------------------------------------------------------16 Troubleshooting---------------------------------- ----------------------------------------------------------------17 Parts Breakdow n &...
  • Page 3 SAFETY INFORMATION Continued Do not place clothing or other flammable material on or near the appliance. Never place any objects in the heater. Carefully supervise young children when they are in the room with the heater. You must operate this heater with the heater door with screen in place.
  • Page 4: Product Features

    UNPACKING 1. Remove top inner pack. 2. Tilt carton so that stove is upright. 3. Remove protective side packaging. 4. Slide stove out of carton. 5. Remove protective plastic wrap. 6. Rotate door handle and open door.
  • Page 5: Air For Combu Stion & Ven Tilat Ion

    AIR FOR COMBUSTION AND VENTILATION WARNING: This heater shall not be installed in a confined space or unusually tight con- struction unless provisions are provided for adequate combus- tion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.
  • Page 6 3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater Gas water heater* Gas furnace Vented gas heater Gas heater logs Other gas appliances* + Total *Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
  • Page 7: Installation

    CLEARANCES TO COMBUSTIBLES Carefully follow the instructions below. This stove is a freestanding unit designed to set directly on the floor. IMPORTANT: You must maintain mini- mum wall and ceiling clearances dur- ing installation.
  • Page 8: Connecting To Gas Supply

    6 i n c h e s ( l n c l u d e s c o r n e r installations). C. Clearances from the stove top to the ceiling should not be less than 48 inches.
  • Page 9: Checking Gas Connections

    LP Models: 11”-14” W.C. supply pressure Gas supplier provides external regulator for propane gas. Figure 6 - External Regulator With Vent Pointing Down NG Models: 5”-10.5” W.C. supply pressure Gas supplier provides external regu- lator for natural gas. * Purchase the optional CSA design- certified equipment shutoff valve from your dealer.
  • Page 10: Log Placement

    Pressure Testing Heater Gas Connections Continued 5. Correct all leaks at once. 6. Light heater (see Operating Heater). Check all other internal joints for leaks. 7. Turn off heater (see To Turn Off Gas Appliance). Figure 9 - Checking Gas Joints LOG PLACEMENT WARNING: Failure to position the parts in accordance with these...
  • Page 11: Operating Heater

    OPERATING HEATER FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not fol- low these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. CAUTION: Do not try to adjust heating levels by using the equip- ment shutoff valve.
  • Page 12 OPERATING HEATER Continued 8. Press BURNER button for desired burner operation. AUTO: Burner will automatically turn on and off. MAN: Burner operates continuously. 9. If the appliance will not operate, fol- low the instructions “To Turn Off Gas To Appliance” and call your service technician or gas supplier.
  • Page 13: To Turn Off Gas To Appliance

    MANUAL OPERATING INSTRUCTIONS Continued 5. Wait five (5) minutes to clear out any gas. Then smell for gas, in- cluding near the floor. If you smell gas, STOP! Follow “B” in the safety information on page 11. If you do not smell gas, go to the next step.
  • Page 14: Cleaning And Maintenance

    INSPECTING FLAME PATTERN Check pilot flame pattern and burner flame patterns often. PILOT FLAME PATTERN Figure 17 shows a correct pilot flame pattern. Figure 18 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool.
  • Page 15 We recommend you keep the burner and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can.
  • Page 16: Replacement Parts

    If they can’t supply original re- placement part(s) call PRO-COM’s toll- free number (877)886-5989. TECHNICAL SERVICE For questions about installation, operation, or troubleshooting, contact PRO-COM toll -free at (877)886-5989. SPECIFICATIONS SSU320RHL-GB SSU320RHL-B SSU320RHL-G SSU320RHL-S 32,000 LP Gas Automatic or Electronic 9" W.C. 14" 11"...
  • Page 17: Troubleshooting

    5. Have qualified service technician check inlet pressure 6. Check the wire and make wire cor- rect 7. Replace Pilot 8. Contact dealer or PROCOM 1. Check that connectors are secure on module 2. Contact local gas company 3. Clean ODS/pilot (see Cleaning and Maintenance, page 14) 4.
  • Page 18 OBSERVED PROBLEM ODS/pilot has flame but burner does not light Delayed ignition at burner Burner backfiring during combustion Slight smoke or odor during initial op- eration Dark residue on logs or inside of fire- place Heater produces a clicking/ticking noise just after burner is lit or shut off White powder residue forming within burner box or on adjacent walls or fur- niture...
  • Page 19 OBSERVED PROBLEM Heater produces unwanted odors H e a t e r s h u t s o f f i n u s e ( O D S operates) Gas odor exists even when heater is shut off Gas odor during combustion Moisture/condensation on windows TROUBLESHOOTING Continued...
  • Page 20: Illustrated Parts Breakdown

    ILLUSTRATED PARTS BREAKDOWN SSU320RHL-GB SSU320RHN-GB SSU320RHN-B SSU320RHL-B SSU320RHL-G SSU320RHN-G SSU320RHN-S SSU320RHL-S Key No. SLU35A410(NG) SLU35A410(LP) SLU35A420 ML091-05 ML091-10 ML056-04 SLU35A031 NAY03-05-01 AL092-01 QL027-02 QL028-02 ND4703X400-RH ODS ND4908X400-RH ODS MCL08-01 SL035A032 NV2020-22 SLU35A020 NRV82FB-4 NRV82FB-9 NAYB02-00 NAYB01-00 Part Number Description BURNER ASSEMBLY...
  • Page 21 ILLUSTRATED PARTS BREAKDOWN SSU320RHN-GB SSU320RHL-GB SSU320RHN-B SSU320RHL-B SSU320RHN-G SSU320RHL-G SSU320RHN-S SSU320RHL-S Part Number Description SLU35A102-GB TOP SLU35A102-B SLU35A102-G SLU35A102-S SLU35A130-GB DOOR WITH SCREEN SLU35A130-B DOOR WITH SCREEN SLU35A130-G DOOR WITH SCREEN SLU35A130-S DOOR WITH SCREEN SLU35A106-GB ACCESS PANEL SLU35A106-B ACCESS PANEL...
