MODEL NO. SSU320RHN-GB SSU320RHL-GB
WARNING: This is an unvented gas-fired
heater. It uses air (oxygen) from the room in which
it is installed. Provisions for adequate combustion
and ventilation air must be provided. Refer to Air
For Combustion and Ventilation section on page 5
of this manual.
Consumer : Please retain these instructions for
future use.
Installer: Please leave these instructions with the
consumer.
CUSTOMER CARE: 1-877-886-5989

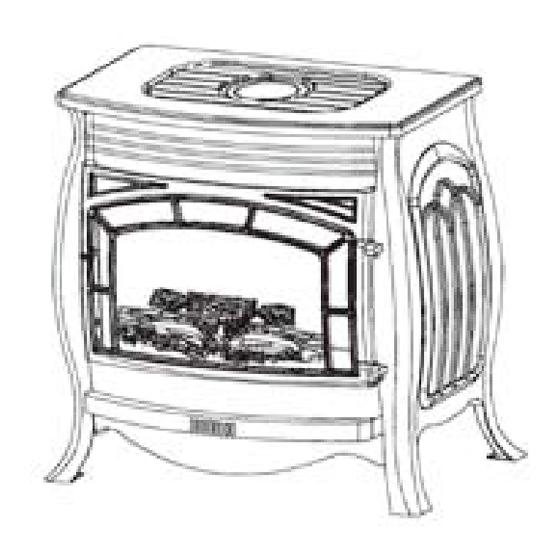

VENT-FREE GAS STOVE
OWNER ' S MANUAL
WARNING: If the information in this manual is not
followed exactly, a fi r e or explosion may result caus -
ing property damage, personal injury, or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency, or local gas supplier.
WARNING: Improper installation, adjustment, altera -
tion, service or maintenance can cause injury or property
damage. Refer to this manual for correct installation and
operational procedures. For assistance or additional
information consult a qualified installer, service agency,
local gas supplier, or customer service.
This appliance may be installed in an aftermarket*, perma -
nently located manufactured (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
1
PC-SL035A058-0607
Advertisement
Table of Contents
Related Manuals for Procom SSU320RHN-GB
Summary of Contents for Procom SSU320RHN-GB
- Page 1 Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. MODEL NO. SSU320RHN-GB SSU320RHL-GB If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified installer, service agency, or local gas supplier.
-
Page 2: Table Of Contents
Table of Contents DO NOT TAMPER WITH PILOT LIGHT Due to high temperatures, the ap - SAFETY SYSTEM! pliance should be located out of Safety Information-----------------------2 traffic and away from furniture and Product Features-------------------------4 If heater shuts off, do not relight until you draperies. - Page 3 SAFETY INFORMATION Continued 1. This appliance is only for use with tion to run properly. This heater has 18. Do not operate heater if any log the type of gas indicated on the rating an Oxygen Depletion Sensing (ODS) is broken. Do not operate heater plate.
-
Page 4: Product Features
LOCAL CODES PRODUCT FEATURES State of Massachusetts: The instal - This heater is designed for vent free SAFETY PILOT lation must be made by a licensed operation. Some state and local codes plumber or gas fitter in the Common - This heater has a pilot with an Oxygen prohibit the use of vent-free gas heaters. -
Page 5: Air For Combustion & Ventilation
AIR FOR COMBUSTION AND VENTILATION Confined and Unconfined Space Unusually Tight Construction WARNING: This heater The National Fuel Gas Code, ANSI The air that leaks around doors and win - shall not be installed in a confined Z223.1 defines a confined space as a dows may provide enough fresh air for space or unusually tight construc - space whose volume is less than 50... - Page 6 3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater Btu/Hr Example: Gas water heater* Btu/Hr Gas water heater 30,000 Btu/Hr Gas furnace Btu/Hr Vent-free heater 26,000 Btu/Hr Vented gas heater Btu/Hr Total 56,000 Btu/Hr Gas heater logs Btu/Hr Other gas appliances* + Btu/Hr...
-
Page 7: Installation
INSTALLATION WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS Water vapor is a by-product of gas com - bustion. An unvented room heater pro - duces approximately one(1) ounce(30ml) of water for every 1,000BTU’s(.3KW’s) of gas input per hour. Unvented room heaters are recommended as supple - mental heat (a room) rather than a pri - mary heat source (an entire house). -
Page 8: Connecting To Gas Supply
INSTALLATION WARNING: Never connect heater CAUTION: Never connect heater Continued to private (non-utility) gas wells. This gas directly to the gas supply. This heater is commonly known as wellhead gas. requires an external regulator (not CLEARANCES TO COMBUSTIBLES supplied). lnstall the external regulator Carefully follow the instructions be - WARNING: Do not over tighten between the heater and gas supply. -
Page 9: Checking Gas Connections
IMPORTANT : Install equipment shutoff LP Models: valve in an accessible location. The 11”-14” W.C. supply pressure equipment shutoff valve is for turning Gas supplier provides external on or shutting off the gas to the appli - regulator for propane gas. ance. -
Page 10: Log Placement
Pressure Testing Heater Gas Connections Continued 5. Correct all leaks at once. 6. Light heater (see Operating Heater). Check all other internal joints for leaks. 7. Turn off heater (see To Turn Off Gas Figure 10- Installing Log Set FIG (5) Appliance). -
Page 11: Operating Heater
OPERATING HEATER C. Use only your hand to push control. REMOTE CONTROL Never use tools. If the appliance does OPERATING INSTRUCTION FOR YOUR SAFETY not operate, don’t try to repair it, call Note: If operating by remote control, READ BEFORE LIGHTING a qualified service technician or gas you must set the Control Knob on supplier. - Page 12 LOCKING REMOTE CONTROL OPERATING HEATER (child proof) Continued 1.Key press locking: Press LOCK button, a symbol will ap - pear on the LCD. 8. If the appliance will not operate, fol 2.Key-press unlocking: low the instructions “To Turn Off Gas Press LOCK button and hold until lock To Appliance”...
- Page 13 MANUAL OPERATING TO TURN OFF GAS INSTRUCTIONS TO APPLIANCE Continued Push in gas Control Knob slightly and turn clockwise to the OFF position. 5. Wait five (5) minutes to clear out any gas. Then smell for gas, includ - Do not force. ing near the floor.
-
Page 14: Cleaning And Maintenance
INSPECTING FLAME PATTERN DISCONNECT WIRING OR CONTROL MODULE Check pilot flame pattern and burner 1. Remove screws from the rear control flame patterns often. panel, take out thermostat sensing PILOT FLAME PATTERN bulb from the clip, then disconnect Figure 17 shows a correct pilot flame the wires from control module. - Page 15 We recommend you keep the burner CABINET and pilot assembly clean and free of Air Passageways dust and dirt. Use a vacuum cleaner or pressurized To clean these parts we recommend air to clean. using compressed air no greater than Exterior 30 PSI.
-
Page 16: Replacement Parts
How heater was malfunctioning Type of gas used (Propane/LP or Natural gas/NG) Purchase date Usually, we will ask you to return the defective part to the factory. SPECIFICATIONS SSU320RHN-GB SSU320RHL-GB Btu (Variable) 32,000 32,000 Gas Type Natural Gas LP Gas... -
Page 17: Troubleshooting
TROUBLESHOOTING NOTE: BEFORE YOU SWITCH TO “ELECTRIC” CONTROL LEVEL FROM MANUAL CONTROL, YOU NEED TO TURN THE KNOB TO “OFF” LEVEL FIRST AND WAIT FOR ONE MINUTE, THEN TURN THE KNOB TO “ELECTRIC”. IN CASE “ELECTRONIC” CONTROL LEVEL DOES NOT WORK, PLEASE TURN THE CON - TROL KNOB COUNTERCLOCKWISE TO “OFF”... - Page 18 TROUBLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY ODS/pilot has flame but burner does 1. Burner injector clogged 1. Clean burner ( see Cleaning and not light Maintenance , page 14) or replace burner injector 2. Inlet gas pressure is too low 2.
- Page 19 TROUBLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Heater produces unwanted odors 1. Heater is burning vapors from paint, 1. Ventilate room. Stop using odor caus - hair spray, glues, etc. (See IMPOR - ing products while heater is running TANT statement at beginning of troubleshooting) 2.
-
Page 20: Parts Breakdown & Parts List
ILLUSTRATED PARTS BREAKDOWN SSU320RHN-GB SSU320RHL-GB Key No. Part Number Description 122118 122119 ML091-05 INJECTOR ML091-10 INJECTOR NAY03-05-01 IGNITOR CABLE GCRMA19 IGNITOR QL027-02 INJECTOR QL028-02 INJECTOR ND4703X400-RH ND4908X400-RH MCL08-01 KNOB NRV82FB-4 REGULATOR NRV82FB-9 REGULATOR GCRMA1 ELECTRONIC MODULE GCRTA1 REMOTE CONTROL GCRRA2... - Page 21 ILLUSTRATED PARTS BREAKDOWN SSU320RHN-GB SSU320RHL-GB Part Number Description SSU320RHN-GB SSU320RHL-GB SLU35A102-GB TOP SLU35A130-GB DOOR WITH SCREEN SLU35A106-GB ACCESS PANEL SLU35A101C BACK SLU35A103 LOUVER ASSEMBLY SLU35A201 FIREBOX ASSEMBLY SLU35A108 CABINET BOTTOM SLU35A116 LOWER FRONT PANEL SLU35A401 FIREBOX FLOOR SLU35A132 DOOR HINGE...
-
Page 22: Warranty Information
Limited Three-Year Warranty The manufacturer warrants this product to be free from defects in workmanship and material present at time of shipment from the factory for three years and electrical components for one year from the date of purchase. This warranty applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge or at our option replace the product with a comparable or superior model.
