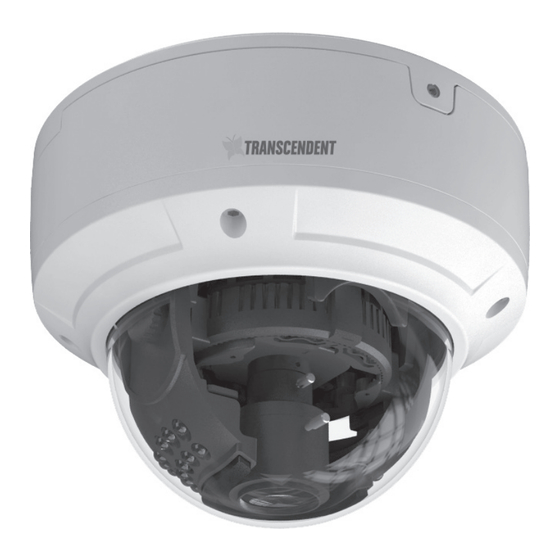

VTD-TTD30R2V
2.1 Megapixel Vandal Resistant
HD-TVI IR Dome Camera
FEATURES
• 1/3" 2.1 Megapixel Progressive Scan CMOS image sensor
• 2.1 MegaPixel Video Transmission over COAX cable at
distances of up to 1500' using HD-TVI Technology*
• 2.8~12mm Varifocal Lens
• 30 Infrared LED's with 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• 12VDC Operation
Advertisement
Table of Contents
Related Manuals for Vitek VTD-TTD30R2V
Summary of Contents for Vitek VTD-TTD30R2V

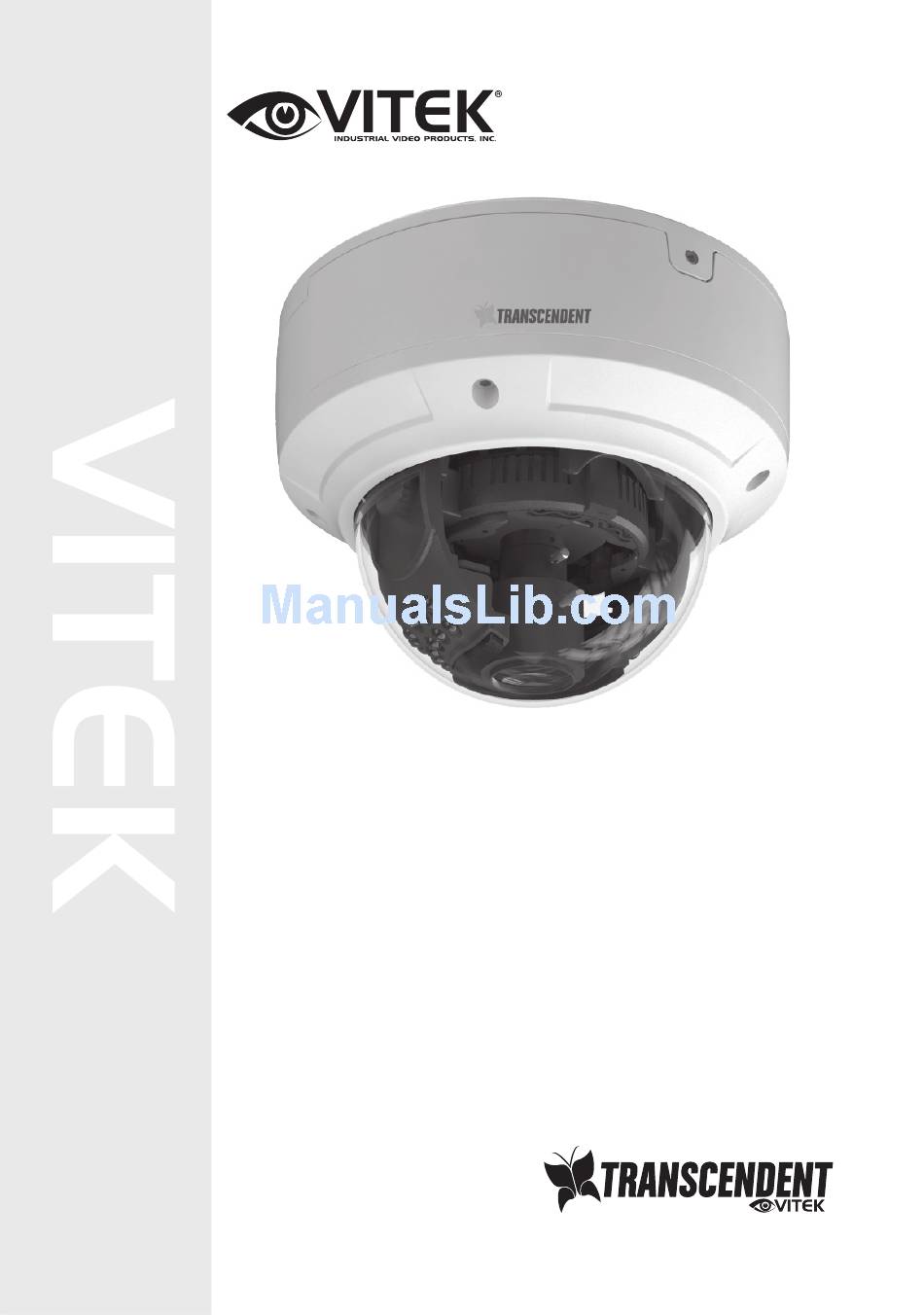

- Page 1 VTD-TTD30R2V 2.1 Megapixel Vandal Resistant HD-TVI IR Dome Camera FEATURES • 1/3” 2.1 Megapixel Progressive Scan CMOS image sensor • 2.1 MegaPixel Video Transmission over COAX cable at distances of up to 1500’ using HD-TVI Technology* • 2.8~12mm Varifocal Lens •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Components And Accessories
Components and Accessories Camera Screws User Manual Hex Wrench Drill Template Overview Lower Dome Focus Lens Zoom Lock Screw Video Cable Mounting Base Power Cable... -
Page 4: Video Connection
Video Connection Connect the video connecter to a BNC patch cable. Monitor Video Power Connection Connect the power connecter to a 12 VDC power adaptor. 12VDC Power... -
Page 5: Installation
Installation Before starting, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Loosen the screws to open the lower dome and then loosen the lock screw to remove Lock Screw the mounting base. - Page 6 Installation 4. Install the camera to the mounting base with the lock screw. 5. Adjust the Three-axis camer Pan 0°~360° bracket to obtain the optimi- um viewing angle. Tilt 0°~75° Rotation 0°~360° 6. Adjust the Focus and Zoom screw to achieve a clear Zoom image.
- Page 7 Detailed Specifications Image Sensor 1/3” CMOS (AR0330 + NVR2421 + TP2801) Video Compression Standard H.264 Resolution 1080P (2 MegaPixel) Effective Pixels 1920(H) x 1080(V) Signal System PAL/NTSC Synchronization Internal Lens 2.8~12mm (Vari-Focal) S/R Ratio >52dB (AGC OFF) Auto Gain Control OFF ~44.8dB Min Illumination 0 Lux (LED ON)
-
Page 8: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
