FEATURES
• 1/3" 2.1 MegaPixel CMOS Sensor
• HD-TVI & AHD/CVBS Video Output
• 3.6mm Fixed Iris Lens (VTD-TTAD24R2F) / 2.8~12mm
Varifocal Lens (VTD-TTAD30R2V)
• 24 Infrared LED's with 70' IR Range (VTD-TTAD24R2F) /
30 Infrared LED's with 100' IR Range (VTD-TTAD30R2V)
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• 12VDC Operation

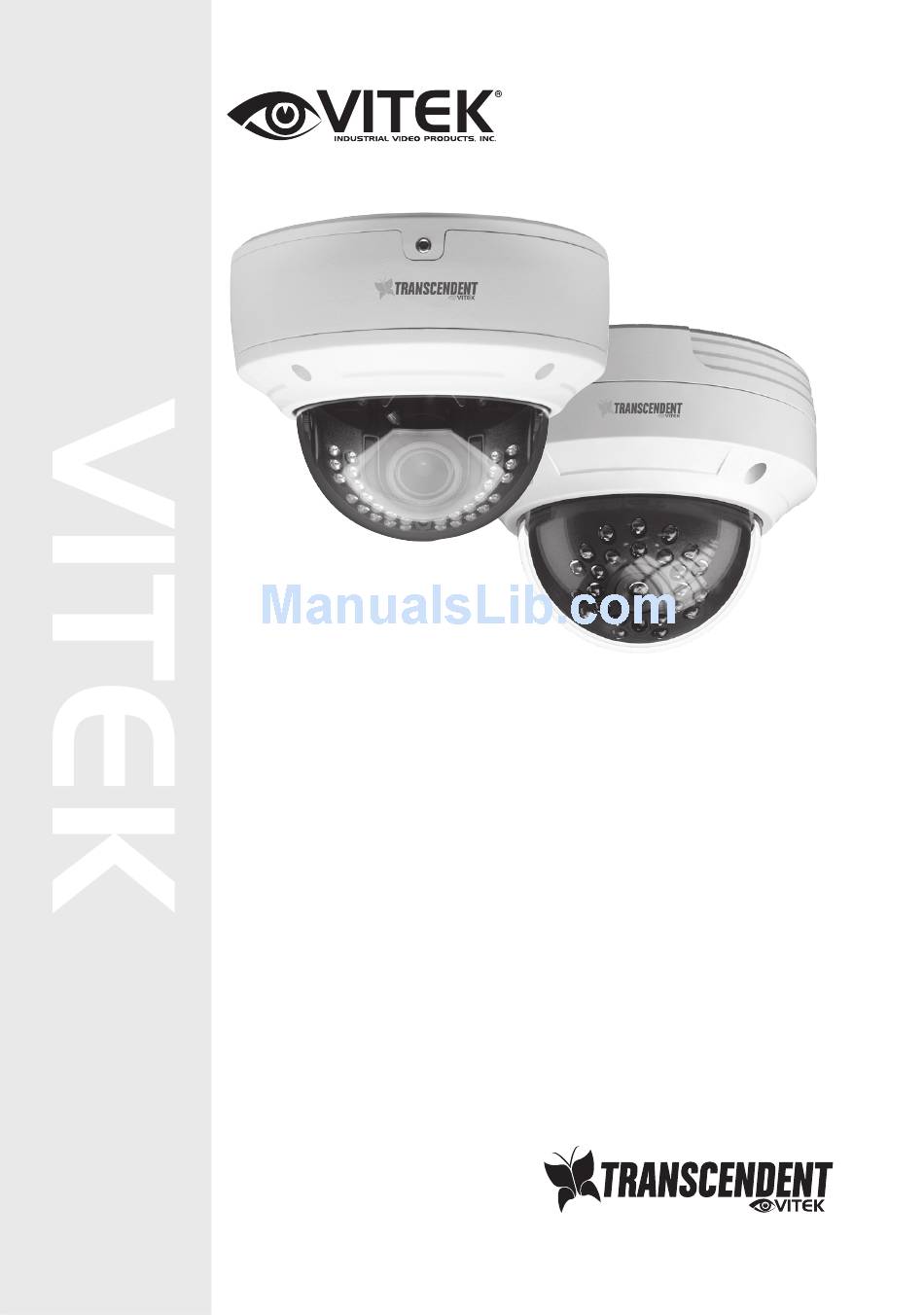

VTD-TTAD24R2F
VTD-TTAD30R2V
2.1 Megapixel Outdoor HD-TVI/
AHD/CVBS IR Dome Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-TTAD24R2F
Summary of Contents for Vitek VTD-TTAD24R2F
- Page 1 • HD-TVI & AHD/CVBS Video Output • 3.6mm Fixed Iris Lens (VTD-TTAD24R2F) / 2.8~12mm Varifocal Lens (VTD-TTAD30R2V) • 24 Infrared LED’s with 70’ IR Range (VTD-TTAD24R2F) / 30 Infrared LED’s with 100’ IR Range (VTD-TTAD30R2V) • Digital Wide Dynamic Range (D-WDR) •...
-
Page 2: Safety Precaution
Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Components And Accessories
Components and Accessories Camera Screws User Manual Hex Wrench Drill Template Overview Lower Dome Power Cable Lens Focus Zoom HD-TVI Output Lock Screw AHD/CVBS Output... -
Page 4: Video Connection
Video Connection Connect the video connecter to a BNC patch cable. Monitor Video AHD/CVBS Switch: Switch to CVBS Mode: Press & Hold the Switch for 5 seconds Switch to AHD Mode: Press & Release the Switch quickly Power Connection Connect the power connecter to a 12 VDC power adaptor. 12VDC Power... -
Page 5: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Loosen the screws to open the lower dome and then loosen the lock screw to remove Lock Screw the mounting base. - Page 6 Installation 4. Install the camera to the mounting base with the lock screw. 5. Adjust the Three-axis camer Pan 0°~360° bracket to obtain the optimi- um viewing angle. Tilt 0°~75° Rotation 0°~360° 6. Adjust the Focus and Zoom screw to achieve a clear Zoom image.
-
Page 7: Camera Osd Menu
OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The following menu toolbar will pop up by right-clicking the mouse when using VITEK Transcendent Series HD-TVI DVRs. You will see the following interface by clicking the button. - Page 8 You can select the menu by clicking (U) or (D) key on the direction area. Click (L) or (R) key to select the menu on the left. The menu with arrow icon which means it has sub-menu. You can select the menu and click “Iris +” or call preset NO.95 to enter the sub-menu.
- Page 9 Detailed Specifications VTD-TTAD24R2F VTD-TTAD30R2V Image Sensor 1/3” 2.1 MegaPixel CMOS Sensor Resolution 1080p (2.1 MegaPixel) Effective Pixels 1920(H) x 1080(V) Signal System PAL/NTSC Video Output 1x HD-TVI (BNC) & 1 AHD/CVBS (BNC) Lens 3.6mm Fixed 2.8~12mm (Vari-Focal) Day/Night True Day/Night by ICR S/N Ratio >52dB (AGC OFF)
-
Page 11: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning. - Page 12 Version 2.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 June 2016 WWW.VITEKCCTV.COM...
