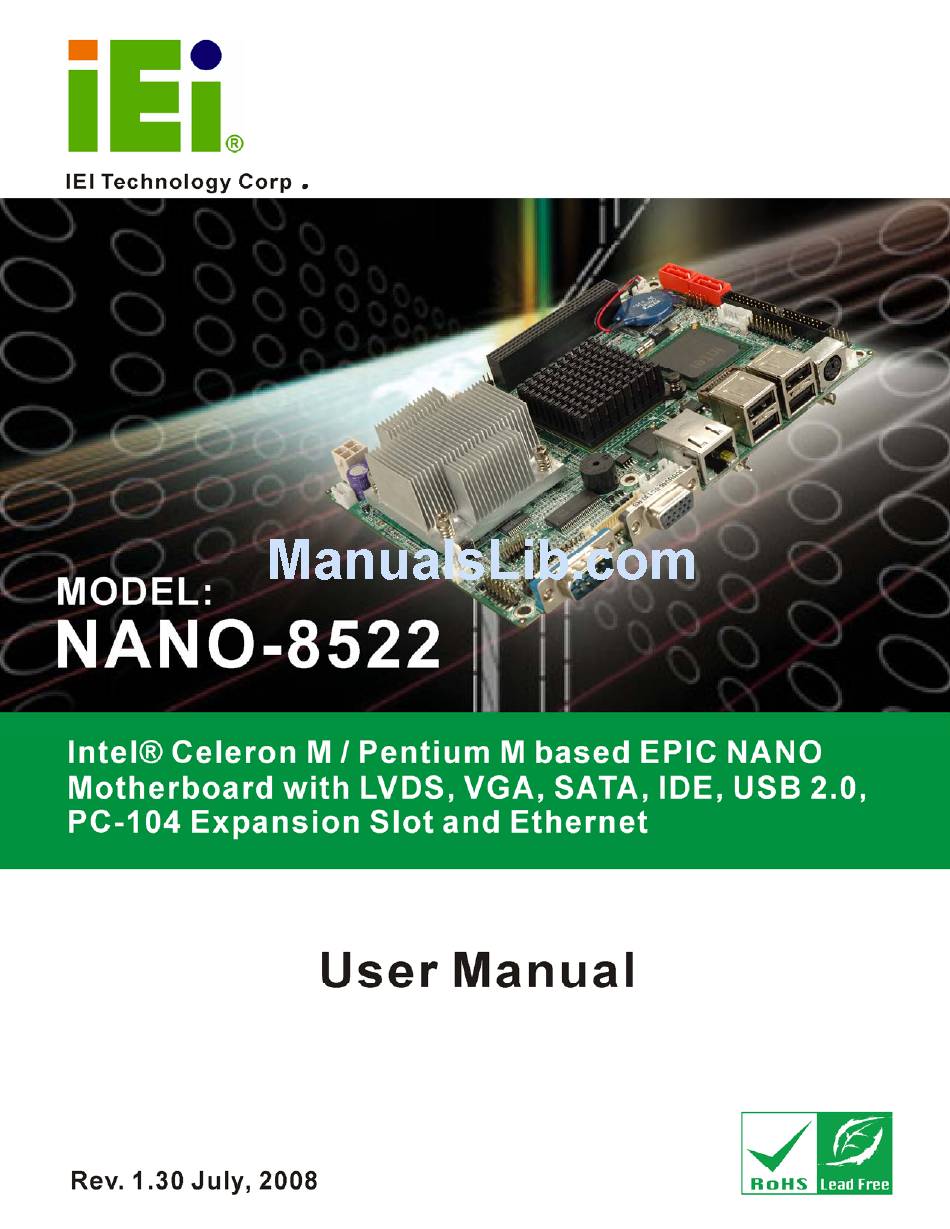

Page 1 NANO-8522 EPIC Board Page i...
Page 2 NANO-8522 EPIC Board Revision Date Version Changes July, 2008 1.30 SATA chipset changed from Ali to VIA February, 2008 1.20 Updated version number to match engineering revision number. October, 2007 1.10 Update manual format Northbridge heatsink changed to clip-free model...
Page 3 NANO-8522 EPIC Board Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Page 4 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the NANO-8522. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The text is the cautionary message.
Page 5 “NOTE,” both capitalized and bold and is followed by text. The text is the cautionary message. A note message is shown below: NOTE: This is an example of a note message. Notes should always be read. Notes contain critical information about the NANO-8522. Please take note messages seriously. Page v...
Page 6: Packing List
NANO-8522 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the NANO-8522 package. 1 x NANO-8522 single board computer 1 x Audio cable...
Page 7: Table Of Contents
VERVIEW 1.1.1 NANO-8522 Features ..................2 1.2 NANO-8522 O ................... 3 VERVIEW 1.2.1 NANO-8522 Overview Photo................3 1.2.2 NANO-8522 Peripheral Connectors and Jumpers ..........4 1.2.3 Technical Specifications..................5 2 DETAILED SPECIFICATIONS .................. 8 2.1 O ......................... 9 VERVIEW 2.2 D ......................
Page 8 2.9.1 System Monitoring ................... 33 2.9.2 Operating Temperature and Temperature Control........... 34 2.9.3 Power Consumption..................34 2.10 E ..................... 34 MBEDDED YSTEMS 2.10.1 NANO-8522 Embedded Systems ..............34 3 UNPACKING ....................... 36 3.1 A ..................37 STATIC RECAUTIONS 3.2 U ......................
Page 9 NANO-8522 EPIC Board 4.1.3 External Peripheral Interface Panel Connectors ..........44 4.2 I ..............45 NTERNAL ERIPHERAL ONNECTORS 4.2.1 ATX Power Supply Connector ................. 45 4.2.2 ATX Power Supply Enable Connector ............. 46 4.2.3 Audio Connector (10-pin) ................47 4.2.4 Backlight Inverter Connector ................48 4.2.5 Battery Connector....................
Page 10 NANO-8522 EPIC Board 5.2.1 Installation Notices ..................79 5.2.2 Installation Checklist ..................79 5.3 CPU, CPU C DIMM I ..........81 OOLING IT AND NSTALLATION 5.3.1 Socket 479 CPU Installation................81 5.3.2 Socket 479 Cooling Kit Installation..............83 5.3.3 SO-DIMM Installation ..................86 5.3.4 CF Card Installation ..................
Page 11 NANO-8522 EPIC Board 6.1.4 Unable to Reboot After Configuration Changes..........110 6.1.5 BIOS Menu Bar....................110 6.2 M ........................111 6.3 A ......................112 DVANCED 6.3.1 CPU Configuration..................114 6.3.2 IDE Configuration ..................115 6.3.2.1 IDE Master, IDE Slave ................117 6.3.3 Super IO Configuration.................. 122 6.3.4 Hardware Health Configuration..............126 6.3.5 Remote Access Configuration ................
Page 12 NANO-8522 EPIC Board 8.1 A ................167 VAILABLE OFTWARE RIVERS 8.2 D CD A ..................167 RIVER 8.3 C ................169 HIPSET RIVER NSTALLATION 8.4 R ..............172 EALTEK UDIO RIVER NSTALLATION 8.5 I ........... 178 NTEL RAPHICS EDIA CCELERATOR RIVER ®...
Page 13 List of Figures Figure 1-1: NANO-8522 ........................2 Figure 1-2: NANO-8522 Overview ....................3 Figure 1-3: NANO-8522 Overview ....................4 Figure 2-1: NANO-8522 Dimensions (mm) ...................9 Figure 2-2: External Interface Panel Dimensions (mm) ............10 Figure 2-3: Data Flow Block Diagram ..................11 Figure 2-4: CPU..........................12 Figure 2-5: Intel®...
Page 14 Figure 4-22: RS-232/422/485 Serial Port Connector Location..........69 Figure 4-23: Serial Port Connector Pinout Locations...............70 Figure 4-24: USB Connector Pinout Locations .................71 Figure 4-25: NANO-8522 External Peripheral Connector Panel..........72 Figure 4-26: PS/2 Pinout and Configuration ................73 Figure 4-27: Ethernet Connector....................74 Figure 4-28: COM1 Pinout Locations..................75 Figure 4-29: VGA Connector .......................76...
Page 15 NANO-8522 EPIC Board Figure 5-12: COM 2 Function Select Jumper Location.............92 Figure 5-13: LVDS Voltage Selection Jumper Pinout Locations ..........93 Figure 5-14: PCI-104 Voltage Setup Jumper Pinout Locations ..........94 Figure 5-15: Audio Kit Cable Connection ..................96 Figure 5-16: IDE Cable Connection.....................97 Figure 5-17: LVDS Connector......................98...
Page 16 NANO-8522 EPIC Board Figure 7-21: Select Boot Array ....................162 Figure 7-22: Select Boot Array ....................163 Figure 7-23: Set Array as Boot Array..................163 Figure 7-24: Serial Number View....................164 Figure 7-25: Serial Number....................... 164 Figure 7-26: Exit RAID Utility....................165 Figure 8-1: Introduction Screen ....................
Page 17 NANO-8522 EPIC Board Figure 8-30: Overwrite Protection.................... 184 Figure 8-31: File Extraction Continues..................184 Figure 8-32: Intel® Pro Network Connections ................ 185 Figure 8-33: Intel® Pro Network Connections Driver Installation Notice ......185 Figure 8-34: USB2.0 Window ....................186 Figure 8-35: USB2.0 OS Options....................186 Figure 8-36: Windows XP USB 2.0 Program Icon..............
Page 18 Table 2-1: Supported Intel® Pentium® M Processors ..............12 Table 2-2: Supported Intel® Celeron M Processors..............13 Table 2-3: Supported HDD Specifications..................19 Table 2-4: Power Consumption....................34 Table 2-5: NANO-8522 Embedded Systems................35 Table 3-1: Package List Contents ....................39 Table 3-2: Optional Components ....................40 Table 4-1: Peripheral Interface Connectors ................44 Table 4-2: External Peripheral Interface Panel Connectors .............45...
Page 19 NANO-8522 EPIC Board Table 4-23: Serial Connector Pinouts..................70 Table 4-24: USB Port Connector Pinouts...................71 Table 4-25: Keyboard Connector Pinouts..................73 Table 4-26: Ethernet Connector Pinouts ..................74 Table 4-27: Ethernet Connector LEDs ..................74 Table 4-28: RS-232 Serial Port (COM 1) Pinouts ...............75 Table 4-29: USB Connector Pinouts ...................75...
Page 20 NANO-8522 EPIC Board BIOS Menus BIOS Menu 1: Main ........................111 BIOS Menu 2: Advanced ......................113 BIOS Menu 3: CPU Configuration .................... 114 BIOS Menu 4: IDE Configuration....................115 BIOS Menu 5: IDE Master and IDE Slave Configuration ............117 BIOS Menu 6: Super IO Configuration..................
Page 21: Introduction
NANO-8522 EPIC Board Chapter Introduction Page 1...
Page 22: Overview
266 MHz DDR RAM, comes with VGA and LVDS video support, and Ethernet support. The NANO-8522 supports up to two SATA hard drives, up to two IDE hard drives and six USB 2.0 devices. The VIA enabled SATA drives support RAID 0 for performance and RAID 1 for data protection.
Page 23: Nano-8522 Overview
1.2 NANO-8522 Overview 1.2.1 NANO-8522 Overview Photo The NANO-8522 has a wide variety of internal and external peripheral connectors. The peripheral connectors are connected to devices including storage devices, display devices and parallel communications devices. A labeled photo of the peripheral connectors is shown in Figure 1-1.
Page 24: Nano-8522 Peripheral Connectors And Jumpers
NANO-8522 EPIC Board Figure 1-3: NANO-8522 Overview 1.2.2 NANO-8522 Peripheral Connectors and Jumpers The NANO-8522 has the following connectors on-board: 1 x 12 V power connector 1 x ATX power button connector 1 x ATX power connector 1 x Audio connector...
Page 25: Technical Specifications
1 x Reset button connector 2 x Serial ATA (SATA) drive connectors 3 x Serial port connectors 1 x USB connectors The NANO-8522 has the following external peripheral interface connectors on the board rear panel: 1 x PS/2 keyboard/mouse connector 1 x Ethernet connector 1 x Serial port connector 4 x USB 2.0 connector...
Page 26 NANO-8522 EPIC Board Specification NANO-8522 Embedded CPUs: Intel® Celeron M 600 MHz (Banias Core) Intel® Celeron M 1GHz (Dothan Core) System CPU Socket 479 CPUs: Intel® Pentium M Intel® Celeron M Front Side Bus 400 MHz Northbridge: Intel® 852GM System Chipset Southbridge: Intel®...
Page 27: Table 1-1: Technical Specifications
NANO-8522 EPIC Board Specification NANO-8522 12 V @ 0.96 A (Intel® Celeron M 800 MHz with 256 MB DDR) Power Consumption 12 V @ 1.99 A (Intel® Pentium M 1.7GHz with 512 MB DDR) Temperature 0ºC ~ 60ºC (32ºF ~140ºF)
Page 28: Detailed Specifications
NANO-8522 EPIC Board Chapter Detailed Specifications Page 8...
Page 29: Overview
NANO-8522 EPIC Board 2.1 Overview This chapter describes the specifications and on-board features of the NANO-8522 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below and shown in Figure 2-2. Length: 165.10 mm Width: 115.00 mm...
Page 30: External Interface Panel Dimensions
NANO-8522 EPIC Board 2.2.2 External Interface Panel Dimensions External peripheral interface connector panel dimensions are shown in Figure 2-3. Figure 2-2: External Interface Panel Dimensions (mm) Page 10...
Page 31: Data Flow
NANO-8522 EPIC Board 2.3 Data Flow Figure 2-4 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 2-3: Data Flow Block Diagram Page 11...
Page 32: Compatible Processors
2.4.1 CPU Overview Figure 2-4: CPU The NANO-8522 comes preinstalled with an Intel® Celeron M 600 MHz (Banias Core), an Intel® Celeron M 1GHz (Dothan Core) or a Socket 479 CPU socket for Intel® Pentium M and Celeron M processors.
Page 33: Supported Intel® Celeron® M Processors
NANO-8522 EPIC Board 2.4.3 Supported Intel® Celeron® M Processors Specifications for the compatible Intel® Celeron M processors are listed in Table 2-3 below: CPU Speed Bus Speed Mfg. Tech Cache Socket Processor No. 1.70 GHz 400 MHz 90 nm 1 MB 1.60 GHz...
Page 34: Intel 852Gm Memory Support
NANO-8522 EPIC Board 400 MHz system bus delivers a high-bandwidth connection between the processor and the platform Supports integrated graphics utilizing Intel® Extreme Graphics 2 technology Three USB host controllers provide high performance peripherals with 480 Mb/s of bandwidth, while enabling support for up to six USB 2.0 ports.
Page 35: Intel ® 852Gm Display And Graphics Support
NANO-8522 EPIC Board Figure 2-6: 200-pin DDR SO-DIMM Socket ® 2.5.2 Intel 852GM Display and Graphics Support The Intel® 852GM Northbridge chipset has an integrated graphics engine that supports the following display devices: Analog CRT displays 24-bit dual channel LVDS Figure 2-7: Display and Graphics Support 2.5.2.1 Analog CRT...
Page 36: Lvds Display Support
NANO-8522 EPIC Board Resolution: 1600x1200 pixels with 85 Hz refresh rate Resolution: 1920x1440 pixels with 60 Hz refresh rate 2.5.2.2 LVDS Display Support The onboard Intel® 852GM GMCH has an integrated dual channel LFP Transmitter interface to support LVDS LCD panel resolutions up to SXGA+ (1400x1050 @ 60 Hz) with maximum pixel depth of 18-bpp and with center and down spread SSC support of 0.5%,...
Page 37 NANO-8522 EPIC Board DirectDraw*, GDI, GDI+ Anti-aliased text support Alpha blending Alphas stretch blitter Hardware alpha blended RGB cursor Color space conversion 5x2 overlay support Rotate, scale and translate operations High-performance 3D: 256-bit internal path 32bpp/ 24ZorW/ 8 Stencil DX7*/DX8*/OGL*1.1...
Page 38: Intel ® 82801Db I/O Controller Hub (Ich4)
NANO-8522 EPIC Board ® 2.6 Intel 82801DB I/O Controller Hub (ICH4) Figure 2-8: Intel® ICH4 The Intel® ICH4 I/O controller hub comes with the following features: PCI Local Bus Specification, Revision 2.2-compliant with support for 33 MHz PCI operations. ACPI Power Management Logic Support...
Page 39: Ide Interface
66 MB/s 33 MB/s Controller Interface Table 2-3: Supported HDD Specifications 2.6.2 AC’97 Controller The NANO-8522 has an integrated Realtek ALC655 Codec. The ALC655 Codec is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio Codec designed for PC Page 19...
Page 40: Figure 2-10:Realtek Alc655 Codec
NANO-8522 EPIC Board multimedia systems, including host/soft audio and AMR/CNR-based designs. The codec is shown in Figure 2-10. Figure 2-10:Realtek ALC655 Codec Some of the features of the codec are listed below. Meets performance requirements for audio on PC99/2001 systems Meets Microsoft WHQL/WLP 2.0 audio requirements...
Page 41: Usb Controller
NANO-8522 EPIC Board External Amplifier Power Down (EAPD) capability Power management and enhanced power saving features Supports Power-Off CD function Adjustable VREFOUT control Supports 48 KHz S/PDIF output, complying with AC'97 Rev 2.3 specifications Supports 32K/44.1K/48 KHz S/PDIF input Power support: Digital: 3.3 V; Analog: 3.3 V/5 V Standard 48-pin LQFP package EAX™...
Page 42: Pci Interface
NANO-8522 EPIC Board Figure 2-11: USB The chipset USB controller has the following specifications: Six USB ports USB 1.1 and USB 2.0 compliant Three Universal Host Controller Interface (UHCI) controllers High-speed, full-speed and low-speed capable 2.6.4 PCI Interface The PCI interface on the ICH4 is compliant with the PCI Revision 2.2 implementation.
Page 43: Lpc Interface
NANO-8522 EPIC Board 2.6.5 LPC Interface The ICH4 Low Pin Count (LPC) interface complies with the LPC 1.0 specifications. The LPC bus from the ICH4 is connected to the following components: BIOS chipset Super I/O chipset 2.7 LPC Bus Components 2.7.1 LPC Bus Overview...
Page 44: Fintek F81216Dg Lpc Serial Port Chipset
NANO-8522 EPIC Board 2.7.2 Fintek F81216DG LPC Serial Port Chipset The NANO-8522 has a Fintek F81216DG chipset onboard enables the addition of two additional UART serial ports (COM3 and COM4). UART includes 16-byte send/receive FIFO. The Fintek serial port chipset is interfaced to the Southbridge chipset through the LPC bus.
Page 45: Super I/O Chipset
NANO-8522 EPIC Board Figure 2-13: BIOS Chipset Some of the BIOS features are listed below: AMI Flash BIOS SMIBIOS (DMI) compliant Console redirection function support PXE (Pre-boot Execution Environment) support USB booting support The BIOS chipset is shown in Figure 2-13 below.
Page 46: Lpc Interface
The onboard Super I/O supports the following infrared specifications: IrDA version 1.0 SIR protocol with a maximum baud rate up to 115.2 Kb/s The IR controller on the super I/O is interfaced through the board-to-board connectors on the NANO-8522 to an IrDA pin-header on a backplane. Page 26...
Page 47: Hardware Monitor Functions
NANO-8522 EPIC Board Figure 2-15: Infrared 2.7.4.3 Hardware Monitor Functions The Super I/O Hardware Monitor monitors internal voltages, system temperature and the cooling fan speed. All the monitored environmental parameters can be read from the BIOS Hardware Health Configuration menu.
Page 48: Keyboard And Mouse Controller
NANO-8522 EPIC Board Figure 2-16: Parallel Port 2.7.4.5 Keyboard and Mouse Controller The Super I/O keyboard and mouse controller is compatible with the following specifications. 8042 compatible Asynchronous access to two data registers and one status register Compatible with 8042 software...
Page 49: Dio Ports
NANO-8522 EPIC Board Figure 2-17: Keyboard and Mouse 2.7.4.6 DIO Ports The Super I/O has a 10-pin, 8-bit programmable digital input/output port. Figure 2-18: Intel® 852GM 2.7.4.7 Fan Speed and Fan Control The super I/O can monitor the fan speed. The super I/O is interfaced to the fan on the backplane through the board-to-board connectors.
Page 50: Pci Bus Components
NANO-8522 EPIC Board 2.8 PCI Bus Components Figure 2-19: PCI Interface The PCI bus is connected to the components listed below: Intel® 82551ER PCI Ethernet controller (embedded CPU models) Intel® 82541PI PCI Gigabit Ethernet controller (socket 479 model) VIA VT6421 SATA controller PCI-104 Expansion port The PCI bus complies with PCI Local Bus Specification, Revision 2.2, supports 33 MHz...
Page 51: Intel® 82541Pi Pci Gigabit Ethernet Controller
Early-receive interrupt processes receive data concurrently 3.3 V device The PCI Ethernet controller is connected to an RJ-45 connector on the NANO-8522. 2.8.2 Intel® 82541PI PCI Gigabit Ethernet Controller The Intel® 82541PI PCI Gigabit Ethernet controller replaces the Intel® 82551ER on Socket 479 models.
Page 52: Via® Vt6421 Sata Drive Controller
TCP segmentation (LSO), TCP and UDP checksum off-loading 3.3 V device The PCI Ethernet controller is connected to an RJ-45 connector on the NANO-8522. 2.8.3 VIA® VT6421 SATA Drive Controller A VIA® VT6421 SATA drive controller is connected to two SATA drive connectors and interfaced to the system through the PCI bus.
Page 53: Expansion Port
Built-in 256 byte FIFO for each SATA port ensures fast read/write operations 2.8.4 PCI-104 Expansion Port The PCI-104 Expansion port allows a PCI-104 module to be installed on the NANO-8522. Figure 2-22: PCI-104 Expansion Port The PCI-104 expansion slot has the following features:...
Page 54: Operating Temperature And Temperature Control
Northbridge chipset to ensure the operating temperature remains low. 2.9.3 Power Consumption Table 2-4 shows the power consumption parameters for the NANO-8522 running with a 1.0GHz Intel® Celeron® M processor and with a 512 MB, 333 MHz DDR DIMM. Voltage...
Page 55: Table 2-5: Nano-8522 Embedded Systems
NANO-8522 EPIC Board the NANO-8522 motherboard, plus features of the PCI-104 modules included with the embedded system. Some of the features of the embedded systems are listed below. Model Processor Features Other Features ECN-170BSEO Intel® Pentium M 1.6GHz / Two additional GbE ports 1 x GbE port Celeron M 1.5GHz...
Page 56: Unpacking
NANO-8522 EPIC Board Chapter Unpacking Page 36...
Page 57: Anti-Static Precautions
When the NANO-8522 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the NANO-8522 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.
Page 58: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the NANO-8522 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
Page 59: Table 3-1: Package List Contents
NANO-8522 EPIC Board Quantity Item and Part Number Image SATA power cable (P/N: 32100-088600-RS) 1 COM (w/o bracket) (P/N: 32200-000049-RS) AT 12 V Cable (P/N: 32100-087100-RS) Mini jumper Pack (P/N: 33100-000033-RS) Quick Installation Guide (P/N: 51000-022027-RS) Utility CD (P/N: IEI-7B000-000104-RS)
Page 60: Optional Components
NANO-8522 EPIC Board 3.3.2 Optional Components The following components are optional: Item and Part Number Image CPU cooler (P/N: CF-479B-RS) Table 3-2: Optional Components Page 40...
Page 61: Connector Pinouts
NANO-8522 EPIC Board Chapter Connector Pinouts Page 41...
Page 62: Peripheral Interface Connectors
NANO-8522 EPIC Board 4.1 Peripheral Interface Connectors Section 4.1.1 shows peripheral interface connector locations. Section 4.1.2 lists all the peripheral interface connectors seen in Section 4.1.1. 4.1.1 NANO-8522 Layout Figure 4-5 shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers.
Page 63: Peripheral Interface Connectors
NANO-8522 EPIC Board Figure 4-2: Solder Side Connector and Jumper Locations 4.1.2 Peripheral Interface Connectors Table 4-4 shows a list of the peripheral interface connectors on the NANO-8522. Detailed descriptions of these connectors can be found below. Connector Type Label...
Page 64: External Peripheral Interface Panel Connectors
USB connector 8-pin header USB3 Table 4-1: Peripheral Interface Connectors 4.1.3 External Peripheral Interface Panel Connectors Table 4-5 lists the external peripheral interface panel connectors on the NANO-8522. Detailed descriptions of these connectors can be found in. Connector Type Label...
Page 65: Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the NANO-8522. 4.2.1 ATX Power Supply Connector CN Label:...
Page 66: Atx Power Supply Enable Connector
The ATX power supply enable connector enables the NANO-8522 to be connected to an ATX power supply. In default mode, the NANO-8522 can only us an AT power supply. To enable an ATX power supply the AT Power Select jumper must also be configured. Please refer to Chapter 3 for more details.
Page 67: Audio Connector (10-Pin)
NANO-8522 EPIC Board 4.2.3 Audio Connector (10-pin) CN Label: AUDIO1 10-pin header CN Type: CN Location: See Figure 4-5 CN Pinouts: See Table 4-5 The 10-pin audio connector is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.
Page 68: Backlight Inverter Connector
CN Location: See Figure 4-6 CN Pinouts: See Table 4-6 The backlight inverter connector provides the backlight on the LCD display connected to the NANO-8522 with +12 V of power. Figure 4-6: Panel Backlight Connector Pinout Locations PIN NO. DESCRIPTION BL_ADJ...
Page 69: Compactflash® Socket
NANO-8522 EPIC Board CN Pinouts: See Table 4-7 The battery connector is connected to a backup battery. The battery connector is also used to reset the CMOS memory if the incorrect BIOS settings have been made and the system cannot boot up.
Page 70: Figure 4-8: Cf Card Socket Location
NANO-8522 EPIC Board Figure 4-8: CF Card Socket Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND SDD3 SDD11 SDD4 SDD12 SDD5 SDD13 Page 50...
Page 71: Digital Input/Output (Dio) Connector
NANO-8522 EPIC Board PIN NO. DESCRIPTION PIN NO. DESCRIPTION SDD6 SDD14 SDD7 SDD15 SDCS#1 SDCS#3 GROUND GROUND SDIOR# GROUND SDIOW# GROUND VCC5 GROUND IRQ15 VCC5 VCC5 GROUND Master/Slave Select GROUND GROUND IDERST# GROUND SIORDY SDA2 SDREQ SDA1 SDDACK# SDA0 IDEACTS#...
Page 72: Fan Connectors
NANO-8522 EPIC Board Figure 4-9: DIO Connector Locations DESCRIPTION DESCRIPTION PWR (+5 V) XOUT0 XOUT1 XOUT2 XOUT3 XIN0 XIN1 XIN2 XIN3 Table 4-9: DIO Connector Pinouts 4.2.8 Fan Connectors CN Label: FAN1 CN Type: 3-pin wafer connector CN Location: See Figure 4-10...
Page 73: Ide Connector(44-Pin)
Table 4-10: Fan Connectors Pinouts 4.2.9 IDE Connector(44-pin) CN Label: IDE1 CN Type: 44-pin header (2x22) CN Location: See Figure 4-11 CN Pinouts: See Table 4-11 One 44-pin IDE device connector on the NANO-8522 supports connectivity to two hard disk drives. Page 53...
Page 74: Figure 4-11: Secondary Ide Device Connector Locations
NANO-8522 EPIC Board Figure 4-11: Secondary IDE Device Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET# GROUND DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 Page 54...
Page 75: Infrared Interface Connector (5-Pin)
NANO-8522 EPIC Board PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 GROUND IDE DRQ GROUND IOW# GROUND IOR# GROUND IDE CHRDY GROUND IDE DACK GROUND–DEFAULT INTERRUPT HDC CS0# HDC CS1#...
Page 76: Keyboard/Mouse Connector
NANO-8522 EPIC Board Figure 4-12: Infrared Connector Pinout Locations DESCRIPTION IR-RX IR-TX Table 4-12: Infrared Connector Pinouts 4.2.11 Keyboard/Mouse Connector CN Label: KBMS1 6-pin header (1x6) CN Type: CN Location: See Figure 4-13 CN Pinouts: See Table 4-13 The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.
Page 77: Led Connector
NANO-8522 EPIC Board Figure 4-13: Keyboard/Mouse Connector Location PIN NO. DESCRIPTION +5 V KB DATA MS DATA MS CLK KB DATA KB CLK GROUND Table 4-13: Keyboard/Mouse Connector Pinouts 4.2.12 LED Connector CN Label: CN Type: 6-pin wafer (1x6) CN Location:...
Page 78: Lvds Lcd Connector
NANO-8522 EPIC Board Figure 4-14: LED Connector Locations PIN NO. DESCRIPTION +5 V Power LED+ Power LED- HDD LED+ HDD LED- Table 4-14: LED Connector Pinouts 4.2.13 LVDS LCD Connector CN Label: LVDS1 CN Type: 30-pin crimp (2x10) CN Location:...
Page 79: Figure 4-15: Lvds Lcd Connector Pinout Locations
NANO-8522 EPIC Board Figure 4-15: LVDS LCD Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND GROUND LVDSA_Y0+ LVDSA_Y0- LVDSA_Y1+ LVDSA_Y1- LVDSA_Y2+ LVDSA_Y2- LVDSA_CLK+ LVDSA_CLK- LVDSA_Y3+ LVDSA_Y3- GROUND GROUND LVDSB_Y0+ LVDSB_Y0- LVDSB_Y1+ LVDSB_Y1- Page 59...
Page 80: Parallel Port Connector
NANO-8522 EPIC Board PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDSB_Y2+ LVDSB_Y2- LVDSB_CLK+ LVDSB_CLK- LVDSB_Y3+ LVDSB_Y3- GROUND GROUND VCC_LVDS VCC_LVDS VCC_LVDS VCC_LVDS Table 4-15: LVDS LCD Port Connector Pinouts 4.2.14 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header...
Page 81: Figure 4-16: Parallel Port Connector Location
NANO-8522 EPIC Board Figure 4-16: Parallel Port Connector Location DESCRIPTION DESCRIPTION RSTROBE# ALF# RPD0 ERROR# RPD1 PAR_INI# RPD2 SLCTIN# RPD3 GND1 RPD4 GND2 Page 61...
Page 82: Slot
NANO-8522 EPIC Board DESCRIPTION DESCRIPTION RPD5 GND3 RPD6 GND4 RPD7 GND5 ACK# GND6 BUSY GND7 GND8 SLCT Table 4-16: Parallel Port Connector Pinouts 4.2.15 PCI-104 Slot CN Label: CN Type: 120-pin PCI-104 slot CN Location: See Figure 4-17 CN Pinouts:...
Page 83: Figure 4-17: Pci-104 Slot Location
NANO-8522 EPIC Board Figure 4-17: PCI-104 Slot Location Pin No. Column A Column B Column C Column D GND/5V TBD1 AD00 VI/O1 AD02 AD01 Page 63...
Page 84: Table 4-17: Pci-104 Slot Connector Pinouts
NANO-8522 EPIC Board Pin No. Column A Column B Column C Column D AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O2 AD10 M66EN AD14 AD13 AD12 +3.3V C/BE1# AD15 +3.3V SERR# SB0# PERR# +3.3V SDONE STOP# +3.3V LOCK# +3.3V...
Page 85: Power Button Connector
NANO-8522 EPIC Board 4.2.16 Power Button Connector CN Label: PWRON 2-pin wafer (1x2) CN Type: CN Location: See Figure 4-18 CN Pinouts: See Table 4-18 The power button connector is connected to a power switch on the system chassis to enable users to turn the system on and off.
Page 86: Sata Drive Connectors
NANO-8522 EPIC Board The reset button connector is connected to a reset switch on the system chassis to enable users to reboot the system when the system is turned on. Figure 4-19: Reset Button Connector Locations PIN NO. DESCRIPTION Reset Switch Table 4-19: Reset Button Connector Pinouts 4.2.18 SATA Drive Connectors...
Page 87: Sata Drive Power Connector
NANO-8522 EPIC Board Figure 4-20: SATA Drive Connector Locations DESCRIPTION Table 4-20: SATA Drive Connector Pinouts 4.2.19 SATA Drive Power Connector CN Label: CN Type: 2-pin 5 V power supply CN Location: See Figure 4-21 CN Pinouts: See Table 4-21 This connector provides 5 V power to the SATA hard drives connected to it.
Page 88: Serial Port Connector (Com2)(Rs-232, Rs-422 Or Rs-485)
NANO-8522 EPIC Board Figure 4-21: SATA Power Connector DESCRIPTION +5 V Table 4-21: SATA Power Connector 4.2.20 Serial Port Connector (COM2)(RS-232, RS-422 or RS-485) CN Label: COM2 CN Type: 14-pin header (2x7) See Figure 4-22 CN Location: See Table 4-22 CN Pinouts: The 14-pin serial port connector connects to the COM 2 serial communications channels.
Page 89: Serial Port Connector (Com3, Com4)
NANO-8522 EPIC Board Figure 4-22: RS-232/422/485 Serial Port Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD2 NDSR2 NRX2 NRTS2 NTX2 NCTS2 NDTR2 NRI2 TXD485+ TXD485- RXD485+ RXD485- Table 4-22: RS-232/RS-485 Serial Port Connector Pinouts 4.2.21 Serial Port Connector (COM3, COM4)
Page 90: Usb Connector (Internal)
NANO-8522 EPIC Board The 10-pin serial port connectors provide two more RS-232 serial communications channels. The COM3 and COM4 serial port connectors can be connected to external RS-232 serial port devices. Figure 4-23: Serial Port Connector Pinout Locations PIN NO.
Page 91: Figure 4-24: Usb Connector Pinout Locations
NANO-8522 EPIC Board CN Pinouts: See Table 4-24 The 2x4 USB pin connector provides connectivity to two USB 1.1 or two USB 2.0 ports. Each USB connector can support two USB devices. Additional external USB ports are found on the rear panel. The USB ports are used for I/O bus expansion.
Page 92: External Peripheral Interface Connectors
NANO-8522 EPIC Board 4.3 External Peripheral Interface Connectors Figure 4-25 shows the NANO-8522 external peripheral connector panel. The peripheral connectors on the panel can be connected to devices externally when the motherboard is installed in a chassis. The external peripheral connectors are:...
Page 93: Ethernet Connector
NANO-8522 EPIC Board Figure 4-26: PS/2 Pinout and Configuration DESCRIPTION KB DATA MS DATA KB CLOCK MS CLOCK Table 4-25: Keyboard Connector Pinouts 4.3.2 Ethernet Connector CN Label: RJ-45 ports CN Type: CN Location: See Figure 4-27 CN Pinouts: See Table 4-26 and Table 4-27 A 1 Gb connection can be made between the Ethernet connectors and a Local Area Network (LAN) through a network hub.
Page 94: Serial Port Connectors
NANO-8522 EPIC Board DESCRIPTION DESCRIPTION TX1- Active - TX2+ LINK + TX2- LINK - Table 4-26: Ethernet Connector Pinouts Figure 4-27: Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked (Table 4-27).
Page 95: Usb Connectors
NANO-8522 EPIC Board PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 4-28: RS-232 Serial Port (COM 1) Pinouts Figure 4-28: COM1 Pinout Locations 4.3.4 USB Connectors CN Label: USB1, USB2 CN Type: USB port CN Location: See Figure 4-25 CN Pinouts:...
Page 96: Vga Connector
The standard HD-D-sub 15 female connector connects to a CRT or LCD monitor. Figure 4-29: VGA Connector Description Description GREEN BLUE DDC DAT HSYNC VSYNC DDC CLK Table 4-30: VGA Connector Pinouts 4.4 On-board Jumpers The NANO-8522 has five on-board jumpers. Refer to Section 5.4 for jumper configuration settings. Page 76...
Page 97: Installation
NANO-8522 EPIC Board Chapter Installation Page 77...
Page 98: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the NANO-8522. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the NANO-8522, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Page 99: Installation Notices
Before and during the installation of the NANO-8522 DO NOT do the following: DO NOT remove any of the stickers on the PCB board. These stickers are required for warranty validation.
Page 100 A CPU cooling kit is properly installed Compatible memory modules are properly inserted into the memory slots The NANO-8522 is installed into a chassis with adequate ventilation The correct power supply is being used The following devices (if applicable) are properly connected:...
Page 101: Cpu, Cpu Cooling Kit And Dimm Installation
Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the NANO-8522. If one of these component is not installed the NANO-8522 cannot run.
Page 102: Figure 5-1: Make Sure The Cpu Socket Retention Screw Is Unlocked
NANO-8522 EPIC Board Step 1: Unlock the CPU retention screw. When shipped, the retention screw of the CPU socket should be in the unlocked position. If it is not in the unlocked position, use a screwdriver to unlock the screw. See Figure 5-1.
Page 103: Socket 479 Cooling Kit Installation
NANO-8522 EPIC Board Figure 5-2: Lock the CPU Socket Retention Screw 5.3.2 Socket 479 Cooling Kit Installation Figure 5-3: IEI Cooling Kits The IEI Socket 479 CPU cooling kit (Figure 5-3) can be purchased separately. The cooling kit comprises a CPU heat sink and a cooling fan.
Page 104: Figure 5-4: Cooling Kit Support Bracket
NANO-8522 EPIC Board WARNING: Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.
Page 105: Figure 5-5: Securing The Cooling Kit
NANO-8522 EPIC Board Figure 5-5: Securing the Cooling Kit Step 4: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each nut a few turns at a time and do not over-tighten the screws. Over tightening can cause damage to the CPU.
Page 106: So-Dimm Installation
Figure 5-7. Figure 5-7: SO-DIMM Installation Step 1: Locate the SO-DIMM socket. Place the NANO-8522 on an anti-static pad with the solder side facing up. Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket.
Page 107: Cf Card Installation
The NANO-8522 can support both CF Type I cards and CF Type II cards. For the complete specifications of the supported CF cards please refer to Chapter 2. To install the a CF card (Type 1 or Type 2) onto the NANO-8522, please follow the steps below: Step 1: Locate the CF card socket.
Page 108: Jumper Settings
NANO-8522 EPIC Board Figure 5-8: CF Card Installation 5.4 Jumper Settings NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.
Page 109: Cf Card Setup
NANO-8522 EPIC Board Before the NANO-8522 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the NANO-8522 are listed in Table 5-1. Description Label Type CF card setup 2-pin header...
Page 110: Clear Cmos Jumper
See Figure 5-11 Jumper Location: If the NANO-8522 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
Page 111: Com 2 Function Select Jumper
NANO-8522 EPIC Board AT Power Select Description Short 1 - 2 Keep CMOS Setup Default Short 2 - 3 Clear CMOS Setup Table 5-3: Clear CMOS Jumper Settings The location of the clear CMOS jumper is shown in Figure 5-11 below.
Page 112: Lvds Voltage Selection
Figure 5-12: COM 2 Function Select Jumper Location 5.4.4 LVDS Voltage Selection WARNING: Permanent damage to the screen and NANO-8522 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.
Page 113: Serial Irq Selector
NANO-8522 EPIC Board AT Power Select Description Short 1-2 +3.3 V LVDS Default Short 2-3 +5 V LVDS Table 5-5: LVDS Voltage Selection Jumper Settings The LVDS Voltage Selection jumper location is shown in Figure 5-13. Figure 5-13: LVDS Voltage Selection Jumper Pinout Locations 5.4.5 PCI-104 Serial IRQ Selector...
Page 114: Chassis Installation
The NANO-8522 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.
Page 115: Motherboard Installation
Table 5-7: IEI Provided Cables 5.6.2 Audio Kit Installation The Audio Kit that came with the NANO-8522 connects to the 10-pin audio connector on the NANO-8522. The audio kit consists of three audio jacks. One audio jack, Mic In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out, connect to two speakers.
Page 116: Ide Cable Connection
0 : 5.6.3 IDE Cable Connection The IDE cable connects to the NANO-8522 to one or two IDE devices. To connect an IDE HDD to the NANO-8522 please follow the instructions below. Step 1: Locate the IDE connector.
Page 117: Lvds Lcd Installation
1 on the connector. Step 0: 5.6.4 LVDS LCD Installation The NANO-8522 can be connected to a TFT LCD screen through the 30-pin LVDS crimp connector on the board. To connect a TFT LCD to the NANO-8522, please follow the steps below.
Page 118: Figure 5-17: Lvds Connector
NANO-8522 EPIC Board WARNING: The diagram below is merely for illustration. The configuration and connection of the cables from the TFT LCD screen being installed may be different. Please refer to the installation manual that came with the TFT LCD screen.
Page 119: Single Rs-232 Cable (W/O Bracket)
NANO-8522 EPIC Board Figure 5-18: Backlight Inverter Connection 5.6.5 Single RS-232 Cable (w/o Bracket) The single RS-232 cable consists of one serial port connector attached to a serial communications cable that is then attached to a D-sub 9 male connector. To install the single RS-232 cable, please follow the steps below.
Page 120: Sata Drive Connection
Step 0: 5.6.6 SATA Drive Connection The NANO-8522 is shipped with SATA drive cables and SATA drive power cable. Follow the steps below to connect the SATA drives to the CPU card. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3.
Page 121: Figure 5-20: Sata Drive Cable Connection
NANO-8522 EPIC Board Figure 5-20: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 5-21.
Page 122: External Peripheral Interface Connection
NANO-8522 external peripheral interface connector making sure the pins are properly aligned. 5.7.1 PS/2 Y-Cable Connection The NANO-8522 has a PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is connected to the PS/2 Y-cable that came with the NANO-8522. Page 102...
Page 123: Figure 5-22: Ps/2 Keyboard/Mouse Connector
NANO-8522 EPIC Board One of the PS/2 cables is connected to a keyboard and the other to a mouse to the system. Follow the steps below to connect a keyboard and mouse to the NANO-8522. Step 1: Locate the dual PS/2 connector. The location of the PS/2 connector is shown in Chapter 3.
Page 124: Ethernet Connection
LAN cable RJ-45 connector (Figure 5-23). Figure 5-23: RJ-45 Connector 5.7.3 Serial Device Connection The NANO-8522 has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the NANO-8522.
Page 125: Usb Connection (Dual Connector)
5.7.4 USB Connection (Dual Connector) The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the NANO-8522. Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB Series "A"...
Page 126: Vga Monitor Connection
Figure 5-25: USB Connector 5.7.5 VGA Monitor Connection The NANO-8522 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the NANO-8522, please follow the instructions below.
Page 127: Figure 5-26: Vga Connector
NANO-8522 EPIC Board Figure 5-26: VGA Connector Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0: Page 107...
Page 128: Bios Setup
NANO-8522 EPIC Board Chapter BIOS Setup Page 108...
Page 129: Introduction
NANO-8522 EPIC Board 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.
Page 130: Getting Help
NANO-8522 EPIC Board Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...
Page 131: Main
NANO-8522 EPIC Board 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.
Page 132: Advanced
NANO-8522 EPIC Board System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
Page 133: Bios Menu 2: Advanced
NANO-8522 EPIC Board BIOS Menu 2: Advanced Page 113...
Page 134: Cpu Configuration
NANO-8522 EPIC Board 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Module Version: xx.xx...
Page 135: Ide Configuration
NANO-8522 EPIC Board 6.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system. BIOS Menu 4: IDE Configuration Onboard PCI IDE Controller [Both] Use the Onboard PCI IDE Controller option to configure the ATA/IDE controller.
Page 136 NANO-8522 EPIC Board IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu:...
Page 137: Ide Master, Ide Slave
NANO-8522 EPIC Board 6.3.2.1 IDE Master, IDE Slave Use the IDE Master and IDE Slave configuration menu (BIOS Menu 5) to view both primary and secondary IDE device details and configure the IDE devices connected to the system. BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out”...
Page 138 NANO-8522 EPIC Board interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device. DMA Mode: Adjust the DMA mode options. S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and Reporting Technology protocol is supported.
Page 139 NANO-8522 EPIC Board Disabled BIOS is prevented from using the LBA mode control on the specified channel. Auto BIOS auto detects the LBA mode control on the specified EFAULT channel. Block (Multi Sector Transfer) [Auto] Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers.
Page 140 NANO-8522 EPIC Board PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] Use the DMA Mode BIOS selection to adjust the DMA mode options.
Page 141 NANO-8522 EPIC Board UDMA3 Ultra DMA mode 3 selected with a maximum data transfer rate of 44 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.) Ultra DMA mode 4 selected with a maximum data transfer UDMA4 rate of 66.6 MB/s (To use this mode, it is required that an...
Page 142: Super Io Configuration
NANO-8522 EPIC Board 6.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 6: Super IO Configuration Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.
Page 143 NANO-8522 EPIC Board Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address. No base address is assigned to Serial Port 2 Disabled 2F8/IRQ3 Serial Port 2 I/O port address is 3F8 and the interrupt...
Page 144 NANO-8522 EPIC Board Bi-directional Parallel port outputs are 8-bits long. Inputs are accomplished by reading 4 of the 8 bits on the status register. The parallel port operates in the enhanced parallel port mode (EPP). The EPP mode supports bi-directional communication between the system...
Page 145 NANO-8522 EPIC Board Serial Port3 IRQ [11] Use the Serial Port3 IRQ option to select the interrupt address for serial port 3. Serial port 3 IRQ address is 4 Serial port 3 IRQ address is 9 Serial port 3 IRQ address is 10...
Page 146: Hardware Health Configuration
NANO-8522 EPIC Board 6.3.4 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages. BIOS Menu 7: Hardware Health Configuration The following system parameters and values are shown. The system parameters that are...
Page 147: Remote Access Configuration
NANO-8522 EPIC Board GMCH +3.3V +2.5V 3VSB VBAT 6.3.5 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 8) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
Page 148 NANO-8522 EPIC Board Enabled Remote access configuration options shown below appear: Serial Port Number Serial Port Mode Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access.
Page 149 NANO-8522 EPIC Board NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.
Page 150: Usb Configuration
NANO-8522 EPIC Board 6.3.6 USB Configuration Use the USB Configuration menu (BIOS Menu 9) to read USB configuration information and configure the USB settings. BIOS Menu 9: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xx.x-xx.x...
Page 151: Pci/Pnp
NANO-8522 EPIC Board Enabled The USB ports are enabled EFAULT Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.
Page 152: Bios Menu 10: Pci/Pnp Configuration
NANO-8522 EPIC Board WARNING: Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction. BIOS Menu 10: PCI/PnP Configuration IRQ# [Available/Reserved] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
Page 153 NANO-8522 EPIC Board IRQ3 [Reserved] IRQ4 [Reserved] IRQ5 [Available] IRQ7 [Reserved] IRQ9 [Available] IRQ10 [Reserved] IRQ 11 [Reserved] IRQ 14 [Available] IRQ 15 [Available] DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.
Page 154: Boot
NANO-8522 EPIC Board 6.5 Boot Use the Boot menu (BIOS Menu 11) to configure system boot options. BIOS Menu 11: Boot Page 134...
Page 155: Boot Settings Configuration
NANO-8522 EPIC Board 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 12) to configure advanced system boot options. BIOS Menu 12: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process.
Page 156 NANO-8522 EPIC Board Enabled OEM Logo displayed instead of POST messages AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. The system forces third party BIOS to display...
Page 157: Boot Device Priority
NANO-8522 EPIC Board Enabled Can be booted from a remote system through the 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 13) to specify the boot sequence from the available devices. Possible boot devices may include:...
Page 158: Bios Menu 14: Removable Drives
NANO-8522 EPIC Board 1st Drive [1st drive] 2nd Drive [2nd drive] NOTE: Only the drives connected to the system are shown. For example, if only one removable drive is connected only “1st Drive” is listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available FDDs is shown.
Page 159: Security
NANO-8522 EPIC Board 6.6 Security Use the Security menu (BIOS Menu 15) to set system and user passwords. BIOS Menu 15: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password.
Page 160: Chipset
NANO-8522 EPIC Board Clear User Password Use the Clear User Password to clear a user password. Boot Sector Virus Protection [Disabled] Use the Boot Sector Virus Protection to enable or disable boot sector protection. Disabled Disables the boot sector virus protection...
Page 161: Bios Menu 16: Chipset
NANO-8522 EPIC Board BIOS Menu 16: Chipset Page 141...
Page 162: Northbridge Configuration
NANO-8522 EPIC Board 6.7.1 Northbridge Configuration Use the Northbridge Configuration menu (BIOS Menu 17) to configure the Northbridge chipset. BIOS Menu 17:Northbridge Chipset Configuration Memory Hole [Disabled] Use the Memory Hole option to reserve memory space between 15 MB and 16 MB for ISA expansion cards that require a specified area of memory to work properly.
Page 163 NANO-8522 EPIC Board Initiate Graphic Adapter [Internal VGA] Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either VGA or PCI graphics controller. Configuration options are listed below: Internal VGA PCI/Int-VGA...
Page 164 NANO-8522 EPIC Board LVDS only Only LVDS is enabled Both VGA and LVDS are enabled CRT&LVDS EFAULT Flat Panel Type [800x600LVDS 18Bits] Use the Flat Panel Type option to specify the screen resolution of the LVDS monitor. The following options are available.
Page 165: Southbridge Chipset Configuration
NANO-8522 EPIC Board 6.7.2 Southbridge Chipset Configuration The Southbridge Chipset Configuration menu (BIOS Menu 18) configures the Southbridge chipset. BIOS Menu 18: Southbridge Chipset Configuration OnBoard AC’97 Audio [Auto] The Audio Controller option enables or disables the audio controller. Auto...
Page 166: Power
NANO-8522 EPIC Board 6.8 Power The Power menu (BIOS Menu 19) allows the advanced power management options to be configured. BIOS Menu 19:Power Power Type [AT] Use the Power Type BIOS option to enable access to certain advanced power management features. If this option is disabled, the only other option on the screen is the Resume On RTC Alarm.
Page 167 NANO-8522 EPIC Board Power Button Mode [On/Off] Use the Power Button Mode BIOS to specify how the power button functions. The system starts the shutdown procedure On/Off EFAULT Suspend The system enters the “Suspend” sleep state Restore on AC Power Loss [Power On] Use the Restore on AC Power Loss BIOS to specify what state the system will return to after a power loss.
Page 168 NANO-8522 EPIC Board Enabled If selected, the following appears with values that can be selected: RTC Alarm Date (Days) System Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. Keyboard WakeUp [Disabled] Use the Keyboard WakeUp option to specify if the system should restore from a sleep state when the keyboard is used.
Page 169: Exit
NANO-8522 EPIC Board 6.9 Exit Use the Exit menu (BIOS Menu 20) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 20:Exit Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
Page 170 NANO-8522 EPIC Board Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation. Load Failsafe Defaults Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus.
Page 171: Raid Setup
NANO-8522 EPIC Board Chapter RAID Setup Page 151...
Page 172: Via® Raid Utility
NANO-8522 EPIC Board 7.1 VIA® RAID Utility The NANO-8522 has a VIA® VT6421 SATA controller chip onboard. The SATA RAID controller allows the two SATA ports to be setup as Two individual drives A RAID 0 striped array for performance...
Page 173: Creating Araid Array
NANO-8522 EPIC Board 7.3 Creating a RAID Array The steps for creating a RAID 0, RAID 1 and JBOD array are similar. To create a RAID array, follow the steps below. Step 1: The RAID setup utility main screen appears. Select the “Create Array” option from the list and press Enter.
Page 174: Automatic Setup
NANO-8522 EPIC Board Step 3: Select the RAID type from the list that appears. Press Enter to select. Figure 7-4: RAID Type Step 4: Proceed with either the “Automatic Setup” or “Manual Setup”.S t e p 0 : 7.3.1 Automatic Setup Step 1: The automatic setup uses default settings to setup the RAID array.
Page 175: Figure 7-6: Confirm Data Deletion
NANO-8522 EPIC Board Step 2: All data on the hard disks is destroyed when the RAID array is setup. Press Y to setup the array, or N to go back. Figure 7-6: Confirm Data Deletion Step 3: The RAID array is created. The details of the new array are shown in the bottom half of the screen.
Page 176: Manual Setup
NANO-8522 EPIC Board 7.3.2 Manual Setup Step 1: Select “Select Disk Drives” and press Enter Figure 7-8: Select Drives Step 2: Select the drive to be the “Source” or “Stripe0” and press Enter. Figure 7-9: Select First Drive Page 156...
Page 177: Figure 7-10: Select Second Drive
NANO-8522 EPIC Board Step 3: The “Source” or “Stripe0” drive is shown in green text with a [*] at the beginning. Step 4: Select the drive to be the “Mirror” or “Stripe1” and press Enter. Figure 7-10: Select Second Drive Step 5: The “Mirror”...
Page 178: Figure 7-12: Stripe Size
NANO-8522 EPIC Board Step 6: Select the “Stripe Size” option and press Enter. Figure 7-12: Stripe Size Step 7: Select the stripe size from the popup list and press Enter. Figure 7-13: Select Stripe Size Page 158...
Page 179: Figure 7-14: Start Raid Creation
NANO-8522 EPIC Board Step 8: Select “Start Create Process” and press Enter to create the RAID array. Figure 7-14: Start RAID Creation Step 9: Press Y create the RAID array, or N to go back. Figure 7-15: Confirm RAID Creation...
Page 180: Delete Araid Array
NANO-8522 EPIC Board Step 10: The display message confirms that the array has been created. Details of the newly created array are shown in the bottom half of the screen. S t e p 0 : Figure 7-16: RAID Array Created 7.4 Delete a RAID Array...
Page 181: Figure 7-18: Select Array To Delete
NANO-8522 EPIC Board Step 2: Select the array to delete. Figure 7-18: Select Array to Delete Step 3: Press Y to delete the array, or N to go back. Figure 7-19: Confirm Array Deletion Page 161...
Page 182: Selecting A Boot Array
NANO-8522 EPIC Board Step 4: The display message confirms that the array has been deleted. S t e p 0 : Figure 7-20: Array Deleted 7.5 Selecting a Boot Array To allow an operating system to be installed on the RAID array so that the system can boot from the array, the array must be set as a “Boot Array”.
Page 183: Viewing Disk Drive Serial Numbers
NANO-8522 EPIC Board Step 2: Select the array to set as a boot array. Figure 7-22: Select Boot Array Step 3: Press Enter to set the array as a boot array. A (b) appears before the array name to indicate that the array is now a bootable array.
Page 184: Figure 7-24: Serial Number View
NANO-8522 EPIC Board Step 1: Select the “Serial Number View” option and press Enter. Figure 7-24: Serial Number View Step 2: Select the drive to view it’s serial number at the bottom of the screen. S t e p 0 :...
Page 185: Exiting The Raid Utility
NANO-8522 EPIC Board 7.7 Exiting The RAID Utility To exit the RAID utility, press ESC. Press Y to exit or N to go back. Figure 7-26: Exit RAID Utility Page 165...
Page 186: Software Drivers
NANO-8522 EPIC Board Chapter Software Drivers Page 166...
Page 187: Available Software Drivers
LAN driver Installation instructions are given below. 8.2 Driver CD Auto-run All the drivers for the NANO-8522 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.
Page 188: Figure 8-1: Introduction Screen
NANO-8522 EPIC Board Figure 8-1: Introduction Screen Step 4: A new screen with a list of available drivers appears (Figure 8-2). Figure 8-2: Available Drivers Step 5: Select the driver to install from the list in Figure 8-2. Step 0:...
Page 189: Chipset Driver Installation
NANO-8522 EPIC Board 8.3 Chipset Driver Installation To install the chipset driver, please follow the steps below: Step 1: Double click INF in Figure 8-2. The screen in Figure 8-3 appears. Step 2: Figure 8-3: Chipset Driver Icon Step 3: Double click the infinst_autol icon.
Page 190: Figure 8-4: Installshield Wizard Preparation Screen
NANO-8522 EPIC Board Figure 8-4: InstallShield Wizard Preparation Screen Step 5: The “Welcome” window in Figure 8-5 appears next. Figure 8-5: Welcome Screen Step 6: Click “Next” and the license agreement shown in Figure 8-6 appears. Page 170...
Page 191: Figure 8-6: License Agreement
NANO-8522 EPIC Board Figure 8-6: License Agreement Step 7: Agree to the license terms by clicking “Yes”. The “Readme” in Figure 8-7 appears. Figure 8-7: Readme Information Step 8: Click “Yes”. The driver is installed on the computer. After the installation is complete, the installation complete screen shown in Figure 8-8 appears.
Page 192: Realtek Audio Driver Installation
NANO-8522 EPIC Board the preferred option and click “Finish” to complete the installation process. Step 0: Figure 8-8: Restart the Computer 8.4 Realtek Audio Driver Installation To install the Realtek AC’97 Audio driver, please follow the steps below: Step 1: Double click Audio in Figure 8-2.
Page 193: Figure 8-9: Alc655 Directory Icon
NANO-8522 EPIC Board Figure 8-9: ALC655 Directory Icon Step 3: Double click the ALC655 to open the directory. Step 4: The screen in Figure 8-10 appears. Select the operating system. NOTE: The instructions that follow are for a Windows operating system.
Page 194: Figure 8-10: Audio Driver Operating System
NANO-8522 EPIC Board Figure 8-10: Audio Driver Operating System Step 5: If the Windows directory in Figure 8-10 was selected, the screen shown in Figure 8-11 appears. Figure 8-11: Audio Driver Setup Icon Step 6: Double click the Setup icon in Figure 8-11.
Page 195: Figure 8-12: Audio Driver Install Shield Wizard Starting
NANO-8522 EPIC Board Figure 8-12: Audio Driver Install Shield Wizard Starting Step 8: The RealTek Audio Setup prepares the install shield to guide. See Figure 8-13. Figure 8-13: Audio Driver Setup Preparation Step 9: The welcome screen in Figure 8-14 appears.
Page 196: Figure 8-14: Audio Driver Welcome Screen
NANO-8522 EPIC Board Figure 8-14: Audio Driver Welcome Screen Figure 8-15: Audio Driver Software Configuration Step 12: The “Digital Signal Not Found” screen in Figure 8-16 appears. To continue the installation process, click the “Yes” button. Page 176...
Page 197: Figure 8-16: Audio Driver Digital Signal
NANO-8522 EPIC Board Figure 8-16: Audio Driver Digital Signal Step 13: The Audio driver installation begins. See Figure 8-17. Figure 8-17: Audio Driver Installation Begins Step 14: After the driver installation process is complete, a confirmation screen shown in Figure 8-18 appears.
Page 198: Intel Graphics Media Accelerator Driver
NANO-8522 EPIC Board Figure 8-18: Audio Driver Installation Complete Step 15: Restart the computer. Step 0: 8.5 Intel Graphics Media Accelerator Driver To install the GMA driver, please follow the steps below: Step 1: Double click VGA in Figure 8-2. The window in Figure 8-19 appears.
Page 199: Figure 8-20: Vga Setup Icon
NANO-8522 EPIC Board Step 2: Select the operating system being used on the system. The screen in Figure 8-20 appears. Figure 8-20: VGA Setup Icon Step 3: Double click the Setup icon. Step 4: The welcome screen shown in Figure 8-21 appears.
Page 200: Figure 8-22: Gma Driver License Agreement
NANO-8522 EPIC Board Step 5: To continue installing click “Next” and a license agreement shown in Figure 8-22 appears. Read through the license agreement. Figure 8-22: GMA Driver License Agreement Step 6: Accept the terms and conditions stipulated in the license agreement by clicking the “Yes”...
Page 201: Intel ® Network Adapter Installation
NANO-8522 EPIC Board Figure 8-24: GMA Driver Installation Complete Step 8: Click “Finish” to restart the computer. ® 8.6 Intel Network Adapter Installation To install the Intel® Network Adapter, please follow the steps below. Step 9: Select the LAN driver from the list in Figure 8-2.
Page 202: Figure 8-26: Select The Driver
NANO-8522 EPIC Board Step 12: A new window appears (Figure 8-26). Figure 8-26: Select the Driver Step 13: Double-click the appropriate installation program icon to continue. Step 14: The license agreement in Figure 8-27 appears. Figure 8-27: Network Adapter License Agreement...
Page 203: Figure 8-28: Location To Save Files
NANO-8522 EPIC Board Step 15: Read the license agreement. To accept the terms and conditions stipulated in the agreement, select “I accept the terms…” and click N Step 16: The Location to Save Files window (Figure 8-28) appears. Figure 8-28: Location to Save Files...
Page 204: Figure 8-30: Overwrite Protection
NANO-8522 EPIC Board Step 18: If the Overwrite Protection window appears (Figure 8-30), make the appropriate choice to either continue the installation process or not. Figure 8-30: Overwrite Protection Step 19: File extraction continues (Figure 8-31). Figure 8-31: File Extraction Continues Step 20: The Intel®...
Page 205: Intel ® Usb 2.0 Installation
NANO-8522 EPIC Board Figure 8-32: Intel® Pro Network Connections Step 21: Click Install Base Driver and an installation notice appears (Figure 8-33) as the driver is installed. Figure 8-33: Intel® Pro Network Connections Driver Installation Notice Step 22: After the driver is installed click E in the Intel®...
Page 206: Figure 8-34: Usb2.0 Window
NANO-8522 EPIC Board Figure 8-34: USB2.0 Window Step 3: Double-click the Intel folder and a new window opens (Figure 8-35). Figure 8-35: USB2.0 OS Options Step 4: Double-click the appropriate OS folder. NOTE: The remainder of this installation assumes the use of Windows XP as the operating system.
Page 207: Figure 8-36: Windows Xp Usb 2.0 Program Icon
NANO-8522 EPIC Board Figure 8-36: Windows XP USB 2.0 Program Icon Step 6: The InstallShield Wizard is prepared to guide the user through the rest of the process (Figure 8-37). Figure 8-37: USB 2.0 InstallShield Wizard Step 7: The InstallShield Wizard continues (Figure 8-38).
Page 208: Figure 8-38: Usb 2.0 Installshield Wizard Continues
NANO-8522 EPIC Board Figure 8-38: USB 2.0 InstallShield Wizard Continues Step 8: Once initialized, the InstallShield Wizard welcome screen appears (Figure 8-39). Figure 8-39: USB 2.0 InstallShield Wizard Welcome Screen Step 9: Click N to continue the installation. Step 10: The license agreement in Figure 8-40 appears.
Page 209: Figure 8-40: Usb 2.0 License Agreement
NANO-8522 EPIC Board Figure 8-40: USB 2.0 License Agreement Step 11: Read the license agreement. To accept the terms and conditions stipulated in the agreement click Y Step 12: InstallShield starts to install the new software as shown in Figure 8-41.
Page 210: Sata/Raid Driver
To install the VIA® SATA/RAID driver, please follow the steps below. Step 1: Click SATA from the NANO-8522 menu (Figure 8-1) to open a window to the X:\4-SATA folder (where X:\ is the system CD drive) folder on the driver CD.
Page 211: Figure 8-43: Locate The Setup Program Icon
NANO-8522 EPIC Board Step 2: Browse to X:\4-SATA\VIA VT6421\V-RAID and double-click the Setup program icon (Figure 8-43). Figure 8-43: Locate the Setup Program Icon Step 3: The Install Shield Wizard (Figure 8-44) is prepared to guide the user through the rest of the process.
Page 212: Figure 8-45: Install Wizard Welcome Screen
NANO-8522 EPIC Board Step 4: Once initialized, the Install Wizard welcome screen appears (Figure 8-45). Click N to continue the installation or C to stop the installation. ANCEL Figure 8-45: Install Wizard Welcome Screen Step 5: The VIA® Software License Agreement appears. Choose “I Agree” and click to continue.
Page 213: Figure 8-47: Select Driver Packages
NANO-8522 EPIC Board Step 6: Choose both the “VIA® V-RAID Driver Package” and “VIA® V-RAID Config Utility” for installation. Click N to continue (Figure 8-47) Figure 8-47: Select Driver Packages Step 7: Review the items to be installed and click N to begin the installation process (Figure 8-48).
Page 214: Figure 8-49: Installation Status
NANO-8522 EPIC Board Step 8: Once the installation is complete the status of the install is shown on the screen in Figure 8-49. Click N to continue. Figure 8-49: Installation Status Step 9: Once the installation is complete, the Install Wizard Complete screen appears (Figure 8-50).
Page 215: Abios Options
NANO-8522 EPIC Board Appendix BIOS Options Page 195...
Page 216 NANO-8522 EPIC Board Below is a list of BIOS configuration options in the BIOS chapter. System Overview ......................111 System Time [xx:xx:xx] ....................112 System Date [xx/xx/xx] ..................... 112 Onboard PCI IDE Controller [Both] ................. 115 IDE Master and IDE Slave....................116 Auto-Detected Drive Parameters..................
Page 217 NANO-8522 EPIC Board USB2.0 Controller Mode [HiSpeed]................. 131 IRQ# [Available/Reserved]..................... 132 DMA Channel# [Available] ....................133 Quick Boot [Enabled] ....................... 135 Quiet Boot [Disabled] ....................... 135 AddOn ROM Display Mode [Force BIOS] ............... 136 Bootup Num-Lock [On] ....................136 Boot From LAN [Disabled] ....................136 Change Supervisor Password ..................
Page 218: B Terminology
NANO-8522 EPIC Board Appendix Terminology Page 198...
Page 219 NANO-8522 EPIC Board AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
Page 220 NANO-8522 EPIC Board Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
Page 221 NANO-8522 EPIC Board Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.
Page 222: C Digital I/O Interface
NANO-8522 EPIC Board Appendix Digital I/O Interface Page 202...
Page 223: Introduction
NANO-8522 EPIC Board C.1 Introduction The DIO connector on the NANO-8522 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.
Page 224: Assembly Language Samples
NANO-8522 EPIC Board C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...
Page 225: D Watchdog Timer
NANO-8522 EPIC Board Appendix Watchdog Timer Page 205...
Page 226 NANO-8522 EPIC Board NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
Page 227 NANO-8522 EPIC Board NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
Page 228: E Address Mapping
NANO-8522 EPIC Board Appendix Address Mapping Page 208...
Page 229: Direct Memory Access (Dma)
NANO-8522 EPIC Board E.1 Direct Memory Access (DMA) Figure E-1: Direct Memory Access (DMA) Page 209...
Page 230: Input/Output (Io)
NANO-8522 EPIC Board E.2 Input/Output (IO) Figure E-2: Input/Output (IO) (1 of 2) Page 210...
Page 231 NANO-8522 EPIC Board Figure E-3: Input/Output (IO) (2 of 2) Page 211...
Page 232: Interrupt Request (Irq)
NANO-8522 EPIC Board E.3 Interrupt Request (IRQ) Figure E-4: Interrupt Request (IRQ) Page 212...
Page 233: Memory
NANO-8522 EPIC Board E.4 Memory Figure E-5: Memory Page 213...
Page 234: F Hazardous Materials Disclosure
NANO-8522 EPIC Board Appendix Hazardous Materials Disclosure Page 214...
Page 235: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury
NANO-8522 EPIC Board F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
Page 236 NANO-8522 EPIC Board Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
Page 237 NANO-8522 EPIC Board 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。部件名称有毒有害物质或元素铅汞镉六价铬多溴联苯多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体显示印刷电路板金属螺帽电缆组装风扇组装电力供应组装电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
Page 238: Graid Levels
NANO-8522 EPIC Board Appendix RAID Levels Page 218...
Page 239 NANO-8522 EPIC Board RAID allows multiple disks to be connected in an array. A RAID array allows extra capabilities like increased speed and performance, or increased data protection and security. A RAID array is viewed as a single disk by the computer and the operating system.
Page 240: Raid 0
NANO-8522 EPIC Board G.1 RAID 0 RAID 0, or striping, spreads data evenly over the disks in the RAID array. One block of data is written to the first disk, then one block of data is written to the second disk, and so on.
Page 241: Raid 1
NANO-8522 EPIC Board G.2 RAID 1 RAID 1, or mirroring, places the exact same data on all disks in the RAID array. One block of data is written to the first disk, the same block of data is written to the second disk, and so on.
Page 242: Jbod
NANO-8522 EPIC Board G.3 JBOD JBOD, sometimes called concatenation, strings physical hard disks together to create one larger logical disk. Blocks of data are written to the first disk until it is finished and then the blocks are written to the second drive, and so on.
Page 243 NANO-8522 EPIC Board Index Page 223...
Page 244 NANO-8522 EPIC Board backup battery ...........49 battery connector ........49 location and pinouts.......49 +12 V ATX power supply connector...45 reset CMOS...........49 location and pinouts ......45 BIOS ......... 24, 122, 129, 146 Boot Device Priority ......137 Boot Settings Device Configuration..135 852GM ..........14, 16...
Page 245 NANO-8522 EPIC Board serial port (COM 2) ......68, 69 installation..........94 clear CMOS jumper ........90 USB (internal) ........70 location ..........91 cooling............94 settings ..........90 airflow ............94 CMOS ..........49, 90 cooling fan........... 83, 85 clear CMOS connector ......49 cooling kit installation .........83 clear CMOS jumper.......90...
Page 246 NANO-8522 EPIC Board infrared interface ........55 Enhanced Rapid Pixel and Texel Amplitude Shift Key Infrared....55 Rendering..........16 Ethernet .............14 ASKIR ............55 external peripheral interface ....102 Serial Infrared ........55 connection ...........102 SIR............55 connectors...........102 infrared interface connector .......55 External Peripheral Interface Connectors..72 location and pinouts.......55 Ethernet (RJ-45)........73...
Page 247 NANO-8522 EPIC Board HDD indicator ........57 location and pinouts.......60 power status ..........57 PCI interface ..........22 LED connector ...........57 PCI-104 slot ..........62 HDD indicator LED connector ....57 location and pinouts.......62 location and pinouts ......57 PCI-104 Voltage Setup jumper ....93 power LED connector......57 peripheral connectors ........45...
Page 248 NANO-8522 EPIC Board serial port devices .........70 single cable ...........99 technical specifications ........5 RS-232 serial port devices ......70 RS-422............68 COM 2 location and pinouts ....68 RS-485..........68, 69 unpacking...........37 COM 2 location and pinouts ....68 unpacking checklist .......38 unpacking precautions......37 USB............. 22, 71 devices ..........71...
Page 249 NANO-8522 EPIC Board Zone Rendering 2 Technology ....16 Page 229...
