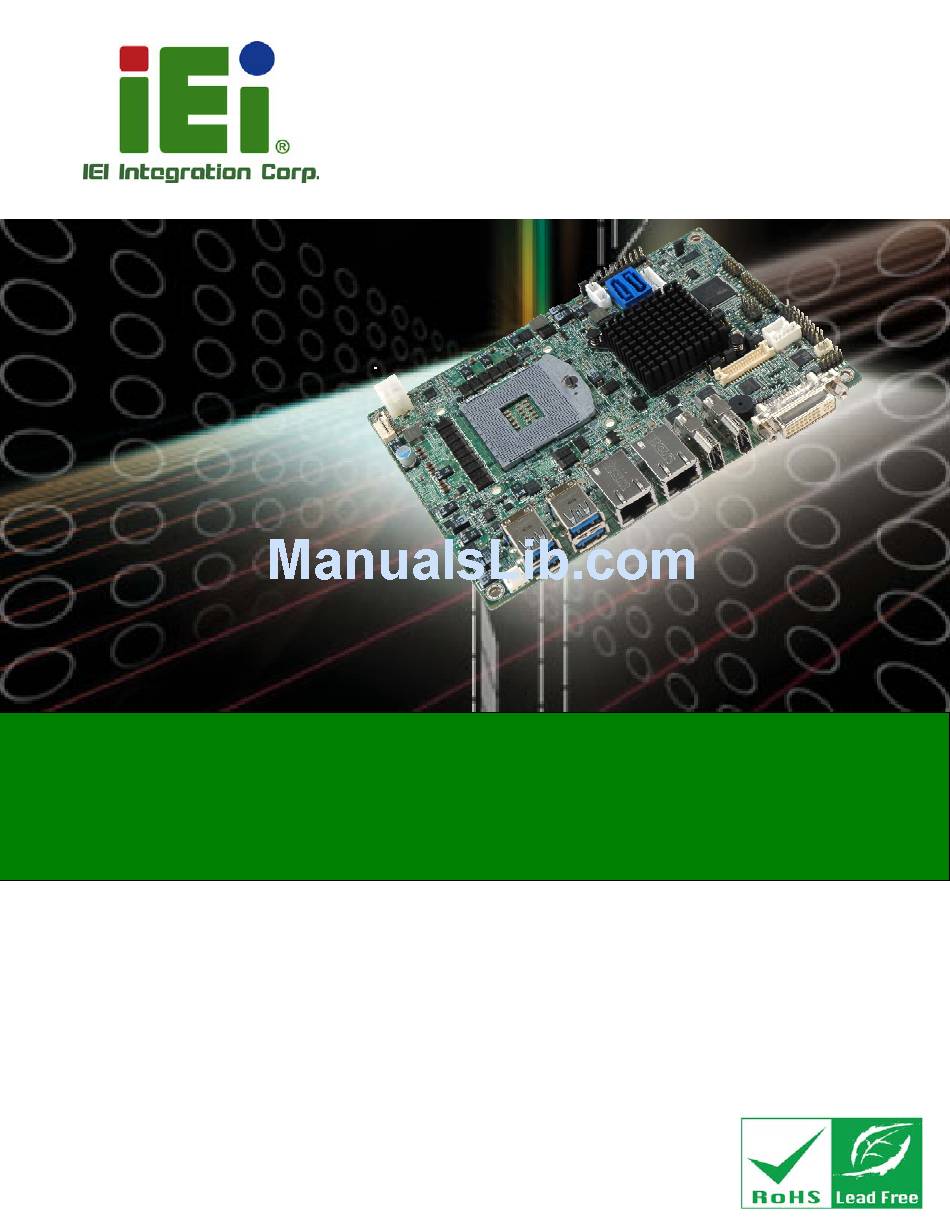

NANO-QM770 EPIC SBC
MODEL:
NANO-QM770
EPIC SBC with 3rd Generation 22nm Intel® Mobile CPU
Up to 8.0 GB DDR3, DVI, HDMI, LVDS, Dual GbE,
SATA 6Gb/s, USB 3.0, PCIe Mini, Intel® AMT, RoHS

User Manual

Page i
Rev. 1.02 – 23 April, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANO-QM770 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology NANO-QM770

Summary of Contents for IEI Technology NANO-QM770

  • Page 1: User Manual

    NANO-QM770 EPIC SBC MODEL: NANO-QM770 EPIC SBC with 3rd Generation 22nm Intel® Mobile CPU Up to 8.0 GB DDR3, DVI, HDMI, LVDS, Dual GbE, SATA 6Gb/s, USB 3.0, PCIe Mini, Intel® AMT, RoHS User Manual Page i Rev. 1.02 – 23 April, 2014...
  • Page 2 NANO-QM770 EPIC SBC Revision Date Version Changes 23 April, 2014 1.02 Modified Table 3-24: LAN Pinouts 9 December, 2013 1.01 Updated Appendix D.2: DIO Connector Pinouts 24 May, 2012 1.00 Initial release Page ii...
  • Page 3 NANO-QM770 EPIC SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    NANO-QM770 EPIC SBC Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 B ........................2 ENEFITS 1.3 F ........................2 EATURES 1.4 C ......................3 ONNECTORS 1.5 D ....................... 5 IMENSIONS 1.6 D ........................ 6 1.7 T ..................
  • Page 5 NANO-QM770 EPIC SBC 3.2.11 Power Connector (12V) ................. 27 3.2.12 RS-232 Serial Port Connectors (COM1, COM2) .......... 28 3.2.13 RS-422/485 Serial Port Connector (COM3)..........28 3.2.14 SATA Drive Connectors ................. 29 3.2.15 SATA Power Connectors ................30 3.2.16 SMBus Connector ..................31 3.2.17 SO-DIMM Connector..................
  • Page 6 NANO-QM770 EPIC SBC 4.7.3 SATA Drive Connection ................... 54 4.7.4 Single RS-232 Cable (w/o Bracket) ..............55 4.8 E ........... 56 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.8.1 DVI Display Device Connection..............56 4.8.2 HDMI Display Device Connection ..............57 4.8.3 LAN Connection....................58 4.8.4 USB Connection....................
  • Page 7 NANO-QM770 EPIC SBC 5.4.2 System Agent (SA) Configuration ..............86 5.4.2.1 Graphics Configuration................87 5.4.2.2 Memory Configuration ................90 5.5 B ........................91 5.6 S ......................... 94 ECURITY 5.7 E ......................... 94 6 SOFTWARE DRIVERS ....................96 6.1 A ................97...
  • Page 8 NANO-QM770 EPIC SBC B.5.4 Manual......................153 B.6 R LAN ........154 ESTORE YSTEMS FROM A INUX ERVER THROUGH B.6.1 Configure DHCP Server Settings ..............155 B.6.2 Configure TFTP Settings ................156 B.6.3 Configure One Key Recovery Server Settings ..........157 B.6.4 Start the DHCP, TFTP and HTTP ..............
  • Page 9 NANO-QM770 EPIC SBC List of Figures Figure 1-1: NANO-QM770.......................2 Figure 1-2: Connectors (Front)......................3 Figure 1-3: Connectors (Solder Side) ...................4 Figure 1-4: Dimensions (mm) ......................5 Figure 1-5: Data Flow Diagram......................6 Figure 3-1: Connector and Jumper Locations................15 Figure 3-2: Connector and Jumper Locations (Solder Side) ...........16 Figure 3-3: Audio Connector Location ..................18...
  • Page 10 NANO-QM770 EPIC SBC Figure 3-26: HDMI Connector ......................38 Figure 4-1: SO-DIMM Installation ....................43 Figure 4-2: PCIe Mini Card Installation..................44 Figure 4-3: AT/ATX Mode Selection Jumper Location..............46 Figure 4-4: Clear CMOS Jumper Location .................47 Figure 4-5: Clear ME RTC Registers Jumper Location.............48 Figure 4-6: Flash Descriptor Security Override Jumper Location ..........48...
  • Page 11 NANO-QM770 EPIC SBC Figure 6-17: LAN Driver Installation ..................108 Figure 6-18: LAN Driver Installation Complete............... 108 Figure 6-19: InstallShield Wizard Welcome Screen ............... 109 Figure 6-20: Audio Driver Software Configuration..............110 Figure 6-21: Restart the Computer ..................110 Figure 6-22: SATA RAID Driver Welcome Screen ..............111 Figure 6-23: SATA RAID Driver License Agreement..............
  • Page 12 NANO-QM770 EPIC SBC Figure B-17: Compress Image....................138 Figure B-18: Image Creation Confirmation ................139 Figure B-19: Creating Image..................... 139 Figure B-20: Image Creation Complete ................... 139 Figure B-21: Press Any Key to Continue ................140 Figure B-22: Auto Recovery Utility ..................141 Figure B-23: Disable Automatically Restart................
  • Page 13 NANO-QM770 EPIC SBC List of Tables Table 1-1: Technical Specifications....................8 Table 2-1: Packing List.........................12 Table 2-2: Optional Items......................13 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: Audio Connector Pinouts ..................18 Table 3-4: Battery Connector Pinouts ..................19 Table 3-5: Digital I/O Connector Pinouts..................20...
  • Page 14 NANO-QM770 EPIC SBC Table 4-1: Jumpers ........................45 Table 4-2: AT/ATX Mode Selection Jumper Settings ..............45 Table 4-3: Clear CMOS Jumper Settings..................47 Table 4-4: Clear ME RTC Registers Jumper Settings ...............47 Table 4-5: Flash Descriptor Security Override Jumper Settings..........48 Table 4-6: LVDS Voltage Selection Jumper Settings..............49 Table 4-7: LVDS Screen Resolution Jumper Settings ..............50...
  • Page 15 NANO-QM770 EPIC SBC BIOS Menus BIOS Menu 1: Main ........................65 BIOS Menu 2: Advanced ......................66 BIOS Menu 3: ACPI Configuration ....................67 BIOS Menu 4: RTC Wake Settings ....................68 BIOS Menu 5: Trusted Computing ....................69 BIOS Menu 6: CPU Configuration ....................70 BIOS Menu 7: SATA Configuration .....................72...

  • Page 17: Introduction

    NANO-QM770 EPIC SBC Chapter Introduction Page 1...

  • Page 18: Introduction

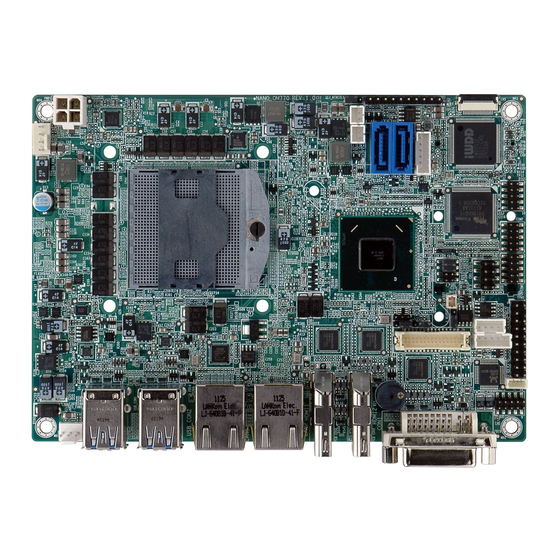

    NANO-QM770 EPIC SBC 1.1 Introduction Figure 1-1: NANO-QM770 The NANO-QM770 is an EPIC SBC with a 3 generation 22nm Intel® mobile CPU and Intel® QM77 Express Chipset. Storage on the board is handled by the SATA 6Gb/s ports for connecting a hard drive, optical drive or SSD. The PCIe Mini slot allows an mSATA card to be installed.

  • Page 19: Connectors

    Supports HDMI, LVDS and DVI-I interface for triple independent display (HDMI V1.3a compliant) Six USB ports (two USB 2.0, four USB 3.0) Three serial ports PCIe Mini card slot 1.4 Connectors The connectors on the NANO-QM770 are shown in the figure below. Figure 1-2: Connectors (Front) Page 3...

  • Page 20: Figure 1-3: Connectors (Solder Side)

    NANO-QM770 EPIC SBC Figure 1-3: Connectors (Solder Side) Page 4...

  • Page 21: Dimensions

    NANO-QM770 EPIC SBC 1.5 Dimensions The main dimensions of the NANO-QM770 are shown in the diagram below. Figure 1-4: Dimensions (mm) Page 5...

  • Page 22: Data Flow

    NANO-QM770 EPIC SBC 1.6 Data Flow Figure 1-5 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-5: Data Flow Diagram Page 6...

  • Page 23: Technical Specifications

    NANO-QM770 EPIC SBC 1.7 Technical Specifications NANO-QM770 technical specifications are listed in Table 1-1. Specification NANO-QM770 Form Factor EPIC CPU Socket Socket G2 generation 22nm Intel® mobile CPU System Chipset Intel® QM77 Memory One 204-pin 1600/1333/1066 MHz DDR3 SO-DIMM supported (system max.

  • Page 24: Table 1-1: Technical Specifications

    NANO-QM770 EPIC SBC Two USB 2.0 (via pin header) USB Ports Four external USB 3.0 ports SMBus One 4-pin wafer connector Storage SATA Two independent SATA channels with 6Gb/s data transfer rates Environmental and Power Specifications Power Supply 12 V only, AT/ATX support...

  • Page 25: Packing List

    NANO-QM770 EPIC SBC Chapter Packing List Page 9...

  • Page 26: Anti-Static Precautions

    Only handle the edges of the PCB:- Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the NANO-QM770 is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 27: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the NANO-QM770 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.tw.

  • Page 28: Optional Items

    NANO-QM770 EPIC SBC Quantity Item and Part Number Image Utility CD One Key Recovery CD Quick installation guide Table 2-1: Packing List 2.4 Optional Items These optional items are available. Item and Part Number Image RS-422/485 cable (P/N: 32205-003800-300-RS) Dual USB port cable...

  • Page 29: Table 2-2: Optional Items

    NANO-QM770 EPIC SBC Item and Part Number Image Infineon TPM module (P/N: TPM-IN01-R11) Table 2-2: Optional Items Page 13...

  • Page 30: Connector Pinouts

    NANO-QM770 EPIC SBC Chapter Connector Pinouts Page 14...

  • Page 31: Peripheral Interface Connectors

    NANO-QM770 EPIC SBC 3.1 Peripheral Interface Connectors Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the peripheral interface connectors seen in Section 3.1.1. 3.1.1 Layout The figure below shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers.

  • Page 32: Peripheral Interface Connectors

    NANO-QM770 EPIC SBC Figure 3-2: Connector and Jumper Locations (Solder Side) 3.1.2 Peripheral Interface Connectors The table below shows a list of the peripheral interface connectors on the NANO-QM770. Detailed descriptions of these connectors can be found below. Connector Type...

  • Page 33: External Interface Panel Connectors

    USB 2.0 connector 8-pin header USB1 Table 3-1: Peripheral Interface Connectors 3.1.3 External Interface Panel Connectors The table below lists the rear panel connectors on the NANO-QM770. Detailed descriptions of these connectors can be found in a later section. Connector Type Label...

  • Page 34: Internal Peripheral Connectors

    3.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the NANO-QM770. 3.2.1 Audio Connector CN Label:...

  • Page 35: Battery Connector

    NANO-QM770 EPIC SBC 3.2.2 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. CN Label: BAT1 CN Type:...

  • Page 36: Digital I/O Connector

    NANO-QM770 EPIC SBC 3.2.3 Digital I/O Connector CN Label: DIO1 10-pin header CN Type: CN Location: See Figure 3-5 CN Pinouts: See Table 3-5 The digital I/O connector provides programmable input and output for external devices. The digital I/O provides 4-bit output and 4-bit input.

  • Page 37: Fan Connector (System)

    NANO-QM770 EPIC SBC The fan connector attaches to a CPU cooling fan. Figure 3-6: CPU Fan Connector Location Description +V12S Rotation Signal PWM Control Signal Table 3-6: CPU Fan Connector Pinouts 3.2.5 Fan Connector (System) CN Label: SYS_FAN1 CN Type:...

  • Page 38: Front Panel Connector

    NANO-QM770 EPIC SBC Description Rotation Signal +12V Table 3-7: System Fan Connector Pinouts 3.2.6 Front Panel Connector CN Label: F_PANEL1 CN Type: 10-pin header CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.

  • Page 39: Keyboard/Mouse Connector

    NANO-QM770 EPIC SBC 3.2.7 Keyboard/Mouse Connector CN Label: KB_MS1 6-pin wafer CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 40: Figure 3-10: Lvds Connector Location

    NANO-QM770 EPIC SBC CN Pinouts: See Table 3-10 The LVDS connector is for an LCD panel connected to the board. Figure 3-10: LVDS Connector Location Description Description A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1...

  • Page 41: Lvds Backlight Connector

    NANO-QM770 EPIC SBC 3.2.9 LVDS Backlight Connector CN Label: INVERTER1 5-pin wafer CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-11 The backlight inverter connectors provide power to LCD panels. Figure 3-11: LVDS Backlight Inverter Connector Description...

  • Page 42: Figure 3-12: Pcie Mini Card Slot Location

    NANO-QM770 EPIC SBC The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to the board. Cards supported include among others wireless LAN (WLAN) cards and IEI PCIe Mini disk on module (DOM) SSD cards.

  • Page 43: Power Connector (12V)

    NANO-QM770 EPIC SBC Description Description 1.5V VCC3 Table 3-12: PCIe Mini Card Slot Pinouts 3.2.11 Power Connector (12V) CN Label: PWR1 CN Type: 4-pin connector CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The power connector is connected to an external power supply and supports 12V power input.

  • Page 44: Serial Port Connectors (Com1, Com2)

    NANO-QM770 EPIC SBC 3.2.12 RS-232 Serial Port Connectors (COM1, COM2) CN Label: COM1, COM2 10-pin header CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-14 The 10-pin serial port connectors provide two RS-232 serial communications channels. The COM serial port connectors can be connected to external RS-232 serial port devices.

  • Page 45: Sata Drive Connectors

    NANO-QM770 EPIC SBC CN Pinouts: See Table 3-15 This connector provides RS-422 or RS-485 communications. Figure 3-15: RS-422/485 Serial Port Connector Location Description RXD485# RXD485+ TXD485+ TXD485# Table 3-15: RS-422/485 Serial Port Connector Pinouts Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the D-sub 9 connector are listed below.

  • Page 46: Sata Power Connectors

    NANO-QM770 EPIC SBC CN Location: See Figure 3-16 CN Pinouts: See Table 3-17 The SATA connectors connect to SATA hard drives or optical drives with data transfer speeds as high as 6Gb/s. Figure 3-16: SATA Drive Connector Locations Description Table 3-17: SATA Drive Connector Pinouts 3.2.15 SATA Power Connectors...

  • Page 47: Smbus Connector

    NANO-QM770 EPIC SBC Figure 3-17: SATA Power Connector Locations Description +V5S Table 3-18: SATA Power Connector Pinouts 3.2.16 SMBus Connector CN Label: CN Type: 4-pin wafer CN Location: See Figure 3-18 CN Pinouts: See Table 3-19 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 48: So-Dimm Connector

    NANO-QM770 EPIC SBC Description SMB_DATA SMB_CLK +V5S Table 3-19: SMBus Connector Pinouts 3.2.17 SO-DIMM Connector CN Label: DIMM1 204-pin DDR3 SO-DIMM connector CN Type: CN Location: See Figure 3-19 The SO-DIMM connector is for installing memory on the system. Figure 3-19: SO-DIMM Connector Location 3.2.18 SPI Flash Connector...

  • Page 49: Tpm Connector

    NANO-QM770 EPIC SBC Figure 3-20: SPI Flash Connector Location Description +V3.3M_SPI_CON SPI_CS SPI_SO_SW SPI_CLK_SW SPI_SI_SW Table 3-20: SPI Flash Connector Pinouts 3.2.19 TPM Connector CN Label: TPM1 CN Type: 20-pin header CN Location: See Figure 3-21 CN Pinouts: See Table 3-21 The Trusted Platform Module (TPM) connector secures the system on bootup.

  • Page 50: Usb 2.0 Connector

    NANO-QM770 EPIC SBC Figure 3-21: TPM Connector Location Description Description LCLK LFRAME# LRERST# LAD3 LAD2 LAD1 LAD0 SB3V SERIRQ GLKRUN# LPCPD# LDRQ# Table 3-21: TPM Connector Pinouts 3.2.20 USB 2.0 Connector CN Label: USB1 8-pin header CN Type: CN Location:...

  • Page 51: External Interface Connectors

    DATA+ DATA- Table 3-22: USB Port Connector Pinouts 3.3 External Interface Connectors Figure 3-23 shows the NANO-QM770 motherboard external interface connectors. The NANO-QM770 on-board external interface connectors are shown in Figure 3-23. Figure 3-23: External Interface Connectors 3.3.1 DVI Connector...

  • Page 52: Ethernet Connectors

    NANO-QM770 EPIC SBC CN Location: See Figure 3-23 CN Pinouts: See Table 3-23 and Figure 3-24 The 24-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays. The DVI-I connector supports both digital and analog signals. Description Description...

  • Page 53: Hdmi Connectors

    NANO-QM770 EPIC SBC CN Pinouts: See Table 3-24 The LAN connector connects to a local network. DESCRIPTION DESCRIPTION MDIA3- MDIA2+ MDIA3+ MDIA1+ MDIA1- MDIA0- MDIA2- MDIA0+ Table 3-24: LAN Pinouts Figure 3-25: Ethernet Connector Description Description on: linked off: 10 Mb/s...

  • Page 54: Usb 3.0 Connectors

    NANO-QM770 EPIC SBC Description Description HDMI_DATA2 HDMI_DATA2# HDMI_SCL HDMI_DATA1 HDMI_SDA HDMI_DATA1# HDMI_DATA0 HDMI_HPD HDMI_GND HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# Table 3-26: HDMI Connector Pinouts Figure 3-26: HDMI Connector 3.3.4 USB 3.0 Connectors CN Label: USB_CON1, USB_CON2 USB 3.0 port...

  • Page 55: Table 3-27: Usb Port Pinouts

    NANO-QM770 EPIC SBC Description Description VBUS DATA1- DATA1+ SSRX1- SSRX1+ SSTX1- SSTX1+ VBUS DATA2- DATA2+ SSRX2- SSRX2+ SSTX2- SSTX2+ Table 3-27: USB Port Pinouts Page 39...

  • Page 56: Installation

    NANO-QM770 EPIC SBC Chapter Installation Page 40...

  • Page 57: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the NANO-QM770. Dry climates are especially susceptible to ESD. It is therefore critical to strictly adhere to the following anti-static precautions whenever the NANO-QM770, or any other electrical component, is handled.
  • Page 58 NANO-QM770 EPIC SBC WARNING: The installation instructions described in this manual should be carefully followed in order to prevent damage to the NANO-QM770, NANO-QM770 components and injury to the user. Before and during the installation please DO the following: Read the user manual: The user manual provides a complete description of the installation instructions and configuration options.

  • Page 59: So-Dimm Installation

    Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See Figure 4-1) 4.4 PCIe Mini Card Installation A PCIe Mini card slot is located on the solder side of the NANO-QM770. To install the PCIe Mini card, please refer to the diagram and instructions below. Page 43...

  • Page 60: Jumper Settings

    NANO-QM770 EPIC SBC Figure 4-2: PCIe Mini Card Installation Step 1: Insert into the socket at an angle. Line up the notch on the card with the notch on the connector. Slide the PCIe Mini card into the socket at an angle of about 20º.

  • Page 61: At/Atx Mode Selection

    Jumper Location: See Figure 4-3 Set both of the jumpers select AT or ATX power mode for the NANO-QM770. AT power mode limits the system to on/off. ATX allows the system to use various power saving states and enter a standby state, so the system can be turned on remotely over a network.

  • Page 62: Clear Cmos

    See Figure 4-4 Jumper Location: If the NANO-QM770 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 63: Clear Me Rtc Registers

    NANO-QM770 EPIC SBC Description Short 1-2 Keep CMOS Setup (Default) Short 2-3 Clear CMOS Setup Table 4-3: Clear CMOS Jumper Settings Figure 4-4: Clear CMOS Jumper Location 4.5.3 Clear ME RTC Registers Jumper Label: ME_RTC1 3-pin header Jumper Type: Jumper Settings:...

  • Page 64: Flash Descriptor Security Override

    NANO-QM770 EPIC SBC Figure 4-5: Clear ME RTC Registers Jumper Location 4.5.4 Flash Descriptor Security Override Jumper Label: J_FLASH1 Jumper Type: 3-pin header Jumper Settings: See Table 4-5 Jumper Location: See Figure 4-6 The Flash Descriptor Security Override jumper specifies whether to override the flash descriptor.

  • Page 65: Lvds Voltage Selection

    NANO-QM770 EPIC SBC 4.5.5 LVDS Voltage Selection Jumper Label: J_VLVDS1 3-pin header Jumper Type: Jumper Settings: See Table 4-6 Jumper Location: See Figure 4-7 Selects the voltage of the LVDS connector. Description Short 1-2 +3.3 V (Default) Short 2-3 +5 V...

  • Page 66: Pcie Mini/Msata Mode Selection

    NANO-QM770 EPIC SBC Description 1024 X 768 (18bit) 1-2 & 3-4 1024 X 768 (24bit) Default 1280 X 800 (24bit) 1-2 & 5-6 1280 X 1024 (48bit) 3-4 & 5-6 1366 X 768 (24bit) 1-2 & 3-4 & 5-6 1440 X 900 (48bit) 1400 X 1050 (48bit) 1-2 &...

  • Page 67: Chassis Installation

    The chassis should have fans and vents as necessary to keep things cool. The NANO-QM770 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 68: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.7.1 AT Power Connection Follow the instructions below to connect the NANO-QM770 to an AT power supply. WARNING: Disconnect the power supply power cord from its AC power source to prevent a sudden power surge to the NANO-QM770.

  • Page 69: Audio Kit Installation

    Figure 4-11: Connect Power Cable to Power Supply 4.7.2 Audio Kit Installation The Audio Kit that came with the NANO-QM770 connects to the audio connector on the NANO-QM770. The audio kit consists of three audio jacks. Mic-in connects to a microphone.

  • Page 70: Sata Drive Connection

    0: 4.7.3 SATA Drive Connection The NANO-QM770 is shipped with two SATA drive cable. To connect the SATA drive to the connector, please follow the steps below. Step 1: Locate the SATA connector and the SATA power connector. The locations of the connectors are shown in Chapter 3.

  • Page 71: Single Rs-232 Cable (W/O Bracket)

    NANO-QM770 EPIC SBC Figure 4-13: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-13.

  • Page 72: External Peripheral Interface Connection

    4.8.1 DVI Display Device Connection The NANO-QM770 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the NANO-QM770, please follow the instructions below.

  • Page 73: Hdmi Display Device Connection

    Step 0: 4.8.2 HDMI Display Device Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the NANO-QM770, follow the steps below. Step 1: Locate the HDMI connector.

  • Page 74: Lan Connection

    Locate the RJ-45 connectors. The locations of the LAN connectors are shown in Chapter 3. Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the NANO-QM770. See Figure 4-17. Page 58...

  • Page 75: Usb Connection

    4.8.4 USB Connection The external USB 3.0 connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the NANO-QM770. Step 1: Locate the USB 3.0 connectors. The locations of the USB 3.0 connectors are shown in Chapter 3.

  • Page 76: Intel ® Amt Setup Procedure

    ® 4.9 Intel AMT Setup Procedure The NANO-QM770 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the DIMM1 socket is installed with one DDR3 SO-DIMM.
  • Page 77 NANO-QM770 EPIC SBC NOTE: To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).

  • Page 78: Bios

    NANO-QM770 EPIC SBC Chapter BIOS Page 62...

  • Page 79: Introduction

    NANO-QM770 EPIC SBC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 80: Getting Help

    NANO-QM770 EPIC SBC Function Increase the numeric value or make changes Decrease the numeric value or make changes Page up Move to the next page Page down Move to the previous page Main Menu – Quit and do not save changes into CMOS...

  • Page 81: Main

    NANO-QM770 EPIC SBC Security – Sets User and Supervisor Passwords. Save & Exit – Selects exit options and loads default settings The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.

  • Page 82: Advanced

    NANO-QM770 EPIC SBC System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 83: Acpi Configuration

    NANO-QM770 EPIC SBC 5.3.1 ACPI Configuration The ACPI Configuration menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state the system will enter ACPI Sleep State [S1 only (CPU Stop C…]...

  • Page 84: Rtc Wake Settings

    NANO-QM770 EPIC SBC 5.3.2 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 4) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 85: Trusted Computing

    NANO-QM770 EPIC SBC Enabled If selected, the following appears with values that can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 86: Cpu Configuration

    NANO-QM770 EPIC SBC Security Device Support [Disable] Use the Security Device Support option to configure support for the TPM. TPM support is disabled. Disable EFAULT Enable TPM support is enabled. 5.3.4 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.
  • Page 87 NANO-QM770 EPIC SBC Max CPU Speed: Lists the maximum CPU processing speed. Min CPU Speed: Lists the minimum CPU processing speed. CPU Speed: Lists the CPU processing speed Processor Core: Lists the number of the processor cores Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU.

  • Page 88: Sata Configuration

    NANO-QM770 EPIC SBC 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced SATA Mode Selection...

  • Page 89: Intel(R) Rapid Start Technology

    NANO-QM770 EPIC SBC 5.3.6 Intel(R) Rapid Start Technology Use the Intel(R) Rapid Start Technology menu to configure Intel® Rapid Start Technology support. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel(R) Rapid Start Technology [Disabled] --------------------- : Select Screen ↑...

  • Page 90: Amt Configuration

    NANO-QM770 EPIC SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel Trusted Execution Technology Configuration Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior --------------------- to TXT.

  • Page 91: Usb Configuration

    NANO-QM770 EPIC SBC Intel AMT [Enabled] Use Intel AMT option to enable or disable the Intel® AMT function. Intel® AMT is disabled Disabled Enabled Intel® AMT is enabled EFAULT Unconfigure ME [Disabled] Use the Unconfigure ME option to perform ME unconfigure without password operation.

  • Page 92: F81866 Super Io Configuration

    NANO-QM770 EPIC SBC USB Devices The USB Devices Enabled field lists the USB devices that are enabled on the system Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 93: Serial Port N Configuration

    NANO-QM770 EPIC SBC 5.3.10.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 13) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...
  • Page 94 NANO-QM770 EPIC SBC IO=3F8h; Serial Port I/O port address is 3E8h and the interrupt IRQ=3, 4 address is IRQ3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt...
  • Page 95 NANO-QM770 EPIC SBC IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt IRQ=3, 4 address is IRQ3, 4 5.3.10.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 96: F81866 H/W Monitor

    NANO-QM770 EPIC SBC 5.3.11 F81866 H/W Monitor The F8186 H/W Monitor menu (BIOS Menu 14) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select...

  • Page 97: Smart Fan Mode Configuration

    NANO-QM770 EPIC SBC VSB5V VCC3V VSB3V VBAT 5.3.11.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 15) to configure the smart fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 98: Serial Port Console Redirection

    NANO-QM770 EPIC SBC SYS_FAN1 Smart Fan Control [Auto Duty-Cycle Mode] Use the SYS_FAN1 Smart Fan Control option to configure the System Smart Fan (SYS_FAN1). Manual Duty The fan spins at the speed set in Manual by Duty Mode Cycle settings...

  • Page 99: Iei Feature

    NANO-QM770 EPIC SBC Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function. Disabled the console redirection function Disabled EFAULT Enabled Enabled the console redirection function 5.3.13 IEI Feature Use the IEI Feature menu (BIOS Menu 17) to configure One Key Recovery function.

  • Page 100: Chipset

    NANO-QM770 EPIC SBC 5.4 Chipset Use the Chipset menu (BIOS Menu 18) to access the Hostbridge and Southbridge configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 101: Pch-Io Configuration

    NANO-QM770 EPIC SBC 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 19) to configure the PCH chipset. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset PCH-IO Configuration Control Detection of the Azalia device. Intel PCH RC Version 1.1.0.0...

  • Page 102: System Agent (Sa) Configuration

    NANO-QM770 EPIC SBC Disabled Disable internal HDMI codec for High Definition Audio Enable internal HDMI codec for High Definition Audio Enabled EFAULT Restore AC Power Loss [Last State] Use the Restore AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

  • Page 103: Graphics Configuration

    NANO-QM770 EPIC SBC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset System Agent Bridge Name IvyBridge Enabled to reduce power System Agent RC Version 1.1.0.0 consumption in system VT-d Capability Supported off state. VT-d [Enabled] > Graphics Configuration --------------------- >...

  • Page 104: Bios Menu 21: Graphics Configuration

    NANO-QM770 EPIC SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX VBIOS Version 2132 IGFX/PEG/PCI Graphics Igfx Frequency 350 MHz device should be Primary Display Or select SG for Primary Display [IGFX] Switchable Gfx.
  • Page 105 NANO-QM770 EPIC SBC then only be used as graphics memory, and is no longer available to applications or the operating system. Configuration options are listed below: 128M Default 256M 512M 1024M DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device.

  • Page 106: Memory Configuration

    NANO-QM770 EPIC SBC 800x600 18BIT 1024x768 18BIT 1024x768 24BIT 1280x800 24BIT 1280x1024 48BIT 1366x768 24BIT 1440x900 48BIT 1400x1050 48BIT 1600x900 48BIT 1600x1200 48BIT 1680x1050 48BIT 1920x1080 48BIT 1920x1200 48BIT 2048x1536 48BIT Backlight Control [Inverted] Use the Backlight Control option to select the backlight control mode.

  • Page 107: Boot

    NANO-QM770 EPIC SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Memory Information Memory RC Version 1.1.0.0 Memory Frequency 1333 MHz Total Memory 2048 MB (DDR3) DIMM#0 2048 MB (DDR3) CAS Latency (tCL) --------------------- Minimum delay time : Select Screen ↑...
  • Page 108 NANO-QM770 EPIC SBC Bootup NumLock State [On] Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up. Allows the Number Lock on the keyboard to be EFAULT enabled automatically when the computer system boots up.
  • Page 109 NANO-QM770 EPIC SBC Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode. Sets display mode to force BIOS. Force EFAULT BIOS Sets display mode to current. Keep Current Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 110: Security

    NANO-QM770 EPIC SBC 5.6 Security Use the Security menu (BIOS Menu 24) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 111: Bios Menu 25:Exit

    NANO-QM770 EPIC SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Save Changes and Reset Reset the system after Discard Changes and Reset saving the changes. Restore Defaults Save as User Defaults...

  • Page 112: Software Drivers

    NANO-QM770 EPIC SBC Chapter Software Drivers Page 96...

  • Page 113: Available Software Drivers

    Intel® AMT Installation instructions are given below. 6.2 Software Installation All the drivers for the NANO-QM770 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 114: Figure 6-1: Introduction Screen

    NANO-QM770 EPIC SBC Figure 6-1: Introduction Screen Step 3: Click NANO-QM770. Step 4: A new screen with a list of available drivers appears (Figure 6-2). Figure 6-2: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 115: Chipset Driver Installation

    NANO-QM770 EPIC SBC 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Chipset”. Step 3: Locate the setup file and double click on it.

  • Page 116: Figure 6-4: Chipset Driver License Agreement

    NANO-QM770 EPIC SBC Figure 6-4: Chipset Driver License Agreement Step 9: The Read Me file in Figure 6-5 appears. Step 10: Click Next to continue. Figure 6-5: Chipset Driver Read Me File Page 100...

  • Page 117: Figure 6-6: Chipset Driver Setup Operations

    NANO-QM770 EPIC SBC Step 11: Setup Operations are performed as shown in Figure 6-6. Step 12: Once the Setup Operations are complete, click Next to continue. Figure 6-6: Chipset Driver Setup Operations Step 13: The Finish screen in Figure 6-7 appears.

  • Page 118: Graphics Driver Installation

    NANO-QM770 EPIC SBC Figure 6-7: Chipset Driver Installation Finish Screen 6.4 Graphics Driver Installation To install the Graphics driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Graphics” and select the folder which corresponds to the operating system.

  • Page 119: Figure 6-8: Graphics Driver Welcome Screen

    NANO-QM770 EPIC SBC Figure 6-8: Graphics Driver Welcome Screen Step 6: The License Agreement in Figure 6-9 appears. Step 7: Click Yes to accept the agreement and continue. Figure 6-9: Graphics Driver License Agreement Step 8: Setup Operations are performed as shown in Figure 6-10.

  • Page 120: Figure 6-10: Graphics Driver Setup Operations

    NANO-QM770 EPIC SBC Step 9: Once the Setup Operations are complete, click Next to continue. Figure 6-10: Graphics Driver Setup Operations Step 10: The Finish screen in Figure 6-11 appears. Step 11: Select “Yes, I want to restart this computer now” and click Finish.Step 0:...

  • Page 121: Lan Driver Installation

    NANO-QM770 EPIC SBC 6.5 LAN Driver Installation Step 1: Right-click the Computer button from the start menu and select Properties. (Figure 6-12). Figure 6-12: Windows Control Panel Step 2: The system control panel window in Figure 6-13 appears. Step 3: Click the Device Manager link (Figure 6-13).

  • Page 122: Figure 6-14: Device Manager List

    NANO-QM770 EPIC SBC Step 4: A list of system hardware devices appears (Figure 6-14). Step 5: Right-click the Ethernet Controller that has question marks next to it (this means Windows does not recognize the device). Step 6: Select Update Driver Software.

  • Page 123: Figure 6-15: Update Driver Software Window

    NANO-QM770 EPIC SBC Figure 6-15: Update Driver Software Window Step 8: Select “Browse my computer for driver software” and click N to continue. Step 9: Click Browse to select “X:\3-LAN” directory in the Locate File window, where “X:\” is the system CD drive. (Figure 6-16).

  • Page 124: Audio Driver Installation

    NANO-QM770 EPIC SBC Figure 6-17: LAN Driver Installation Step 12: The Finish screen in Figure 6-18 appears. Click Close to exit. Step 0: Figure 6-18: LAN Driver Installation Complete 6.6 Audio Driver Installation To install the audio driver, please do the following.

  • Page 125: Figure 6-19: Installshield Wizard Welcome Screen

    NANO-QM770 EPIC SBC Step 2: Click “Audio” and select the folder which corresponds to the operating system. Step 3: Double click the setup file. Step 4: The InstallShield Wizard is prepared to guide the user through the rest of the process.

  • Page 126: Figure 6-20: Audio Driver Software Configuration

    NANO-QM770 EPIC SBC Figure 6-20: Audio Driver Software Configuration Step 8: After the driver installation process is complete, a confirmation screen appears (Figure 6-21). Figure 6-21: Restart the Computer Page 110...

  • Page 127: Intel® Rapid Storage Technology Driver Installation

    NANO-QM770 EPIC SBC Step 9: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: 6.7 Intel® Rapid Storage Technology Driver Installation To install the Intel®...

  • Page 128: Figure 6-23: Sata Raid Driver License Agreement

    NANO-QM770 EPIC SBC Figure 6-23: SATA RAID Driver License Agreement Step 9: The Read Me file in Figure 6-24 appears. Step 10: Click Next to continue. Figure 6-24: SATA RAID Driver Read Me File Step 11: Setup Operations are performed as shown in Figure 6-25.

  • Page 129: Figure 6-25: Sata Raid Driver Setup Operations

    NANO-QM770 EPIC SBC Figure 6-25: SATA RAID Driver Setup Operations Step 13: The Finish screen in Figure 6-26 appears. Step 14: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-26: SATA RAID Driver Installation Finish Screen...

  • Page 130: Usb 3.0 Driver Installation

    NANO-QM770 EPIC SBC 6.8 USB 3.0 Driver Installation WARNING: Do not run this driver’s installer (Setup.exe) from a USB storage device (ie. external USB hard drive or USB thumb drive). For proper installation, please copy driver files to a local hard drive folder and run from there.

  • Page 131: Figure 6-28: Usb 3.0 Driver License Agreement

    NANO-QM770 EPIC SBC Step 7: Read the License Agreement. Step 8: Click Yes to continue. Figure 6-28: USB 3.0 Driver License Agreement Step 9: The Read Me file in Figure 6-29 appears. Step 10: Click Next to continue. Figure 6-29: USB 3.0 Driver Read Me File...

  • Page 132: Figure 6-30: Usb 3.0 Driver Setup Operations

    NANO-QM770 EPIC SBC Step 11: Setup Operations are performed as shown in Figure 6-30. Step 12: Once the Setup Operations are complete, click Next to continue. Figure 6-30: USB 3.0 Driver Setup Operations Step 13: The Finish screen in Figure 6-31 appears.

  • Page 133: Intel® Amt Driver Installation

    NANO-QM770 EPIC SBC 6.9 Intel® AMT Driver Installation The package of the Intel® AMT components includes Intel® Management Engine Interface (Intel® ME Interface) Intel® Dynamic Application Loader Intel® Identity Protection Technology (Intel® IPT) Serial Over LAN (SOL) Intel® Manageability Engine Firmware Recovery Agent Intel®...

  • Page 134: Figure 6-32: Intel® Me Driver Welcome Screen

    NANO-QM770 EPIC SBC Figure 6-32: Intel® ME Driver Welcome Screen Step 6: The license agreement in Figure 6-33 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Figure 6-33: Intel® ME Driver License Agreement Step 9: Setup Operations are performed as shown in Figure 6-34.

  • Page 135: Figure 6-34: Intel® Me Driver Setup Operations

    NANO-QM770 EPIC SBC Figure 6-34: Intel® ME Driver Setup Operations Step 11: The Finish screen in Figure 6-35 appears. Step 12: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-35: Intel® ME Driver Installation Finish Screen...

  • Page 136: Abios Options

    NANO-QM770 EPIC SBC Appendix BIOS Options Page 120...
  • Page 137 NANO-QM770 EPIC SBC Below is a list of BIOS configuration options in the BIOS chapter. 　 BIOS Information .........................65 　 System Date [xx/xx/xx] ......................66 　 System Time [xx:xx:xx] .......................66 　 ACPI Sleep State [S1 only (CPU Stop Clock)]..............67 　 Wake System with Fixed Time [Disabled] .................68 　...
  • Page 138 NANO-QM770 EPIC SBC 　 PEG0 – Gen X [Gen1]......................88 　 DVMT Pre-Allocated [128MB]....................88 　 DVMT Total Gfx Mem [MAX]....................89 　 Primary IGFX Boot Display [VBIOS Default] ..............89 　 LCD Panel Type [By Hardware] ..................89 　 Backlight Control [Inverted]....................90 　 Bootup NumLock State [On]....................92 　...

  • Page 139: B One Key Recovery

    NANO-QM770 EPIC SBC Appendix One Key Recovery Page 123...

  • Page 140: One Key Recovery Introduction

    NANO-QM770 EPIC SBC B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 141: System Requirement

    NANO-QM770 EPIC SBC After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section B.5. NOTE: The initial setup procedures for Linux system are described in Section B.3.

  • Page 142: Supported Operating System

    NANO-QM770 EPIC SBC partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 143: Setup Procedure For Windows

    NANO-QM770 EPIC SBC Linux Fedora Core 12 (Constantine) Fedora Core 11 (Leonidas) Fedora Core 10 (Cambridge) Fedora Core 8 (Werewolf) Fedora Core 7 (Moonshine) RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch)

  • Page 144: Hardware And Bios Setup

    NANO-QM770 EPIC SBC The detailed descriptions are described in the following sections. NOTE: The setup procedures described below are for Microsoft Windows operating system users. For Linux, most of the setup procedures are the same except for several steps described in Section B.3.

  • Page 145: Figure B-2: Launching The Recovery Tool

    NANO-QM770 EPIC SBC Step 2: Boot the system from recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-2: Launching the Recovery Tool Step 3: The recovery tool setup menu is shown as below.

  • Page 146: Figure B-4: Command Prompt

    NANO-QM770 EPIC SBC Figure B-4: Command Prompt Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 147: Figure B-5: Partition Creation Commands

    NANO-QM770 EPIC SBC Figure B-5: Partition Creation Commands Page 131...

  • Page 148: Install Operating System, Drivers And Applications

    NANO-QM770 EPIC SBC NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 149: Building The Recovery Partition

    NANO-QM770 EPIC SBC B.2.4 Building the Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 150: Figure B-8: Building The Recovery Partition

    NANO-QM770 EPIC SBC Step 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 151: Create Factory Default Image

    NANO-QM770 EPIC SBC B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 152: Figure B-12: About Symantec Ghost Window

    NANO-QM770 EPIC SBC Figure B-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure B-13). Figure B-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in Figure B-14. Then click OK.

  • Page 153: Figure B-14: Select A Local Source Drive

    NANO-QM770 EPIC SBC Figure B-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in Figure B-15. Then click OK. Figure B-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 154: Figure B-16: File Name To Copy Image To

    NANO-QM770 EPIC SBC Figure B-16: File Name to Copy Image to Step 8: When the Compress Image screen in Figure B-17 prompts, click High to make the image file smaller. Figure B-17: Compress Image Page 138...

  • Page 155: Figure B-18: Image Creation Confirmation

    NANO-QM770 EPIC SBC Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure B-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image (Figure B-19). Figure B-19: Creating Image Step 11: When the image creation completes, a screen prompts as shown in Figure B-20.

  • Page 156: Auto Recovery Setup Procedure

    NANO-QM770 EPIC SBC Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Auto Recovery Setup Procedure...

  • Page 157: Figure B-22: Auto Recovery Utility

    NANO-QM770 EPIC SBC Step 1: Follow the steps described in Section B.2.1 ~ Section B.2.3 to setup BIOS, create partitions and install operating system. Step 2: Install the auto recovery utility into the system by double clicking the Utility/AUTORECOVERY-SETUP.exe in the One Key Recovery CD. This utility MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes.

  • Page 158: Figure B-24: Launching The Recovery Tool

    NANO-QM770 EPIC SBC Step 4: Reboot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-24: Launching the Recovery Tool Step 5: When the recovery tool setup menu appears, press <4>...

  • Page 159: Figure B-26: Building The Auto Recovery Partition

    NANO-QM770 EPIC SBC Figure B-26: Building the Auto Recovery Partition Step 7: After completing the system configuration, the following message prompts to confirm whether to create a factory default image. Type Y to have the system create a factory default image automatically. Type N within 6 seconds to skip this process (The default option is YES).

  • Page 160: Figure B-28: Creating Image

    NANO-QM770 EPIC SBC Step 8: The Symantec Ghost starts to create the factory default image (Figure B-28). Figure B-28: Creating Image Step 9: After completing the system configuration, press any key in the following window to restart the system. Figure B-29: Press Any Key to Continue Step 10: Eject the One Key Recovery CD and restart the system.

  • Page 161: Setup Procedure For Linux

    NANO-QM770 EPIC SBC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 162: Figure B-31: Partitions For Linux

    NANO-QM770 EPIC SBC Partition 1: / Partition 2: SWAP NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure B-31: Partitions for Linux Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive.

  • Page 163: Figure B-32: Manual Recovery Environment For Linux

    NANO-QM770 EPIC SBC recovery partition. After completing the system configuration, press any key to reboot the system. Eject the recovery CD. Figure B-32: Manual Recovery Environment for Linux Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first access the recovery tool main menu, the menu.lst must be modified.

  • Page 164: Recovery Tool Functions

    NANO-QM770 EPIC SBC Step 7: The recovery tool menu appears. (Figure B-34) Figure B-34: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section B.2.5 to create a factory default image. S t e p 0 : B.5 Recovery Tool Functions...

  • Page 165: Figure B-35: Recovery Tool Main Menu

    NANO-QM770 EPIC SBC Figure B-35: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section B.2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 166: Factory Restore

    NANO-QM770 EPIC SBC B.5.1 Factory Restore To restore the factory default image, please follow the steps below. Step 1: Type <1> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 167: Backup System

    NANO-QM770 EPIC SBC B.5.2 Backup System To backup the system, please follow the steps below. Step 1: Type <2> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 168: Restore Your Last Backup

    NANO-QM770 EPIC SBC B.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 169: Manual

    NANO-QM770 EPIC SBC B.5.4 Manual To restore the last system backup, please follow the steps below. Step 1: Type <4> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 170: Restore Systems From A Linux Server Through Lan

    NANO-QM770 EPIC SBC B.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 171: Configure Dhcp Server Settings

    NANO-QM770 EPIC SBC B.6.1 Configure DHCP Server Settings Step 1: Install the DHCP #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Step 2: Confirm the operating system default settings: dhcpd.conf. CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 172: Configure Tftp Settings

    NANO-QM770 EPIC SBC filename “pxelinux.0”; B.6.2 Configure TFTP Settings Step 1: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Step 2: Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the remap file.

  • Page 173: Configure One Key Recovery Server Settings

    NANO-QM770 EPIC SBC Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp B.6.3 Configure One Key Recovery Server Settings Step 1: Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 174: Start The Dhcp, Tftp And Http

    NANO-QM770 EPIC SBC B.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart B.6.5 Create Shared Directory Step 1: Install the samba.

  • Page 175: Setup A Client System For Auto Recovery

    NANO-QM770 EPIC SBC Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Step 4: Edit “/etc/samba/smb.conf” for your environment. For example: Step 5:...

  • Page 176: Figure B-43: Disable Automatically Restart

    NANO-QM770 EPIC SBC Figure B-43: Disable Automatically Restart Step 7: Configure the following BIOS options of the client system. Advanced → iEi Feature → Auto Recovery Function → Enabled Advanced → iEi Feature → Recover from PXE → Enabled Boot → Launch PXE OpROM → Enabled...
  • Page 177 NANO-QM770 EPIC SBC MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes. Step 11: Restart the client system from LAN. If the system encounters a Blue Screen of Death (BSoD) or a hang for around 10 minutes, it will automatically restore from the factory default image.

  • Page 178: Other Information

    NANO-QM770 EPIC SBC NOTE: A firewall or a SELinux is not in use in the whole setup process described above. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. B.7 Other Information B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller...
  • Page 179 NANO-QM770 EPIC SBC Step 5: When the following window appears, press <S> to select “Specify Additional Device”. Page 163...

  • Page 180: System Memory Requirement

    NANO-QM770 EPIC SBC Step 6: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD. Step 7: After pressing <Enter>, the system will get into the recovery tool setup menu.

  • Page 181: C Terminology

    NANO-QM770 EPIC SBC Appendix Terminology Page 165...
  • Page 182 NANO-QM770 EPIC SBC AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 183 NANO-QM770 EPIC SBC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 184 NANO-QM770 EPIC SBC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 185: D Digital I/O Interface

    NANO-QM770 EPIC SBC Appendix Digital I/O Interface Page 169...

  • Page 186: Introduction

    NANO-QM770 EPIC SBC D.1 Introduction The DIO connector on the NANO-QM770 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 187: Enable The Dio Output Function

    NANO-QM770 EPIC SBC D.3.2 Enable the DIO Output Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O output functions is listed below. AX, 6F09H Sets the digital port as output BL, 09H...

  • Page 188: E Hazardous Materials Disclosure

    NANO-QM770 EPIC SBC Appendix Hazardous Materials Disclosure Page 172...

  • Page 189: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    NANO-QM770 EPIC SBC E.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 190 NANO-QM770 EPIC SBC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 191 NANO-QM770 EPIC SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
