EPIC SBC supports AMD® Embedded G-Series SoC with
VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s,
mSATA, COM, iRIS-1010, HD Audio and RoHS

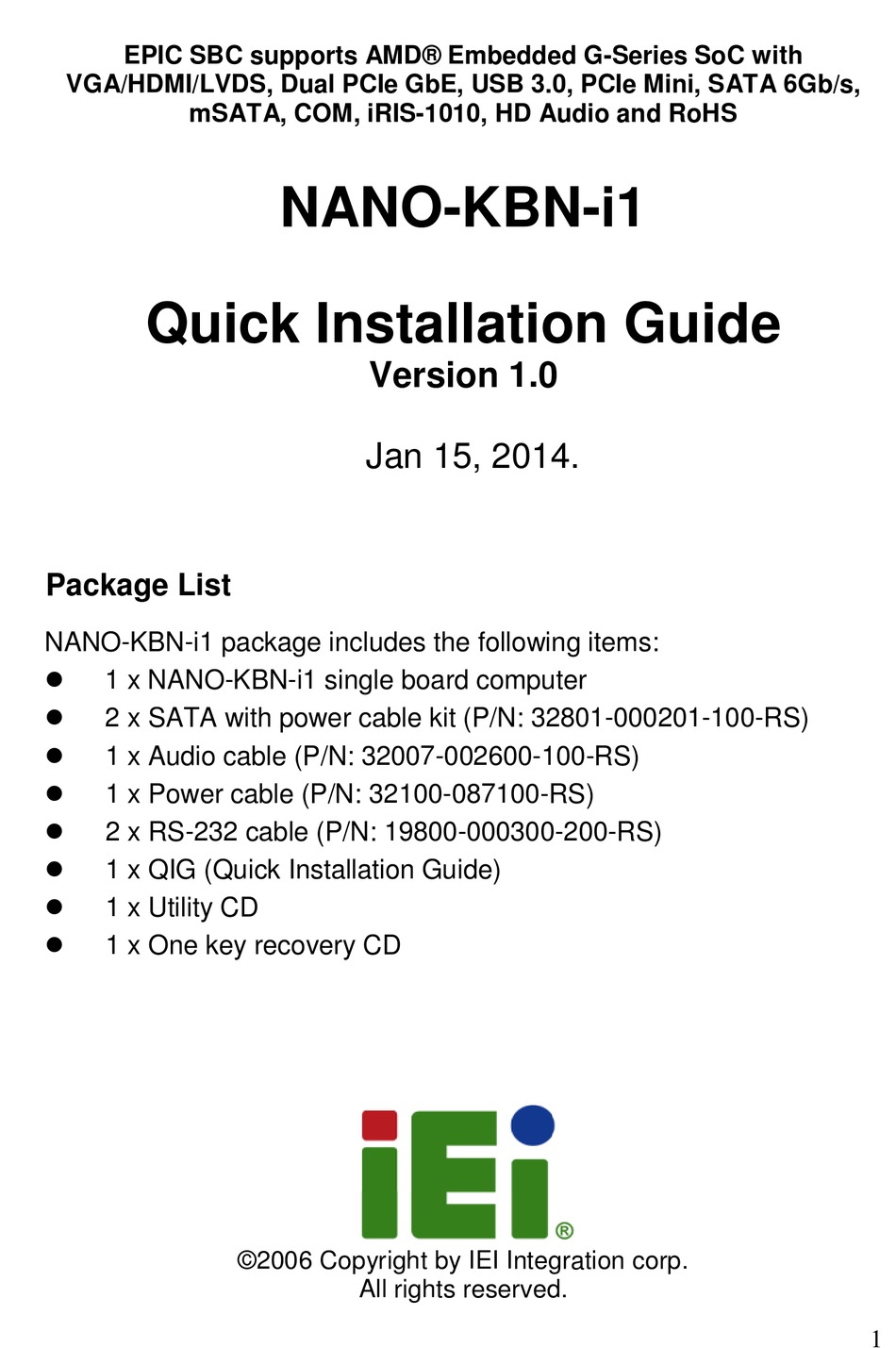

Quick Installation Guide

Package List
NANO-KBN-i1 package includes the following items:
1 x NANO-KBN-i1 single board computer
2 x SATA with power cable kit (P/N: 32801-000201-100-RS)
1 x Audio cable (P/N: 32007-002600-100-RS)
1 x Power cable (P/N: 32100-087100-RS)
2 x RS-232 cable (P/N: 19800-000300-200-RS)
1 x QIG (Quick Installation Guide)
1 x Utility CD
1 x One key recovery CD
NANO-KBN-i1
Version 1.0
Jan 15, 2014.
©2006 Copyright by IEI Integration corp.
All rights reserved.
1
