Lumens CL510 User Manual

Ceiling document camera
Hide thumbs Also See for CL510:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

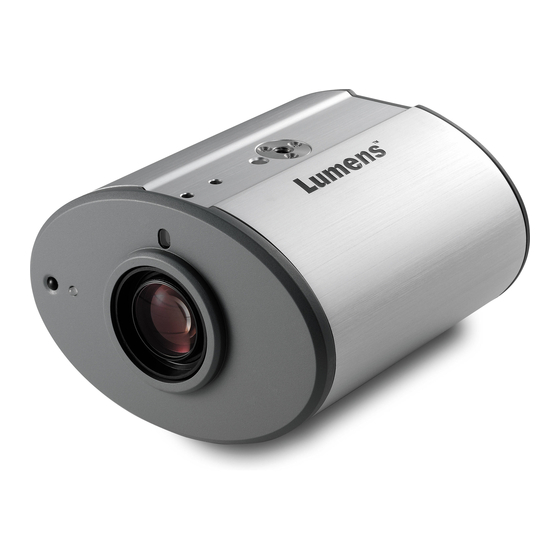

CL510
Ceiling Document Camera
User Manual - English
[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
http://www.Mylumens.com/goto.htm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumens CL510

Summary of Contents for Lumens CL510

  • Page 1 CL510 Ceiling Document Camera User Manual - English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.Mylumens.com/goto.htm...

  • Page 2: Table Of Contents

    Table of Contents Copyright Information ..................3 Chapter 1 Safety Instructions ................ 4 Precautions ....................4 FCC Warning ....................5 FDA Warning ....................5 EN55022 (CE Radiation) Warning ............... 5 EN60825 (Laser) Warning ................5 Caution ......................5 Chapter 2 Package Contents ................. 6 Chapter 3 Product Overview .................
  • Page 3 (PIP)) ..................21 6.17 I would like to reduce the image noise (Projector Type) ..... 21 6.18 I would like to set the time for CL510 ..........22 6.19 I would like to resume the factory default settings (Factory Reset) ..24 6.20 Computer-related functions ..............

  • Page 4: Copyright Information

    Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice.

  • Page 5: Chapter 1 Safety Instructions

    Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Ceiling Camera: Use attachments only as recommended. Use the type of power source indicated on the Ceiling Camera. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.

  • Page 6: Fcc Warning

    Caution Electric Shock To reduce the risk of electric shock, do not remove the cover. No user-serviceable parts DO NOT OPEN inside. Refer servicing to licensed service personnel. This symbol indicates that This symbol indicates that this equipment may contain there are important dangerous voltage which operating and maintenance...

  • Page 7: Chapter 2 Package Contents

    Chapter 2 Package Contents Instruction for CL510 Quick Start Guide Installation (For download of other language versions, please  visit Lumens website) VGA Cable Remote Control USB Cable Power Adapter IR extender Ceiling Mount / Hanger Appearance may vary depending on...

  • Page 8: Chapter 3 Product Overview

    Chapter 3 Product Overview Lens IR reception LED indicator 3.1 Relative position of the presenter and document English - 7...

  • Page 9: Chapter 4 Start Using

    You are ready to teach/present.  When using the Remote Control, aim at the remote sensor on the CL510, and press the power button.  When the power is on, the LED indicator will light red. If the indicator does not light up, please contact your distributor.

  • Page 10: Chapter 5 Remote Control And Setting Menu

    Chapter 5 Remote Control and Setting Menu 5.1 Functions of Remote Control <Remark> The below functions are listed alphabetically. Name Function Descriptions Turn on and off the Document Camera. ,,, Move up, down, left or right to select the needed function. Automatically adjust the focal length of image.

  • Page 11: Setting Menu

    5.2 Setting Menu 5.2.1 Main Menu: <Remark> Press [Menu] on the Remote Control to enter the setting menu; The bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Items Minor Items Adjustment Values Automatically adjust the image to...
  • Page 12 Press [ENTER] to immediately Copy To USB Yes/No copy the data in internal memory to Disk the USB disk. Use the left and right arrow keys to select, press [ENTER] to confirm Delete All Yes/No the deletion of all images from the USB disk (priority) or internal memory.
  • Page 13 Use the left and right arrow keys to Projector Type DLP/LCD select the projector type and reduce image noise. Press [ENTER] to show the Ethernet window. For details, Ethernet Enter please refer to 5.2.5 Ethernet Setting Menu. English English Traditional Chinese 繁體中文...
  • Page 14 Use the left and right arrow keys to select, and then confirm by Factory Reset Yes/No pressing [ENTER] to restore the factory defaults. 5.2.2 MASK Mode Setting Menu Level Level Level Function Descriptions Major Items Minor Items Adjustment Values Adjust the transparency of the Transparency 0~4~6 mask using left and right arrow...
  • Page 15 5.2.4 Date & Time Setting Menu Level Level Level Function Descriptions Major Items Minor Items Adjustment Values Press [ENTER] to modify the Year 00~36 values using left and right arrow keys. Press [ENTER] to modify the Month 01~12 values using left and right arrow keys.
  • Page 16 5.2.6 Annotation Tools After the mouse is connected, right click the mouse to start the tools. <Note> When the setting menu is activated, the tools cannot be used.  Annotation Icon Description tools thumbnails Display/Close the Annotation tools menu Display/Close the Free-hand drawing tools menu ...

  • Page 17: Chapter 6 Descriptions Of Major Functions

    Chapter 6 Descriptions of major functions 6.1 I would like to automatically adjust the image to have best brightness and focusing performance (Auto Tune) 1. Press [Auto tune] on the Remote Control to adjust automatically. 6.2 I would like to make text clearer and photos more colorful The default of [Photo/Text] is Photo (Photo mode), and press the [Photo/Text] button on the Remote Control to change the setting.

  • Page 18: I Would Like To Enable Or Disable The Laser Mark

    2. Press [BRT -] on the Remote Control to dim the display. 6.6 I would like to enable or disable the laser mark 1. Press the [LASER] on the Remote Control to enable/disable the laser mark. 6.7 I would like to freeze images 1.

  • Page 19: I Would Like To Record Videos

    6. Press [] or [] to select [Photo]. 7. Press [] to find [Capture Time]; Press [] or [] to select capture time. 8. Press [] to find [Capture Interval]; Press [] or [] to select interval time. 9. Press [MENU] to exit. 6.9 I would like to record videos 6.9.1 Recording motion images <Note>...

  • Page 20: I Would Like To Delete The Captured/Recorded Images

    6.11 I would like to delete the captured/recorded images 1. Press [PLAYBACK] on the Remote Control. 2. Press [], [], [], or [] to select the file you want to delete. 3. Press [DEL] to display a [Delete File] window. 4.

  • Page 21: I Would Like To Enlarge A Part Of The Image (Pan)

    2. Press [] or [] to select the item to be modified [Transparency/Step/V Size/H Size]. (For details, please refer to 5.2 Setting Menu.) 3. Press [] or [] to perform the modification. 4. Press [MENU] to exit the image OSD menu and return to the Mask mode.

  • Page 22: I Would Like To Compare Images

    6.16 I would like to compare images (compare live images with stored images (PIP)) This function will compare and contrast a live image with a stored image. Live image Stored image Remote control: 1. Press [PIP] to enter the photo selection screen. 2.

  • Page 23: I Would Like To Set The Time For Cl510

    2.3. Press [] to enter [Projector Type]. 2.4. Press [] or [] to select [LCD/DLP]. 2.5. Press [MENU] to exit. 6.18 I would like to set the time for CL510 6.18.1 Remote control Press [MENU] on the Remote Control to enter the setting menu.(Refer to...
  • Page 24 6.18.2 To use web remote control <Remark> For more information about the website login page, please refer to 6.21.1 I would like to view the live images or use the control keys. 1. Click [Settings]. 2. Click [System Config]. 3. Set the date and time. <Remark>...

  • Page 25: I Would Like To Resume The Factory Default Settings (Factory Reset)

    4. Select formats of date and time. 5. Click [OK] to conform and submit. 6.19 I would like to resume the factory default settings (Factory Reset) 1. Press [MENU] on the Remote Control to enter the setting menu. 2. Press [] or [] to select [Advanced] menu. 3.
  • Page 26 2. Select [USB Video Device] and click [Custom Insert]. USB Video Device 3. Click [Get Picture] to finish. 6.20.3 I would like to change the setting of the CL510 and then capture a photo in MS-Word <Remark> For Windows Office 2003 or later versions, please use the function with OneNote.
  • Page 27 3. A window showing a live image (see below) will be displayed. 4. Press [Capture] to capture images in MS-Word. 5. Press [Cancel] to exit. 6.20.4 I would like to set the CL510 as a PC Camera <Remark> For Windows XP, please set by system name (USB video device) Open [My Computer] and click [Lumens Document Camera] to open a live image.

  • Page 28: I Would Like To Use The Network Remote Control Function

     Network has a longer distance for controlling than USB and RS232 interface do. Each function of CL510 could be controlled and used by the browser (IE) on the computer for users. 6.21.1 I would like to view the live images or use the control keys 6.21.1.1...
  • Page 29 6.21.1.2 I would like to check the network settings DHCP is enabled by default. Please follow the steps below to check the IP address. 1. Press [MENU] on the Remote Control to enter the setting menu. 2. Press [] or [] to the [Advanced] menu. 3.
  • Page 30 the instructions on the screen when using the system for the first time 1. Modify web page security settings:  Open the web page → click [Tools] in function bar → [Internet Options] → [Security] → [Custom Level] → select [Download Unsigned ActiveX Controls] and set to [Prompt] →...
  • Page 31 <Remark> Please select this setting when the number of users online to watch the live image simultaneously is more than 4. Besides, all users must be in the same domain. 1. Log in to CL510 web control screen 2. Click [Settings] on the top 3. Click [Network Config] 4.
  • Page 32 image. <Remark> After the use, please reset to cancel [Enable Multicast]. 6.21.2 I would like to add or modify the user account <Remark> Reference for User Permissions User Type Admin Operator Viewer Applications IE or VLC IE or VLC IE or VLC Operation of LIVE Video View images...
  • Page 33 6. Set the permissions in the [Authority]. 7. Click [OK] to conform and submit. 6.21.2.2 I would like to delete the user account 1. Click Username. 2. Click [Delete] field to delete the user. 6.21.2.3 I would like to modify the user password and permissions 1.
  • Page 34 3. Video Player Version: Current Video Player Version 4. GUI Version: Current GUI version 6.21.5 Upgrade Firmware Version Current Firmware Version <Remark> Please download the latest firmware version from the Lumens website. 1. Click [Settings]. 2. Click [Maintenance]. English - 33...
  • Page 35 3. Click “View” in the [Firmware upload] field, and select the firmware files to upgrade. 4. Click [UPLOAD] to start upgrading. 5. When the firmware files are uploaded, all files in the built-in memory will be deleted. If you want to store the files, click “Cancel” to cancel upgrading.

  • Page 36: Chapter 7 Dip Switch Settings

    Chapter 7 DIP Switch Settings <Note> You should unplug and reconnect the power cord, and then restart the CL510 for all DIP switch settings to take effect. Output Mode Position of DIP Switch Default (XGA) SXGA WXGA UXGA 1080P English - 35...

  • Page 37: Chapter 8 Troubleshooting

    Chapter 8 Troubleshooting This chapter describes problems you may encounter while using CL510. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.
  • Page 38 Check to see if the Firmware version of your machine machine is up-to-date. Please go to Lumens official website to check whether the latest version is available for update. http://www.Mylumens.com/goto.htm The steps to check the FW version are as below: 2.1 Press [MENU] on the Remote Control to enter...
  • Page 39 Press [MENU] to exit the Ethernet OSD menu. Repeat steps 3 ~ 4 and check IP address. The output image is Please refer to the Appendix 1 in the manual to confirm the not clear with water applicable power frequency, and reset it according to the ripples instruction in 5.2 Setting...
  • Page 40 Q: A warning message (“Windows has blocked this software because it can't verify the publisher.”) appears when installing the ActiveX controls as shown in the figure below: A: Please follow the steps below to modify security settings and re-install ActiveX control components again: 1.

  • Page 41: Appendix 1

    Appendix 1 Power frequency for each country in the world Region or Country Region or Country Region or Country English English English Chinese Chinese Chinese 50 大 陸 China 50 關 島 Guam 阿 富 汗 Afghanistan 阿爾及利亞 Algeria 50 哥 倫 比 亞 Colombia 60 石...
  • Page 42 Region or Country Region or Country Region or Country English English English Chinese Chinese Chinese 亞 Libya 50 阿 曼 Oman 50 敘 利 亞 Syria 利 比 50 巴 基 斯 坦 Pakistan 50 大 溪 地 Tahiti 盧 森...
