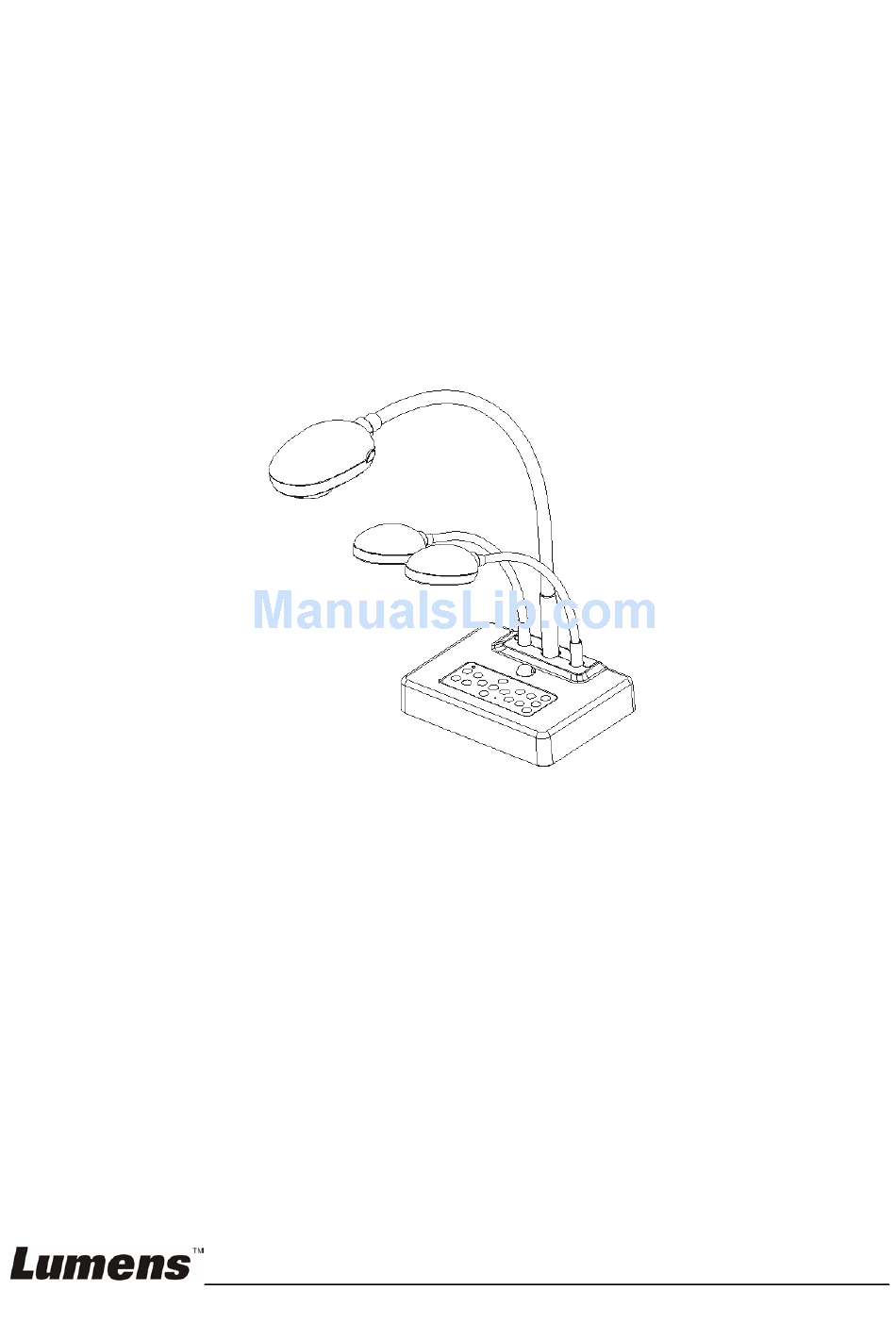

- Page 1 DC265 Visual Presenter Quick Start Guide English -...
- Page 2 1. Package Content DC265 Quick Start Guide User Manual (For download of other language versions, please visit Lumens website) Base Installation Guide & Remote control Remote Control Holder Download Card Extender Adapter VGA Cable USB Cable C-Video Cable Power Cord...
- Page 3 2. System Diagram Projector Monitor Monitor Speaker SD Card LCD TV Television English -...
- Page 4 <Note> Appearance of power cord may vary with countries/regions. 4.2 Step 2: Connecting with components 4.2.1 Connecting to a Projector Connect the VGA OUT on the DC265 to the VGA IN on the projector using the VGA cable. 4.2.2 Connecting to a Monitor Connect the VGA PASSTHROUGH on the DC265 to the VGA IN on the monitor using the VGA cable.
- Page 5 4.2.3 Connecting to a TV 1. Using EXTENDER and C-Video cable to connect EXTENDER of DC265 to a C-Video of TV. 2. Adjust DIP Switch Setting NTSC：America, Taiwan, Panama, Philippine, Canada, Chile, Japan, and Mexico. PAL：Country/region not listed above: <Note> OSD is not available in C-Video. Functions such as [Menu] / [Rotate] / [PAN] / [Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show] are not available on control panel and the remote control.
- Page 6 Connect to USB port then install the supplied queue program. Please refer to the DC265 user manual 電腦 Using the EXTENDER and RS-232 cable to connect EXTENDER of DC265 to a RS-232 of computer. 4.2.6 Connecting to Speaker Speaker English -...
- Page 7 When using the remote control, aim at the receptor on the DC265, and press the power button. Once DC265 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not <Note>...
