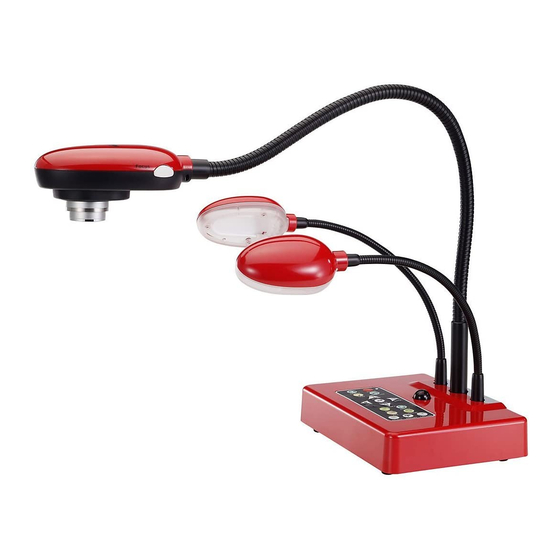

DC265
Visual Presenter

User Manual

[Important]
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
http://www.lumens.com.tw/goto.htm
English - 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC265 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumens DC265

  • Page 1: User Manual

    DC265 Visual Presenter User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English - 0...
  • Page 2: Table Of Contents

    Copyright Information..................4 Chapter 1 Precautions..................5 Chapter 2 Package Content ................8 Chapter 3 Product Overview................9 Relative position of the presenter and DC265 ........10 Recommend distance................ 10 Incorrect use..................11 Chapter 4 Installation and Connections ............. 12 System diagram ................
  • Page 3: English

    7.20.1 I would like to insert a photo in MS-Paint .......... 36 7.20.2 I would like to insert a photo in MS-Word.......... 36 7.20.3 I would like to change the setting of DC265 then capture a photo in MS-Word ................... 37 7.20.4 I would like to set the DC265 as a webcam for Skype......
  • Page 4 Chapter 8 Connecting to Microscope............42 Chapter 9 Troubleshooting ................44 English - 3...
  • Page 5: Copyright Information

    Copyright Information © Copyrights Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
  • Page 6: Chapter 1 Precautions

    Chapter 1 Precautions Always follow these safety instructions when setting up and using the visual presenter: Do not place visual presenter in tilted position. Do not place the visual presenter on an unstable trolley, stand or table. Do not use the visual presenter near water or source of heat. Use attachments only as recommended.
  • Page 7: Safety Precautions

    Unplug the visual presenter from the wall outlet and refer serving to licensed service personnel when the following situations happen: If the power cable or plug becomes damaged or frayed. If liquid is spilled into it or the visual presenter has been exposed to rain or water.
  • Page 8 Note: This equipment has been tested and found to comply with the limits for a Class A or B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
  • Page 9: Chapter 2 Package Content

    Chapter 2 Package Content DC265 Quick Start Guide User Manual (For download of other language versions, please visit Lumens website) Base Installation Guide & Remote control Remote Control Holder Download Card Extender Adapter VGA Cable USB Cable C-Video Cable Power Cord...
  • Page 10: Chapter 3 Product Overview

    Chapter 3 Product Overview 8. Gooseneck 7. AF button 4. LED indicator 1. Lamp 3. Control panel 2. Remote sensor 9. Built-in Microphone 5. Lens 6. DIP switch (Bottom) English - 9...
  • Page 11: Relative Position Of The Presenter And Dc265

    3.1 Relative position of the presenter and DC265 DC265 Presenter Document 3.2 Recommend distance * About 470 mm distance between camera and the desktop is recommended. English - 10...
  • Page 12: Incorrect Use

    3.3 Incorrect use English - 11...
  • Page 13: Chapter 4 Installation And Connections

    Chapter 4 Installation and Connections 4.1 System diagram Projector Monitor Monitor Speaker (or an amplifier before connecting to the speaker) LCD TV SD Card Television English - 12...
  • Page 14: Mounting The Dc265 At Desktop

    <Note> Appearance of power cord may vary with countries/regions. 4.3.2 Step 2: Connecting with components Connecting to a projector Connect the VGA OUT on the DC265 to the VGA IN on the projector using the VGA cable. Connecting to a monitor Use VGA cable to connect VGA PASSTHROUGH connector on DC265 to the VGA IN connector on a monitor.
  • Page 15: Connecting To A Tv

    Show] are not available on control panel and the remote control. <Note> VGA output is not supported once C-Video output is enabled. 3. DIP Switch setting will not be available until restarting the DC265 Connecting to a LCD TV/ PDP...
  • Page 16: Connecting To A Computer

    Connecting to a computer Use VGA cable to connect VGA IN connector on DC265 to the VGA OUT connector on the computer Using the USB Cable Connect to USB port then install the supplied queue program. Please refer to the DC265 User Manual.
  • Page 17: Start Using The Dc265

    When using the remote control, aim at the receptor on the DC265, and press the power button. Once DC265 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not <Note>...
  • Page 18: Installing Driver And Application Queue

    4.6 Installing driver and application queue After installing the USB driver and application queue, you can use the following functions via the software: Control the DC265. Capture and record images. Annotate the image, highlight important details and save it. 4.6.1 System requirements...
  • Page 19: Chapter 5 Dip Switch Settings

    Chapter 5 DIP Switch Settings <Note> You have to reset the unit for setting to take affect. 5.1 Connecting to a projector or monitor 5.1.1 SXGA 60Hz output (default values): 5.1.2 XGA 60 Hz output 5.1.3 Special mode 5.1.4 HDTV 720P 60Hz output English - 18...
  • Page 20: Connecting To A Tv

    5.2 Connecting to a TV 5.2.1 NTSC: America, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea and Mexico 5.2.2 PAL: Countries/regions not listed above. <Remark> VGA output is not supported once C-Video output has been enabled. English - 19...
  • Page 21: Chapter 6 Control Panel/Remote Control And Setting Menu

    Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <NOTE>: OSD is not available at C-Video mode. [Menu] / [Rotate] / [PAN] / [Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show] functions are not available on the machine panel and the remote control.
  • Page 22 images to SD card, press [Record] again to stop Control panel recording. Rotate Rotate the image by 0°/90°/180°/270°. Remote control / Control panel Slide Show Show the photos or videos stored in the SD card Remote control (priority) or internal memory in slide mode. Source Switch between different sources of signals: Remote control /...
  • Page 23: Setting Menu

    6.2 Setting Menu <Remark> Press [Menu] on the remote control or control panel to enter the setting menu; The bold underlined values in the following table are the defaults. Level Level Level Major Adjustment Descriptions Minor Items Items values Use the left and right arrow Focus 0~Max keys to adjust focal length on...
  • Page 24 Shutter Use the left and right arrow Right Slide Show keys to select the image Effect Down switch mode. Side Open 1. 1 Sec Use the left and right arrow 2. 3 Sec keys to select the delay time. Delay 3.
  • Page 25 USB transfer mode. 1. Camera 1.Camera: connecting the USB Transfer 2. Storage device DC265 to view live image; 2.Storage device: connecting to the SD card (priority) or internal memory. Regardless of outside environment, the machine will...
  • Page 26 2. SXGA modes are provided. Refer to 3. UXGA Output Mode Chapter 5 DIP “Switch 4. 720P Settings” in the DC265 user 5. 1080P manual. Use the left and right arrow keys to turn the lock down Lock Down On/Off function on and off.
  • Page 27 Save the value of the current image mode. Preset Save Yes/No Use the left and right arrow keys to select, and then press [Enter] to confirm. Use the left and right arrow keys to select, and then immediately press [Enter] to Factory Reset Yes/No activate the factory reset.
  • Page 28: Chapter 7 Descriptions Of Major Functions

    Chapter 7 Descriptions of major functions 7.1 I would like to switch image sources Live image is the default of image source. Press [Source] on the remote control or control panel to change: 1. Live images (default) 2. SD card (priority) or internal memory 3.
  • Page 29: I Would Like To Adjust The Brightness

    7.5 I would like to adjust the brightness Remote control: 1. Press [BRT +] to make it brighter. 2. Press [BRT -] to make it darker. Control panel: 1. Press [MENU] to enter the setting menu. 2. Press [ ] or [ ] to select [Display]. 3.
  • Page 30: I Would Like To View Captured Images

    3. Press [ ] to find [Capture]. 4. Press [ ] or [ ] to select [continuous]. 5. Press [ ] to find [Capture Time]. Press [ ] or [ ] to select time settings. 6. Press [ ] to find [Capture Interval]. Press [ ] or [ ] to select time settings.
  • Page 31: I Would Like To Automatically Delete The Captured Images Whenever It Is Turned Off (Auto Erase)

    7.11 I would like to automatically delete the captured images whenever it is turned off (Auto Erase) 1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [ ] or [ ] to access the [Advance] menu. 3.
  • Page 32: I Would Like To Switch A Part Of The Live Image (Pan)

    7.13 I would like to switch a part of the live image (PAN) 1. Press [PAN] on the remote control or control panel to switch the live image to the upper-left / lower-left / upper-right / lower-right / full screen. <Notes>...
  • Page 33: I Would Like To Compare Images (Compare Live Images With Captured Images) (Pbp, Picture By Picture)

    3. Press [ ] to find [Slide Show] 4. Press [Enter] to play. 5. To stop playing, repeat steps 1 to 4. 7.15 I would like to compare images (Compare live images with captured images) (PBP, Picture by Picture) This function will compare and contrast a live image with a captured image. Captured Image Live Image...
  • Page 34: I Would Like To Resume The Factory Default Setting (Factory Reset)

    9. Press [Source] to exit. 7.16 I would like to resume the factory default setting (Factory Reset) 1. Press[Menu]on the remote control or control panel to enter the setting menu 2. Press [ ] or [ ] to access the [Advance] menu. 3.
  • Page 35: I Would Like To Set / Change The Password (Lock Down)

    7.18 I would like to set / change the password (Lock Down) 7.18.1 Setting the password 1. Press [Menu] on the control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Advance] menu. 3. Press [ ] to [Lock Down]. 4.
  • Page 36: Using A Sd Card

    7.19.2 Inserting a SD card 7.19.2.1 The screen will display [Copy to SD card] and ask if you would like to copy the files saved in the DC265 to a SD card. Press [ ] or [ ] on the control panel to select.
  • Page 37: Computer-Related Functions

    7.20 Computer-related functions Ensure that the USB cable is connected and the drivers are installed before using the computer-related functions. Refer to DC265 User Manual Chapter 4 Installation and Connections 4.3 Connecting Devices and 4.6 Installing Driver and Application queue.
  • Page 38: I Would Like To Change The Setting Of Dc265 Then Capture A Photo In Ms-Word

    2. Select [Visual Presenter V2] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. 7.20.3 I would like to change the setting of DC265 then capture a photo in MS-Word 1. Click Insert > Image > From Scanner or Camera in MS-Word.
  • Page 39 2. Select [Visual Presenter V2 TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed. 4. Press [Setting] to control the DC265 via the Camera Settings interface. The operating procedure is the same with the remote control and control panel of the DC265.
  • Page 40: I Would Like To Set The Dc265 As A Webcam For Skype

    7.20.4 I would like to set the DC265 as a for Skype The DC265 can be used as a webcam for teleconferencing software such as Skype and MSN. The following instructions use Skype as an example. 1. Open Skype and enter Tools > Options….
  • Page 41: I Would Like To Set The Dc265 As A Pc Camera

    7.20.5 I would like to set the DC265 as a PC Camera 1. Press [Menu] on the control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Setting] menu. 3. Press [ ] to find [USB Transfer].
  • Page 42: I Would Like To Set The Dc265 As A Removable Disc

    7.20.6 I would like to set the DC265 as a Removable Disc 1. Press [Menu] on the control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Setting] menu. 3. Press [ ] to find [USB Transfer].
  • Page 43: Chapter 8 Connecting To Microscope

    <Note> Please choose an appropriate microscope adapter. Microscope adapter accessories are applicable to eyepieces of Ø28mm, Ø31mm, Ø33mm, and Ø34mm. 2. The lens of DC265 connects with the microscope adaptor. If the eyepiece is Ø33mm or If the eyepiece is Ø28mm or Ø31mm, Ø34mm, only one Lumens...
  • Page 44 auto focus. 5. Digital Zoom 5.1. Press [MENU] to enter the setting menu. 5.2. Press [ ] or [ ] to the [Setting]. 5.3. Press [ ] to select [Digital Zoom]. 5.4. Press [ ] or [ ] to select [On]. 5.5.
  • Page 45: Chapter 9 Troubleshooting

    Chapter 9 Troubleshooting This chapter describes problems you may encounter while using DC265. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
