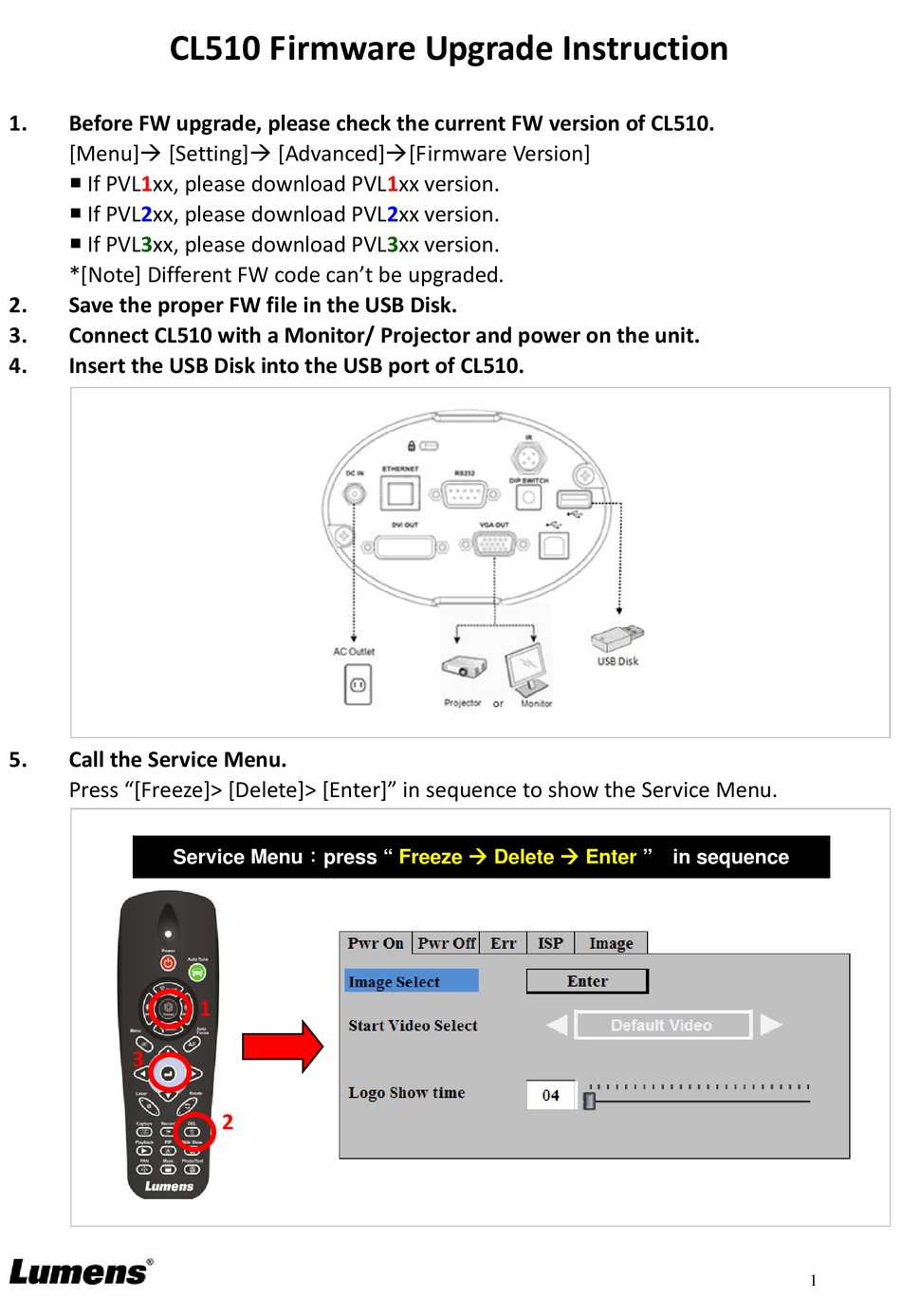

CL510 Firmware Upgrade Instruction
1.
Before FW upgrade, please check the current FW version of CL510.
[Menu] [Setting] [Advanced][Firmware Version]
If PVL1xx, please download PVL1xx version.
If PVL2xx, please download PVL2xx version.
If PVL3xx, please download PVL3xx version.
*[Note] Different FW code can't be upgraded.
2.
Save the proper FW file in the USB Disk.
3.
Connect CL510 with a Monitor/ Projector and power on the unit.
4.
Insert the USB Disk into the USB port of CL510.
5.
Call the Service Menu.
Press "[Freeze]> [Delete]> [Enter]" in sequence to show the Service Menu.
Service Menu：press "
3
1
2
Freeze Delete Enter
" in sequence
1
Advertisement
Table of Contents
Related Manuals for Lumens CL510
Summary of Contents for Lumens CL510
- Page 1 CL510 Firmware Upgrade Instruction Before FW upgrade, please check the current FW version of CL510. [Menu] [Setting] [Advanced][Firmware Version] If PVL1xx, please download PVL1xx version. If PVL2xx, please download PVL2xx version. If PVL3xx, please download PVL3xx version.
- Page 2 Go to [ISP] page, select [Firmware Upgrade], and press [Enter]. Check the FW version and press [Yes] to start upgrade. Current version: current FW version of CL510 New version: the latest FW version in USB disk. *[Note] if two more firmware files co-exist in the USB disk, the unit will always detect the latest version automatically.
