- Page 1 DC260 Visual Presenter User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English - 0...
-
Page 2: Table Of Contents
Contents Copyright Information..................3 Chapter 1 Precautions..................4 Safety Precautions ..................5 FCC Warning....................5 EN55022 (CE Radiation) Warning ............... 6 Chapter 2 Package Content ................7 Chapter 3 Product Overview................8 Relative position of the presenter and DC260 ........9 Recommend distance................ - Page 3 I would like to use the auto focus ............29 I would like to adjust the brightness ..........29 I would like to turn on/ off the lamp............ 29 I would like to automatically adjust the image to have best brightness and focusing performance..............
-
Page 4: Copyright Information
Copyright Information © Copyrights Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the visual presenter: Do not place visual presenter in tilted position. Do not place the visual presenter on an unstable trolley, stand or table. Do not use the visual presenter near water or source of heat. Use attachments only as recommended. -
Page 6: Safety Precautions
Unplug the visual presenter from the wall outlet and refer serving to licensed service personnel when the following situations happen: If the power cable or plug becomes damaged or frayed. If liquid is spilled into it or the visual presenter has been exposed to rain or water. -
Page 7: En55022 (Ce Radiation) Warning
OPERATE THE EQUIPMENT. Note: This equipment has been tested and found to comply with the limits for a Class A or B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. -
Page 8: Chapter 2 Package Content
Chapter 2 Package Content DC260 Quick Start Guide User Manual Base Installation Remote Control Power Cord Guide Appearance may vary with country/region. Software Bag VGA Cable USB Cable C-Video Cable Remote Control Microscope Adaptor Holder Padded Carry Bag RS232 Adaptor (Optional) (Optional) English - 7... -
Page 9: Chapter 3 Product Overview

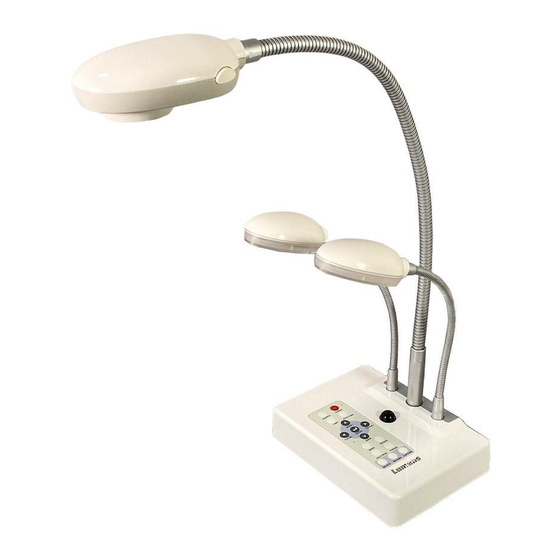

Chapter 3 Product Overview 8. Gooseneck 7. AF button 4. LED indicator 1. Lamp 3. Control panel 2. Remote sensor 9. Built-in icrophone 5. Lens 6. DIP switch (Bottom) English - 8... -
Page 10: Relative Position Of The Presenter And Dc260
3.1 Relative position of the presenter and DC260 DC260 Presenter Document 3.2 Recommend distance About 470mm distance between camera and the desktop is recommended. English - 9... -
Page 11: Incorrect Use
3.3 Incorrect use English - 10... -
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Television Monitor Projector Microphone LCD TV SD Card Speaker (or an amplifier before connecting to the speaker) English - 11... -
Page 13: Mounting The Dc260 At Desktop
4.2 Mounting the DC260 at desktop 1. Please set up the DIP Switch settings first. Refer to Chapter 5 “DIP Switch Settings” in the DC260 user manual. 2. Please refer to the Base Installation Guide for installation instructions for all parts. - Page 14 2. Adjust DIP Switch Setting NTSC: America, Taiwan, Panama, Philippine, Canada, Chile, Japan, Korea and Mexico PAL: Country/region not listed above: <Note> You are unable to use the [Menu] / [Rotate] / [Half Page] / [Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show] functions in C-Video mode.
- Page 15 OUT connector on the computer Connecting to a computer through USB Ladibug™ Please Connect to USB port. Then install the supplied program. refer to DC260 User Manual 4.6 Installing application software. Connecting to a computer through RS232 (RS232 Adapter is optional) English - 14...
- Page 16 Connecting to speaker Speaker <Remark>: Or connect to an additional amplifier before connecting to the speaker Connecting to microphone Microphone English - 15...
-
Page 17: Start Using The Dc260
4.4 Start using the DC260 Control Panel Remote Control When using the remote control, aim at the receptor on the DC260, and press the power button. Once DC260 is turned on, the LED on the control panel will flash a few times and stay lit. -
Page 18: Installing Application Software
4.6 Installing application software After installing the USB driver and application software, you can use the following functions: Control the DC260. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. <Note>: Please refer to Ladibug™ software user manual for installation steps and software operation. -
Page 19: Chapter 5 Dip Switch Settings
Chapter 5 DIP Switch Settings <Note> You have to reset the unit for setting to take affect. 5.1 Connecting to a projector or monitor 5.1.1 XGA 60Hz output (default values): 5.1.2 SXGA 60 Hz output 5.1.3 HDTV 720P 50Hz output 5.1.4 HDTV 720P 60Hz output English - 18... -
Page 20: Connecting To A Tv
5.2 Connecting to a TV 5.2.1 NTSC: America, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea and Mexico 5.2.2 PAL: Countries/regions not listed above. <Remark> VGA output is not supported once C-Video output has been enabled. English - 19... -
Page 21: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <Note> You are unable to use the [Menu] / [Rotate] / [Half Page] / [Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show] functions in C-Video mode. - Page 22 Photo/ Text Select photo, text or grayscale image mode. Remote control Refer to DC260 User Manual Chapter 7 Descriptions of major functions 7.2 I would like to make text clearer and photos more colorful Record Record motion images. Press [Record] to record Remote control / images to SD card (priority) or internal memory;...
-
Page 23: Setting Menu
Film/Microscope mode. Use the left and right arrow keys to select the image mode. Refer to DC260 User Manual Photo/Text Photo/Text/Gray Chapter 7 Descriptions of major functions 7.2 I would like to make text clearer and photos more colorful... - Page 24 Press [Enter] to play the photos or videos stored in the SD card (priority) or internal memory. Refer to DC260 Storage Slide Show Enter User Manual Chapter 7 Descriptions of major functions 7.14 I would like to play the slides 1.
- Page 25 DC260 to view live image; 1. Camera 2.Storage device: connecting USB Transfer 2. Storage to the SD card (priority) or device internal memory. Refer to DC260 User Manual Chapter 7 Descriptions of major functions 7.20 Computer-related functions English - 24...
- Page 26 Use the left and right arrow keys to turn on/off the noise reduction function. Refer to Noise On/Off DC260 User Manual Chapter Reduction 7 Descriptions of major functions 7.17 I would like to reduce the image noise Use the left and right arrow...
- Page 27 1. English English 2. 繁体中文 Traditional Chinese 3. Deutsch German 4. Français French 5. Italiano Italian 6. Español Spanish Advance Language 7. Русский Russian 8. Nederlands Dutch 9. Suomi Finnish 10. Polski Polish Use the left and right arrow keys in the language option to select the preferred language.
- Page 28 Auto Erase On/Off Refer to DC260 User Manual Chapter 7 Descriptions of major functions 7.11 I would like to automatically delete the captured images whenever it is turned off Read the value of the current image mode.
-
Page 29: Chapter 7 Descriptions Of Major Functions
Chapter 7 Descriptions of major functions 7.1 I would like to switch image sources Live image is the default of image source. Press [Source] on the remote control or control panel to change: 1. Live images (default) 2. SD card (priority) or internal memory 3. -
Page 30: I Would Like To Use The Auto Focus
7.4 I would like to use the auto focus 1. Press [AF] on the remote control. 2. Press the AF button on the camera head of main unit. 7.5 I would like to adjust the brightness Remote control: 1. Press [BRT +] to make it brighter. 2. -
Page 31: I Would Like To View Captured Images
7.8.2 Setting continuous capture 1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Setting] menu. 3. Press [ ] to find [Capture]. 4. Press [ ] or [ ] to select [continuous]. 5. -
Page 32: I Would Like To Automatically Delete The Captured Images Whenever It Is Turned Off (Auto Erase)
7.11 I would like to automatically delete the captured images whenever it is turned off (Auto Erase) 1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [ ] or [ ] to access the [Advance] menu. 3. -
Page 33: I Would Like To Switch The View Between The Upper And Lower Half Of The Image (Half Page)
4. Press [ ] or [ ] to turn to the previous/next video. 5. Press [Source] to exit. [Note] Only the MOV files recorded can be played and live sound output is not available; additional amplifier can be connected to the PHONE port. -
Page 34: I Would Like To Compare Images (Compare Live Images With Captured Images) (Pbp, Picture By Picture)
7.14.3 Activating/Stopping the slide show <Notes>Images over 8 MB, cannot be played. Whilst playing, the [Rotate] function can be activated to rotate the images. Remote control: 1. Press [Slide Show] to start playing. 2. Press [Slide Show] again to stop playing. Control panel: 1. -
Page 35: I Would Like To Resume The Factory Default Setting (Factory Reset)
Control panel: 1. Press [Menu] to enter the setting menu. 2. Press [ ] or [ ] to access the [Display] menu. 3. Press [ ]to find[PBP] 4. Press [Enter] to enter the PBP (Picture by Picture) photo selection screen. 5. -
Page 36: I Would Like To Set / Change The Password (Lock Down)
1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Setting]. 3. Press [ ] to find [Noise Reduction]. 4. Press [ ] or [ ] to select [On]. 7.18 I would like to set / change the password (Lock Down) 7.18.1 Setting the password 1. -
Page 37: Using A Sd Card
4. Press [ ] or [ ] to select [Off] and deactivate the password setting function. 5. Press [ ] or [ ] to select [On] and reactivate the password setting function. Refer to Steps 5-8 in DC260 User Manual Chapter 7 Descriptions of major functions 7.18.1 Setting the password for operational steps. -
Page 38: Computer-Related Functions
SD card. 7.20 Computer-related functions Ensure that the USB cable is connected and the drivers are installed before using the computer-related functions. Refer to DC260 User Manual Chapter 4 Installation and Connections 4.3 Connecting Devices and 4.6 Installing application software. - Page 39 I would like to insert a photo in MS-Word 7.20.2 1. Click Insert > Image > From Scanner or Camera in MS-Word. 2. Select [Visual Presenter V2] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. English - 38...
- Page 40 7.20.3 I would like to change the setting of DC260 then capture a photo in MS-Word 1. Click Insert > Image > From Scanner or Camera in MS-Word. 2. Select [Visual Presenter V2 TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed. English - 39...
- Page 41 4. Press [Setting] to control the DC260 via the Camera Settings interface. The operating procedure is the same with the remote control and control panel of the DC260. Refer to DC260 User Manual Chapter 6 Control Panel / Remote Control and Setting Menu.
- Page 42 3. Start calling your contact. When both sides are connected, Skype will display the video screen. 7.20.5 I would like to set the DC260 as a PC Camera 1. Press [Menu] on the control panel to enter the setting menu. 2.
- Page 43 7.20.6 I would like to set the DC260 as a Removable Disc 1. Press [Menu] on the control panel to enter the setting menu. 2. Press [ ] or [ ] to the [Setting] menu. 3. Press [ ] to find [USB Transfer]. 4.
- Page 44 7.20.7 I would like to connect Interactive Whiteboard 1. System diagram USB Cable USB Cable Interactive Whiteboard Visual Presenter 2. Using StarBoard 2.1 Install LuLulizer and execute “LuLulizer.exe” <Note> Please download LuLulizer from the website (www.lumens.com.tw/goto.htm) 2.2 Press [StarBoard] / [LULU] English - 43...
- Page 45 2.3 Display the live image. 2.4 Press [StarBoard] / [Mode] / [TWAIN] Please refer to the operations of 7.20.2 I would like to insert a photo in MS-Word and 7.20.3 I would like to change the setting of DC260 then capture a photo in MS-Word 3.
-
Page 46: Chapter 8 Connecting To Microscope
Chapter 8 Connecting to Microscope 1. Mount the microscope adaptor onto the microscope. 2. The lens of DC260 connects with the microscope adaptor. 3. Select the[Microscope]Mode 3.1. Press [M Scope]on the remote control (suggestion). 3.2. Control panel 3.2.1. Press [MENU] to enter the setting menu. 3.2.2. - Page 47 2. Press [ ] or [ ] to select [Display]. 3. Press [ ] to select [Mode]. 4. Press [ ] or [ ] to select [Normal]. English - 46...
-
Page 48: Chapter 9 Troubleshooting
4. Check the settings for the source of the projector. For the appropriate input selection of the projector, refer to the projectors user manual 5. Check if DIP Switch is properly set. Refer to DC260 User Manual Chapter 5 DIP Switch Settings for related settings. Unable to focus Probably the document is too close.
