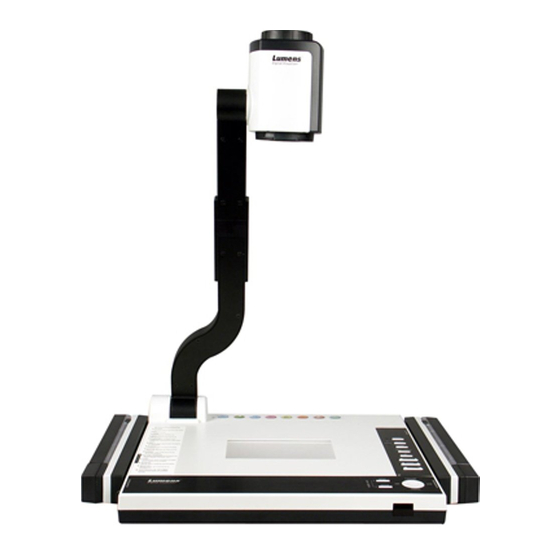

Summary of Contents for Lumens PS660
- Page 1 PS660 Visual Presenter User Manual [Important] To download the updated quick start guide, multilingual manuals, software, and drivers, please visit Lumens website at http://www.lumens.com.tw/goto.htm English - 0...
-
Page 2: Table Of Contents
System Diagram ................. 8 Connecting to a Projector or Monitor..........9 Connecting to a Computer and Use Lumens Software ...... 9 Connecting to an Interactive Whiteboard (IWB) ....... 10 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time 10 Connecting to a TV ................ - Page 3 I would like to make text clearer and photos more colorful ....23 I would like to zoom in /out of images ..........24 I would like to use the auto focus ............. 24 I would like to adjust the brightness ..........24 I would like to turn on / off the lamp ..........
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the visual presenter: Do not place visual presenter in tilted position. Do not place the visual presenter on an unstable trolley, stand or table. Do not use the visual presenter near water or source of heat. Use attachments only as recommended. - Page 6 Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This visual presenter has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet.
-
Page 7: Chapter 2 Package Content
Chapter 2 Package Content PS660 Quick Start Guide Extender Adapter Download Card Remote Control C-Video Cable VGA Cable USB Cable Audio cable Padded Carry Bag Power Cord Microscope Adapter (Optional) Appearance may vary with country/region Backlight (Optional) English - 6... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview Lens Camera arm Auxiliary floodlight and Backlight lamp arm Remote control slot DIP Switch Settings SD card slot Lampstand latch Control Panel 10. Function keys instructions 11. Remote sensor 12. Input/output port English - 7... -
Page 9: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram Speaker (Or connect to an additional Monitor amplifier before connecting to the speaker) Projector or monitor Television LCD TV English - 8... -
Page 10: Connecting To A Projector Or Monitor
Connecting to a Projector or Monitor VGA Cable Power Cord Projector or monitor Power Outlet 4.3 Connecting to a Computer and Use Lumens Software USB Cable Projector Power Cord VGA Cable Power Outlet Computer English - 9... -
Page 11: Connecting To An Interactive Whiteboard (Iwb)
Power Cord VGA Cable USB Cable Power Outlet Computer Drivers and software can be downloaded from the Lumens website. 4.5 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time Power Cord VGA Cable VGA Cable... -
Page 12: Connecting To A Tv
4.6 Connecting to a TV DIP Switch Extender Adapter Power Cord C-Video Cable Power Outlet NTSC: U.S.A., Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico. PAL: Countries/regions not listed above. You must re-start for DIP switching configuration to take effective. <Note>: It doesn’t support C-Video and VGA simultaneously. -
Page 13: Connecting To A Computer With Rs232
4.8 Connecting to a Computer with RS232 Extender Adapter RS232 Cable Power Cord Power Outlet Computer 4.9 Connecting to Audio Input and Output Power Cord Audio Cable Audio Cable Power Outlet Speaker Computer (1) Computer (2) <Remark>: Or connect to an additional amplifier before connecting to the speaker. -
Page 14: Installing Application Software
4.10 After installing the USB driver and application software, you can use the following functions: Control the PS660. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. -
Page 15: Chapter 5 Start Using
When using the remote control, aim at the receptor on the PS660, and press the power button. Once PS660 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not on. -
Page 16: Chapter 6 Dip Switch Settings
Chapter 6 DIP Switch Settings <Note>: You must re-start PS660 for DIP switching configuration to take effective. 6.1 Connecting to a projector or monitor 6.1.1 SXGA 60Hz output (default values): 6.1.2 XGA 60Hz output 6.1.3 Special mode 6.1.4 HDTV 720P 60Hz output... -
Page 17: Connecting To A Tv
6.2 Connecting to a TV 6.2.1 NTSC: America, Taiwan, Panama, Philippines, Canada, Chile, Japan, and Mexico. 6.2.2 PAL: Countries/regions not listed above. <Remark> It doesn’t support C-VIDEO and VGA simultaneously. Once C-VIDEO is on, VGA is not supported. English - 16... -
Page 18: Chapter 7 Control Panel/Remote Control And Setting Menu
Chapter 7 Control Panel/Remote Control and Setting Menu 7.1 Functions of control panel and remote control <Note>: OSD is not available at C-Video mode. [MENU] / [ROTATE] / [PAN] / [SOURCE] / [RECORD] / [CAPTURE] / [DELETE] / [VGA] / [SLIDE SHOW] functions are not available on the machine panel and the remote control. - Page 19 RECORD Press [Record] to record images to SD card, press Remote control / [Record] again to stop recording. Control panel ROTATE Rotate the image by 0°/90°/180°/270° Remote control / Control panel SLIDE Show the photos or videos stored in the SD card Remote control SHOW (priority) or internal memory in slide mode.
-
Page 20: Setting Menu
7.2 Setting Menu <Remark> Press [MENU] on the remote control or control panel to enter the setting menu; The bold underlined values in the following table are the defaults. Level Level Level Adjustment Function Descriptions Major Items Minor Items values Adjust the image to the optimal Auto Tune Enter... - Page 21 Use the left and right arrow keys to select the USB transfer mode. 1. Camera: connecting the 1. Camera Setting USB Transfer PS660 to view live image. 2. Storage device 2. Storage device: connecting to the SD card (priority) or internal memory. Regardless of outside...
- Page 22 1. Use the left and right arrow keys to select the “VGA Passthrough” to display the image. 2. VGA IN: Press [VGA] button to VGA IN / VGA select either VGA IN(1) or VGA Passthrough IN(2) for the monitor image output.
- Page 23 Save the value of the current image mode. Use the left and Preset Save Yes/No right arrow keys to select, and then press [ENTER] to confirm. Use the left and right arrow keys to select, and then immediately Factory Reset Yes/No press [ENTER]to activate the factory reset.
-
Page 24: Chapter 8 Descriptions Of Major Functions
I would like to switch image sources The default of image source is Live Image. Press [SOURCE] on the remote control or the control panel to switch settings and PS660 will switch among the following three modes in turn: 1. Live images (default). -
Page 25: I Would Like To Zoom In /Out Of Images
I would like to zoom in /out of images 1. Press [ZOOM +] on the remote control or control panel to zoom in. 2. Press [ZOOM -] on the remote control or control panel to zoom out. I would like to use the auto focus 1. -
Page 26: I Would Like To Capture Images
I would like to capture images 8.9.1 Setting the quality of captured images 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Storage] menu. 3. Press [] to find [Image Quality]. 4. -
Page 27: I Would Like To Delete Captured Images
I would like to delete captured images 8.11 1. Press [SOURCE] on the control panel. 2. Press [] or [] or [] or [] to select the thumbnail you want you delete. 3. Pressing [DELETE] will open a [Delete File] window. 4. -
Page 28: I Would Like To Switch A Part Of The Live Image (Pan)
8.13.3. Playing image 1. Press [SOURCE] on the remote control or control panel to display thumbnails of all video recorded. 2. Press [] or [] or [] or [] to select the thumbnail you want you view. 3. Press [ENTER] for full-screen play. 4. -
Page 29: I Would Like To Compare Images (Compare Live Images With Captured Images) (Pbp, Picture By Picture)
5. Press [MENU] to exit. 8.15.3 Activating/Stopping the slide show <Note> Images over 8 MB, cannot be played. Whilst playing, the [Rotate] function can be activated to rotate the images. Remote control: 1. Press [SLIDE SHOW] to start playing. 2. Press [SLIDE SHOW] again to stop playing. Control panel 1. -
Page 30: I Would Like To Resume The Factory Default Setting (Factory Reset)
6. Press [ENTER] to activate the image comparison. 7. Press [] or [] to move the images (captured images only) leftward/rightward. 8. Press [MENU] to return to image thumbnails. 9. Press [SOURCE] to exit. I would like to resume the factory default setting 8.17 (Factory Reset) 1. -
Page 31: I Would Like To Set / Change The Password (Lock Down)
I would like to set / change the password (Lock 8.19 Down) 8.19.1 Setting the password 1. Press [MENU] on the control panel to enter the setting menu. 2. Press [] or [] to the [Advanced] menu. 3. Press [] to [Lock Down]. 4. -
Page 32: Using A Sd Card
8.20.2.1 The screen will display [Copy to SD card] and ask if you would like to copy the files saved in the PS660 to a SD card. Press [] or [] on the control panel to select. Copy to SD Card 8.20.2.2 The screen will display as follow, once you insert an... -
Page 33: I Would Like To Adjust The Volume
Refer to PS660 User Manual Chapter 4 Installation and Connections 4.3 Connecting to a Computer and Use Lumens Software and 4.10 Installing application software 8.23.1 I would like to insert a photo in MS-Paint 1. Click [File/From Scanner or Camera] in MS-Paint shown as the bottom left figure. - Page 34 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. 8.23.2 I would like to insert a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote.
- Page 35 8.23.3 I would like to change the setting of PS660 then capture a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote. 1. Click [Insert / Image / From Scanner or Camera] in MS-Word.
- Page 36 5. Press [Capture] to capture images in MS-Word. 6. Press [Cancel] to exit. 8.23.4 I would like to set the PS660 as a webcam for Skype The PS660 can be used as a webcam for teleconferencing software such as Skype and MSN. The following instructions use Skype as an example: 1.
- Page 37 8.23.5 I would like to set the PS660 as a PC Camera 1. Press [MENU] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Setting] menu. 3. Press [] to find [USB Transfer].
- Page 38 4. Press [] or [] to select [Camera]. 5. Press [MENU] to exit. 8.23.7 I would like to connect Interactive Whiteboard To connect an Interactive Whiteboard, please go to the SD card or Lumens website (http://www.lumens.com.tw/goto.htm) to download user manual for a specific brand. English - 37...
-
Page 39: Chapter 9 Connecting To Microscope
Ø 28mm, Ø 31mm, Ø 33mm, and Ø 34mm. 2 The lens of PS660 connects with the microscope adaptor. If the eyepiece is Ø 28mm or Ø 31mm, If the eyepiece is Ø 33mm or you need two microscope adapters. - Page 40 5.3. Press [] to select [Digital Zoom]. 5.4. Press [] or [] to select [On]. 5.5. Press [Zoom +] / [Zoom - ] <Note> Please reset to normal mode after using the microscope, otherwise, you are unable to use zoom in/out function. 1.
-
Page 41: Chapter 10 Packing The Machine
Chapter 10 Packing the Machine Insert the remote control into the left slot of the machine. Rotate and position the lamp arms on both sides. Pull down the lamp arm back to the latches. Bend the lamp arm inwards and adjust the lens to be parallel to the platform Finally, fold the machine as in the following figure. -
Page 42: Chapter 11 Troubleshooting
Chapter 11 Troubleshooting This chapter describes problems you may encounter while using PS660. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
