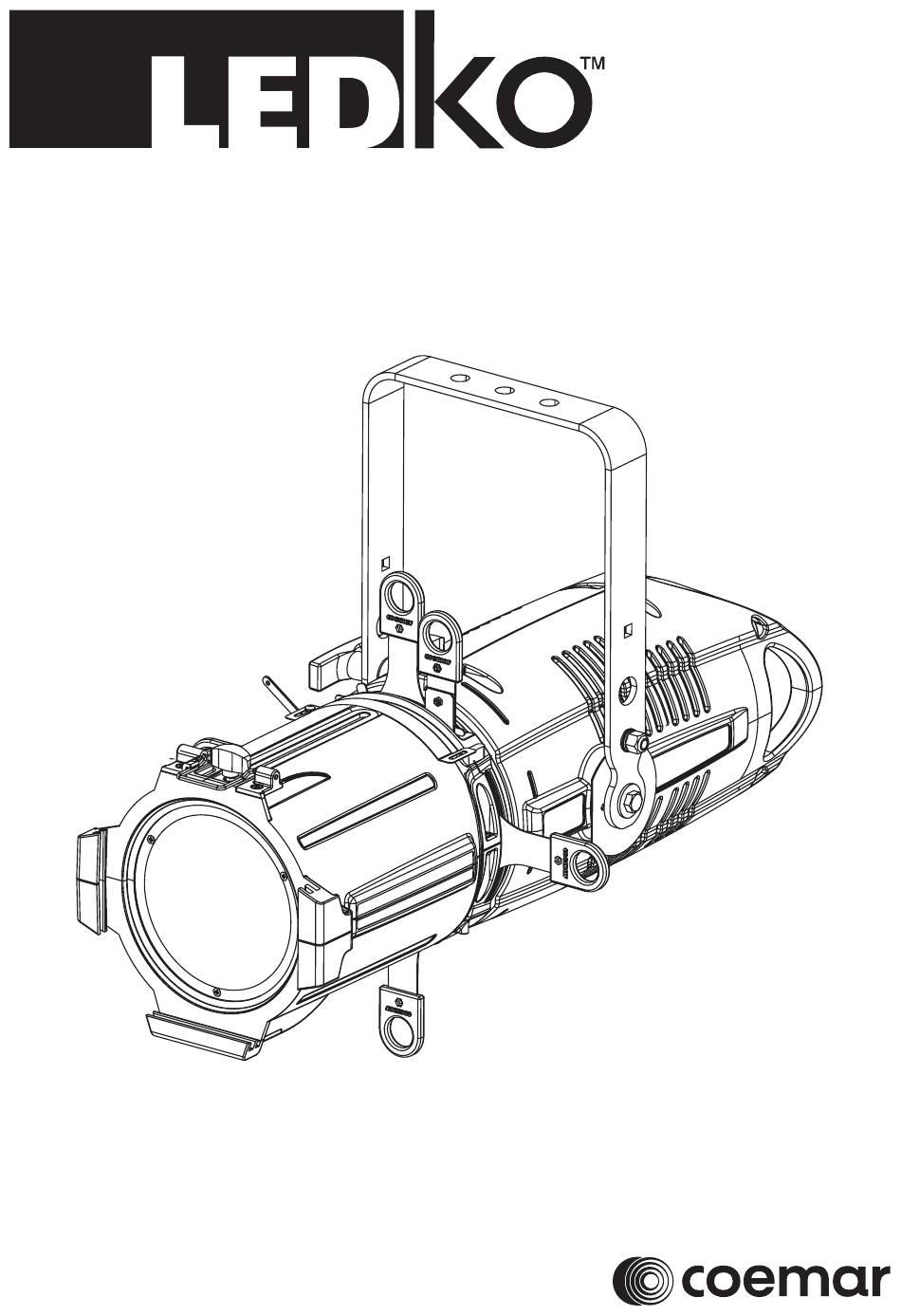

- Page 1 DIM T/D USER MANUAL vrs. 2.4 - 10.05.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation....................Pag. 5 1.1. Packaging ........................Pag. 5 1.2. Transportation.......................Pag. 5 2. General information......................Pag. 5 2.1 Safety informations......................Pag. 5 2.2 Warranty conditions......................Pag. 6 2.3 EC Norms ........................Pag. 6 3. Product specifications ..................... Pag. 7 3.1 Technical characteristics....................Pag. 7 3.2 Dimensions........................Pag. - Page 4 10. Display panel functions ....................Pag. 20 10.1 Quick guide to menu ....................Pag. 20 10.2 Rapid count ....................... Pag. 20 10.3 Main functions menu....................Pag. 21 10.4 Measures menu (MEAS) ..................Pag. 23 10.5 Special functions of the fixture ................Pag. 25 10.6 Error messages ......................
-
Page 5: Packaging And Transportation
Congratulations on having purchased a Coemar product. You have assured yourself of a fix- ture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 6: Warranty Conditions
3. The level of technology of LEDko T/D DIM requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Castiglione delle Stiviere (MN) - Italy - Via Carpenedolo, 90 Date: 15.11.2019 Tel. 0376/1514412 - Fax. 0376/1514380 - www.coemar.com This drawing cannot be copied, reproduced, shown to third parties without our permission Questo disegno non può essere copiato, riprodotto, mostrato a terzi senza nostra autorizzazione... -
Page 8: Weights And Dimensions Of The Projector With Various Optics
Weights and dimensions of the projector with various optics Optics Length Weight Lens Tube Profile 10° 900 mm (35.4 in) 9 Kg (19.8 lbs) Optics Length Weight Lens Tube Profile 14° 750 mm (35.4 in) 9 Kg (19.8 lbs) Lens Tube Profile 70° 750 mm (35.4 in) 8.68 Kg (19.14 lbs) Optics... -
Page 9: Unit's Main Components
Unit’s main components Components description A Adjustable yoke Iris (optional) C Gobo holder (optional) Lens adjusting handles Yoke locking handle Gel frame locking spring G Profile blade H Interchangeable optic... -
Page 10: Back Panel Description
Back panel description Display Potentiometer Plus button knob Menu button Minus button Enter button DMX Out PowerCon In PowerCon Out DMX In... -
Page 11: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap it- self, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 12: Mechanical Installation
The safety chain must pass through the handles of the unit and then attached to the structure. If using steel cables and chains not Coemar’s production, make sure they are suitable to support the weight of the unit according to normative UL/ETL (required: the weight of 6 complete devices for at least one hour). -
Page 13: Powering Up
Note: in case of cable replacement, similar cable with comparable thermal resistant quali- ties must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko T/D DIM is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures. -
Page 14: Control Signal Connections
Warning!! The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of LEDko T/D DIM. All cabling and connections should be carried out by a suitably qualified personnel. -
Page 15: Turning The Projector On
. Turning the projector on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. Once you had connected the pro- jector, use the potentiometer knob to regulate the luminous flux. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing. -
Page 16: Dmx Chart
DMX chart DMX modes DMX channels ↓ Master Dimmer Spare Channel Dimmer Fine Strobe Special Function... -
Page 17: Dmx Chart: 5 And 1 Channels
DMX Chart 5 channels type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit... -
Page 18: Setup Via Rdm
Setup via RDM Quick guide to menu The LEDko DIM required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. RDM lets you set the DMX addresses of all the fixtures on the link, carry out fixture configuration and retrieve fixture data including details of any error that has been logged. -
Page 19: Rdm Error Chart
RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected... -
Page 20: Display Panel Functions
Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection. -
Page 21: Main Functions Menu
10.3 Main functions menu Dimmer: HEnO Choose the type of dimmer curve: • Xeno: quick curve; diMM tUnG • Tungsten: mimics the slow dim- ming curve of tungsten lamps; • Reverse: inversion phase of the FIrE [Dimmer] Dimmer Power Unit; •... - Page 22 d.MAX: d.MAH Disables the adjusting of the leds setting them at maximum output. Reset: It permits the reset of the unit. Keeping pressed ENTER rESE MENU at the turning on of the unit It allows to access ALIG features. [Reset] Default settings: Restores all the settings to default dFSE...
-
Page 23: Measures Menu (Meas)
10.4 Measures menu (MEAS) Temperature: tEMP t.bor Shows the current temperature values: • LED: shows the LED module t.LEd [Temperature] temperature; • Board: shows the electronic board temperature. l.out l.out: shows the current output of the LED. DMX Input: Shows the value of the DMX chan- CH01 nels received by the fixture on ev- dMin... - Page 24 LED: Shows the percentage value of the M.000 LED status. [Led] LED frequency: Shows the operating frequency of the LED. Usage hours: [Led frequency] Shows the hour counter of the fix- ture: • Unit: shows the overall hours of life of the fixture; LIF.r •...
-
Page 25: Special Functions Of The Fixture
If a malfunction occurs, LEDko T/D DIM has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 26: Accessories And Spare Parts
. Accessories and spare parts LEDko T/D DIM is a very versatile fixture, optional accessories for its customization are avail- able under request: Accessory name Code Front barrel for lens tube with burnished BC10011A200 blades Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube... - Page 27 BC10011A044 max. load 20 Kg. All the components of LEDko T/D DIM are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in provid- ing for your requirements in an efficient and effective manner.
-
Page 28: Maintenance
. Maintenance 12.1 Firmware update The firmware of LEDko T/D DIM can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 12.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. -
Page 29: And Answers
. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •... - Page 30 User notes ........... . .
- Page 31 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 32 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
