INSTRUCTION BOOK FOR
Deluxe Insta-Theater

Advertisement

Table of Contents
loading

Related Manuals for Da-Lite Deluxe Insta-Theater

Summary of Contents for Da-Lite Deluxe Insta-Theater

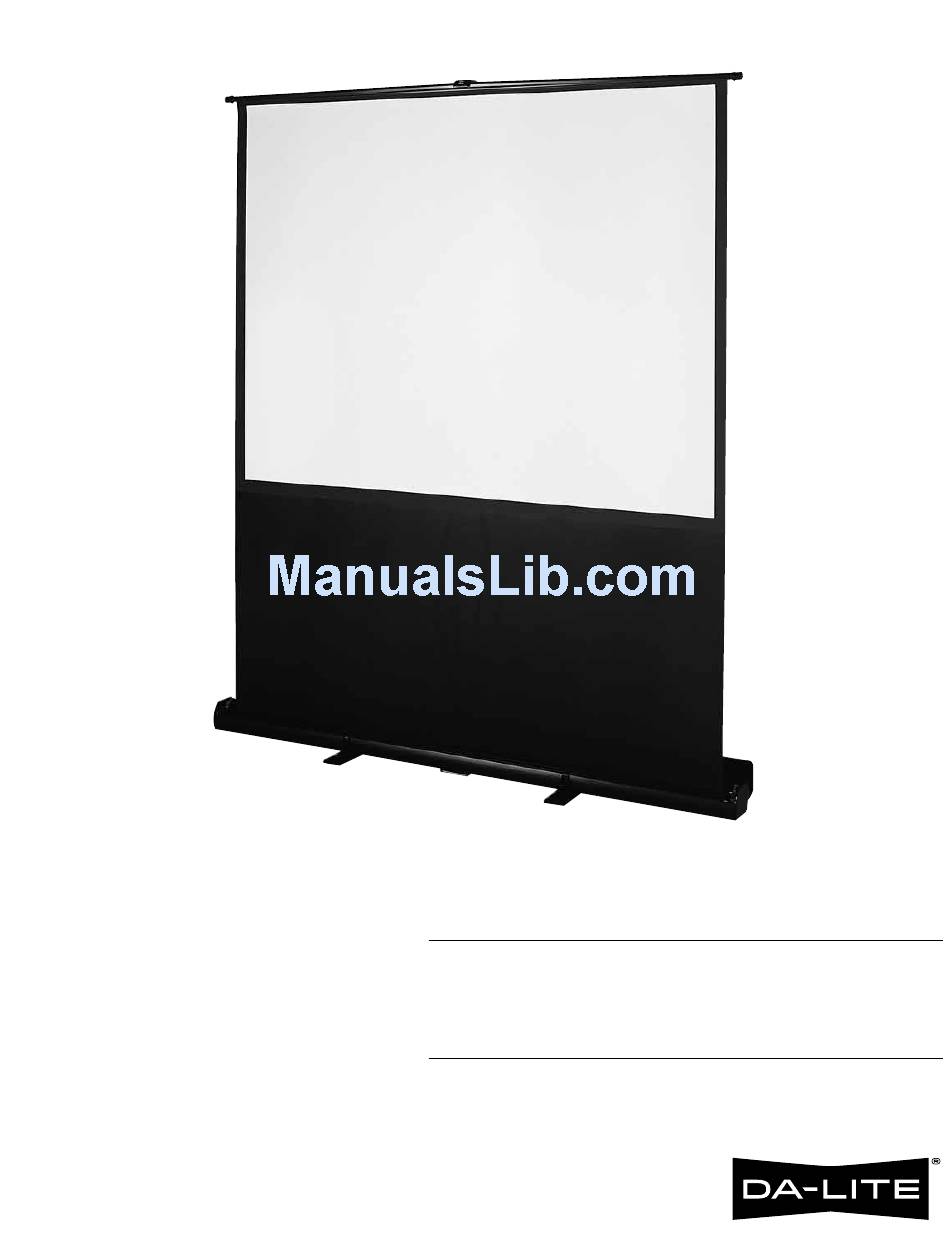

  • Page 1 INSTRUCTION BOOK FOR Deluxe Insta-Theater...

  • Page 2: Screen Care

    Introduction Thank you for purchasing this Da-Lite product. Before attempting to use it, make sure to carefully read the contents of these instructions. Caution Avoid touching the films during raising or lowering of unit. 2. Do not set up the screen on an unstable or uneven surface.

  • Page 3: Parts Identification

    Parts Identification Lifting Handle 6. Rotating foot 10. Case latch 15. Lower arm hinge 2. Slat handle 7. Bottom case 11. Slat 16. Air shock 3. Screen film 8. Right end cap 12. Long arm 17. Case handle 4. Skirt film 9.

  • Page 4: Setting Up The Screen

    Setting Up the Screen Rotate feet until they are perpendicular with the case (Figure 1). 2. Release the latches and open the case cover. On the 90" and 100" models remove extending handle and extend it as shown (Figure 1). Figure 1 NOTE: Push lightly down on the center of the case to release the latches.

  • Page 5: Storing The Screen

    Storing the Screen Grasp the Slat Handle and lower the screen slowly back into the case. Make sure you hold onto the handle and keep the slat level as you lower the screen back into the case (Figure 5). 2. On 90" and 100" models only Place the end of the extending handle under the slat handle as shown below and lower the screen until you can easily reach the slat handle (Figure 6).

  • Page 6: Specifications

    Specifications Screen Height Shipping dimensions Weight of unit (lbs.) Shipping weight (lbs.) 60" 61/4" x 7" x 611/2" 14.0 17.3 73" and 80" 61/4" x 7" x 771/8" 16.4 20.4 90" and 100" 61/4" x 7" x 911/4" 19.8 23.8 60"...
  • Page 8 OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.
