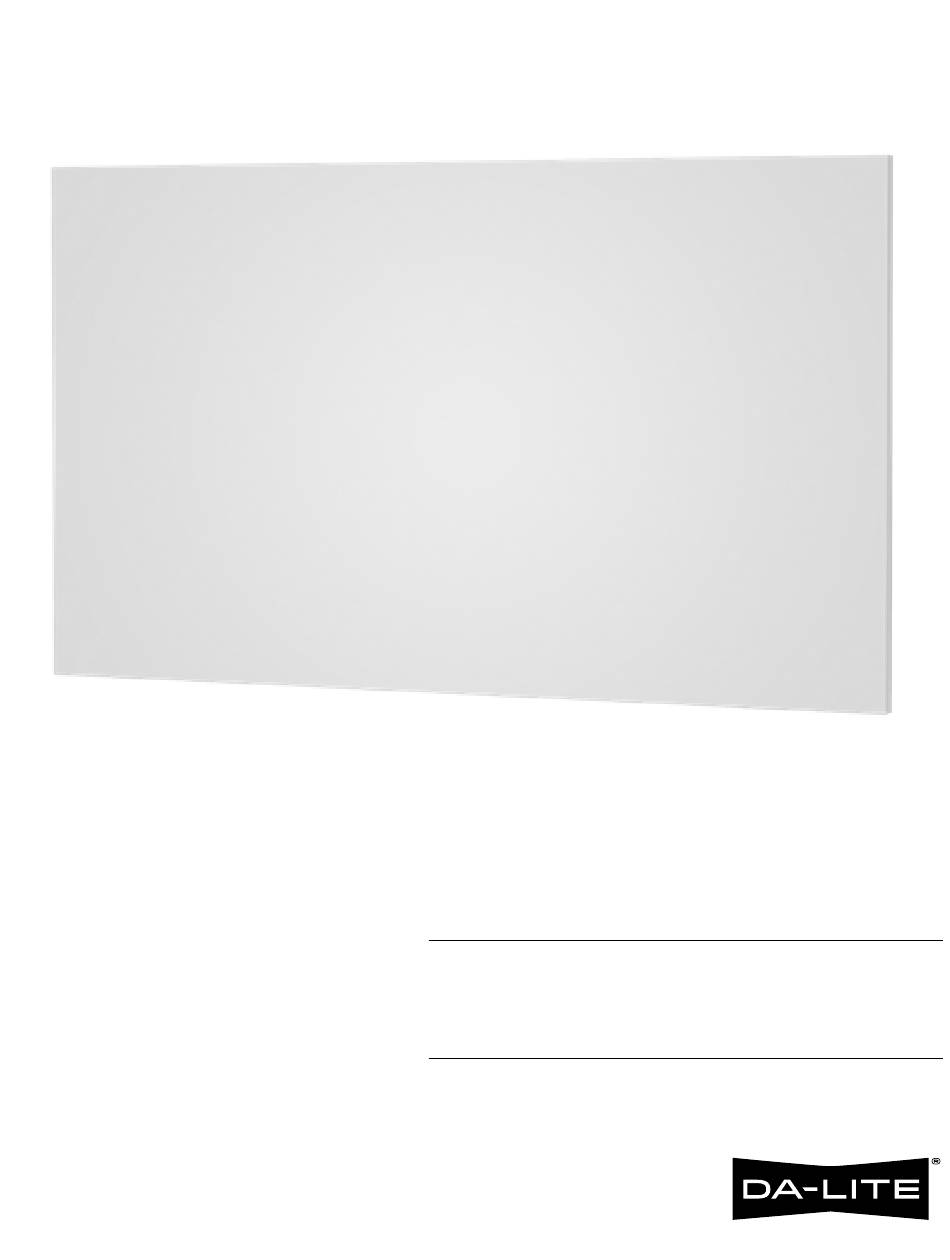

  • Page 1 INSTRUCTION BOOK FOR Da-Snap Wrap Around Screen...

  • Page 2: Important Safety Instructions

    Use this projection screen only for its intended use as described information contained in this document. in these instructions. Do not use attachments not recommended by the manufacturer. Da-Lite® is a registered trademark of Milestone AV Technologies. Save These Instructions All rights reserved. Included Hardware Large Wall Bracket (47"...

  • Page 3: Frame Assembly

    Included Hardware (continued) White Gloves for Fabric Handling ____________ Use Installation Method Number Quantity = 2 pair Frame Assembly Installation 1. Unpack the frame parts from the carton. DO NOT unroll the There are four methods of installation based on the size of the screen surface at this time.
  • Page 4 Method 1 for Screens with a Viewing Width of 80" and Smaller 4. Attach the small wall bracket to the wall. Refer to Figure 4 Use the supplied #10 screws to attach three frame brackets to for proper orientation. Do not tighten the screws completely. The the back of the frame as shown in Figure 2.
  • Page 5 Method 2 for Screens with a Viewing Width of 80" to 96" Use the supplied #10 screws to attach four frame brackets to the 4. Attach surface to screen using instructions on page 6. back of the frame as shown in Figure 5. NOTE: Use provided gloves for steps 5 and 6.
  • Page 6 Method 3 for Screens with a Viewing Width over 96" Use the supplied #10 screws to attach six frame brackets to the NOTE: Use provided gloves for steps 5 and 6. back of the frame as shown in Figure 8. 5.
  • Page 7 Assembling Fabric to Frame Drape top of fabric over the Da-Snap frame. It will wrap around over the top of the frame. 2. Start the top by snapping the double corner snaps on first. CAUTION! These are located at the ends of the fabric. Tear Point at Corner 3.
  • Page 8 Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
