Da-Lite Advantage Specification Data

Advantage
®

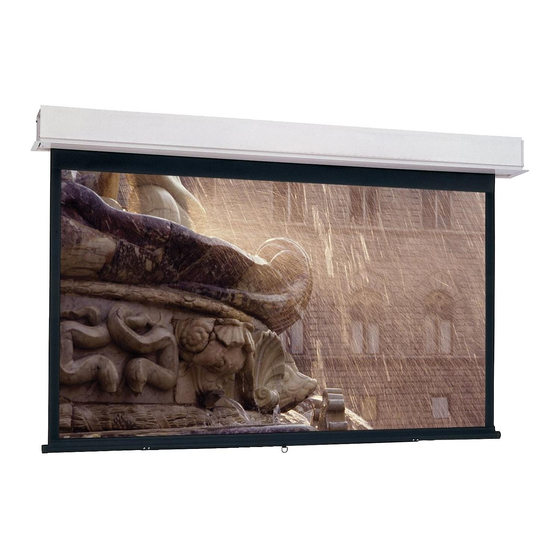

Automatic Electric Projection Screen Model
SUGGESTED SPECIFICATIONS:
(H) x (W). The Advantage® Deluxe Screen shall have
two motors, one to operate door and one to operate screen. Door motor
electrically operated 120 volt (60 Hz) not more than 1.2 amp, mounted inside
the roller, to be three wire with ground, quick reversal type, oiled for life, with
automatic thermal overload cutout, integral gears, capacitor and an electric
brake to prevent coasting. To have pre-set but adjustable limit switches to
automatically stop fabric door in the "down" position. The door will lift to the
closed position where a micro switch shall cut off the electrical current to the
door motor. Screen motor is electrically operated 120 volt (60 Hz) not more
than 2.4 amp, mounted inside the roller, to be three wire with ground quick
reversal type, oiled for life, with automatic thermal overload cutout, integral
gears, capacitor and an electric brake to prevent coasting. To have pre-set but
adjustable limit switches to automatically stop picture surface in the "up" and
"down" positions. The roller to be of rigid metal. Screen fabric to be flame
retardant and mildew resistant fiberglass with black masking borders standard.
Bottom of fabric shall be formed into a pocket holding a metal rod with plastic
Viewing Area (H x W)
In. Cm
43" x 57" 109 x 145
50" x 67" 127 x 170
57" x 77" 145 x 196
60" x 80" 152 x 203
69" x 92" 175 x 234
87" x 116" 221 x 295
105" x 140" 267 x 356
120" x 160" 305 x 406
Viewing Area (H x W)
In. Cm
45" x 80" 114 x 203
52" x 92" 132 x 234
54" x 96" 137 x 244
58" x 104" 147 x 264
65" x 116" 165 x 295
78" x 139" 198 x 353
90" x 160" 229 x 406
Viewing Area (H x W)
In. Cm
50" x 80" 127 x 203
571⁄2" x 92" 146 x 234
60" x 96" 152 x 244
65" x 104" 165 x 264
69" x 110" 175 x 279
721⁄2" x 116" 184 x 295
87" x 139" 221 x 353
100" x 160" 254 x 406
Square Format Dimensions (Screens With ^ Have 2" Standard Black Drop at Top)
50" x 50"
60" x 60"
70" x 70"
84" x 84"
6' x 8'^
8' x 8'
7' x 9'^
9' x 9'^
8' x 10'^
10' x 10'^
9' x 12'^
12' x 12'
Deluxe Electrol
projection screen(s),
Video (NTSC 4:3) Format Dimensions (2" Standard Black Drop at Top)
Nominal Diagonal
In.
72"
84"
96"
100"
120"
150"
180"
200"
HDTV (16:9) Format Dimensions (2" Standard Black Drop at Top)
Nominal Diagonal
In.
92"
106"
110"
119"
133"
159"
184"
Wide (16:10) Format Dimensions (2" Standard Black Drop at Top)
Nominal Diagonal
In.
94"
109"
113"
123"
130"
137"
164"
189"
Viewing Area (H x W)
In. Cm
127 x 127
152 x 152
178 x 178
213 x 213
183 x 244
244 x 244
213 x 274
274 x 274
244 x 305
305 x 305
274 x 366
366 x 366
®
caps. Case shall be a white powder coated aluminum extrusion. Bottom of
case to be self-trimming with a built-in flange around the bottom of the case.
A section of the bottom of the case shall be an aluminum door equipped with
concealed hinges so that it opens and closes automatically with the lowering
and raising of the picture surface. The balance of the bottom of the case shall
be a second hinged aluminum door with manual opening to provide access.
Junction box shall be internally integrated into the housing making it possible
to install the housing and wire to the building's electrical system during
construction. The junction box shall contain a quick connect connector that is
mounted in the housing for easy plug-in connection to the motorized fabric
and roller assembly. The motorized fabric and roller assembly to be installed in
the case at the factory or at a later time at the job site. To be complete with
integrated low voltage control unit and three position control switch with
cover plate. Suitable for use in environmental air space in accordance with
section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3)
and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1. Screen to be
listed by Underwriters' Laboratories.
Overall Length of Case*
Cm In.
183 72¼"
213 82¼"
244 96¼"
254 96¼"
305 108¼"
381 132¼"
457 156¼"
508 176¼"
Overall Length of Case*
Cm In.
234 96¼"
269 108¼"
279 112¼"
302 120¼"
338 132¼"
404 156¼"
467 176¼"
Overall Length of Case*
Cm In.
239 96¼"
277 108¼"
287 112¼"
312 120¼"
330 126¼"
348 132¼"
417 156¼"
480 176¼"
Overall Length of Case*
In. Cm
62¼" 158
72¼" 184
82¼" 209
96¼" 244
108¼" 275
108¼" 275
120¼" 305
120¼" 305
132¼" 336
132¼" 336
156¼" 397
156¼" 397
SPECIFICATION DATA
Approx. Ship. Wt.
Cm Lbs.
184 83
209 93
244 114
244 118
275 128
336 165
397 190
448 198
Approx. Ship. Wt.
Cm Lbs.
244 122
275 137
285 141
305 153
336 165
397 190
448 198
Approx. Ship. Wt.
Cm Lbs.
244 120
275 138
285 141
305 156
321 161
336 165
397 190
448 198
Approx. Ship. Wt.
Lbs. Kg
71 32.2
81 36.7
104 47.2
115 52.2
128 58.1
131 58.4
136 61.7
149 67.6
165 74.8
176 79.8
190 86.2
200 90.7
Kg
37.6
42.2
51.7
53.5
58.1
74.8
86.2
89.8
Kg
55.3
57.6
64.0
69.4
74.8
86.2
89.8
Kg
54.4
62.6
64.0
70.7
73.0
74.8
86.2
89.8
*Case length does
not include flange
