4.7

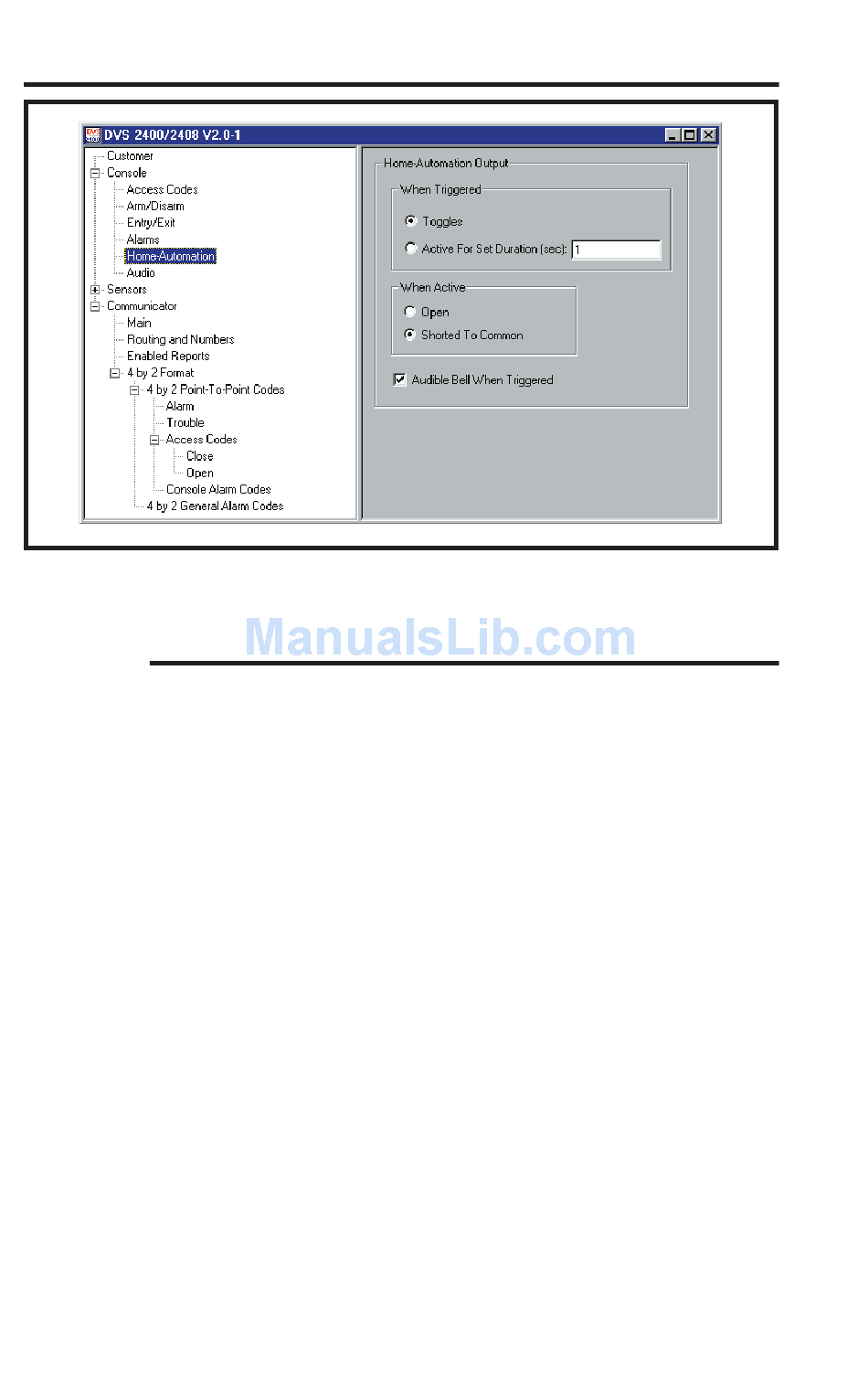

CONSOLE HOME-AUTOMATION OUTPUT
PURPOSE:
For setting the way the home-automation output functions.
USER RESPONSE:
HOME AUTOMATION-OUTPUT
✦ WHEN TRIGGERED: Select TOGGLES to cause the home-automation
output to switch between on & off with each activation. Select
ACTIVE FOR SET DURATION for a timed home-automation output and
enter the length of time 1-2500 (in seconds) for the output to
activate.
✦ WHEN ACTIVE: Select OPEN to have the home-automation minus
terminal fl oat when the output is active. Select SHORTED TO COMMON
to have the home-automation minus terminal switch to common
ground when the output is active.
✦ AUDIBLE BELL WHEN TRIGGERED: With this box checked, the Console
will sound a "bing" when the home-automation output is activated.
Un-check this box to have the home-automation output activate
silently.
22
