Connection Options - Linear REMOTE ACCESS SOFTWARE DUAL-824 Software Manual

3.3

CONNECTION OPTIONS

PURPOSE:

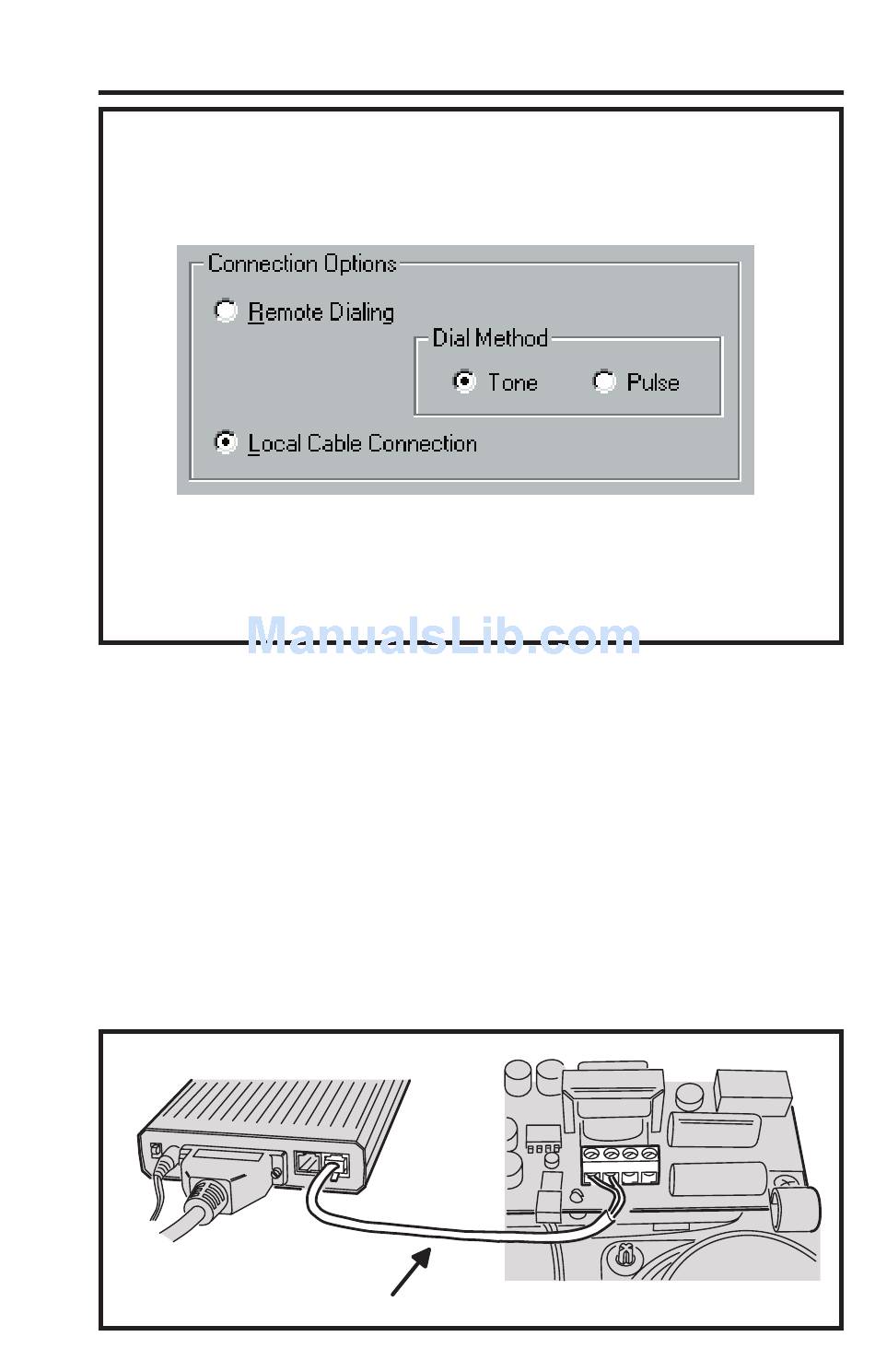

To choose how the modem will connect to the DVS-2400 Console.
Remote Dialing dials a telephone number with the method chosen (tone
or pulse) to connect with the Console over a standard telephone line.
Local Cable Connection does not dial a telephone number, but
communicates with the Console wired directly to the modem.
USER RESPONSE:
✦ Select REMOTE DIALING if the Console is going to be accessed over
the telephone line.
✦ Select TONE or PULSE depending on the requirements for your
telephone system. NOTE: This only affects Remote Dialing.
✦ Select LOCAL CABLE CONNECTION if the Console's T & R terminals
are connected directly to the modem's LINE jack.
LOCAL CABLE CONNECTION
MODEM
MODEM'S LINE JACK TO CONSOLE'S T & R TERMINALS
CONSOLE
