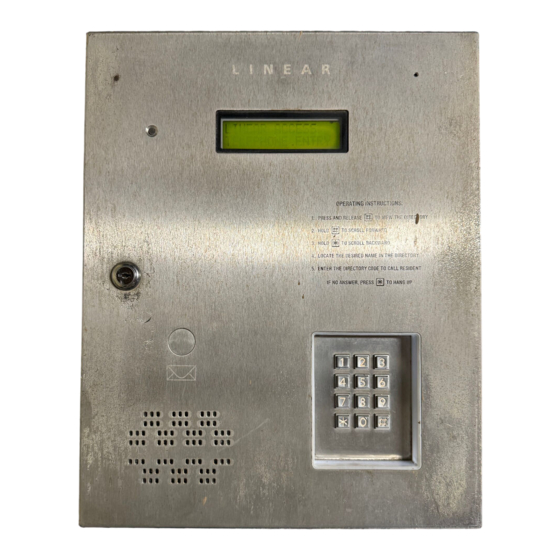

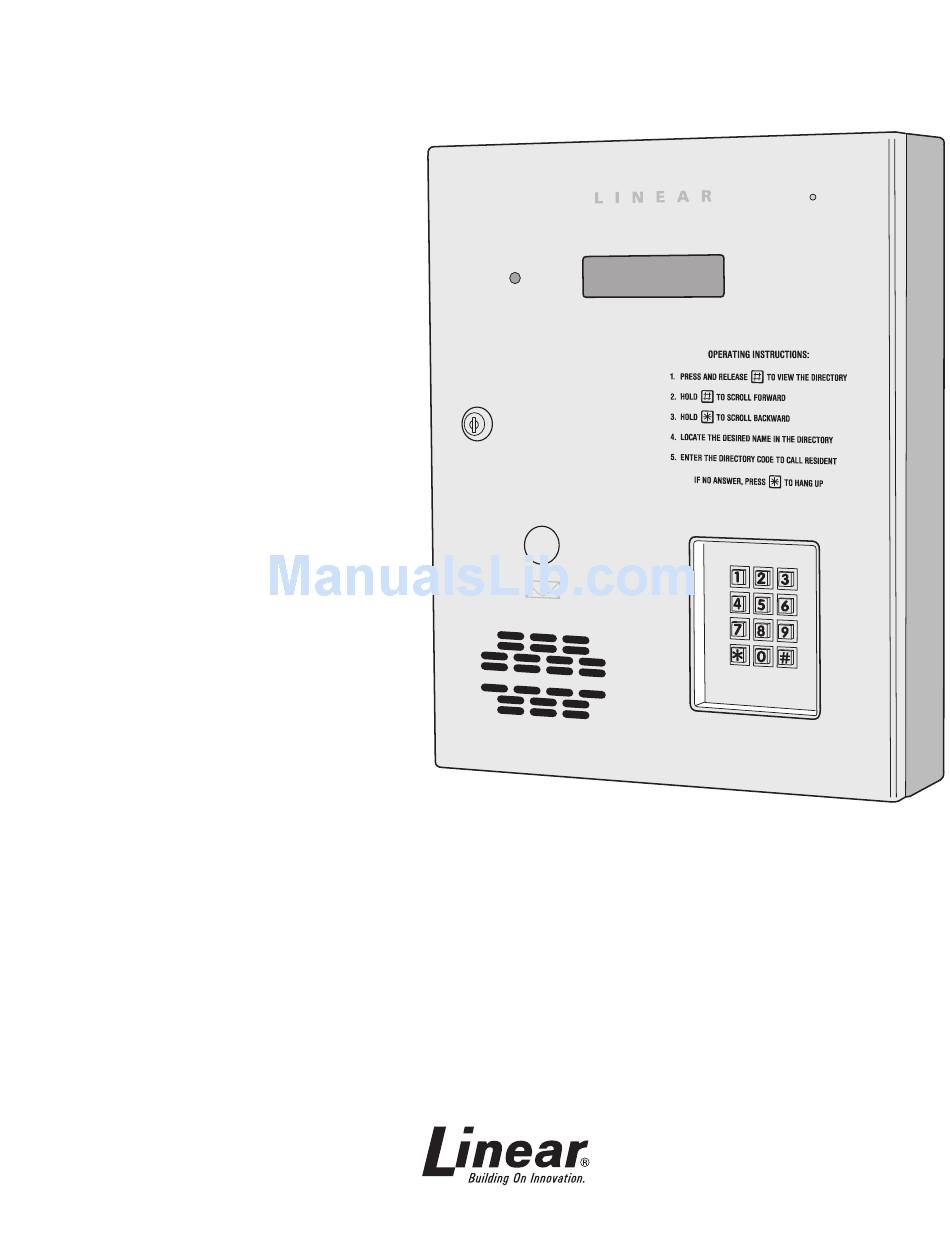

Page 1: Access Control
AE1000Plus Telephone Entry & Access Control System Installation Instructions USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com... -
Page 2: Table Of Contents
Optional Network Connection ..........15 each resident’s name and directory code number. Arriving visitors would System Adjustments .............18 use the keypad on the AE1000Plus to view the directory names and System Diagnostics ..............18 directory number for the desired resident. Upon entering the directory Internal Controls ..............19... -
Page 3: Hardware Features
Linear’s Model MGT safety edge transmitter is compatible with the AE1000Plus. ✓ LARGE TRANSMITTER CAPACITY The MGT detects and transmits obstacle events to the AE1000Plus. Up to 45,600 block coded and 20,000 individually enrolled Linear transmitters can be used Programming Memory for gaining access The AE1000Plus fl... -
Page 4: Accessory Overview
Wiegand Accessories READERS The two WIEGAND format inputs connect WIEGAND devices to the AE1000Plus. Linear offers a Wiegand format proximity reader. Most other manufacturer’s 26, 30 & 31-bit WIEGAND output devices can also be used with the AE1000Plus. AM-PR Proximity Reader... -
Page 5: Component Locations
Component Locations MICROPHONE OPTIONAL CAMERA DISPLAY CABINET LOCK OPTIONAL POSTAL LOCK KEYPAD SPEAKER INSTALLATION NOTE: KEYPAD FOR EASY WIRING, THE UNIT'S TERMINAL BLOCKS LIGHTING CAN BE UN-PLUGGED FROM THE CIRCUIT BOARD TAMPER RECEIVER SWITCH RANGE KNOB TAMPER CAMERA MICROPHONE CONNECTOR MAGNET CONNECTOR ANTENNA... -
Page 6: Wiring Diagram
16 VAC TO DEDICATED 35 VA TELEPHONE LINE TRANSFORMER CONNECT TELEPHONE LINE TO 12 VOLT TERMINALS OR TELEPHONE JACK BATTERY FOR LOCAL COMPUTER CONNECTION NOTE: OPTIONAL USE LINEAR MODEL A2C BACKUP BATTERY SERIAL COMPUTER CABLE WILL REQUIRE AN EXTERNAL CHARGER... -
Page 7: Important Mounting Requirements
THE AE1000Plus AT THE SAME TIME. Vehicle Traffi c Do not mount the AE1000Plus where it extends into any traffi c lane. Locate the gooseneck pedestal or entry kiosk so all parts of the AE1000Plus are outside the traffi c lane. Locate the AE1000Plus clear of any turn-around lanes vehicles use when access is denied. -
Page 8: Entry System Mounting
Entry System Mounting The AE1000Plus cabinet is designed to be mounted three ways: MOUNTING • The unit can be mounted directly to a wall or fl at surface. PREPARATION • The unit can be mounted recessed into the wall. • The unit can be mounted on a standard gooseneck pedestal. - Page 9 SELF-TAPING SCREWS Pedestal Mounting ALIGN THE REINFORCING PLATE The cabinet can be mounted on a gooseneck pedestal. Linear ON THE INSIDE OF THE CABINET manufacturers two pedestals: Model GNC-1 is for surface mounting with concrete fasteners, Model GNB-1 is for burial mounting. When mounting PEDESTAL to a pedestal, use the cabinet reinforcing plate to stiffen the cabinet.
-
Page 10: Relay Output Wiring
MAGNETIC Connect the other wire to the remaining wire of the power supply. N.C. DOOR 5A. For a door strike, connect the wires to the AE1000Plus relay COM LOCK & N.O. terminals. N.O. 5B. For a magnetic lock, connect the wires to the AE1000Plus relay DOOR COM &... -
Page 11: Power, Battery, & Ground Wiring
BATTERY system to be functional. NOTE: THE OPTIONAL A backup battery will not fi t into the AE1000Plus case. Protect the backup BACKUP BATTERY battery inside a rain-tight NEMA enclosure suitable for the installation. WILL REQUIRE AN ✦... -
Page 12: Telephone Wiring
If wireless transmitters are going to be used in the system a remote antenna must be installed to provide reception for the AE1000Plus. OPTIONAL EXA-1000 A basic antenna kit is supplied with the AE1000Plus. The kit contains a OMNI-DIRECTIONAL 36" COAX whip antenna, connector, and a 36”... -
Page 13: Optional Postal Lock
Optional Postal Lock A postal lock can be installed in the AE1000Plus Entry System to provide keyed access for the postal service. The AE1000Plus case is designed to accept a U.S. Postal Service postal lock. When the postal lock is engaged,... -
Page 14: Pbus Accessories
For wire runs up to 500 feet use 20 AWG Weico Type 9405 or equivalent. NOTE: THE LED1, LED2, AND HOLD 3. Connect the cable to the accessory and the AE1000Plus as shown CONNECTIONS MAY NOT BE REQUIRED in the fi gure. -
Page 15: Optional Network Connection
Models AM3Plus, AE1000Plus, and AE2000Plus. Network Confi gurations for AXNET Programming If the system is going to be programmed using Linear’s AXNET Browser Interface, units can communicate with each other on the network through modems or RS-485 cable connections. - Page 16 Optional Network Connections (Continued) Network Confi guration for AccessBase2000 Programming If the system is going to be programmed using Linear’s AccessBase2000 software, units communicate with each other on the network through RS-485 cable connections. AccessBase2000 does not support unit-to-unit network communications through modems, only RS-485 cable.
- Page 17 Optional Network Connections (Continued) RS-485 Network Wiring ACCESS CONTROL HOMERUN NETWORK Network wiring conforms to 3-wire RS-485 electrical specifi cations. Units USING ONE UNIT AS A NETWORK MASTER connected in the network can be wired using one unit as a “hub” or by NETWORK UNIT "2"...
-
Page 18: System Adjustments
Pressing the SYSTEM RESTART button will reboot the system’s microcontroller. NO SYSTEM INFORMATION WILL BE ERASED. System Diagnostics Several components on the main circuit board are for monitoring the system during operation. When calling for technical assistance, Linear’s HOST STATUS/PROGRAM ON-LINE... -
Page 19: Internal Controls
• RELAY “A” LATCH press to latch relay “A”, press again to unlatch. • RELAY “B” LATCH press to latch relay “B”, press again to unlatch. RELAY "B" AE1000PLUS LATCH • RELAY “C” LATCH press to latch relay “C”, press again to unlatch. -
Page 20: Ae1000Plus Operation
AE1000Plus Operation Requesting Access with an Entry Code • Residents have up to 40 seconds to key in their entry code. • Up to eight seconds are allowed between each keystroke. • All digits of the entry code must be entered. Example: If the entry... -
Page 21: Specifi Cations
RADIO Frequency: 318 MHz ± 500 KHz @ 23°C Bandwidth: 300 KHz Typical Sensitivity: -97 dBm Minimum (-100 dBm Typical) Encoding: Linear MegaCode ® Format ENVIRONMENTAL Temperature: -22°F to 149°F (-30°C to 65°C) Humidity: 5% to 95% non-condensing Dimension Drawing... -
Page 22: Troubleshooting
1. Check antenna installation and condition if transmitters were previously working well. 2. Check the RADIO indicator on the AE1000Plus circuit board. If it is fl ickering without activating any transmitters there is interference blocking the receiver. Try adjusting the RECEIVER RANGE knob to reduce the receiver’s sensitivity to the interference. -
Page 23: Linear Limited Warranty
All implied warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until the warranty expires. This Linear LLC Warranty is in lieu of all other warranties express or implied. All products returned for warranty service require a Return Product Authorization Number (RPA#). - Page 24 Copyright © 2008 Linear LLC 227522 B...
