Summary of Contents for Linear BluePass 2N1-BTPRX

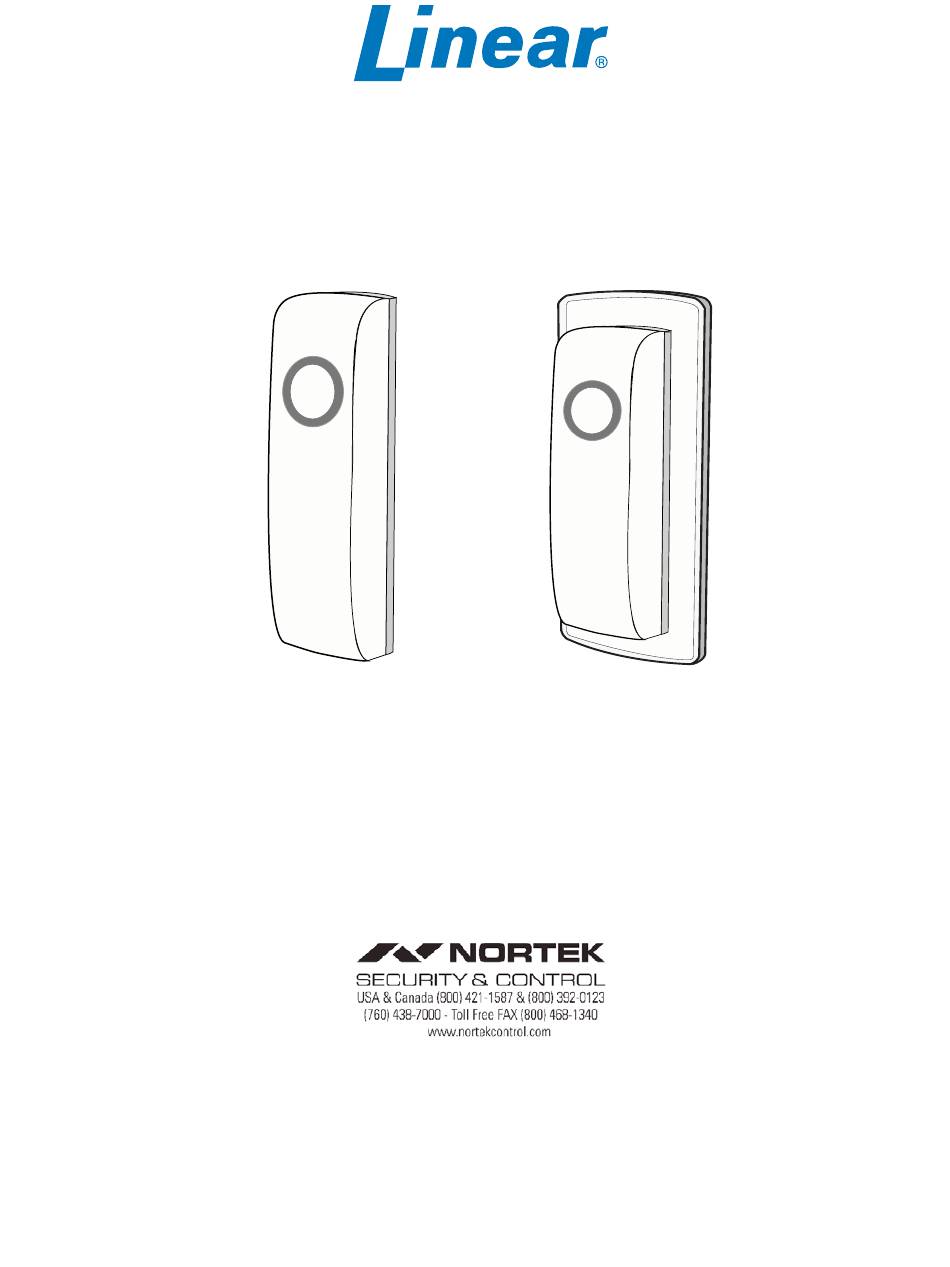

- Page 1 BluePass 2-N-1 BluePass Multi-Tech Reader Manual Installation Instructions P/N: 10019179 X15...
-
Page 2: Table Of Contents
KHz prox cards and Fobs, or Bluetooth Low Energy Credentials Mullion Mounting ..............3 via a supported smart device such as Android and Apple mobile Single-Gang Mounting ............4 devices to request access using the Linear 2-N-1 BluePass Multi- Setting Up an Account ............4 Tech Reader. Frequently Asked Questions ..........5 This guide is intended as a brief reference used by an experienced Troubleshooting ..............6... -
Page 3: Reader Wiring
Power A non-switching power supply at the panel is recommended to power the reader for the highest noise immunity and best performance. We recommend using Linear’s stand-alone power supplies for optimum performance. Voltage • Current Draw: 100 - 200 mA typical, 225 mA max peak @ 12 VDC in low-power mode. - Page 4 There are several major components in the Linear BluePass ecosystem solution illustrated in this guide: 1. The Linear BluePass Cloud – This is a web-based portal used by the dealer/installer/facility administrator to manage mobile This Permission allows the Administrators/Installers to: credentials.
-
Page 5: Mullion Mounting
Mullion Mounting The reader can be mounted on a wall or any suitable fl at surface. The Mullion-mounted BluePass Reader can be installed as a new device, or replace an existing one. Depending on the mounting location, new mounting screws may be necessary. These instructions assume no previous mounting hardware exists. -
Page 6: Single-Gang Mounting
Single-Gang Mounting The reader can be mounted on a wall or any suitable fl at surface. The Single-Gang mounted BluePass Reader can be installed as a new device, or replace an existing one. If the BluePass Reader is replacing a legacy device, the Single-Gang mounting method is recommended. -
Page 7: Frequently Asked Questions
• Android devices running Android v5.0 (Lollipop) or higher that supports BLE peripheral mode. Does the Linear App have to be running in the foreground or “active” to enter a door? • No, as long as the app has been launched after the phone is powered on, it can run silently in the background without any further interaction by the user needed to enter a door, except for presenting the phone to the reader. -
Page 8: Troubleshooting
Troubleshooting Issue Corrective Action The reader will not read cards and fobs. Check cards and fobs to ensure they are HID™ compatible 26 to 37-bit 125 KHz RFID. End-user was issued credentials and replaced their mobile BluePass mobile credentials are only good for the life of the device with a newer model.
