Linear WAPIRZ-1 Manual

NOTE: This unit must be "included in the Network" only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" confi gure this module, then install.

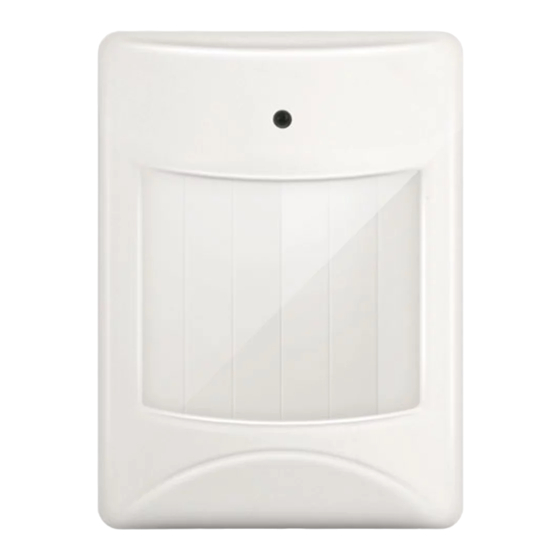

WAPIRZ-1 WIRELESS PIR MOTION DETECTOR
Linear's family of Z-Wave™ certifi ed wireless lighting controls (switches,
dimmers, outlets and plug-in modules) and Security devices (alert sounder,
passive infrared sensor and door/window transmitter) brings a new level of
intelligent wireless capability to commercial and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. Embedded in each device,
the Z-Wave smart chip enables two-way RF communication among hundreds
of Z-Wave enabled devices, allowing products and services from multiple
manufacturers to work seamlessly.
Linear Z-Wave products are easy to install, and allow dealers to create an
integrated wireless network with nearly limitless expansion and interoperability
with security and health monitoring systems, energy management, home
entertainment, appliances, and more.
For indoor use only. Retain instructions for future use.
TEMPERATURE MONITORING
The PIR uses the SENSOR_MULTILEVEL_V4 command class to report to the
Z-Wave Hub a change in the ambient temperature of 1 degree. Every rise or
drop of 1 degree will trigger a notifi cation to the Hub. It is up to the Hub and how
the consumer programs it to determine actions based on these notifi cations.

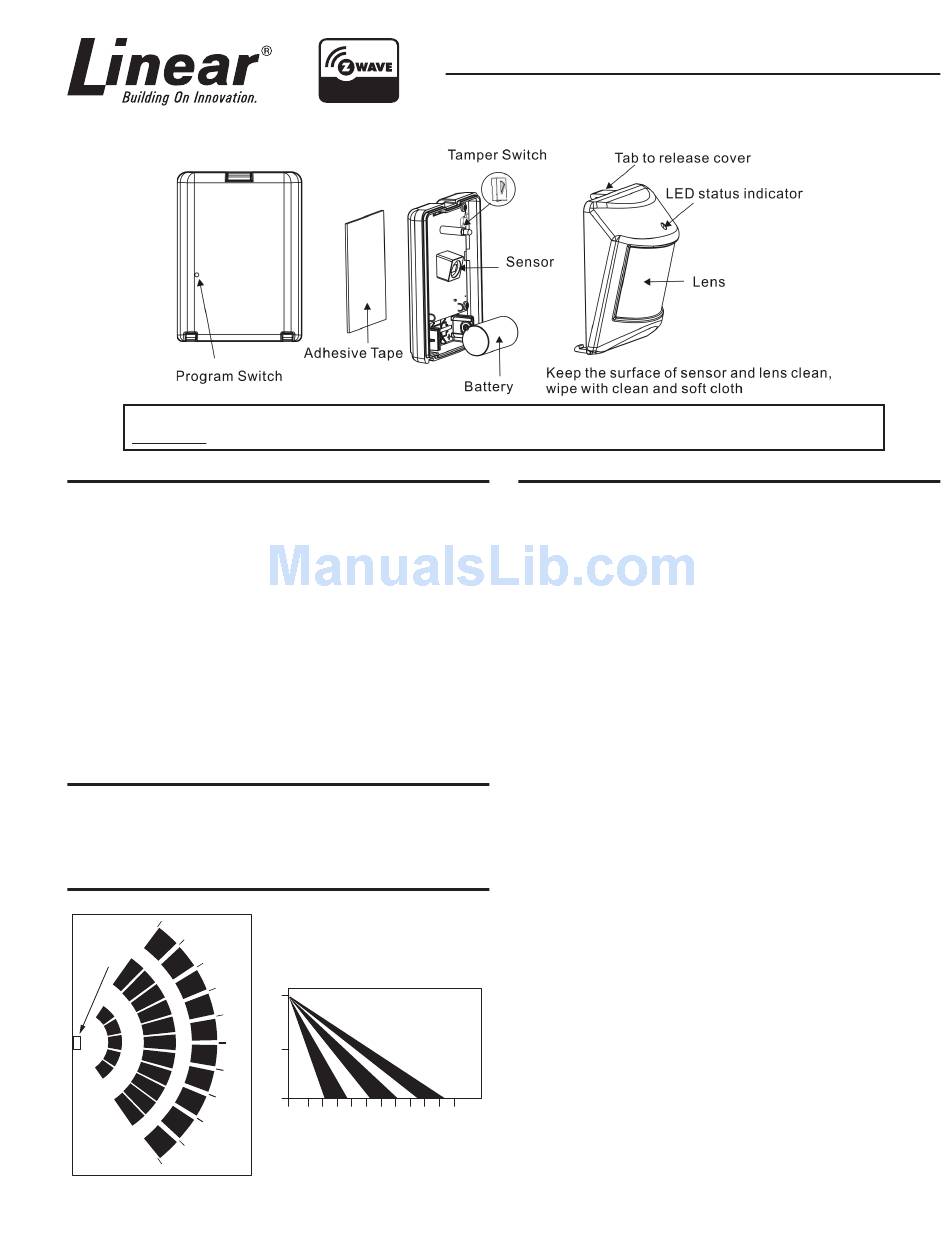

DETECTION PATTERN
50°
40°
DETECTOR 30°
20°
10°
0°
10°
20°
30°
40°
50°
DETECTION
PATTERN
DETECTION
TOP VIEW
PATTERN
SIDE VIEW
6
3
0
3 6 9 12 15 18 21 24 27 30 33
ALL UNITS
ARE IN FEET
Wireless Passive Infrared (PIR) Motion Detector
INSTALLATION
1. Release the cover tab to open the cover.
2. Insert a CR123A battery into the battery compartment and LED will start to fl ash
slowly, which means the sensor has not yet performed "inclusion" with the controller.
3. Replace the cover.
For "Inclusion" to (adding to) a network:
Refer to your Controller operating instructions to add this module under the
command of the Wireless Controller.
4. Prepare the Controller to include a unit to the network by adding it to a group (method
of adding a node to the network). Refer to controller instructions.
5. If your Controller supports Network Wide Inclusion (NWI) locate the WAPIRZ-1 near
the proposed installation location. If not skip to Step 7.
6. With your Controller in Inclusion mode, you should see an indication on your
Controller that the "device was included" in the network. It should display binary
switch / Linear. The LED will stop blinking. Skip to Step 10.
If the LED does not stop blinking, relocate the WAPIRZ-1 to within 100 feet (line of
sight) of a Z-Wave device or your hub and repeat Step 6. If the LED continues to blink,
your Controller does not support NWI and continue with Step 7.
7. Place the WAPIRZ-1 within 3 feet of the Controller.
8. With your controller in Inclusion mode, depress the Tamper switch for 1 second then
release.
9. You should see an indication on your Controller that the "device was included" in the
network. It should display binary switch / Linear. The LED will stop blinking.
10. The device will appear in the list of Switches.
✓ NOTE: If you have trouble adding the WAPIRZ-1 to a group it may be that the Home
ID and Node ID were not cleared from it after testing. You must fi rst "RESET UNIT"
with your controller to remove it from the network. Although adding it to a group
includes it in the network, removing it from a group does not remove it from the
network. If removed from a group, it functions as a repeater (only). "RESET UNIT"
removes it completely from the network.
For "Association" with another device:
The motion detector supports one association group with up to 5 nodes.
1. Set up the Z-Wave™ Interface Controller into "association" mode, and following its
instruction to associate the WAPIRZ-1 with another device.
2. Open the motion detector case to "wake" the unit. In the Controller, associate the
detector with the other device.
3. Close the motion detector case.
For "Exclusion" from (removing from) a network:
1. Set up the Z-Wave™ Interface Controller into "exclusion" mode, and following its
instruction to delete the WAPIRZ-1 from the controller.
2. Press the Tamper switch of WAPIRZ-1 for 1 second and release to be excluded. The
LED light will fl ash continuously when the sensor is in the Exclusion condition.
1
WAPIRZ-1
Radio Frequency Controlled
