Description

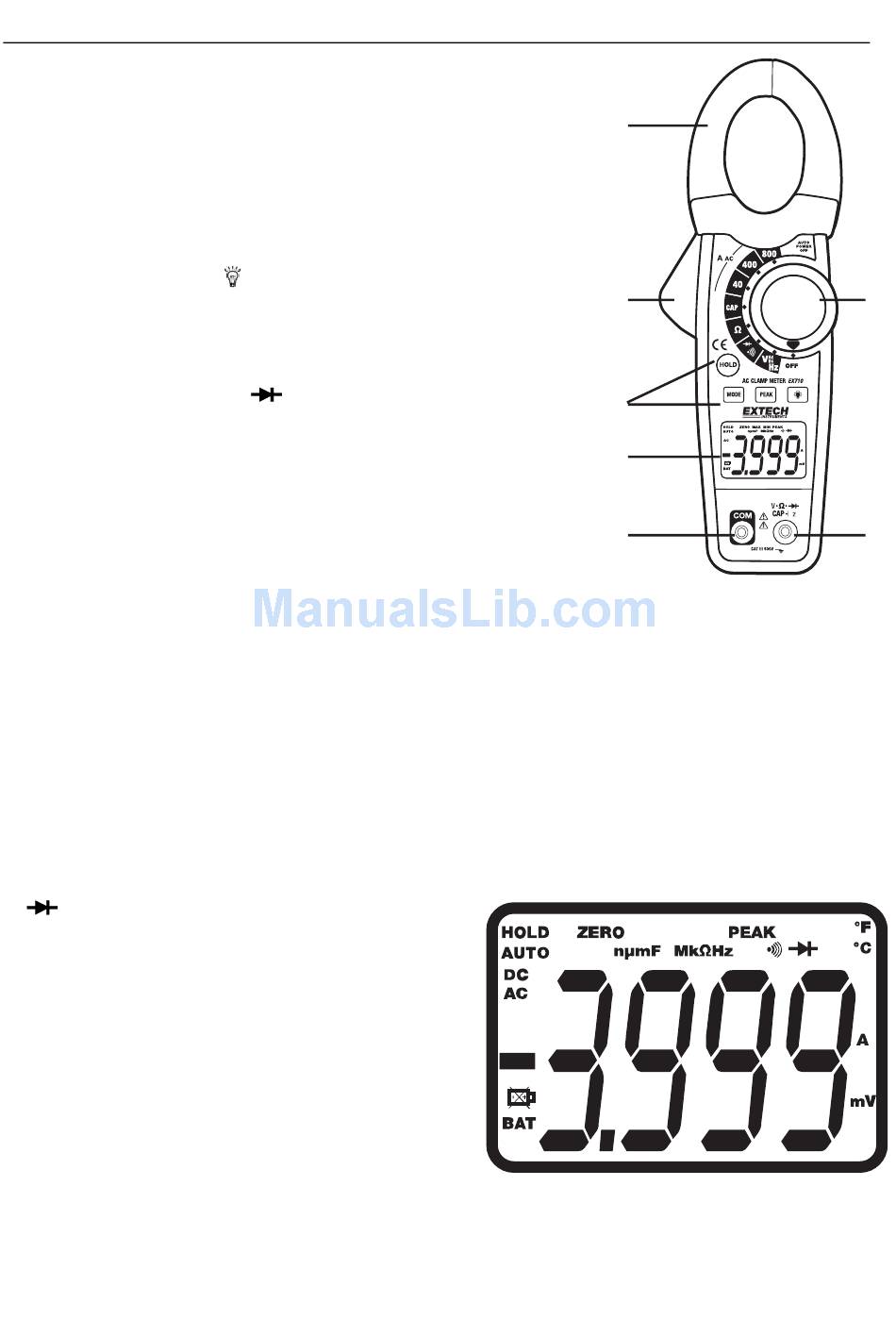

Meter Description

1. Current clamp
2. Clamp opening trigger
3. Control buttons:
•
Data Hold
•
Mode
•
Peak
•
Backlight
4. Backlit LCD Display
5. COM negative input jack for black test lead
6. Rotary function switch
7. V·Ω·CAP·TEMP·Hz·
Display icons Description
HOLD
Minus sign
0 to 3999
PEAK
AUTO
DC/AC
BAT
mV or V
Ω
A
F
Hz
n, m, μ, M, k
•)))
positive input jack for red lead
Data Hold
Negative reading display
Measurement display digits
Peak capture
Auto Range mode
Direct Current / Alternating Current
Low battery
Milli-volts or Volts (Voltage)
Ohms (Resistance)
Amperes (Current)
Farad (Capacitance)
Hertz (Frequency)
Unit of measure prefixes: nano, milli, micro, mega, and kilo
Continuity test
Diode test
1
2
3
4
5
4
6
7
EX710-EU-EN-V3.2-3/12
