Extech Instruments EX310 User Manual

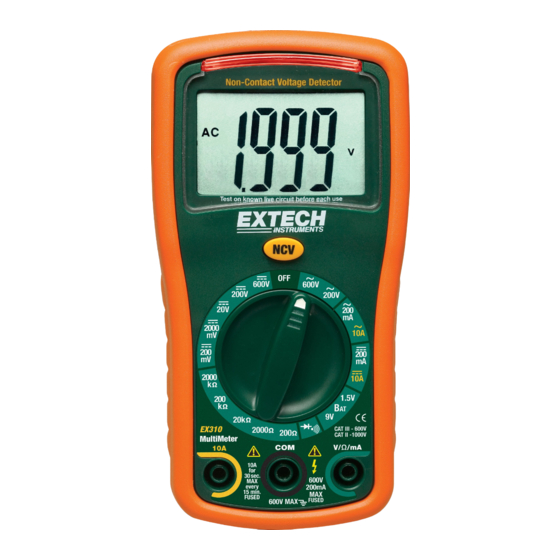

Mini multimeter with non-contact voltage detector (ncv)
Hide thumbs Also See for EX310:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
www.burntec.com

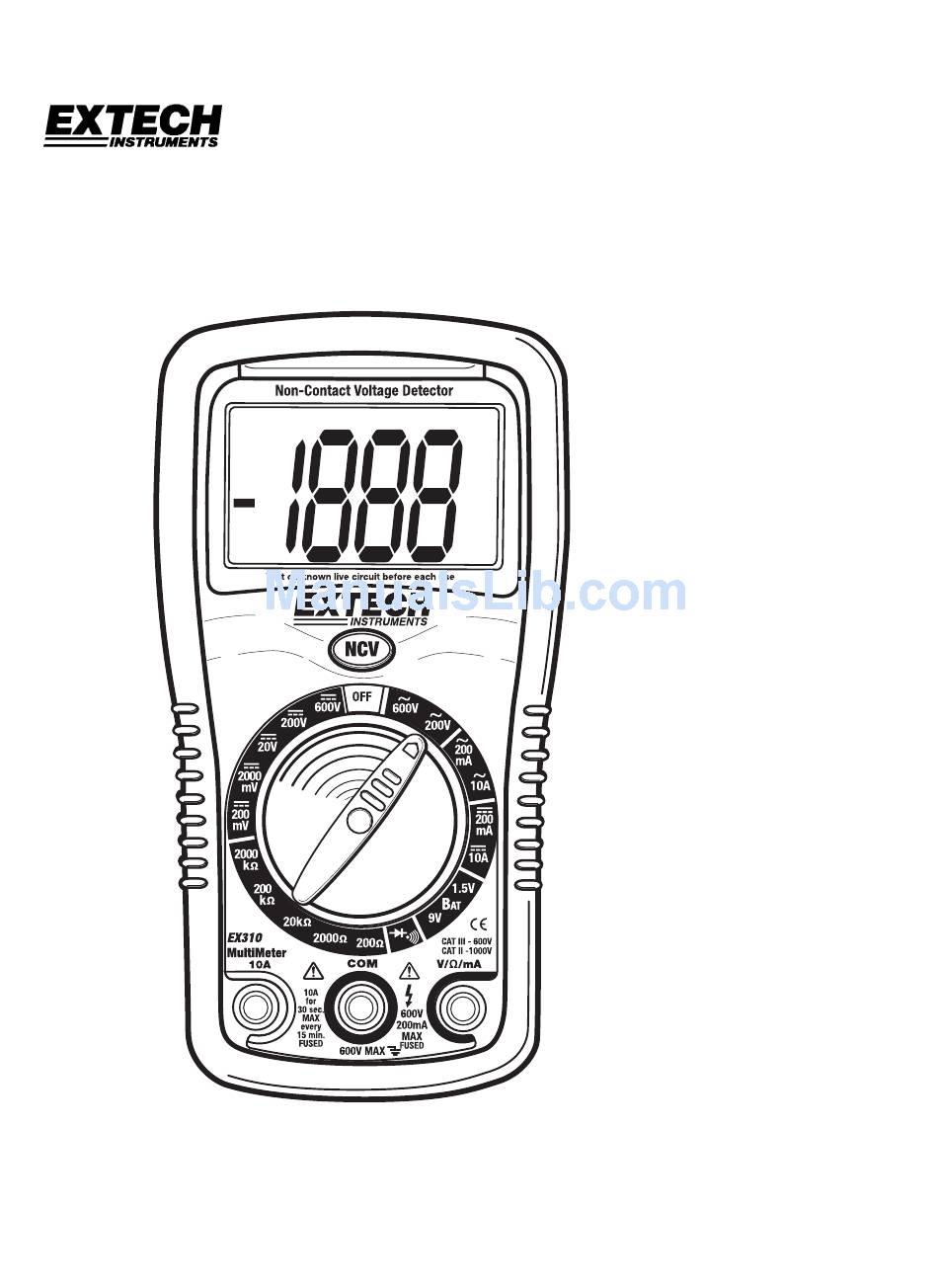

User's Guide
Mini Multimeter
with Non-Contact Voltage Detector (NCV)
Model EX310

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extech Instruments EX310

Summary of Contents for Extech Instruments EX310

  • Page 1 User's Guide Mini Multimeter with Non-Contact Voltage Detector (NCV) Model EX310...

  • Page 2: Safety Instructions

    Introduction Congratulations on your purchase of the Extech EX310 MultiMeter. The EX310 offers AC/DC Voltage, AC/DC Current, Resistance, Diode, and Continuity testing plus a built-in non-contact Voltage Detector. Proper use and care of this meter will provide many years of reliable service.

  • Page 3: Controls And Jacks

    EX310 CAT II - 600V MultiMeter V/ /mA Symbols •))) Continuity Diode Battery status milli (10 ) (volts, amps) kilo (10 ) (ohms) Volts Amps Ω Ohms Alternating current Direct current Model EX310 - Version 7.1 – 05/2006...

  • Page 4: Non-Contact Ac Voltage Detector

    NON-CONTACT AC VOLTAGE DETECTOR The EX310 can detect the presence of AC voltage (from 100 to 600VAC) simply by being held very near to a voltage source. WARNING: Test the AC voltage detector on a known live circuit before each use.

  • Page 5: Ac Voltage Measurements

    Touch the red test probe tip to the positive side of the circuit. Read the voltage in the display. Move the function switch to successively lower VDC positions to obtain a higher resolution reading. Model EX310 - Version 7.1 – 05/2006...

  • Page 6: Battery Voltage Test

    Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit. Apply power to the circuit. Read the current in the display. Model EX310 - Version 7.1 – 05/2006...

  • Page 7: Resistance Measurements

    Touch the test probe tips to the circuit or wire you wish to check. If the resistance is less than approximately 100Ω, the audible signal will sound. If the circuit is open, the display will indicate “1___”. Model EX310 - Version 7.1 – 05/2006...

  • Page 8: Diode Test

    “1___” for the reverse test. A shorted diode will indicate the same value of resistance in both the reverse and forward test directions. An open diode will indicate “1___” in both test directions. Model EX310 - Version 7.1 – 05/2006...

  • Page 9: Maintenance

    Remove old or weak batteries so they do not leak and damage the unit. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the battery should be removed to prevent damage to the unit. Model EX310 - Version 7.1 – 05/2006...

  • Page 10: Low Battery Indication

    6. Secure the fuse/battery compartment cover using the Phillips head screw. 7. Place the protective rubber holster on the meter. 1. Removable Rubber Holster 2. Meter 3. Battery 4. Fuses 5. Compartment Cover 6. Rubber Holster Model EX310 - Version 7.1 – 05/2006...

  • Page 11: Replacing The Fuses

    Secure the fuse/battery compartment cover. Place the protective rubber holster on the meter. WARNING: To avoid electric shock, do not operate your meter until the fuse cover is in place and fastened securely. Model EX310 - Version 7.1 – 05/2006...

  • Page 12: Range Specifications

    • (+ digits) – This is the accuracy of the analog to digital converter. Accuracy is stated at 65 F to 83 F (18 C to 28 C) and less than 75% RH. Model EX310 - Version 7.1 – 05/2006...

  • Page 13: General Specifications

    OVERVOLTAGE CATEGORY IV Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation. Note – Examples include electricity meters and primary over-current protection equipment Warranty Model EX310 - Version 7.1 – 05/2006...

  • Page 14: Calibration And Repair Services

    EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
