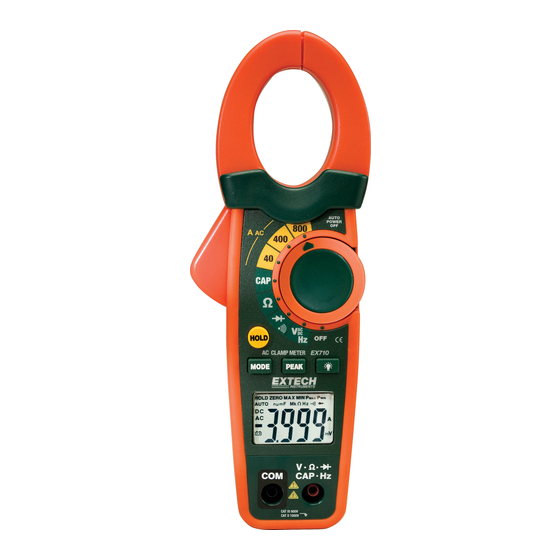

- Page 1 99 Washington Street User's Guide Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com 800 Amp AC Clamp Meter Model EX710...
-
Page 2: International Safety Symbols
Introduction Congratulations on your purchase of the EX710 Clamp DMM. Careful use of this meter will provide many years of reliable service. Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. - Page 3 • Expired or damaged batteries can cause cauterization on contact with the skin. Always, therefore, use suitable hand gloves in such cases • See that the batteries are not short-circuited. Do not throw batteries into the fire. EX710-EU-EN-V3.2-3/12...
-
Page 4: Meter Description
Direct Current / Alternating Current Low battery mV or V Milli-volts or Volts (Voltage) Ω Ohms (Resistance) Amperes (Current) Farad (Capacitance) Hertz (Frequency) n, m, μ, M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo •))) Continuity test Diode test EX710-EU-EN-V3.2-3/12... -
Page 5: Operation
Set the function switch to the V Hz position. Use the MODE button to select AC or DC Voltage. Connect the test leads in parallel to the circuit under test. Read the voltage measurement on the LCD display. EX710-EU-EN-V3.2-3/12... -
Page 6: Resistance Measurements
Touch the test probe tips across the part under test. Read the Frequency value on the display. The display will indicate the proper decimal point and value. Press and hold the MODE button again to return to the voltage mode. EX710-EU-EN-V3.2-3/12... -
Page 7: Continuity Measurements
If one reading displays a value (typically 0.400V to 0.900V) and the other reading displays OL, the diode is good. • If both readings display OL the device is open. • If both readings are very small or ‘0’, the device is shorted. EX710-EU-EN-V3.2-3/12... -
Page 8: Lcd Backlight Button
Automatic Power OFF In order to conserve battery life, the meter will automatically turn off after approximately 25 minutes. To turn the meter on again, turn the function switch to the OFF position and then to the desired function position. EX710-EU-EN-V3.2-3/12... -
Page 9: Specifications
± (5.0% + 20d) 400.0nF ± (3.0% + 5d) 4.000µF 40.00µF 400.0µF ± (4.0% + 10d) 4.000mF ± (10% + 10d) 40.00mF unspecified 4.000kHz ± (1.5% + 2d) Frequency Sensitivity: 100V (<50Hz); 50V (50 to 400Hz); 5V (401 to 4000Hz) EX710-EU-EN-V3.2-3/12... - Page 10 229 x 80 x 49mm (9.0 x 3.1 x 2.0"); 303g (10.7 oz). Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. EX710-EU-EN-V3.2-3/12...
-
Page 11: Maintenance
You can hand over your used batteries / accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle EX710-EU-EN-V3.2-3/12...
