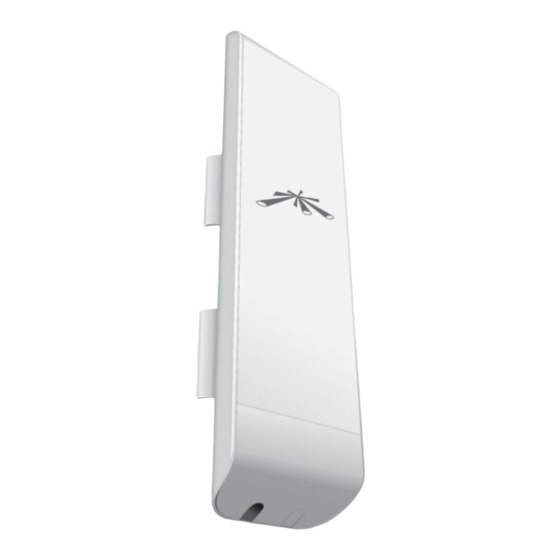

Ubiquiti airMAX NanoStationM2 Quick Start Manual

Ubiquiti airMAX NanoStationM2 Quick Start Manual

High-power 2x2 mimo airmax tdma station
Hide thumbs Also See for airMAX NanoStationM2:

Advertisement

High-Power 2x2 MIMO
airMAX
TDMA Station
Models:
NSM2/NSM3/NSM365/NSM5
locoM2/locoM5/locoM9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airMAX NanoStationM2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ubiquiti airMAX NanoStationM2

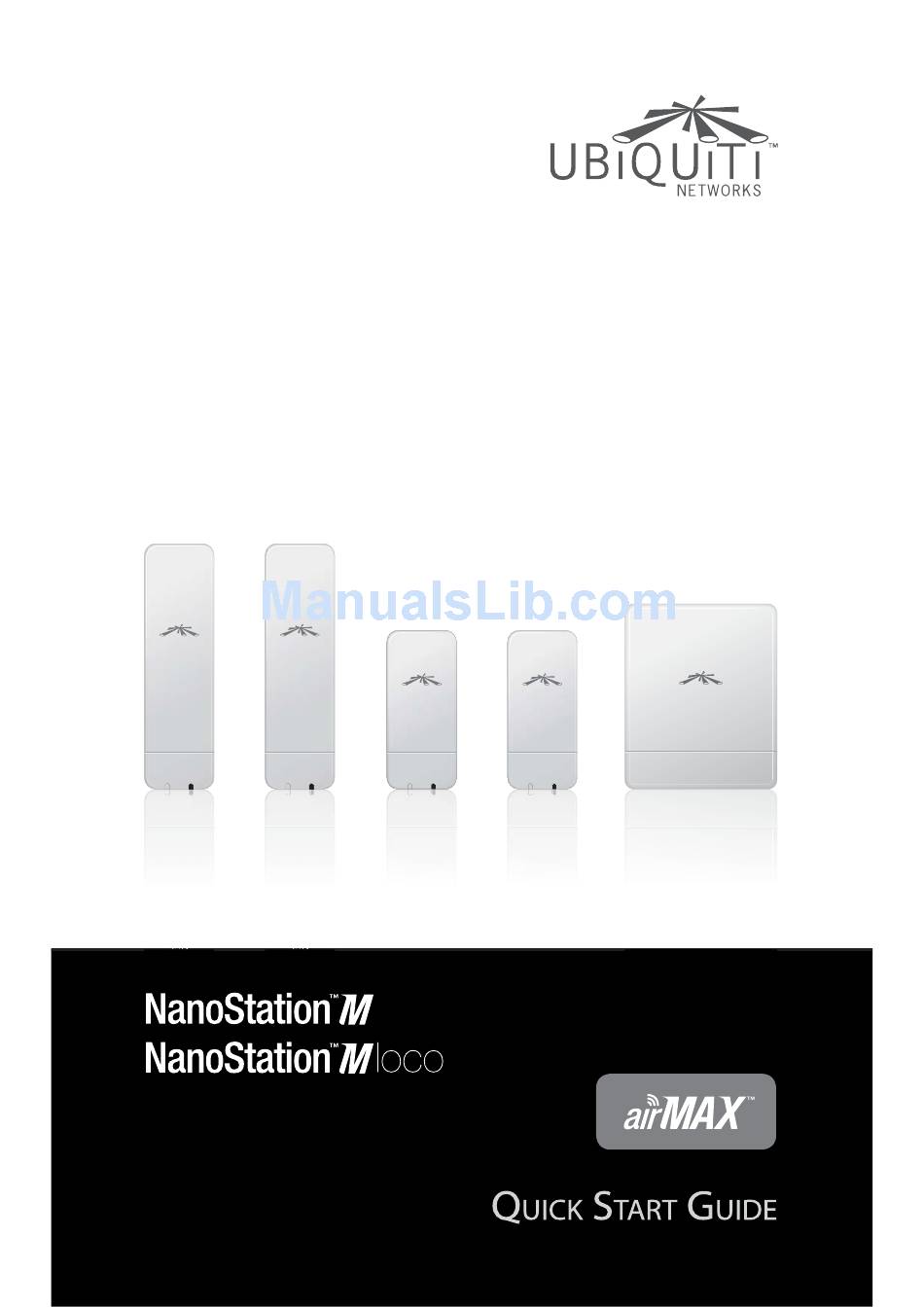

  • Page 1 High-Power 2x2 MIMO airMAX TDMA Station ™ Models: NSM2/NSM3/NSM365/NSM5 locoM2/locoM5/locoM9...
  • Page 3: Package Contents

    Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor...
  • Page 4: Hardware Overview

    NanoStation M/NanoStationloco M Quick Start Guide ™ ™ Hardware Overview Ports Reset Button Secondary Main Ethernet Ethernet Port Port Note: The Secondary Ethernet Port is included on only the NanoStation M2/M3/M5. It is capable of 24V Power over Ethernet output, which can provide power to a secondary device.
  • Page 5 Hardware Overview LEDs LAN1 LAN2 Power The Power LED will light green when the device is connected to a power source. LAN1 WAN/Main Ethernet The LAN1 Ethernet LED will light steady green when an active Ethernet connection is made to the Primary Ethernet Port and flash when there is activity.
  • Page 6: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Typical Deployment NanoStationloco...
  • Page 7 Connect to the airOS Configuration Interface. 1. Make sure that your host machine is connected to the LAN that is connected to the Ubiquiti device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
  • Page 8: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in...
  • Page 9: Specifications

    Specifications Specifications NanoStation Dimensions 294 x 30 x 80 mm Weight NSM2/NSM5 0.4 kg NSM3/NSM365 0.5 kg Operating Frequency NSM2 2412 - 2462 MHz NSM3 3400 - 3700 MHz NSM365 3650 - 3675 MHz NSM5 5170 - 5875 MHz* Gain NSM2 11 dBi NSM3/NSM365...
  • Page 10 NanoStation M/NanoStationloco M Quick Start Guide ™ ™ NanoStationloco Dimensions locoM9 164 x 72 x 199 mm locoM2/locoM5 163 x 31 x 80 mm Weight locoM9 0.9 kg locoM2/locoM5 0.18 kg Operating Frequency locoM9 902 - 928 MHz locoM2 2412 - 2462 MHz locoM5 5170 - 5875 MHz* Gain...
  • Page 11: Safety Notices

    UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.
  • Page 12: Warranty Conditions

    Ubiquiti MAC label, or is missing any other original Ubiquiti has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 13: Limitation Of Liability

    DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s...
  • Page 14: Industry Canada

    NanoStation M/NanoStationloco M Quick Start Guide ™ ™ NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 15 Compliance Cet appareil a été conçu pour fonctionner avec les antennes énumérés ci- dessous, et ayant un gain maximal de 25 dBi*. Antennes pas inclus dans cette liste ou ayant un gain supérieur à 25 dBi sont strictement interdite pour une utilisation avec cet appareil.
  • Page 16 NanoStation M/NanoStationloco M Quick Start Guide ™ ™ Deutsch Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.
  • Page 17: Declaration Of Conformity

    Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p [Czech] íslu n mi ustanoveními sm rnice 1999/5/ES.
  • Page 18 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS Íslenska device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í...
  • Page 20 Support support.ubnt.com Community community.ubnt.com Downloads downloads.ubnt.com w w w . u b n t . c o m © 2011-2013 Ubiquiti Networks, Inc. All rights reserved.
