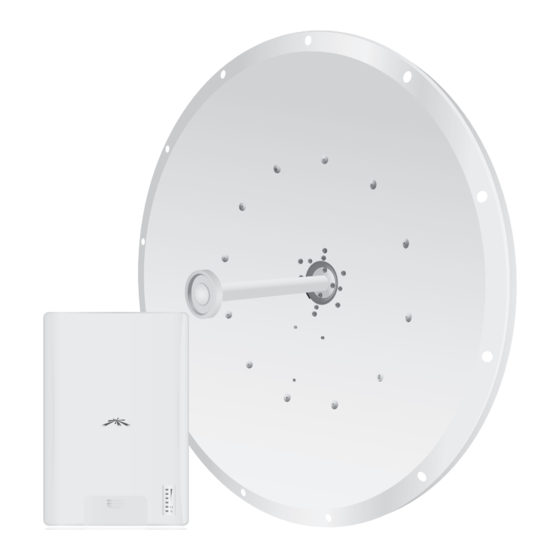

Ubiquiti airMAX PowerBridge M10 PBM10 Quick Start Manual

10 ghz carrier class airmax basestation with dish antenna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
10 GHz Carrier Class
airMAX BaseStation with
Dish Antenna
Model: PBM10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airMAX PowerBridge M10 PBM10 and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti airMAX PowerBridge M10 PBM10

Summary of Contents for Ubiquiti airMAX PowerBridge M10 PBM10

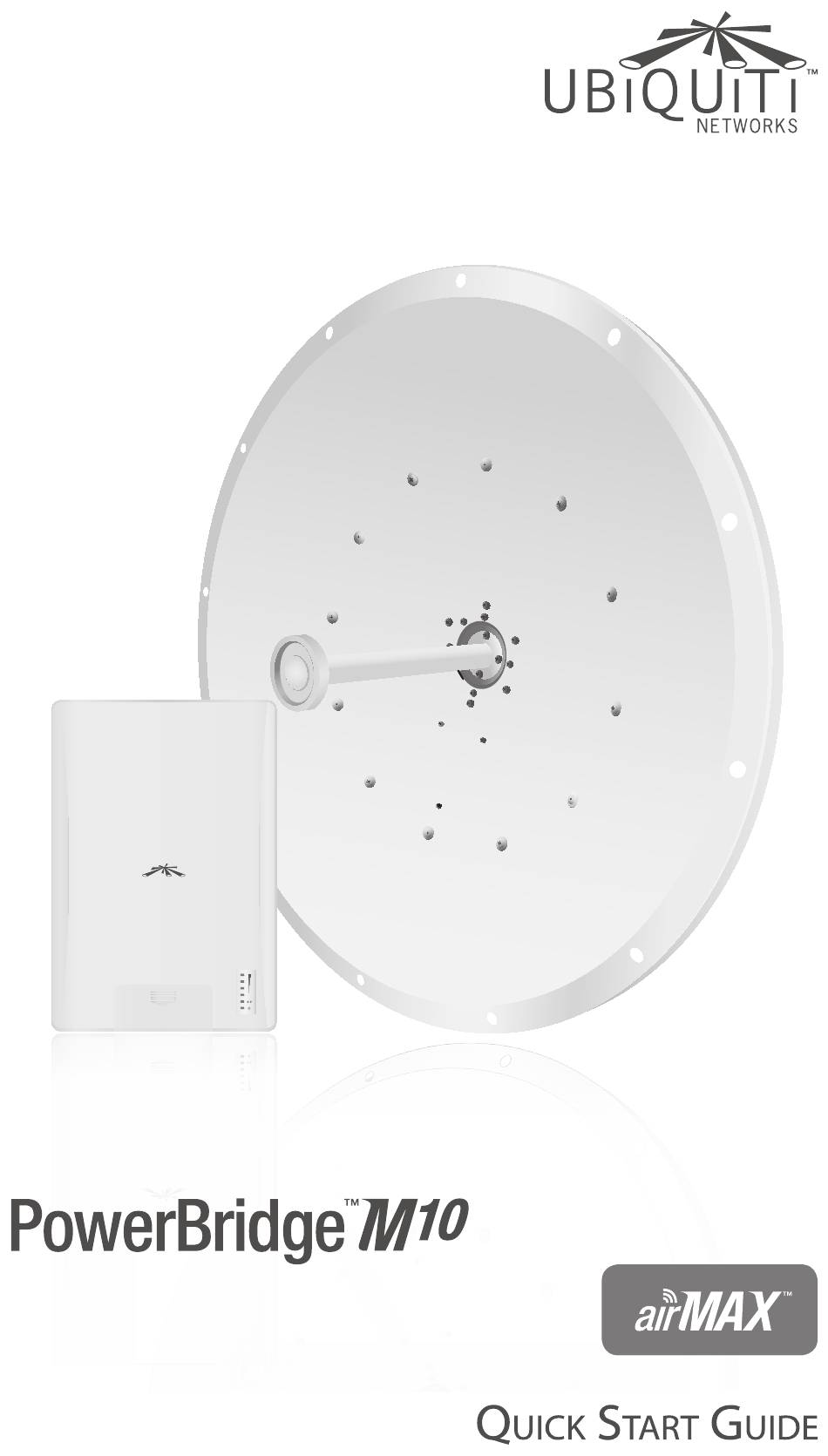

  • Page 1 10 GHz Carrier Class airMAX BaseStation with Dish Antenna Model: PBM10...

  • Page 2: Package Contents

    (24V, 1A) Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Installation To install the PowerBridgeM10, perform the following steps:...
  • Page 4 2. On the front of the Dish, use the four M4x18 Screw and Washer Assemblies to secure the Radio to the Dish.
  • Page 5 3. Connect the Elevation Rod to the back of the Dish using a M10x25 Bolt, a M10 Washer, a M10 Spring Lock Washer, and a M10 Hex Nut. Install a M16 Hex Nut about halfway down on the Elevation Rod and then install a M16 Washer on the Elevation Rod.
  • Page 6 5. Connect the Mounting Bracket to the Dish: a. Insert two M10x25 Bolts through the bottom of the Mounting Bracket and through the Dish. The bolts should be on the inside facing outward. b. Secure each bolt using a M10 Washer, a M10 Spring Lock Washer, and a M10 Hex Nut.
  • Page 7 6. Lift the cover on the Radio by pressing down and raising it up. Connect an Ethernet cable to the Radio and place the cover back on the Radio. There is an opening for the Ethernet cable. Slide the cover over the cable. 7.
  • Page 8 8. On the front of the Dish, connect the Feed to the Radio and Dish using the four M4x12 Screw and Washer Assemblies. Note: DO NOT handle the assembled unit by the feed at any time, especially during installation of the Dish to the pole.
  • Page 9 10. Place the Pole Clamps on the other side of the pole that the Dish will be mounted on and connect them to the Mounting Bracket using M10 Washers, M10 Spring Lock Washers, and M10 Hex Nuts.
  • Page 10 11. Adjust the Azimuth and Elevation. Azimuth can be adjusted by rotating the antenna while supported by the stabilizer bracket. Elevation is adjusted by loosening the Elevation Rod. Tighten all bolts and nuts to approximately 50 N-m (37 lb-ft) or less to avoid deforming the pole. Elevation Azimuth 12.
  • Page 11 13. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 14. Connect the power cord to the power port on the PoE Adapter. Connect the other end of the power cord to a power outlet.
  • Page 12 ™ Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected to the LAN that is connected to the PowerBridgeM10. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.

  • Page 13: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional...

  • Page 14: Czech Republic

    Czech Republic The content in this section is for exclusive use in the Czech Republic; you are instructed to look for clear channels and manually set the channel to be used. Important Steps to Take before First Use 1. Search for channels that are already used in your area. For these channels, search for the pair channels.

  • Page 15: Specifications

    Specifications PowerBridgeM10 Radio Dimensions 170 x 250 x 53 mm (without the Feed) 170 x 250 x 272 mm (with the Feed) Weight 1.15 kg (without Feed) 1.2 kg (with Feed) 11 kg (with Feed, Dish, and Mount) Networking Interface (1) 10/100 Ethernet Port Enclosure Characteristics Die-Cast Aluminum...

  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 17: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s). (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 20: Industry Canada

    Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 21 NB-In den tification Number (if there is an y) Notified body n umber is in dicated if it is in volved in the con formity assessmen t procedure. Please check the CE mark on the product label to fin d out which n otified body was in volved durin g assessmen t.
  • Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 23: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 24: Online Resources

    NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
