Summary of Contents for Ubiquiti NanoBeam M

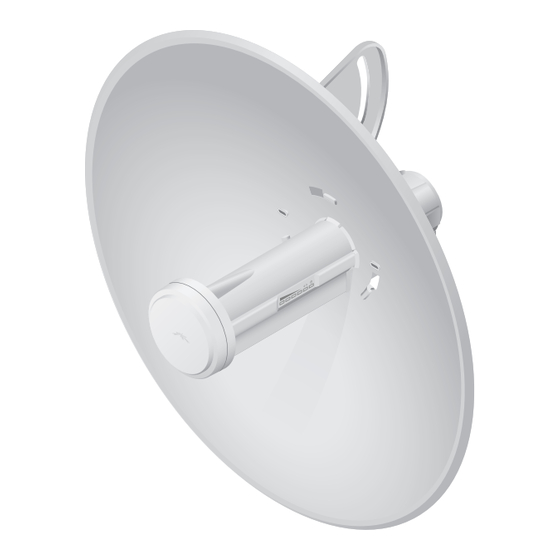

- Page 1 High-Performance airMAX Bridge ™ Model: NBE-M5-300...
- Page 2 Quick Start Guide (24V, 0.5A) TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations including operation within legal frequency channels output power and Dynamic Frequency Selection (DFS) requirements.
- Page 3 Hardware Overview Bottom View Antenna Feed Ethernet Port Reset Button Release Button Dish Reflector Dish Bracket Alignment Pins Rear Housing Release Button Slot Cable Door...
- Page 4 Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoBeam is already powered on. Release Button After you assemble the NanoBeam, check the Release button; it should be fully engaged in the Release Button Slot of the Rear Housing.
- Page 5 Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable...
- Page 6 Installation 1. Align and insert the tabs of the Dish Bracket into the slots of the Dish Reflector. Rotate the Dish Bracket counter-clockwise until the tabs lock into place. 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Dish Bracket.
- Page 7 3. Push in the sides of the Cable Door and detach it from the Rear Housing. 4. Attach the Antenna Feed: a. Insert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b.
- Page 8 5. Connect the Ethernet cable: a. Connect an Ethernet cable to the Ethernet Port of the Antenna Feed. b. Re-attach the Cable Door to the Rear Housing.
- Page 9 6. Insert the U-Bolt into the Pole Clamp and Dish Bracket. Secure each end of the U-Bolt with a Washer and a Flange Nut. 10 N-m (7 lb-ft) Note: The mounting assembly can accommodate a Ø 1.25" - 2.2" pole.
- Page 10 7. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the PoE Adapter. 8. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 9.
- Page 11 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
- Page 12 5. Select the NanoBeam Dish Reflector size: a. Click the Wireless tab. b. F rom the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK to confirm. Customize additional settings as needed to complete the configuration.
- Page 13 Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in...
- Page 14 Specifications NanoBeamM5 Dimensions 325 x 325 x 256 mm (Mount Included) Weight 1.203 kg (Mount Included) Operating Frequency Worldwide: 5170 - 5875 MHz USA: 5725 - 5850 MHz Gain 22 dBi Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Max.
- Page 15 Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
- Page 16 (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s). (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.
- Page 17 SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
- Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 19 Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
- Page 22 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
- Page 23 NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
- Page 24 . u b n t . c o m © 2012-2013 Ubiquiti Networks Inc. All rights reserved. JL072513...
